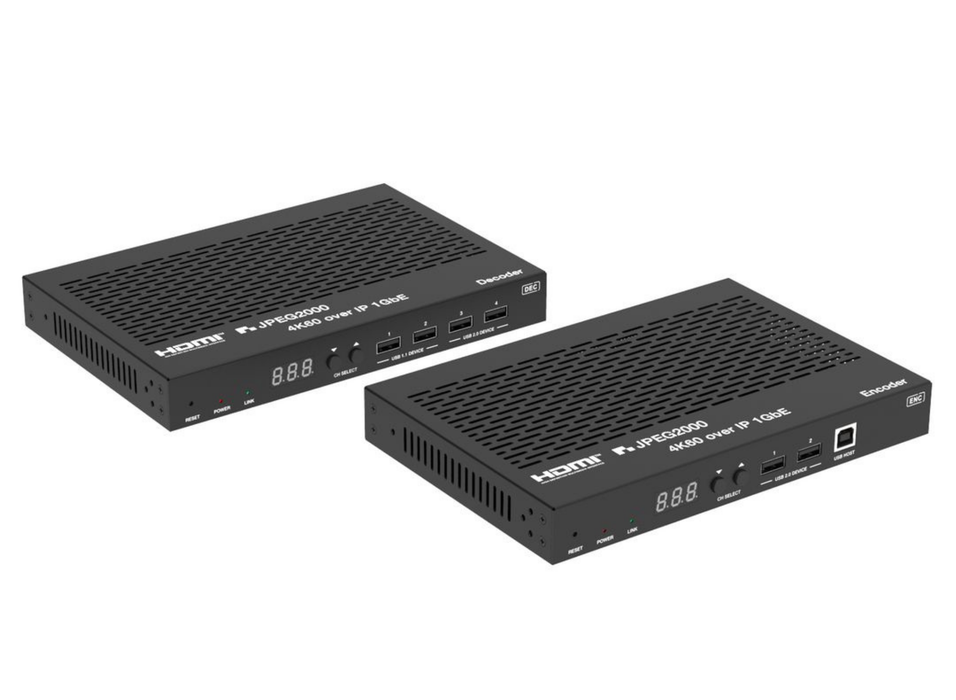

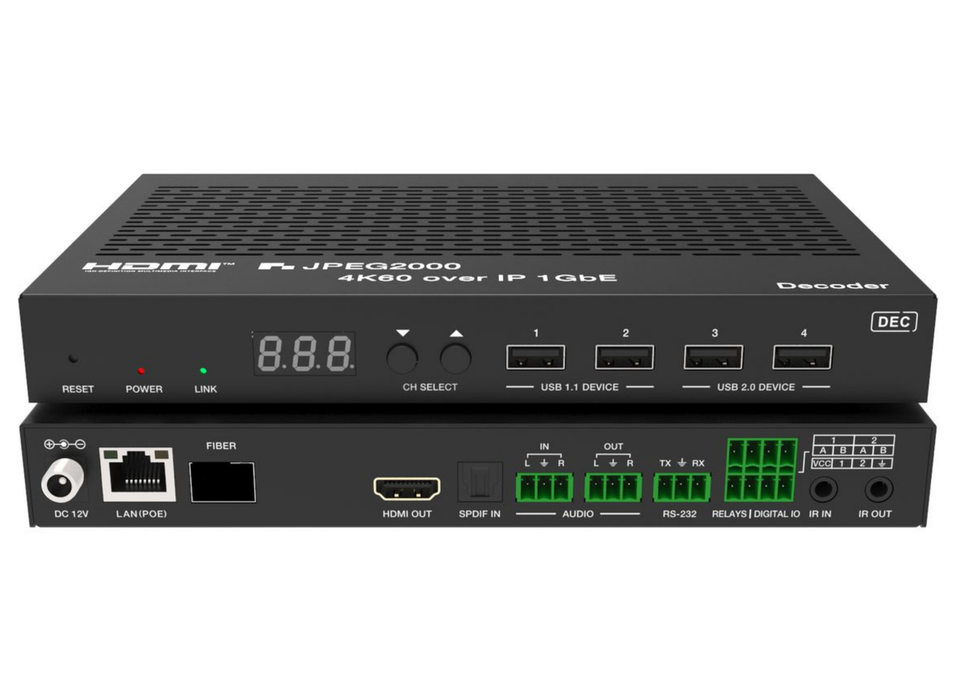

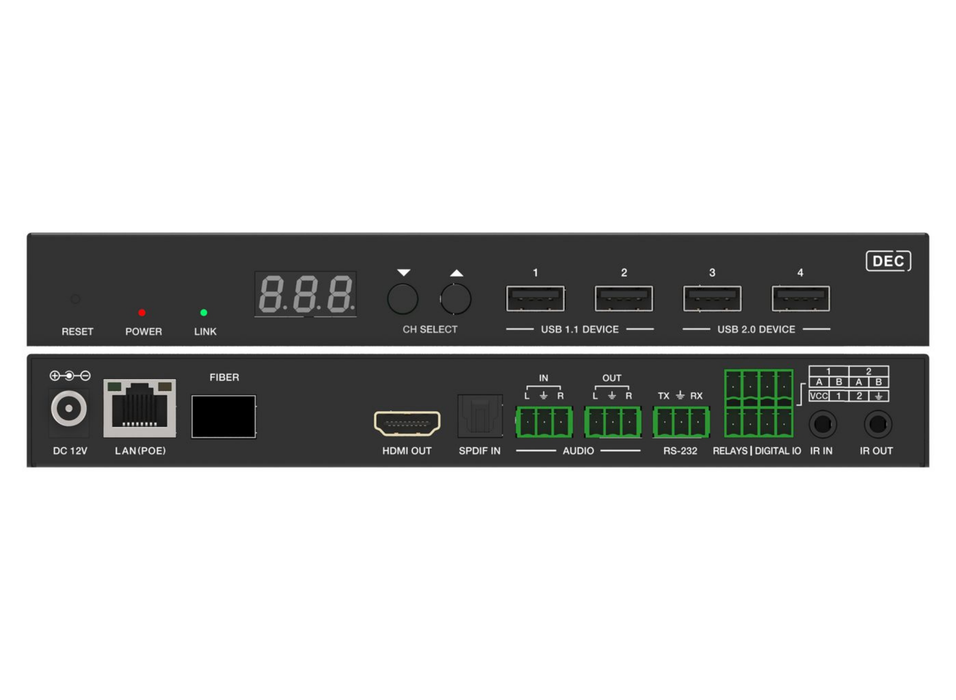

Vivolink JPEG2000 4K60 HDR AV over IP with KVM and eARC/ARC | VLVWIP2000-DEC
SKU: VLVWIP2000-DEC
£545.89 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Advanced Control via RS-232, IR & CEC
Vivolink VLVWIP2000-ENC is based on JPEG2000 technology.
It integrates Copper port and Fiber port within a single box. Encoder input supports up to 4K60 4:4:4, audio embedding or extracting.
Decoder output supports up to 4K60 4:4:4, audio extracting.
The product supports ARC/eARC/S/PDIF/Analog audio return function, also supports USB2.0/KVM/Camera, 1G Ethernet, bidirectional RS- 232, two-way IR and POE function.
Guest mode controls of RS-232, IR, CEC are supported. Built-in two channel RELAY ports and two channel I/O ports for contact control. Dante AV-A mode is supported if the product is license activated.
Built-in MJPEG Substream which supports plenty API commands to achieve flexible configurations is useful for 3rd party control Apps to preview video content.
The system is based on Linux for software development, provides flexible control methods, that are based on the intelligent networking of 1G Ethernet Switch.
The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.
-
Audio support Yes Cable types supported Cat6a Connectivity technology Wired Easy to install Yes HDCP Yes HDCP version 2.2 KVM port selection OSD LED indicators Link/Power Maximum digital resolution 4096x2160@60Hz Plug and Play Yes Product colour Black Supported resolutions 4K@60Hz 4:4:4 USB 2.0 ports quantity 2 Country of Origin China EU ECCN Code N/A Tariff No. 8543709099 UNSPSC Code 43211601 US ECCN Code 5A992 Operating temperature -5 - 55 °C Storage temperature -25 - 70 °C Depth (package, cm) 28 cm Gross Weight (Package, kg) 0.82 kg Height (package, cm) 8 cm Width (package, cm) 18 cm AC adapter included Yes Power plug types EU Manual Yes Mounting bracket included Yes Quick installation guide Yes HDMI version 1.4b/2.0b Remote (IR) input 1 Remote (IR) output 1 RJ-45 ports quantity 1 RS-232 ports 1 USB port type USB Type-B AC input voltage 100 - 240 V DC voltage 12 V DC-in jack Yes Input current 2.5 A Power consumption 30 W Net Weight (Product, kg) 0.5 kg Product Depth 13.5 cm Product Height 2.5 cm Product Width 20.3 cm Receiver video port HDMI Receiver video ports qty 1 Receiver USB Type-A ports qty 4 RJ-45 ports (receiver) 1 Dimensions (WxDxH) 205 x 140 x 26 mm Maximum resolution 4096x2160 pixels Video in HDMI Weight 265 g Transmitter keyboard/mouse USB Brand Name Vivolink Warranty 3 Year(s) -
Description Downloads Datasheet Download
