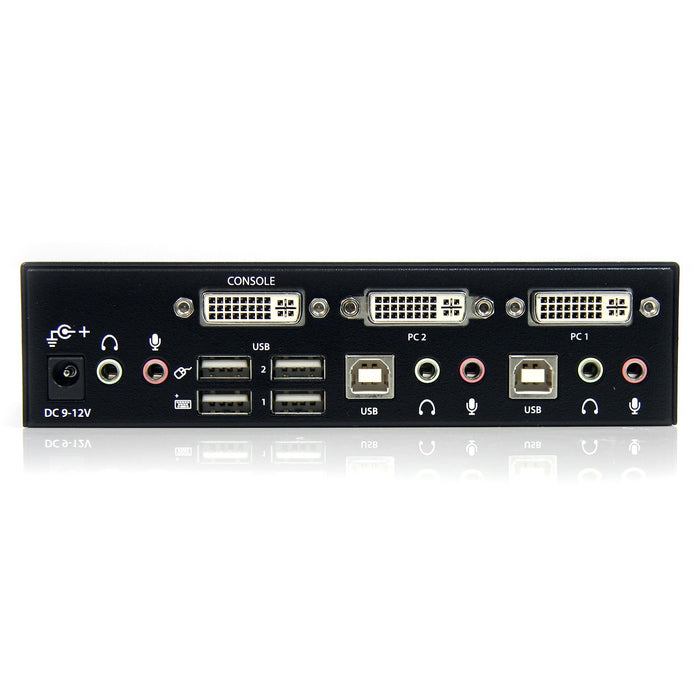

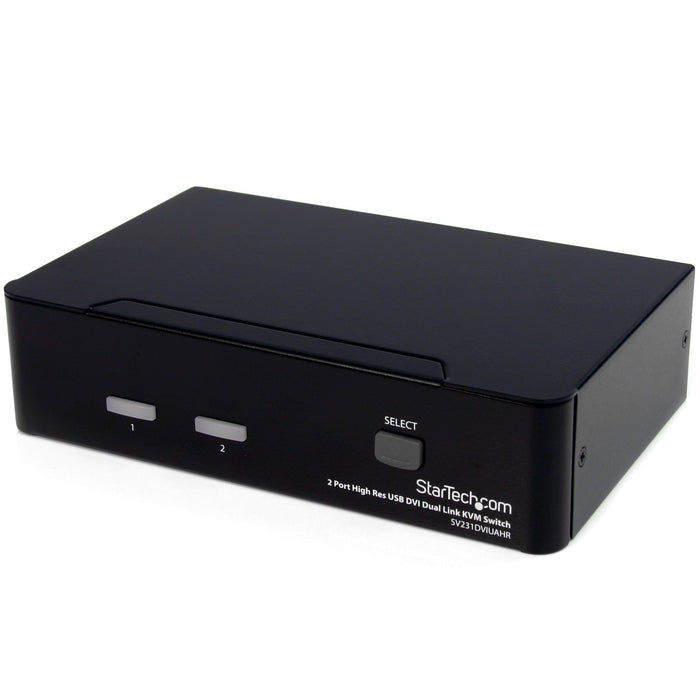

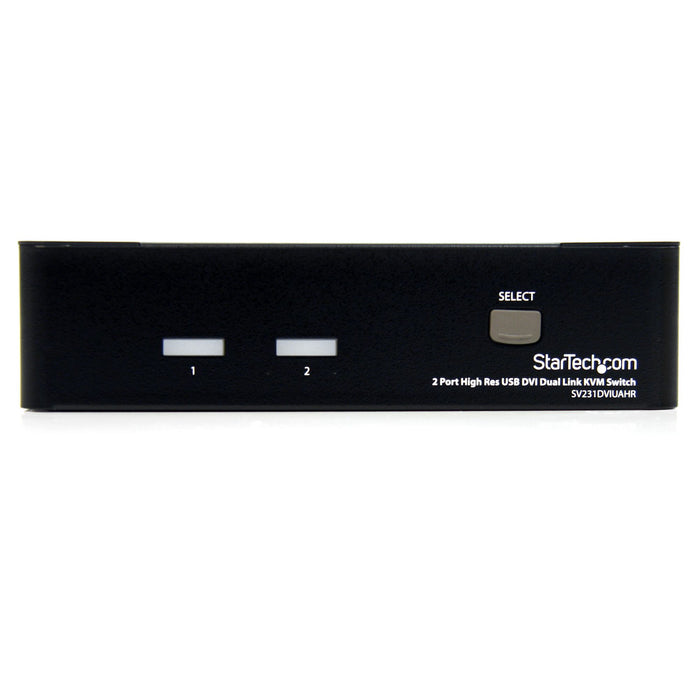

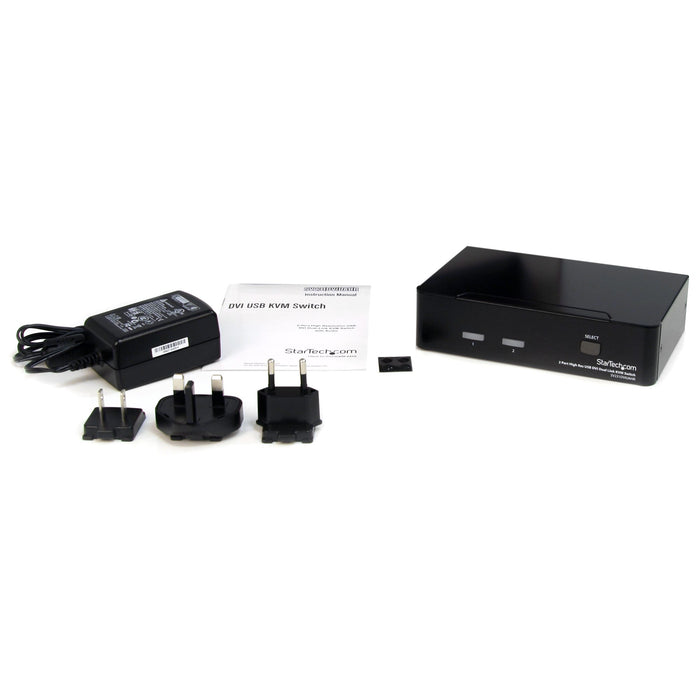

StarTech 2 Port High Resolution USB DVI Dual Link KVM Switch with Audio | SV231DVIUAHR
SKU: SV231DVIUAHR
£177.59 (Excl. VAT)
- Description
- Specifications
- Downloads
-
StarTech 2 Port High Resolution USB DVI Dual Link KVM Switch with Audio | SV231DVIUAHR
The SV231DVIUAHR 2-Port High Resolution Dual-Link DVI USB KVM Switch provides simple, yet comprehensive control of 2 directly-connected computers, as well as audio switching capability and support for high resolution applications (supports resolutions beyond 1080p: 2560x1600 @ 60Hz, up to 3840 x 2400 at lower refresh rates), offering a superior KVM switching solution that integrates perfectly into demanding imaging, medical, and multimedia environments.
This 2-port DVI USB KVM Switch is compatible with all USB-supported operating systems, and features a built-in USB 2.0 hub that allows you to share additional (up to 2) high speed USB devices between computers.
Applications
Designed for large and high resolution displays such as Multimedia Displays, Stock trading setups, and Medical ScreensIdeal for using desktops, workstations and servers with Ultra High resolution displays
Great for television and graphic production studios where crisp, loss-less digital images are crucial
Sharing high-end gaming computers and USB devices in the home
-
Category Detail Warranty Information 3 Years Connector(s) Console Interface(s) 4 - USB 2.0 Type-A (4 pin, 480Mbps) 2 - 3.5 mm Mini-Jack (3 Position) 1 - DVI-I (29 pin) Host Connectors 4 - 3.5 mm Mini-Jack (3 Position) 2 - DVI-I (29 pin) 2 - USB B (4 pin) Environmental Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Humidity 0~80% RH Hardware Audio Yes KVM Ports 2 PC Interface USB PC Video Type DVI Number of Monitors Supported 1 Rack-Mountable No Cables Included No Daisy-Chain No Packaging Information Package Height 9.8 cm [3.9 in] Package Length 25.2 cm [9.9 in] Package Width 19.0 cm [7.5 in] Package Quantity 1 Shipping (Package) Weight 1.1 kg [2.5 lb] Performance On-Screen Display No DVI Support Yes IP Control No Hot-Key Selection Yes Maximum Digital Resolutions 2560x1600 @ 60Hz Maximum Number of Users 1 Port Selection Support Push Button and Hotkeys MTBF 126,397 hours Physical Characteristics Color Black Material Steel Product Length 15.9 cm [6.3 in] Product Width 10.0 cm [3.9 in] Product Height 4.0 cm [1.6 in] Weight of Product 0.6 kg [1.4 lb] Power Power Source AC Adapter Included Input Voltage 100 - 240 AC Input Current 0.8A Output Voltage 12V DC Output Current 1.5A Center Tip Polarity Positive Plug Type M Power Consumption (In Watts) 18 Software OS Compatibility OS independent; No software or drivers required Special Notes / Requirements Note: Resolutions exceeding 2560x1600 can be obtained by using a lower refresh rate. Example 3840x2400 @30Hz What's in the Box Included in Package 1 - 2 Port DVI USB KVM 1 - Rubber Foot Pad 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand 1 - User Manual -
Description Downloads Datasheet Downloads User Manual Downloads
