  • Description
  • Specifications
  • Downloads
  • StarTech 2-Port USB-C KVM Switch, Single 4K 60Hz DisplayPort Monitor | SV231DPUCA

    This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.

    4K 60Hz Resolution
    This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.


    Analog and Digital Audio

    This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.

    Intuitive Control

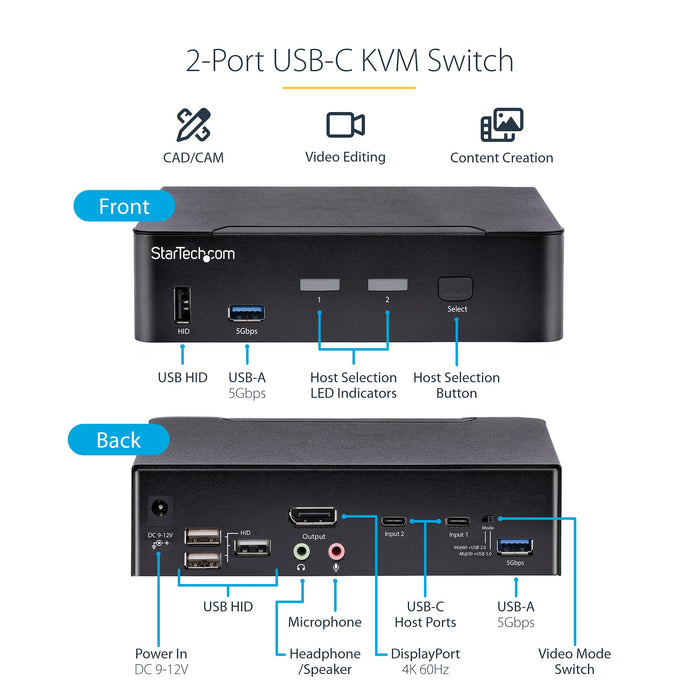

    The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.

    Applications

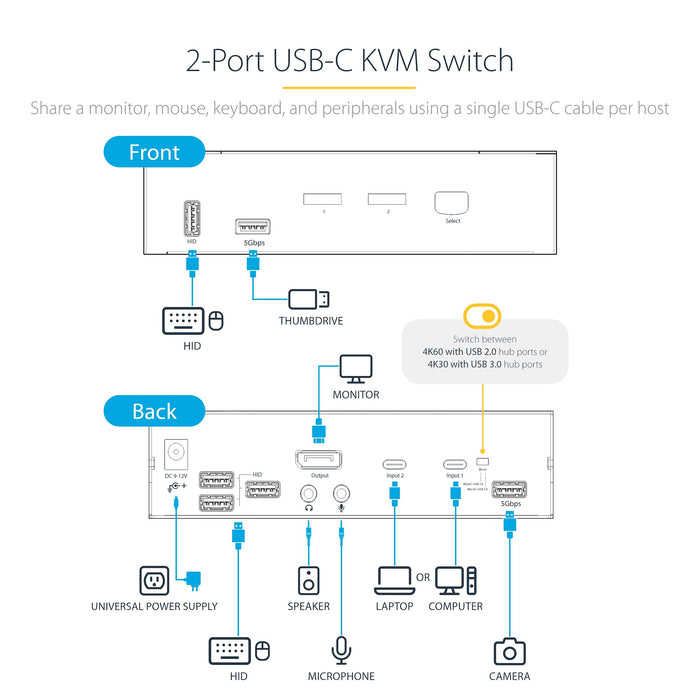

    Share a monitor, mouse, keyboard, and peripherals using a single USB-C cable per host

    Great for applications like CAD/CAM, video editing, and content creation

  • Category Details
    Warranty Information Warranty: 2 Years
    Connector(s) Console Interface(s):
    1 - 20 pin DisplayPort Female
    2 - 9 pin USB 3.0 A Female
    4 - USB Type-A (4 pin; HID Port) USB 1.1
    2 - 3.5 mm Stereo Audio (3 Position) Female
    Host Connectors 2 - USB-C (24 pin) DisplayPort Alt Mode
    Environmental Operating Temperature: 0°C to 40°C (32°F to 104°F)
    Storage Temperature: -10°C to 60°C (14°F to 140°F)
    Humidity: 0 ~ 80% RH
    Hardware Audio: Yes
    KVM Ports: 2
    PC Interface: USB-C
    PC Video Type: USB-C (DP Alt-Mode)
    Number of Monitors Supported: 1
    Rack-Mountable: No
    Cables Included: No
    Chipset ID: Parade - PS8461, Etron - EJ899I
    Daisy-Chain: No
    Indicators LED Indicators: 2 - Red (Selected Host), 2 - Green (Power/Sync)
    Packaging Information Shipping (Package) Weight: 2.1 lb [1.0 kg]
    Package Height: 3.5 in [8.9 cm]
    Package Length: 9.4 in [23.8 cm]
    Package Width: 7.2 in [18.4 cm]
    Package Quantity: 1
    Performance On-Screen Display: No
    Video Revision: DisplayPort 1.2
    IP Control: No
    Hot-Key Selection: Yes
    Maximum Data Transfer Rate: 5 Gbps
    Wide Screen Supported: Yes
    Audio Specifications: Analog Stereo - 2 Channel Audio
    Auto Scan: 3, 8, 15 & 30 seconds
    Port Selection Support: Push Button and Hotkeys
    MTBF: 158,000 hrs
    Physical Characteristics Product Height: 1.6 in [4.0 cm]
    Weight of Product: 1.4 lb [0.6 kg]
    Product Length: 6.3 in [16.0 cm]
    Product Width: 5.5 in [14.0 cm]
    Power Power Source: AC Adapter Included
    Input Voltage: 100 - 240 AC
    Input Current: 1.2A
    Output Voltage: 12V DC
    Output Current: 3A
    Center Tip Polarity: Positive
    Plug Type: M
    Software OS Compatibility: No software or drivers required

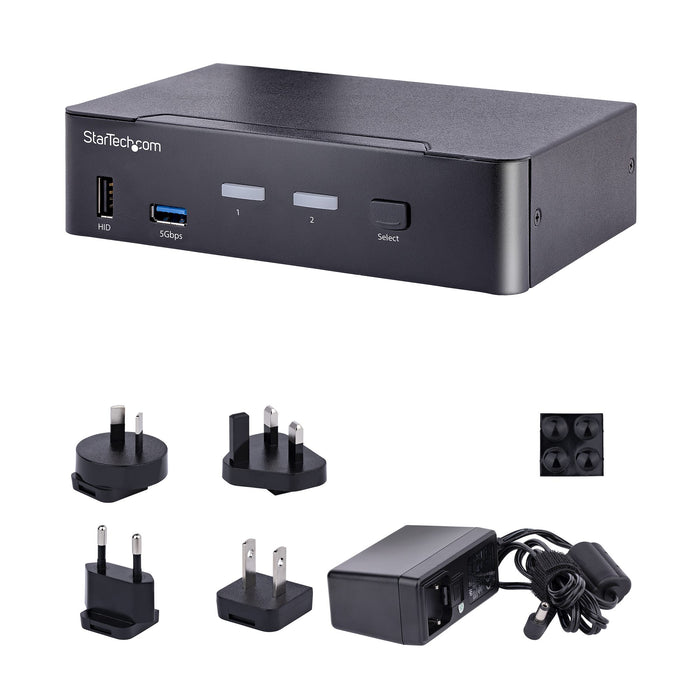

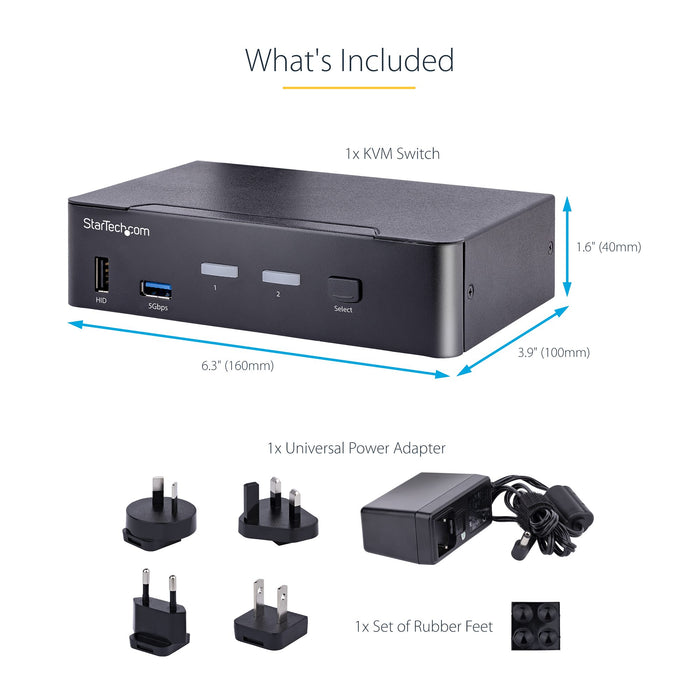

    What's in the Box Included in Package:
    1 - KVM Switch
    1 - Set of Rubber Feet
    1 - Universal Power Adapter
    1 - Quick-Start Guide
  • Description Downloads
    Datasheet Downloads
    User Manual Downloads
