The Bose Professional DesignMax DM12SE is a weatherized, full-range, 12-inch coaxial surface-mount loudspeaker that delivers deep bass and consistent 102° conical coverage. Combining high output, clear intelligibility, and the sleek aesthetic the DesignMax family is known for, it delivers the flexibility integrators need for indoor or outdoor installations in performance, hospitality, worship, and retail spaces.
FEATURES
12” coaxial transducer delivers clear, full-range sound with consistent 102° conical coverage
Weatherized, injection-molded enclosure for indoor and outdoor reliability
Deep bass response down to 38 Hz for powerful low-end performance
Coaxial point-source design ensures clarity and uniformity across the space

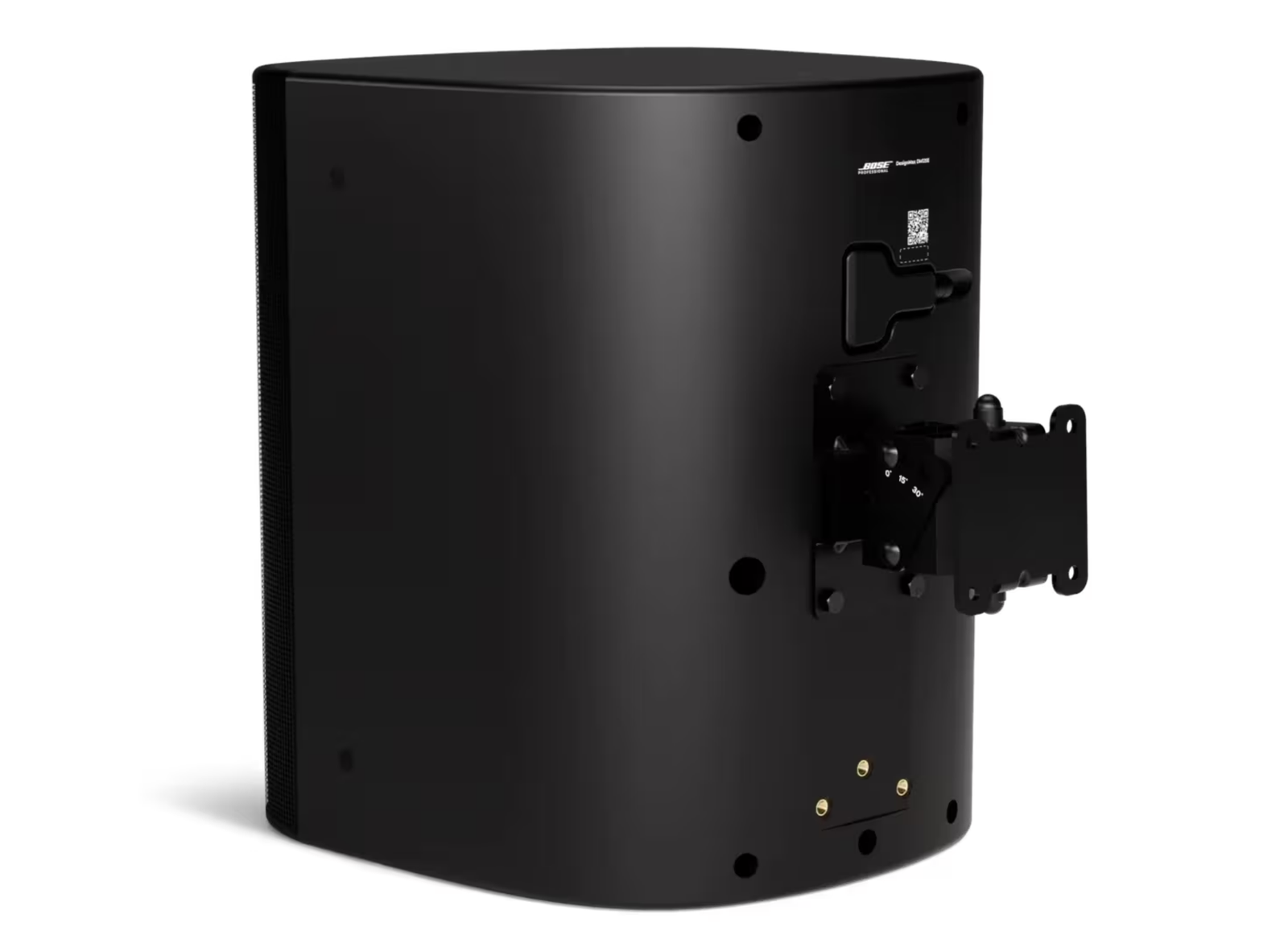

Rugged, outdoor-ready pan/tilt bracket enables fast installs, precise aiming, and long-term reliability
Factory-optimized tunings for Bose Professional amplifiers and processors
Available in black or white finishes matching the sleek DesignMax aesthetic
Applications
Designed for a wide range of applications, including:
Performance venues
Places of worship
Hospitality spaces
Fitness studios
Retail stores
Nightlife and bar areas
Outdoor patios and courtyards
Theaters and multipurpose rooms
Included in Packaging
(1) DesignMax DM12SE
(1) input panel cover
(1) installation guide
(1) Surface-Mount Pan and Tilt Bracket
| Colors | White grille (similar to RAL 9003), black grille (similar to RAL 9005), paintable | Enclosure Material | Engineered plastics, injection-molded, UV fade-resistant |
| Environmental | Outdoors or indoors, IP55 | Grille | Perforated aluminum, powder-coated finish, tamper-resistant design, paintable |
| Ingress Protection | IP55 | Logo | Rotatable |

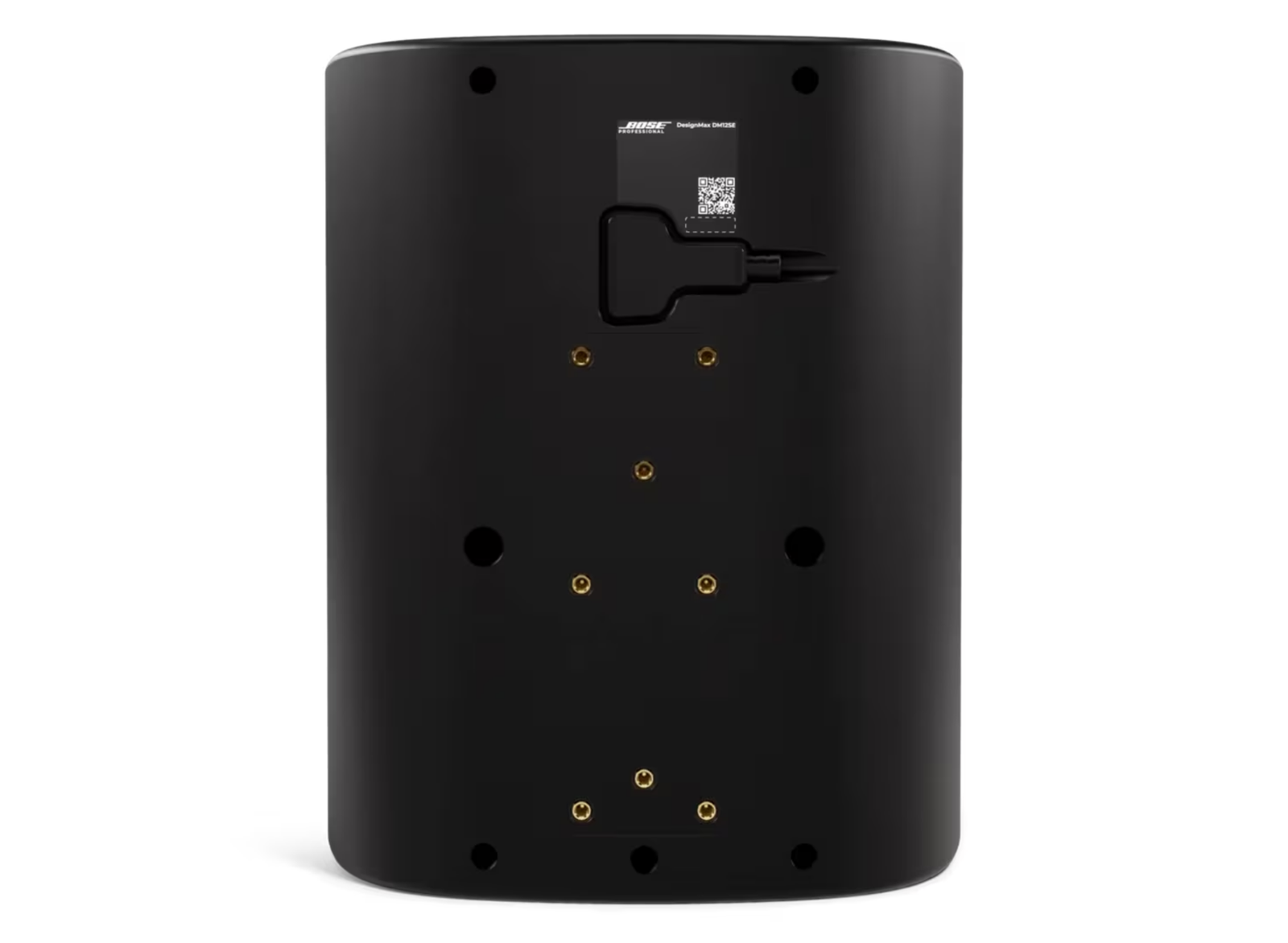

| Suspension/Mounting | (12) M8 threaded inserts (2 top, 2 side, 8 rear) | Operating Temperature Range | -25 °C to 70 °C (-13 °F to 158 °F) |

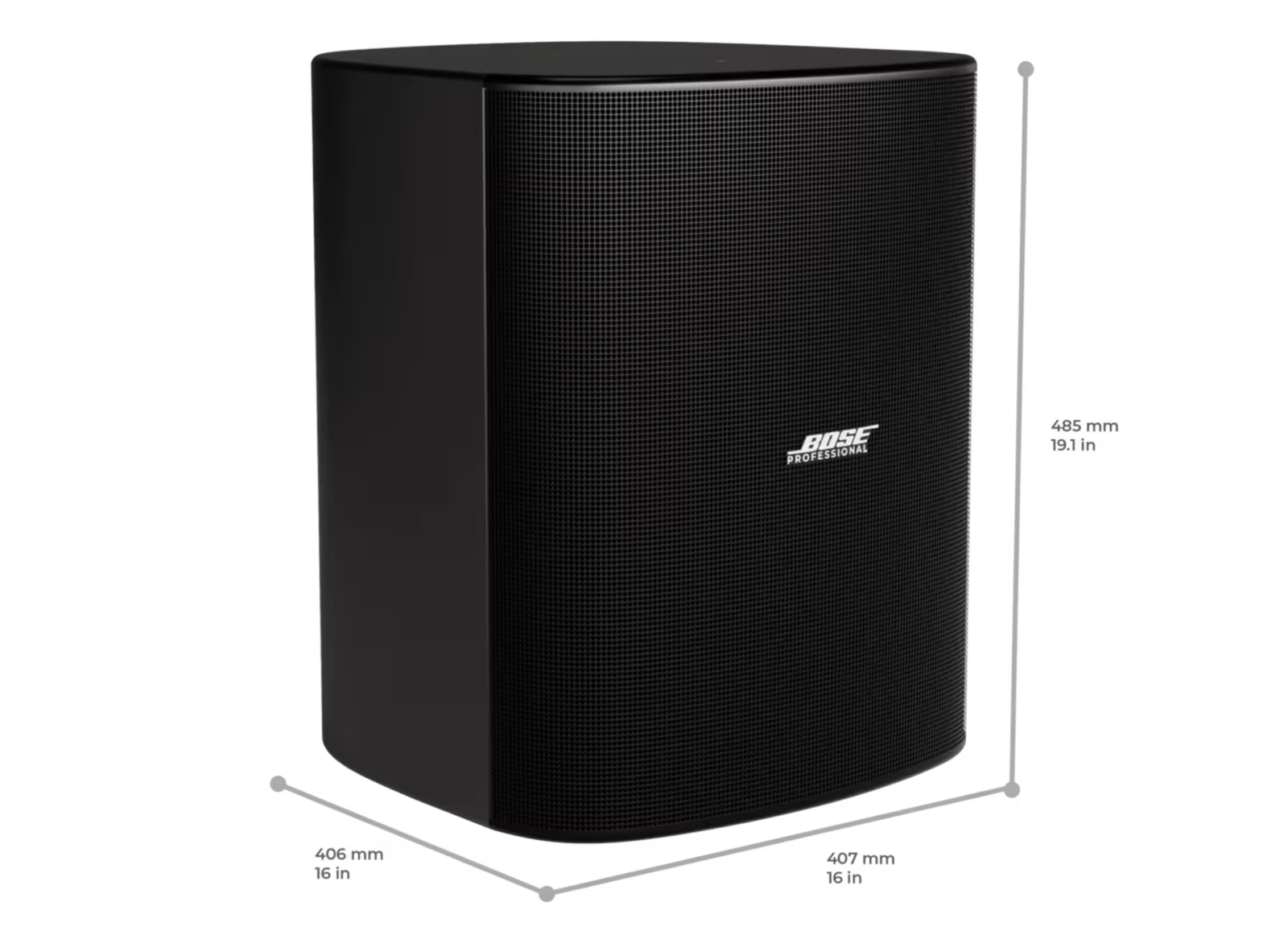

| Product Dimensions (H×W×D) | 19.1 in × 16.0 in × 16.0 in (485 mm × 407 mm × 406 mm) | Net Weight | 37.4 lb (16.9 kg) |
| Frequency Range (-10 dB) | 38 Hz – 20,000 Hz | Coverage, Horizontal | 102° conical |
| Calculated Maximum SPL @ 1 m | 119 dB | Nominal Impedance | 8 Ω |
| Power Handling, Long-Term Continuous | 300 W | Power Handling, Peak | 1200 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available | Sensitivity (SPL/1 W at 1 m) | 94 dB |
| Coverage, Vertical | 102° conical | Driver Protection | Recommended High-pass Protection 40 Hz with minimum 12-dB/octave filter |

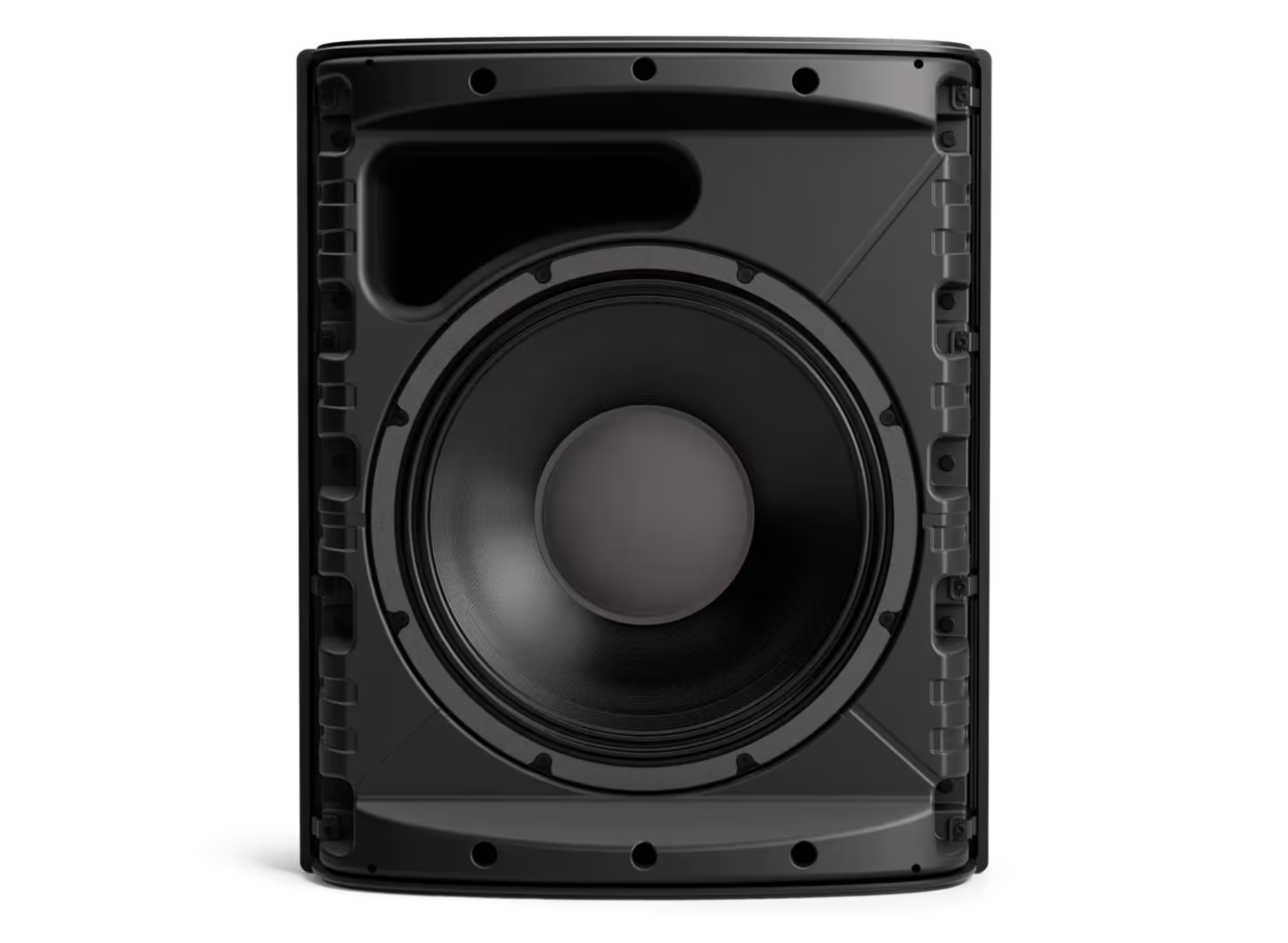

| High-Frequency | 1 × 1.4 in (36 mm) compression driver, 1.0-in (25 mm) exit, coaxial center-firing, weather-treated | Low-Frequency | 1 × 12 in (305 mm) woofer, weather-treated |
| Description | Downloads |
|---|---|
| Datasheet | Download |
