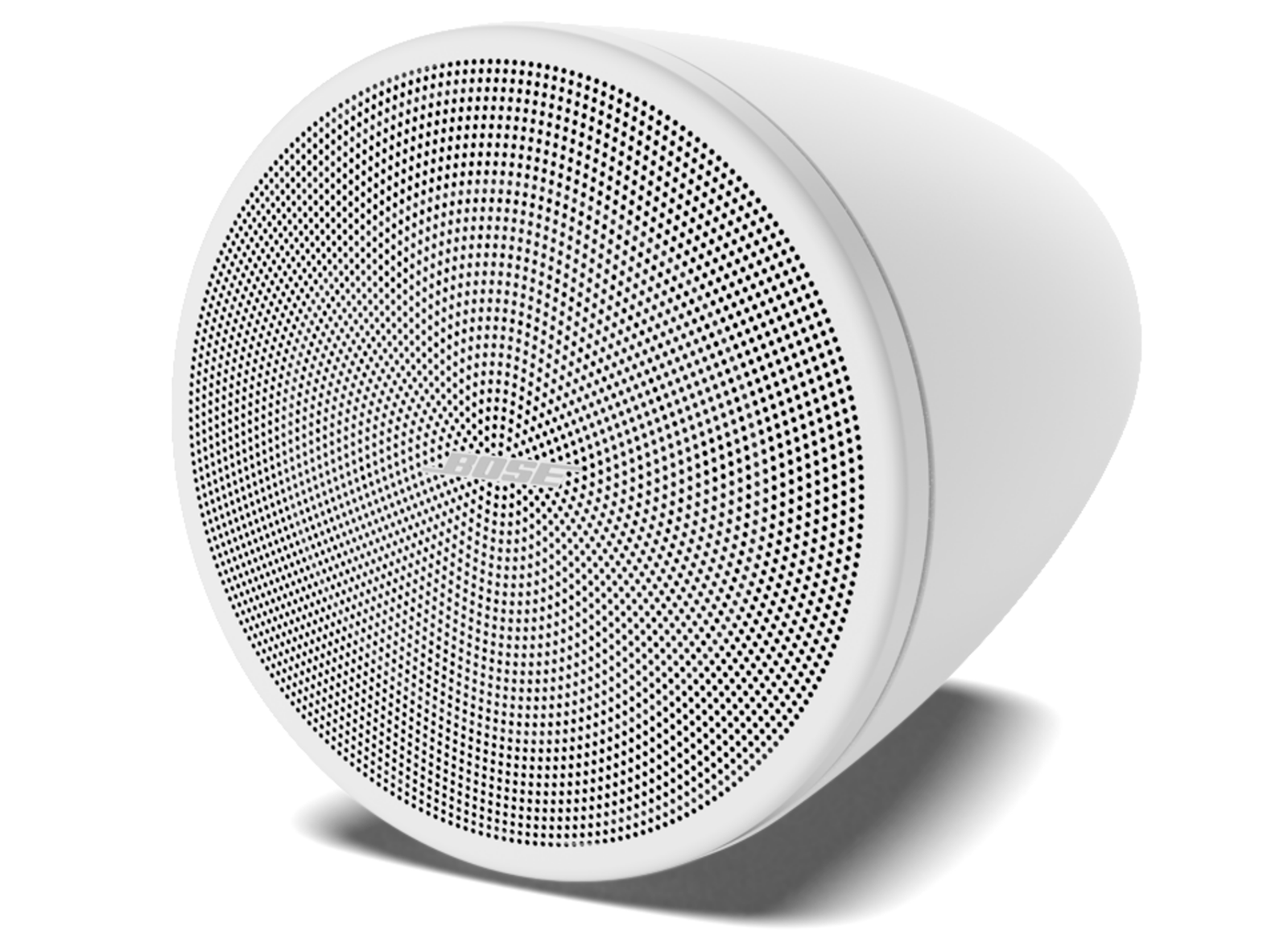

With a coaxial two-way design, the 30-watt Bose Professional DesignMax DM3P loudspeaker offers clear, intelligible highs and surprising low end for its size — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 3.25-inch woofer and 0.75-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
FEATURES
Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
Choose from three DM3 models — the in-ceiling DM3C, the surface-mounted, outdoor-rated DM3SE, and the sleek DM3P pendant loudspeaker
Deliver clear highs and surprising low end for their size with a coaxial two-way design — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
| COMPLIANCE | |||
| Safety Agency Ratings | UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant | ||
| PHYSICAL | |||
| Colors | Black (similar to RAL 9005), white (similar to RAL 9003), paintable | Enclosure Material | Engineered plastics |
| Environmental | Indoor only | Grille | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable | Suspension/Mounting | 1 suspension attachment point, 1 safety cable attachment point |
| Operating Temperature Range | 0 °C to 50 °C (32 °F to 122 °F) | Product Dimensions (H×W×D) | 8.2 in × 9.8 in (207 mm × 248 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter |
| Net Weight | 5.5 lb (2.5 kg), single | Shipping Weight | 15.4 lb (7.0 kg), pair |
| PERFORMANCE | |||
| Frequency Range (-10 dB) | 75 Hz – 20,000 Hz | Coverage, Horizontal | 130° conical |
| Calculated Maximum SPL @ 1 m | 99 dB | Nominal Impedance | 8 Ω (transformer bypass) |
| Power Handling, long-term continuous | 25 W | Power Handling, Peak | 100 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available | Sensitivity (SPL/1 W at 1 m) | 84 dB |
| Transformer Taps, 100V | 6, 12, 25 W, bypass | Transformer Taps, 70V | 3 W, 6 W, 12 W, 25 W, bypass |
| Coverage, Vertical | 130° conical | ||
| TRANSDUCERS | |||
| Crossover | 1.7 kHz, passive 2-way crossover | Driver Protection | Recommended high-pass protection 80 Hz with minimum 24 dB/octave filter |
| High-Frequency | 1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted | Low-Frequency | 1 × 3.25 in (83 mm) woofer |
| Description | Downloads |
|---|---|
| Datasheet | Download |
