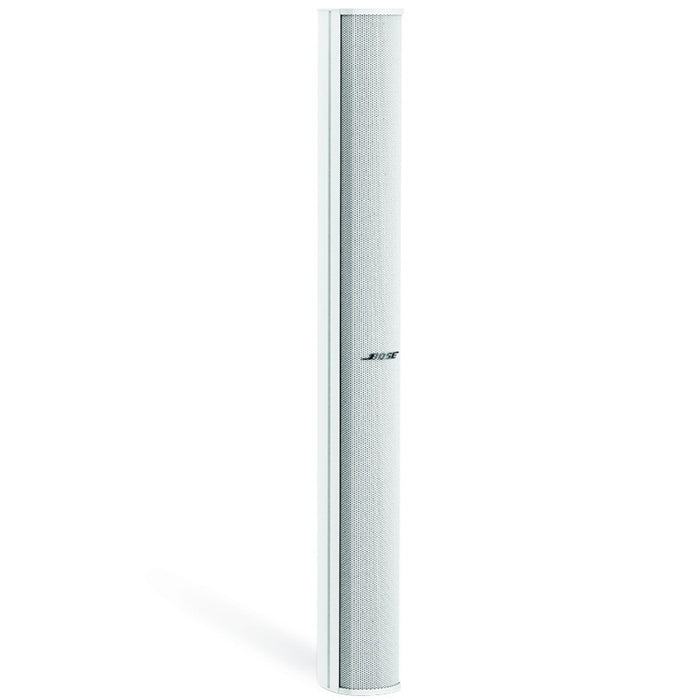

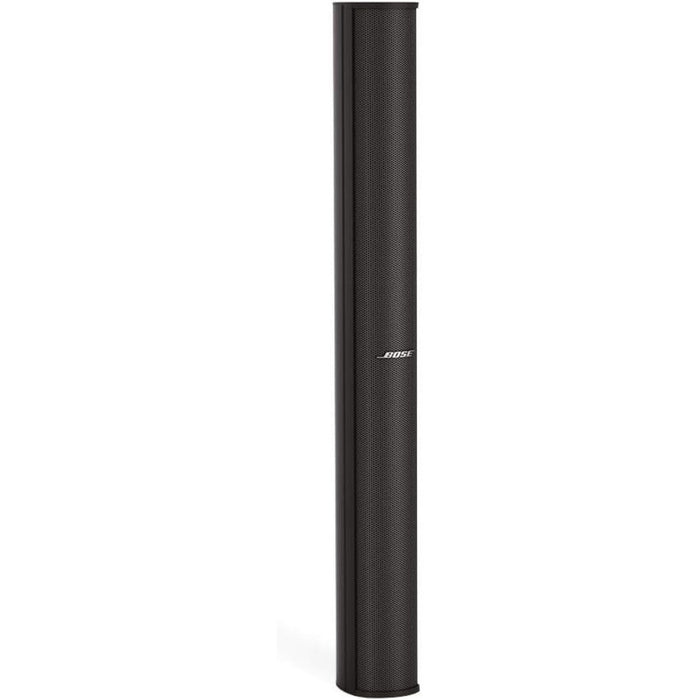

BOSE MA12EX Modular Column Array Loudspeaker

Bose MA12EX – Weather-Resistant Modular Column Array Loudspeaker with 12 Full-Range Drivers, 160° Horizontal Coverage & 150W Continuous Power

The Bose Professional MA12EX extended range indoor/outdoor column array is designed to provide outstanding vocal intelligibility in acoustically demanding spaces with wider 160° horizontal coverage. It has weather-resistant components that allow use in outdoor applications. The slim column enclosure blends with almost any décor.

FEATURES

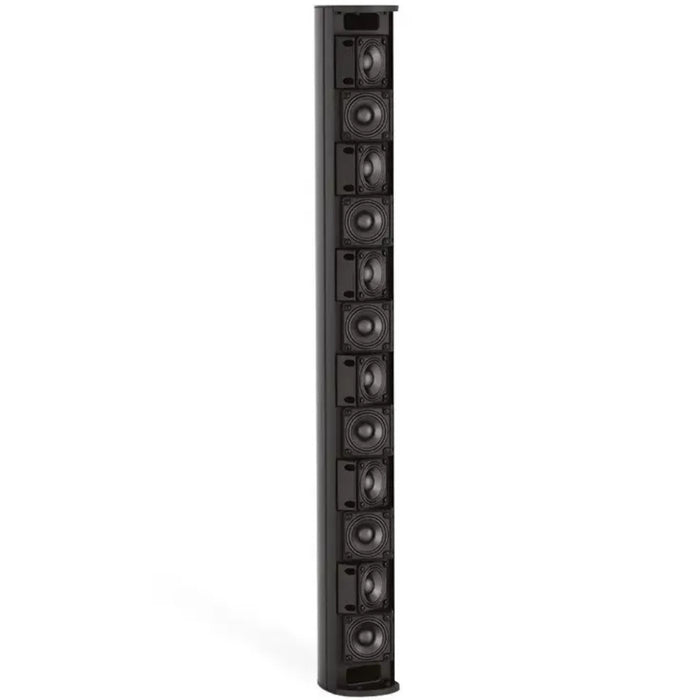

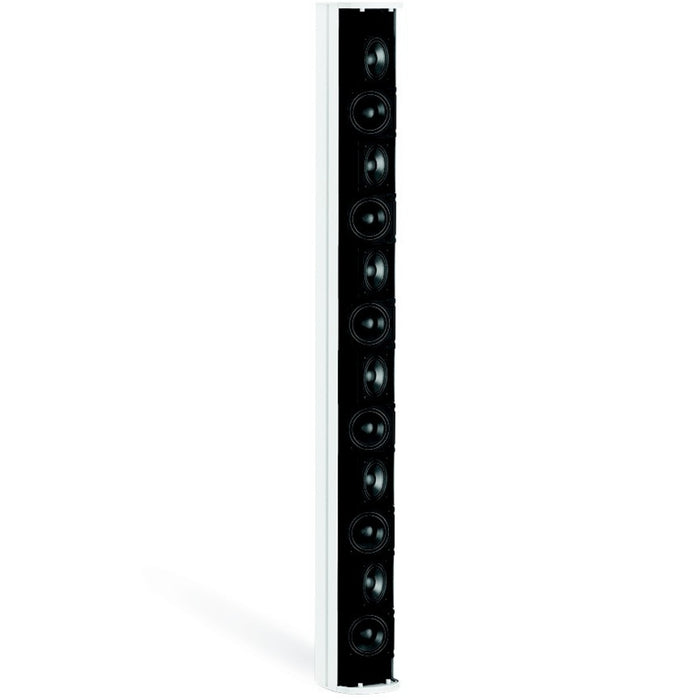

Twelve 2.25-inch (57 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
Articulated Array® design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration.
Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose Professional MB4, MB12, or MB24 modular bass loudspeakers.
Optional brackets allow easy installation of single-, double- or triple-stack line array modules

Applications
Designed for a wide range of applications, including:
Houses of worship
Multi-purpose spaces
Recreation
Restaurants and bars
Auditoriums
Transportation facilities
Gymnasiums
Atriums and malls

Mechanical Diagrams
