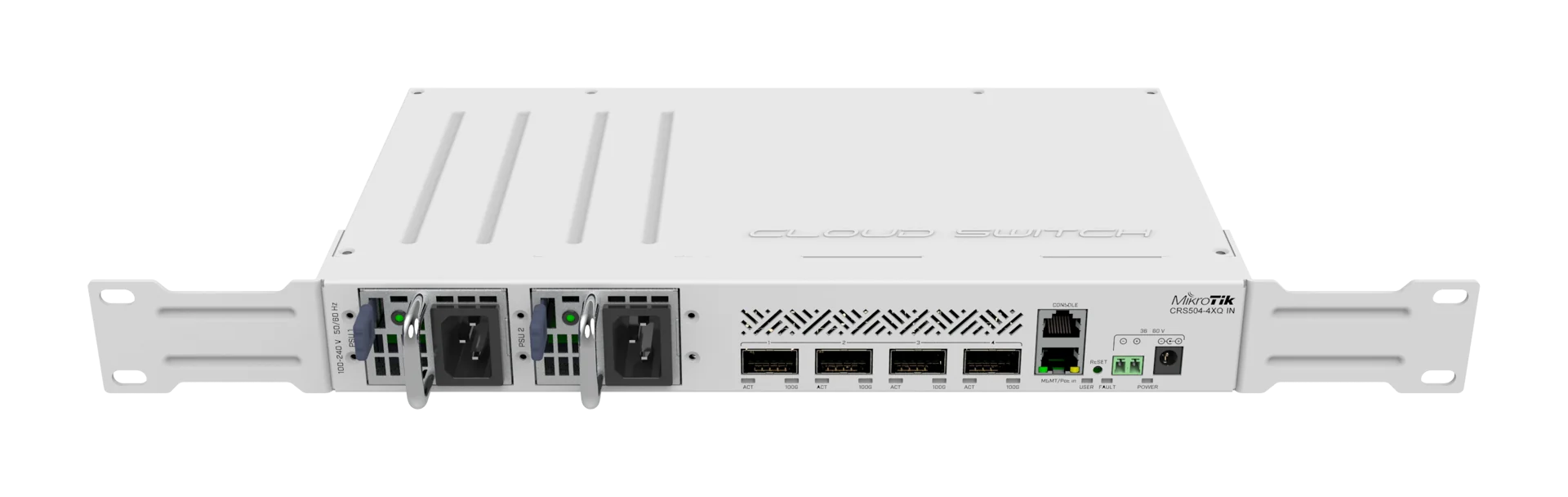

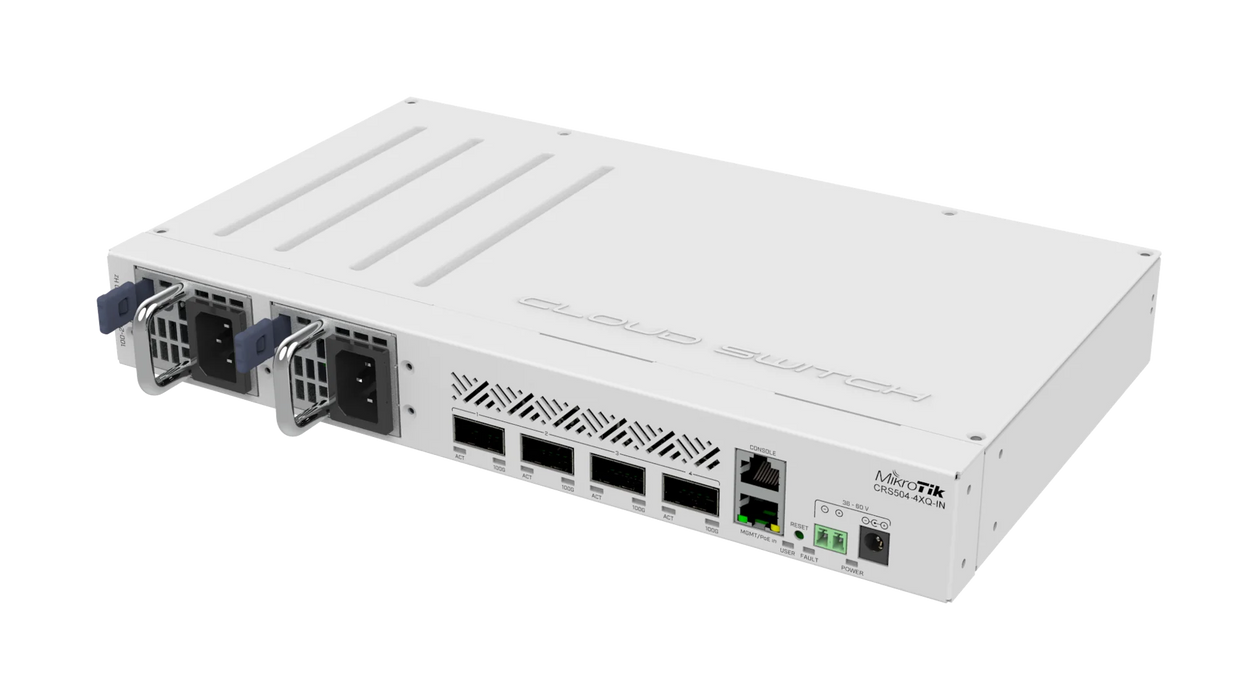

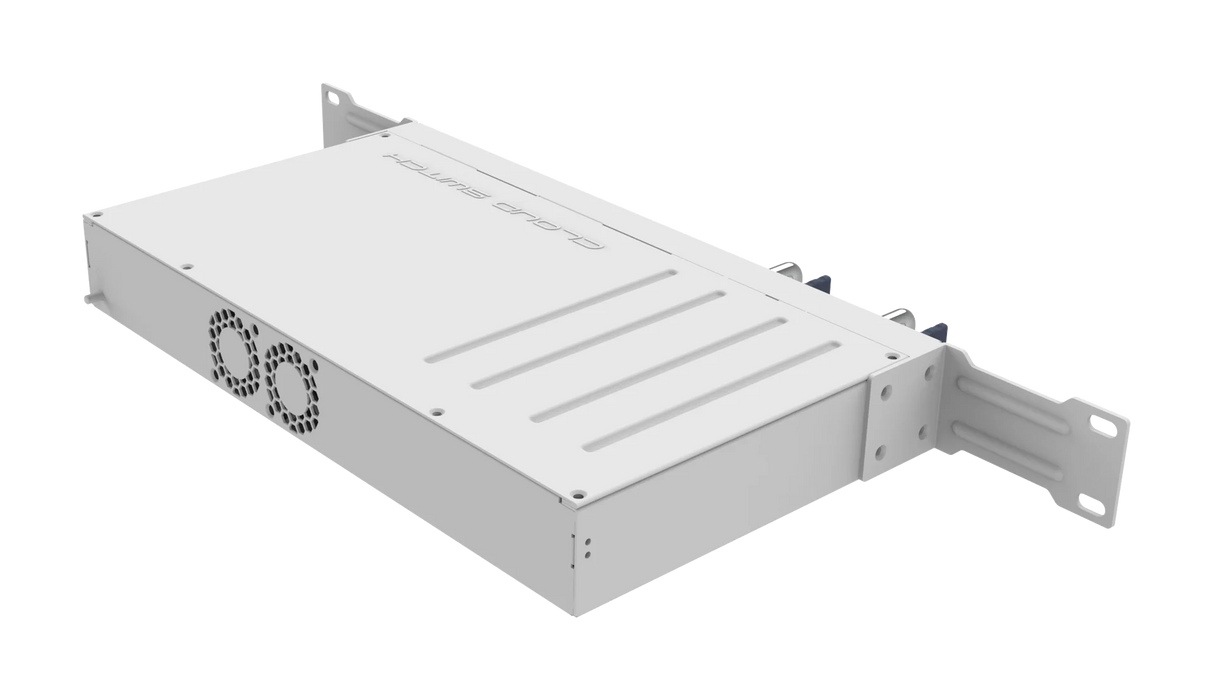

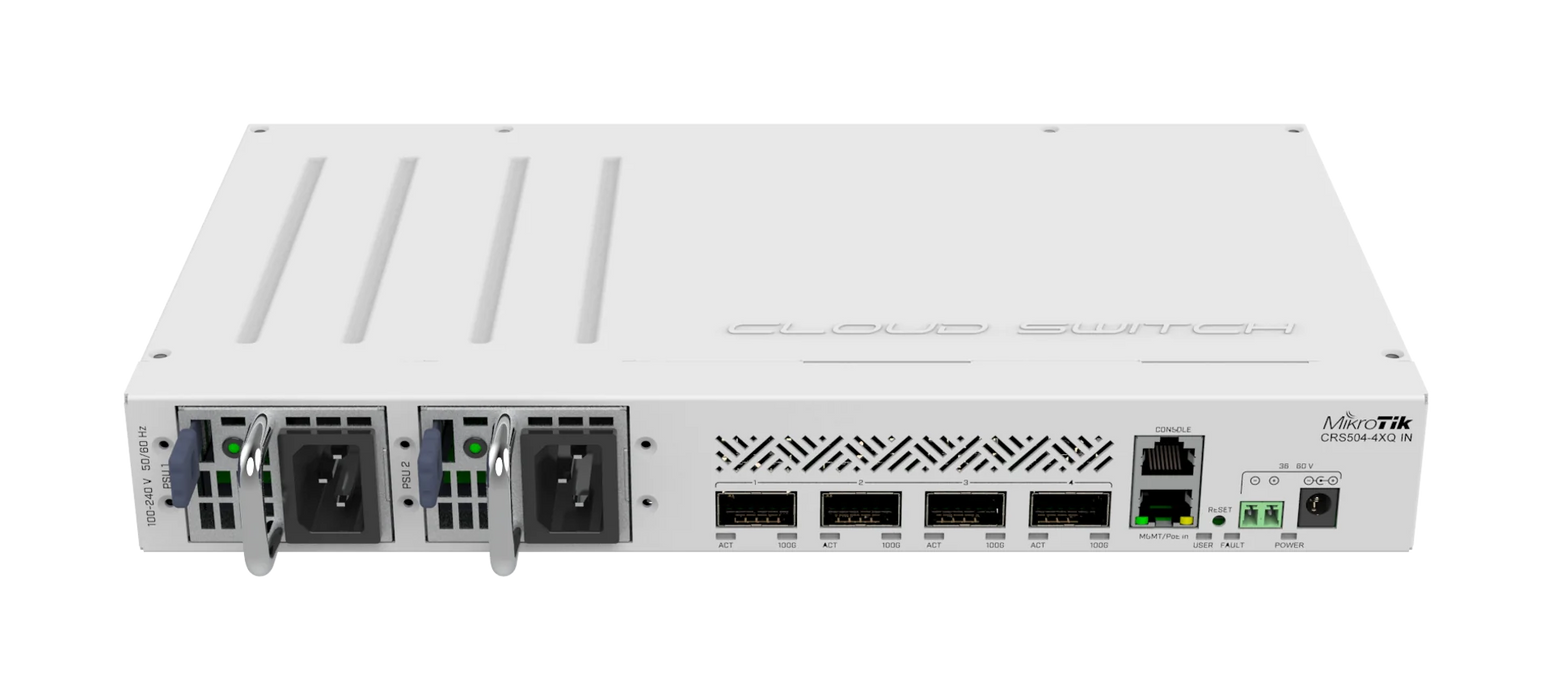

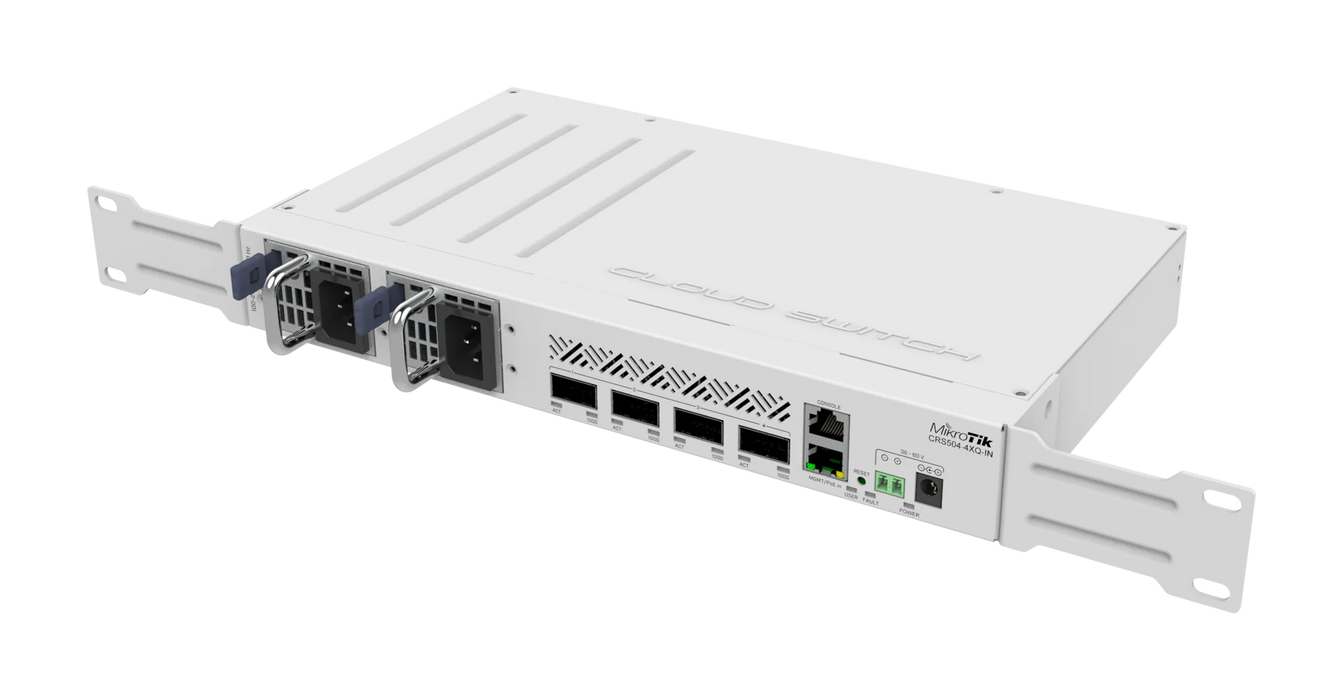

MikroTik 100G Switch 4x100G QSFP28 Low Power 1U Compact Design | CRS504-4XQ-IN
SKU: CRS504-4XQ-IN
£649.35 (Excl. VAT)
- Description
- Specifications
- Downloads
-
4×100G QSFP28 Compact Low-Power L3 Switch | CRS504
Our 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

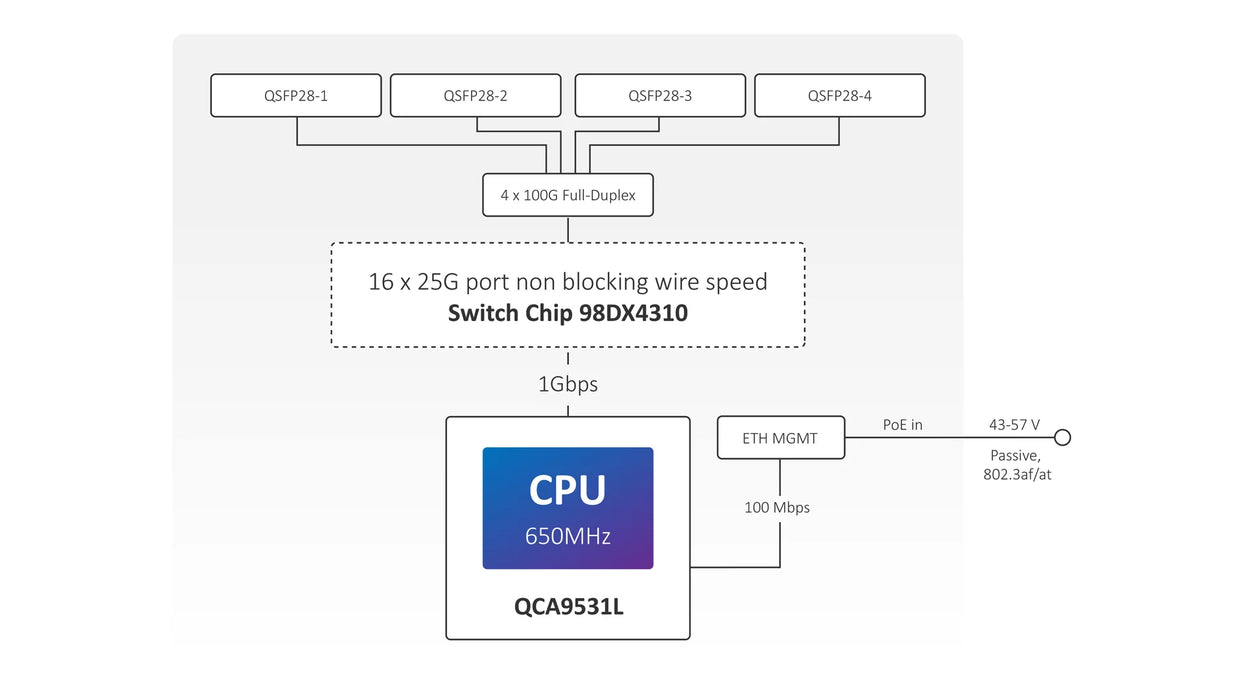

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. The mighty Marvell DX4310 switch-chip will handle everything without breaking a sweat!
Obviously, there is an Ethernet port for management purposes as well.

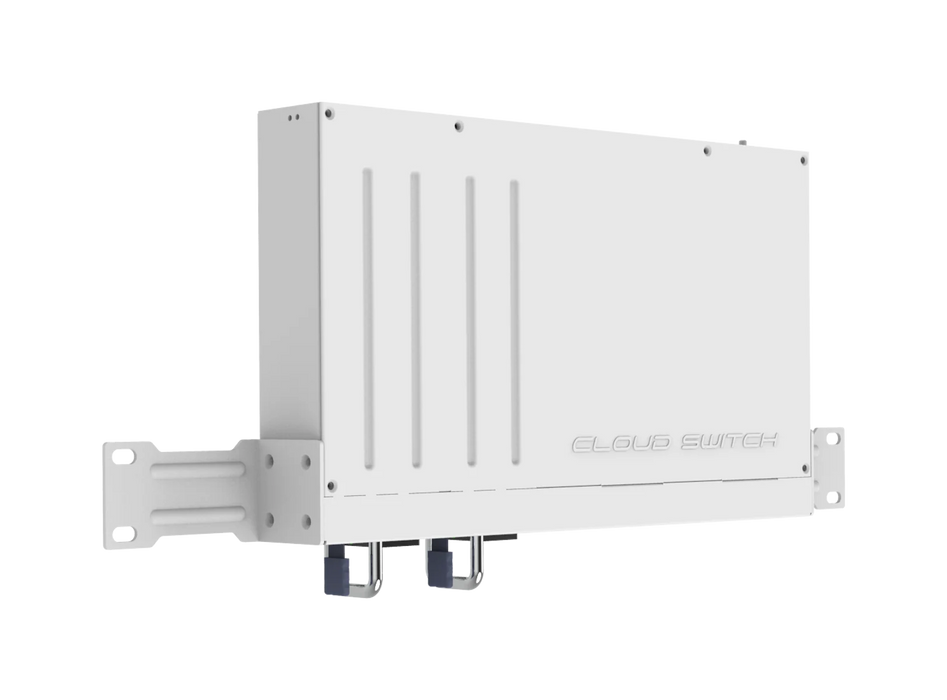

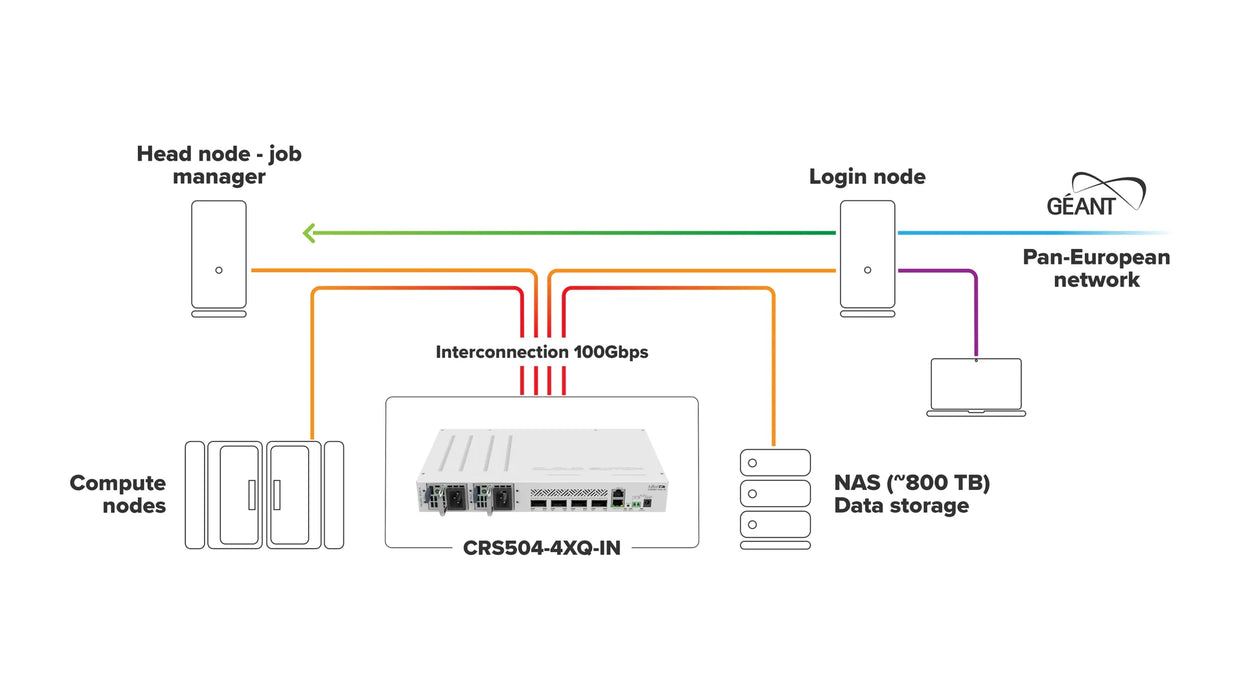

We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.With multiple powering options and the ability to be mounted on the wall, this switch will make any system administrator happy.
-
Certification CE, EAC, ROHS Compliance certificates CE, EAC, RoHS Form factor 1U IP code IP20 LED indicators Yes Number of fans 2 fan(s) Product colour White Rack mounting Yes Reset button Yes Country of Origin Latvia Tariff No. 8517620000 UNSPSC Code 43222612 Switch layer L3 Switch type Managed 10G support Yes Networking standards IEEE 802.3bt Operating temperature (T-T) -40 - 70 °C Depth (package) 41 cm Package Weight 1.96 kg Package Height 42 cm Package Width 32.6 cm Manual Yes Quick start guide Yes Built-in processor Yes Flash memory 16 MB Internal memory 64 MB MTBF 200000 h Operating system RouterOS Processor frequency 650 MHz Processor manufacturer Qualcomm Processor model Qualcomm Atheros QCA9531 RJ-45 Ethernet ports quantity 1 RJ-45 Ethernet ports type Fast Ethernet (10/100) Console port RJ-45 QSFP28 ports quantity 4 AC input frequency 47/63 Hz AC input voltage 100 - 240 V DC input voltage 36 - 57 V Input voltage 36 - 57 V Power consumption (max) 41 W Power source DC Power supply included Yes PoE Yes PoE ports quantity 1 PoE voltage 57 V Net Weight (Product, kg) 1.84 kg Product Depth 18.5 cm Product Height 4.4 cm Product Width 32 cm Brand Name MikroTik Warranty 15 Month(s) Main category Network Subcategory Wired Network Subcategory Network Switches Subcategory Network Switches -
Description Downloads MikroTik 100G Switch 4x100G QSFP28 Low Power 1U Compact Design | CRS504-4XQ-IN DataSheet Download MikroTik 100G Switch 4x100G QSFP28 Low Power 1U Compact Design | CRS504-4XQ-IN User Manual Download MikroTik 100G Switch 4x100G QSFP28 Low Power 1U Compact Design | CRS504-4XQ-IN Quick Guide Download
