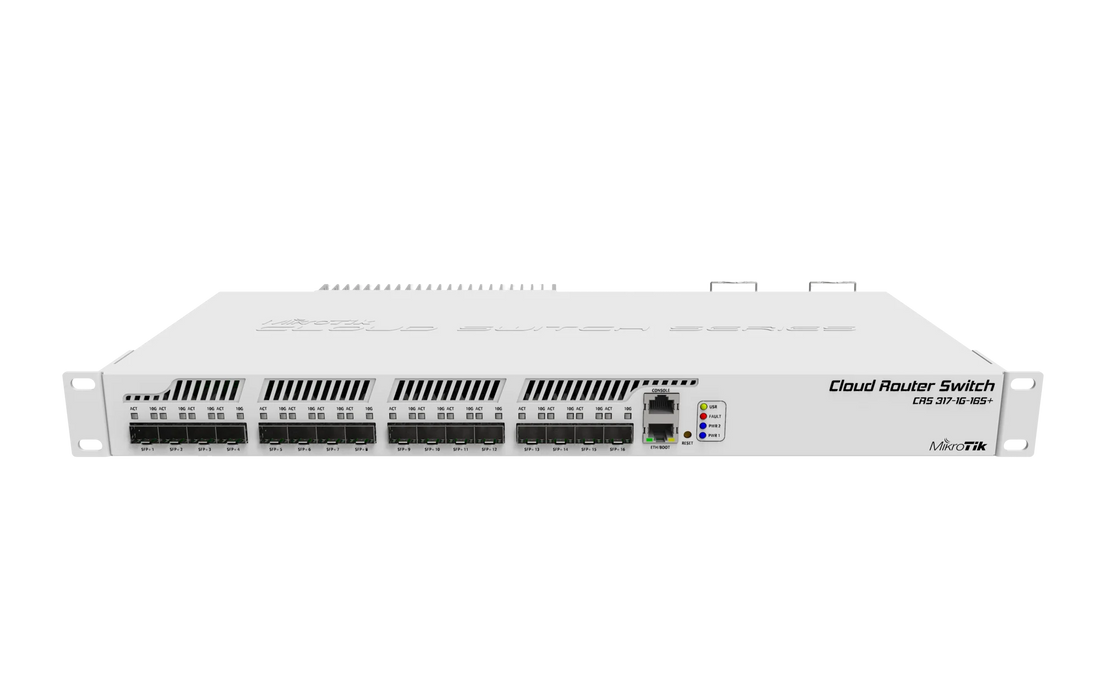

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

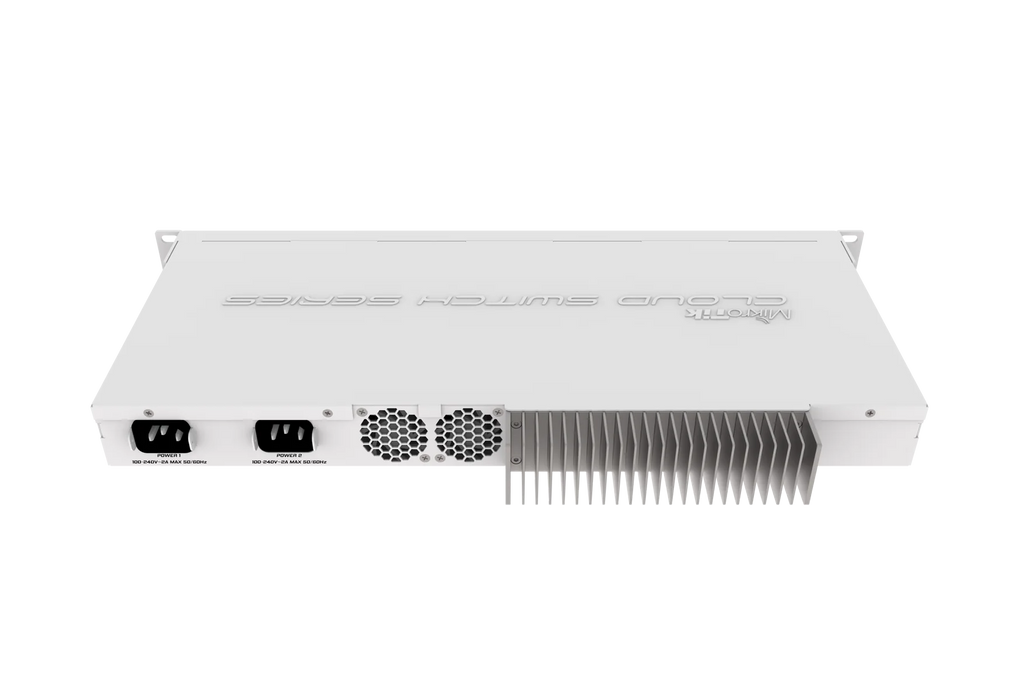

The unit has dual redundant power supplies and passive cooling case - for hot environments two redundant fans will automatically keep the system cool if needed.
| Form factor | 1U | LED indicators | Yes |
| Number of fans | 2 fan(s) | Product colour | Grey |
| Rack mounting | Yes | Reset button | Yes |
| Country of Origin | China | EU ECCN Code | N/A |
| Tariff No. | 8517620000 | UNSPSC Code | 43222612 |
| US ECCN Code | 5A992 | ||
| Switch layer | L3 | Switch type | Managed |
| Web-based management | Yes | ||
| 10G support | Yes | Broadcast storm control | Yes |
| Link aggregation | Yes | Networking standards | IEEE 802.1Q |
| Number of VLANs | 4000 | Port mirroring | Yes |
| Spanning tree protocol | Yes | VLAN support | Yes |
| Operating temperature (T-T) | -20 - 60 °C | Depth Verified | 30 cm |
| Gross Weight Verified | 2.376 kg | Height Verified | 7 cm |
| Width Verified | 48.2 cm | ||

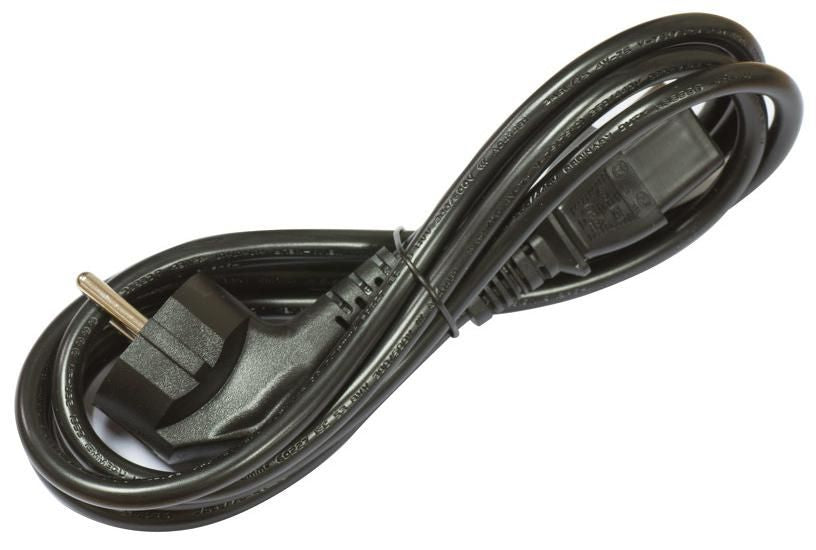

| Cables included | AC | User guide | Yes |

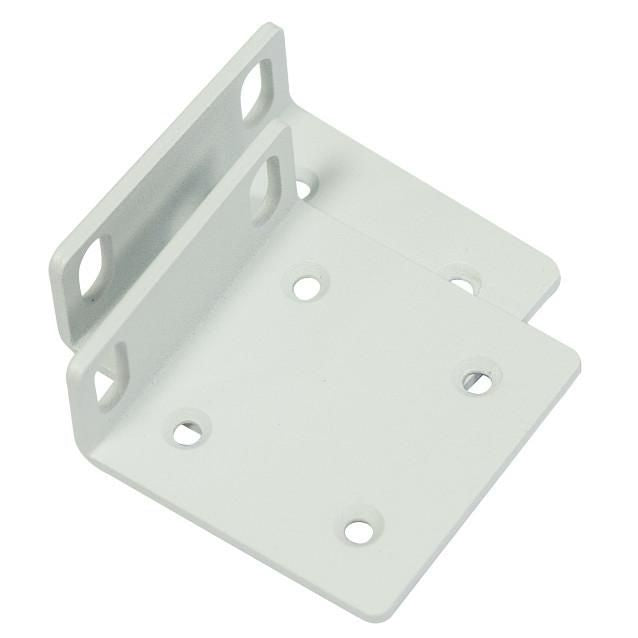

| Mounting brackets included | Yes | ||
| Built-in processor | Yes | Flash memory | 1000 MB |
| Internal memory | 16 MB | Processor frequency | 800 MHz |
| RJ-45 Ethernet ports quantity | 0 | RJ-45 Ethernet ports type | No |
| Console port | RJ-45 | Gigabit Ethernet (copper) ports | 1 |
| Installed SFP modules | 0 | Installed SFP+ modules | 0 |
| Power connector | DC-in jack | SFP+ module slots | 16 |
| AC input voltage | 110 - 240 V | Power supply units | 2 |
| Power consumption (max) | 42 W | Power over Ethernet (PoE) | No |
| Net Weight (Product, kg) | 2.24 kg | Product Depth | 22.4 cm |
| Product Height | 4.4 cm | Product Width | 44.3 cm |
| Security algorithms | SNMPv2, SNMPv3 | ||
| Brand Name | MikroTik | Warranty | 15 Month(s) |
| Main category | Network | Subcategory | Wired Network |
| Subcategory | Network Switches | Subcategory | Network Switches |
| Description | Downloads |
|---|---|
| MikroTik 10G Switch 16xSFP+ L3 Managed Dual PSU Rackmount | CRS317-1G-16S+RM DataSheet | Download |
| MikroTik 10G Switch 16xSFP+ L3 Managed Dual PSU Rackmount | CRS317-1G-16S+RM User Manual | Download |
| MikroTik 10G Switch 16xSFP+ L3 Managed Dual PSU Rackmount | CRS317-1G-16S+RM Quick Guide | Download |
