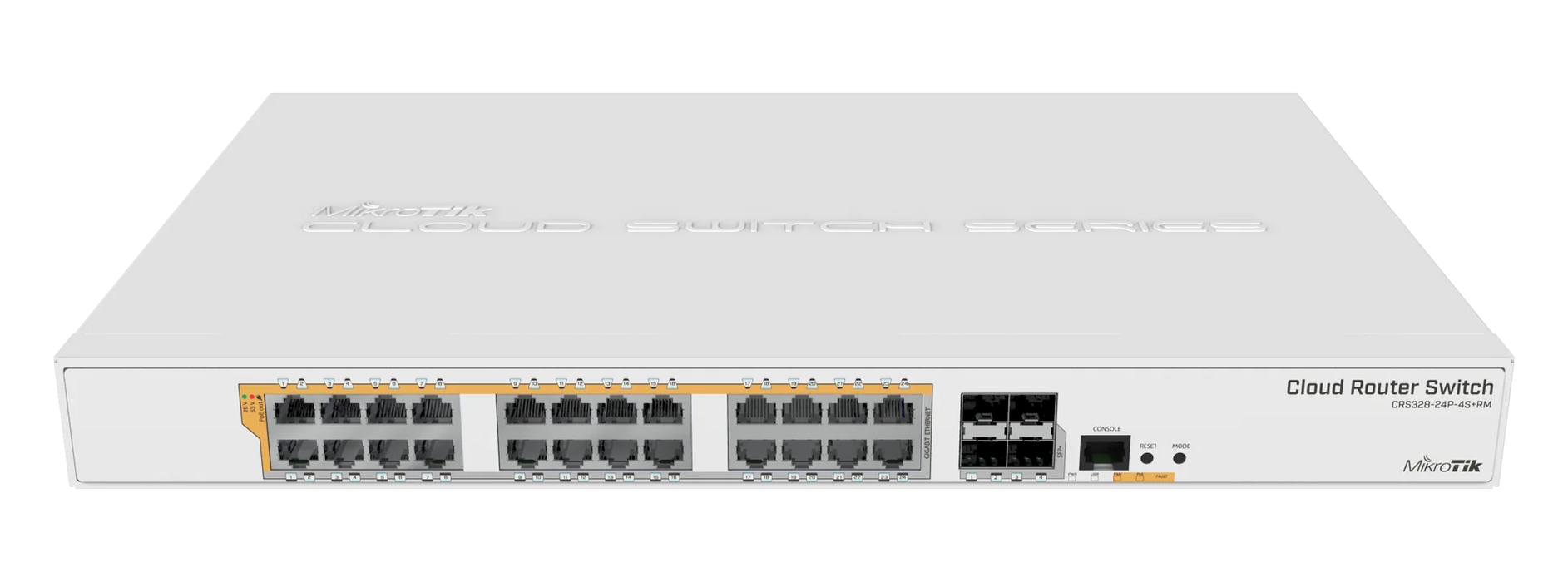

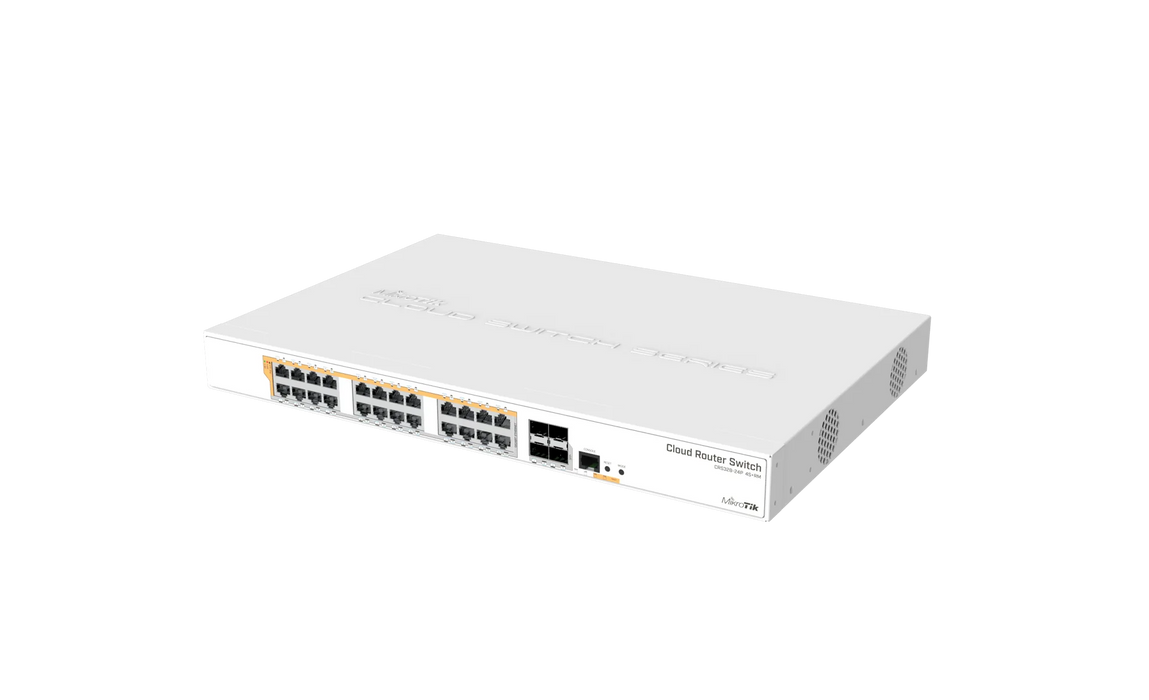

MikroTik 24-Port PoE Gigabit Switch with 4× SFP+ | CRS328-24P-4S+RM
SKU: CRS328-24P-4S+RM
£394.24 (Excl. VAT)
- Description
- Specifications
- Downloads
-
24-Port Gigabit PoE+ Switch with 4×SFP+ Uplinks
CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).
CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market. -
Forwarding rate 95.2 Mpps Jumbo frames 10218 Jumbo frames support Yes MAC address table 16000 entries Switching capacity 128 Gbit/s Throughput 64000 Mpps Form factor 1U LED indicators Yes Number of fans 2 fan(s) Product colour White Rack mounting Yes Country of Origin China EU ECCN Code N/A Tariff No. 8517620000 UNSPSC Code 43222612 US ECCN Code 5A992 QoS support Yes Switch layer L2/L3 Switch type Managed System event log Yes Auto-sensing Yes Broadcast storm control Yes Link aggregation Yes Networking standards IEEE 802.1Q, IEEE 802.3ad Number of VLANs 4000 Port mirroring Yes VLAN support Yes Operating temperature (T-T) -20 - 60 °C Depth Verified 6 cm Gross Weight Verified 4.3 kg Height Verified 56 cm Width Verified 35.5 cm Cables included AC Rack mount kit Yes Built-in processor Yes Flash memory 16 MB Internal memory 512 MB MTBF 200000 h Processor frequency 800 MHz Processor manufacturer ARM RJ-45 ports quantity 24 RJ-45 ports type Gigabit Ethernet (10/100/1000) Console port RJ-45 Installed SFP+ modules 4 SFP+ module slots 4 AC input voltage 100 - 240 V Power supply units 2 Power consumption (max) 44 W Power source AC Power supply included Yes PoE Yes PoE ports quantity 24 PoE per port 30 W PoE types Passive PoE, PoE+ PoE voltage 26 V 4PPoE ports 0 Total PoE budget 450 W Net Weight 3.8 kg Product Depth 30.5 cm Product Height 4.4 cm Product Width 44.3 cm Management protocols SNMP Access Control List (ACL) Yes IGMP snooping Yes Brand Name MikroTik Warranty 15 Month(s) Main category Network Subcategory Wired Network Subcategory Network Switches Subcategory Network Switches -
Description Downloads MikroTik 24-Port PoE Gigabit Switch with 4× SFP+ | CRS328-24P-4S+RM DataSheet Download MikroTik 24-Port PoE Gigabit Switch with 4× SFP+ | CRS328-24P-4S+RM User Manual Download MikroTik 24-Port PoE Gigabit Switch with 4× SFP+ | CRS328-24P-4S+RM Quick Guide Download
