MikroTik Fiber Switch 20xSFP 4xSFP+ 4xCombo Dual Boot Rackmount | CRS328-4C-20S-4S+RM
SKU: CRS328-4C-20S-4S+RM
£356.16 (Excl. VAT)
- Description
- Specifications
- Downloads
-

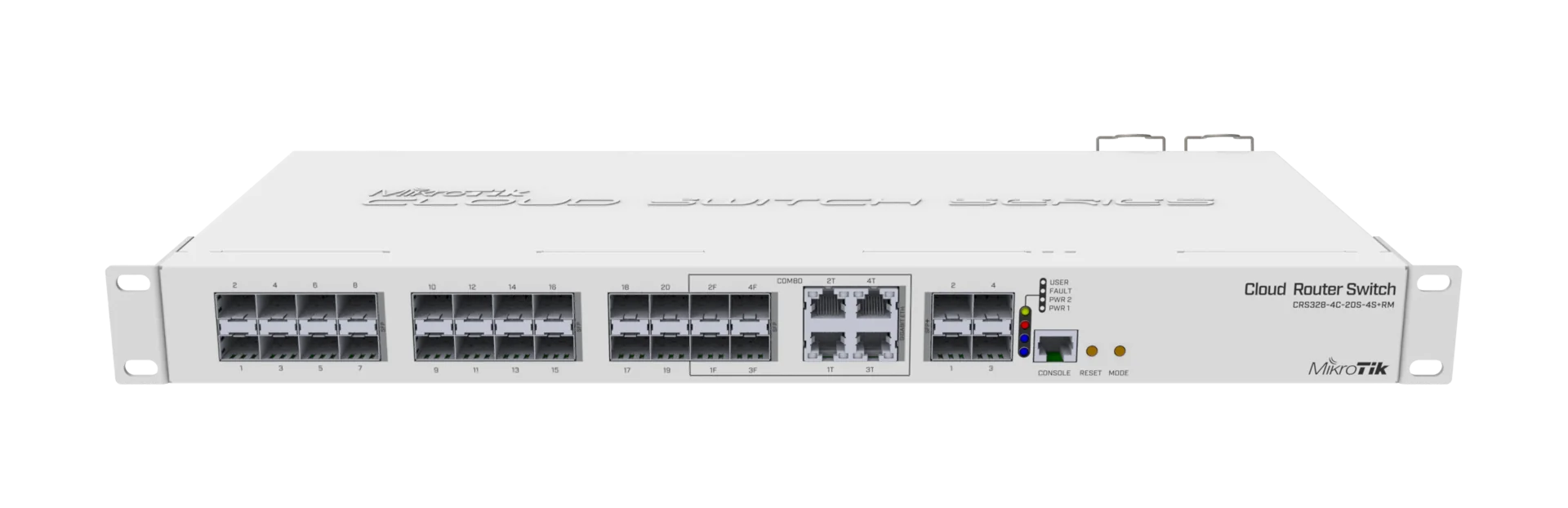

28-Port L2/L3 Switch with 20×SFP, 4×SFP+ and 4×Combo Ports
The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

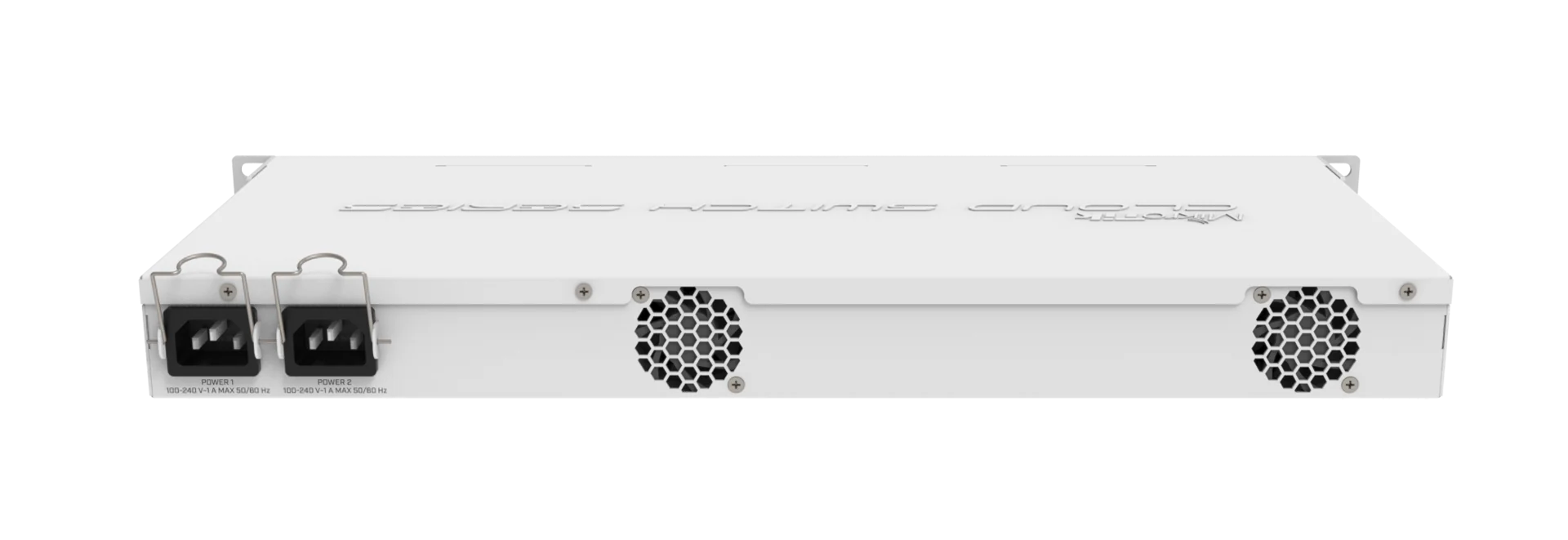

The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. -
Forwarding rate 95.2 Mpps Jumbo frames 10218 Jumbo frames support Yes MAC address table 16000 entries Switching capacity 128 Gbit/s Form factor 1U LED indicators Yes Product colour White Rack mounting Yes Country of Origin Taiwan EU ECCN Code N/A Tariff No. 8517620000 UNSPSC Code 43222612 US ECCN Code 5A992 Switch layer L2/L3 Switch type Managed 10G support Yes Broadcast storm control Yes Link aggregation Yes Networking standards IEEE 802.1Q, IEEE 802.3ad Port mirroring Yes VLAN support Yes Operating temperature (T-T) -20 - 60 °C Depth Verified 31.4 cm Gross Weight Verified 2.594 kg Height Verified 6.6 cm Width Verified 49.4 cm Cables included AC Rack mount kit Yes Built-in processor Yes Flash memory 16 MB Internal memory 512 MB Processor frequency 800 MHz Combo SFP ports quantity 4 Console port RJ-45 Installed SFP modules 20 Installed SFP+ modules 4 SFP module slots 20 SFP+ module slots 4 AC input voltage 100 - 240 V Power supply units 1 Power consumption (max) 43 W Power supply included Yes Power over Ethernet (PoE) No Net Weight (Product, kg) 2.1 kg Product Depth 20 cm Product Height 4.4 cm Product Width 44.3 cm Access Control List (ACL) Yes IGMP snooping Yes Brand Name MikroTik Warranty 15 Month(s) Main category Network Subcategory Wired Network Subcategory Network Switches Subcategory Network Switches -
Description Downloads MikroTik Fiber Switch 20xSFP 4xSFP+ 4xCombo Dual Boot Rackmount | CRS328-4C-20S-4S+RM DataSheet Download MikroTik Fiber Switch 20xSFP 4xSFP+ 4xCombo Dual Boot Rackmount | CRS328-4C-20S-4S+RM User Manual Download
