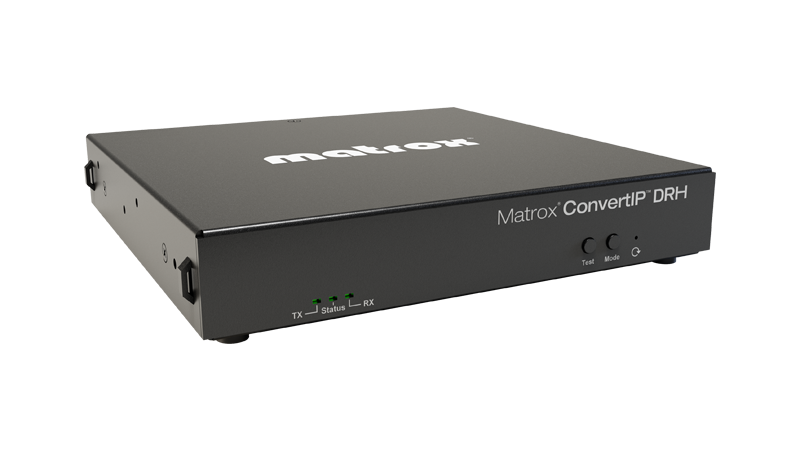

Dual-channel RJ45 HDMI-to-IP transmitter/receiver
Matrox ConvertIP DRH is a compact, standalone ST 2110 and IPMX transmitter/receiver device. Featuring HDMI I/O and three RJ45 ports on a single device, ConvertIP DRH is designed for 1G AV workflows and is optimal for an ultra-low latency experience. The device can receive power over Ethernet through its RJ45 connection, or it can be powered through an optional power supply unit. Both can be used simultaneously to deliver power redundancy.
Key features
HDMI I/O
Multi-network support
2x RJ45 (1G & 2.5G network support for Media and Control)
1x RJ45 (1G network support for independent control network)
Transmit or receive IP signals from a single device
Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
Fanless design for quiet cooling
Zero-latency HDMI loop-out
Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
Compact form factor mounts easily to the back of a monitor
Web-based user interface for managing ConvertIP devices
Complimentary ConvertIP Manager Windows application for simple commission and deployment
HDCP 1.4 and 2.2 support
Checkmark Icon
Transport formats
IPMX ready
Colibri codec for visually lossless transmission of compressed of media over 1G network
Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
Glass-to-glass latencies of 1ms achievable
Optional products
ConductIP Media Routing Appliance to discover, route, and monitor ST 2110 or IPMX signals
Bracket for VESA mounting behind monitors
1 RU rack shelf that holds two appliances
Matrox NRG RPSU fault-tolerant, hot-swappable, and rack-mountable power supply
Crestron Module to expand existing controlled environments
| Feature Category | Feature Details |
|---|---|
| Part Number | CIP-DRH |
| Form Factor | Standalone appliance, Rack mountable: 1U, 1/2 rack (horizontal) |
| Connectivity | - Video Input: 1x HDMI |
| - Video Output: 1x HDMI (zero latency pass-through in TX mode) | |
| - Audio Input/Output: Up to 8 channels embedded in HDMI, Analog stereo via 1/8" jack | |
| - Network Connector: 3x RJ45 ports | |
| Video and Audio Processing | - Maximum Video Resolutions: 4096 x 2160 at 60p |
| - Bit Depth and Color Space: YCbCr 4:2:2 10-bit, RGB 4:4:4 8-bit | |
| - Video Scaling: High Quality multi-tap 10-bit scaler | |
| - Color Space Conversion: Supported | |
| - HDCP Support: HDCP 1.4 and 2.2 | |
| Encoding Formats | - Video: Uncompressed, HD and 4K up to 12 Gbps |
| - Audio: Uncompressed PCM | |
| - Latency: < 1/4 frame (<4 ms) | |
| Network and Control | - Protocols: SMPTE ST 2110, SMPTE 2059, IPMX |
| - Redundancy: Yes (ST 2022-7) | |
| Physical | - Dimensions: 7.13 x 7.53 x 1.42 inches |
| - Unit Weight: 1.40 lbs | |
| - Cooling: Fanless | |
| - Power: 12V, max 18 Watts, Optional PSU available | |
| Hardware and Software | - Included: ConvertIP DRH appliance |
| - Optional: NMOS routing solution, JPEG-XS codec license | |
| Environmental | - Operating Conditions: 0-45°C, 20-80% humidity |
| - Storage Conditions: -40 to 70°C, 5-95% humidity | |
| Compliance and Warranty | - EMC/EMI Compliance: CE, FCC, ICES-003, etc. |
| - Environmental Compliance: China RoHS, EU RoHS, REACH | |
| - Warranty: Three-year limited |
