Dual-channel SFP SDI-to-IP transmitter/receiver

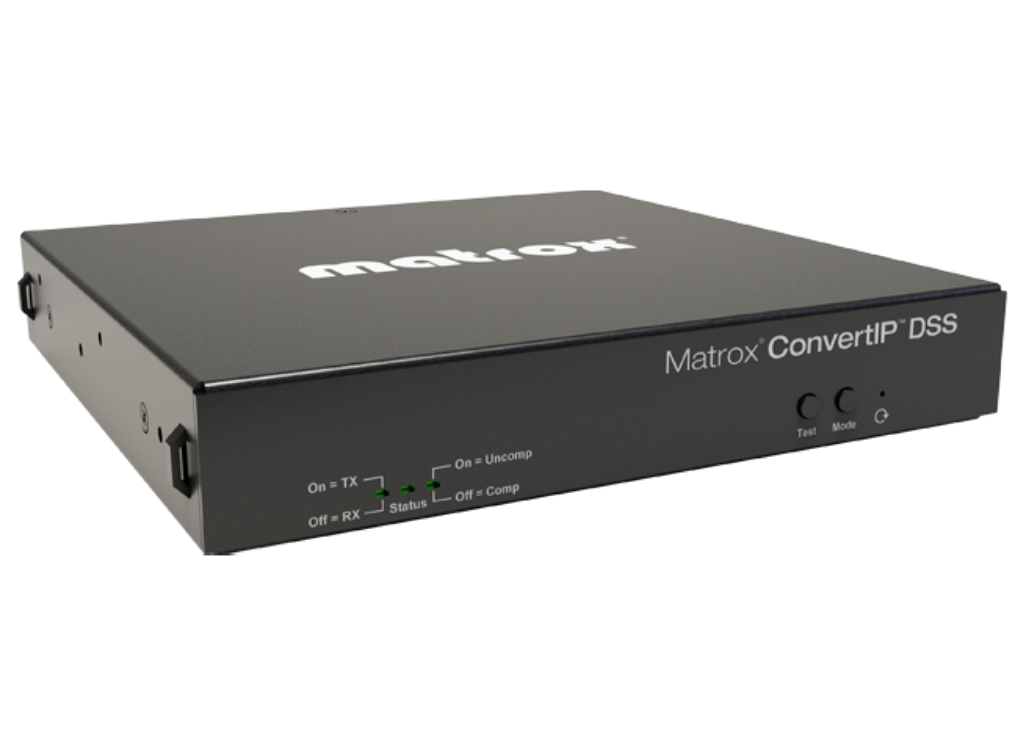

Matrox ConvertIP DSS is a compact, standalone ST 2110 and IPMX transmitter/receiver device. Featuring 12G-SDI, genlock, one RJ45, and two SFP28 ports on a single device, ConvertIP DSS is designed for compressed or uncompressed workflows up to 25G and is optimal for an ultra-low latency experience. The device can receive power over Ethernet through its RJ45 connection, or it can be powered through an optional power supply unit. Both can be used simultaneously to deliver power redundancy.
Key Features
12G-SDI I/O
Multi-network support
2x SFP28 (10G & 25G network support)
1x RJ45 (1G network support)
Transmit or receive IP signals from a single device
Boost monitoring capacity and resiliency using Daisy Chain Mode
Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
Fanless design for quiet cooling
PTP-derived genlock output support
Genlock support for house sync input
Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately) Compact form factor mounts easily to the back of a monitor
Web-based user interface for managing ConvertIP devices
Complimentary ConvertIP Manager Windows application for simple commission and deployment
Transport formats
IPMX ready
Colibri codec for visually lossless transmission of compressed of media over 1G network
Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
Glass-to-glass latencies of 1ms achievable
Optional products
ConductIP Media Routing Appliance to discover, route, and monitor ST 2110 or IPMX signals
Bracket for VESA mounting behind monitors
1 RU rack shelf that holds three appliances
Matrox NRG RPSU fault-tolerant, hot-swappable, and rack-mountable power supply
Crestron Module to expand existing controlled environments
| Feature Category | Feature Details |
|---|---|
| Part Number | CIP-DSS |
| Form Factor | Standalone appliance, Rack mountable: 1U, 1/2 rack (horizontal) |
| Connectivity | - Video Input (TX mode): 1.5G, 3G, and 12G SDI |
| - Video Output (RX mode): 1.5G, 3G, and 12G SDI | |
| - Network Connector: 2x SFP28 cages, Dedicated RJ45 for management | |
| Video and Audio Processing | - Maximum Video Resolutions: 4096 x 2160 at 60p |
| - Audio Input/Output: Up to 16 channels embedded in SDI, Analog stereo via 1/8" jack | |
| - Video Scaling: High Quality 10-bit scaler | |
| - Color Space Conversion: Supported | |
| Encoding Formats | - Video: Uncompressed, HD and 4K up to 12 Gbps |
| - Audio: Uncompressed PCM | |
| - Latency: < 1/4 frame (<4 ms) | |
| Network and Control | - Protocols: SMPTE ST 2110, SMPTE 2059, IPMX |
| - Redundancy: Yes (ST 2022-7) | |
| Physical | - Dimensions: 7.13 x 7.53 x 1.42 inches |
| - Unit Weight: 1.70 lbs | |
| - Cooling: Fanless | |
| - Power: 12V, max 18 Watts, Optional PSU available | |
| Hardware and Software | - Included: ConvertIP DSS appliance |
| - Optional: NMOS routing solution, JPEG-XS codec license | |
| Environmental | - Operating Conditions: 0-45°C, 20-80% humidity |
| - Storage Conditions: -40 to 70°C, 5-95% humidity | |
| Compliance and Warranty | - EMC/EMI Compliance: CE, FCC, ICES-003, etc. |
| - Environmental Compliance: China RoHS, EU RoHS, REACH | |
| - Warranty: Three-year limited |
