Full HD 1920 x 1080p Resolution
NeoV Optical Glass Screen for Clinic Hygiene
PiP/PbP Support
Metal Casing Design
Shortcut to Switch to X-Ray mode
Optional Handle for Dental Chair Setup
Certified with IEC/EN 60601-1 and IEC/EN 60601-1-2
EASY CLEAN AND ROBUST PROTECTION
The special design of NeoV™ Optical Hard Glass and white metal casing prevent dust and waterproof for easy clean and robust protection.
QUICK SWITCH TO X-RAY VIEWING MODE

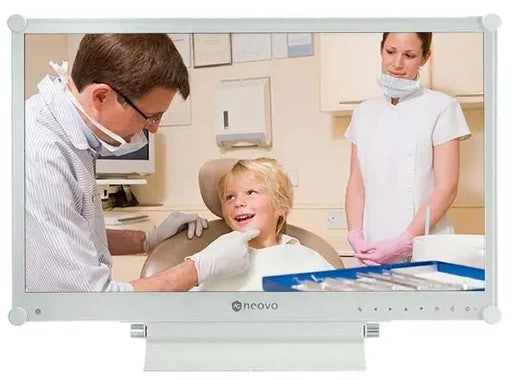

The DR-22G 22-inch dental monitor integrates hotkey operation to switch X-ray viewing mode without using another X-ray view box.
DC 24V MEDICAL-GRADE POWER ADAPTER FOR A LONGER DISTANCE CONNECTION
Designed with DC 24V power supply, it is ideal for long-distance (up to 5 meters) cable management between dental equipment and displays. The medical power supply with IEC / EN60601-1 and IEC / EN60601-1-2 certified ensures safety, performance and reliable operation.
IEC/EN 60601-1 AND IEC/EN 60601-1-2 CERTIFIED
In addition to medical-grade power supply, the DR-22G is fully certified with IEC/EN 60601-1 and IEC/EN 60601-1-2 that ensures the safety and essential performance of medical electric equipments.
PIP/PBP SUPPORT
Enhance work efficiency with PiP/PbP support for multitasking
GREAT MOBILITY

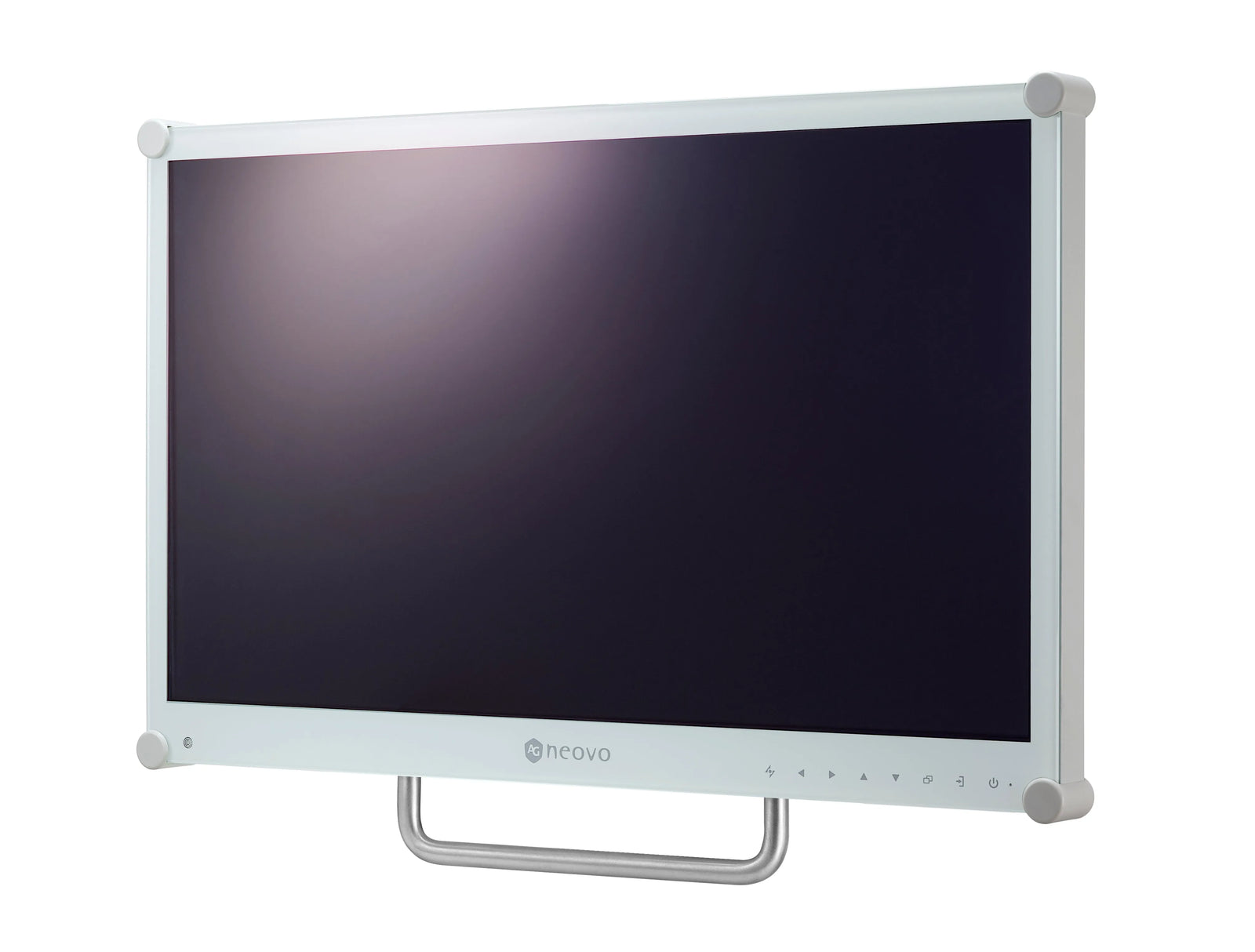

This 22-inch dental monitor meets VESA 75mm/100mm wall mount standard and optional handle for flexible installation and operation on the dental chair.
| Feature | Specification |
|---|---|
| Panel | TN |
| Panel Size | 21.5" |
| Max. Resolution | FHD 1920 x 1080 |
| Pixel Pitch | 0.248 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 20,000,000:1 (DCR) |
| Viewing Angle (H/V) | 170°/160° |
| Display Colour | 16.7M |
| Response Time | 3 ms |
| Frequency (H) | 24 kHz-83 kHz |
| Frequency (V) | 50 Hz-75 Hz |

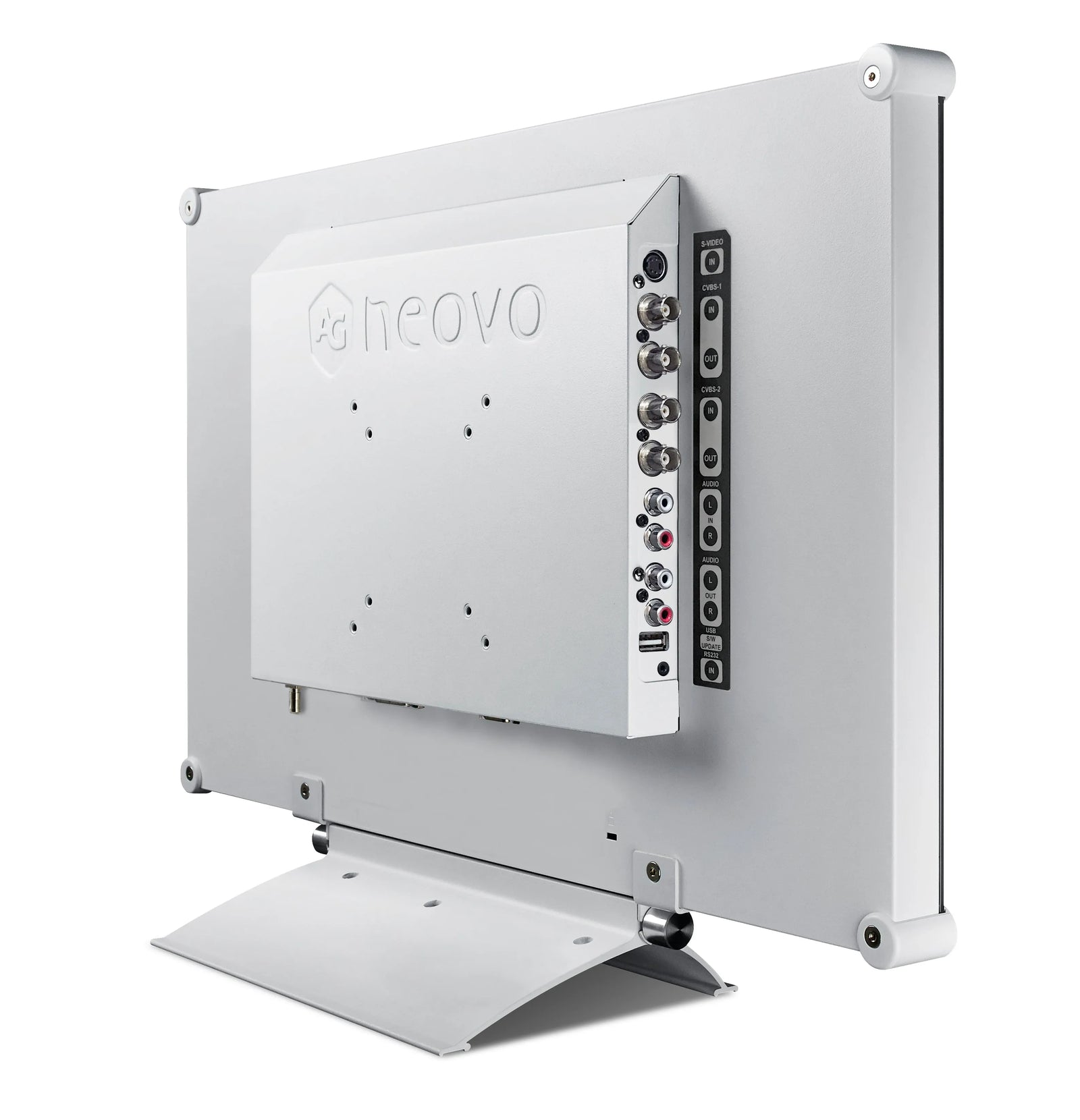

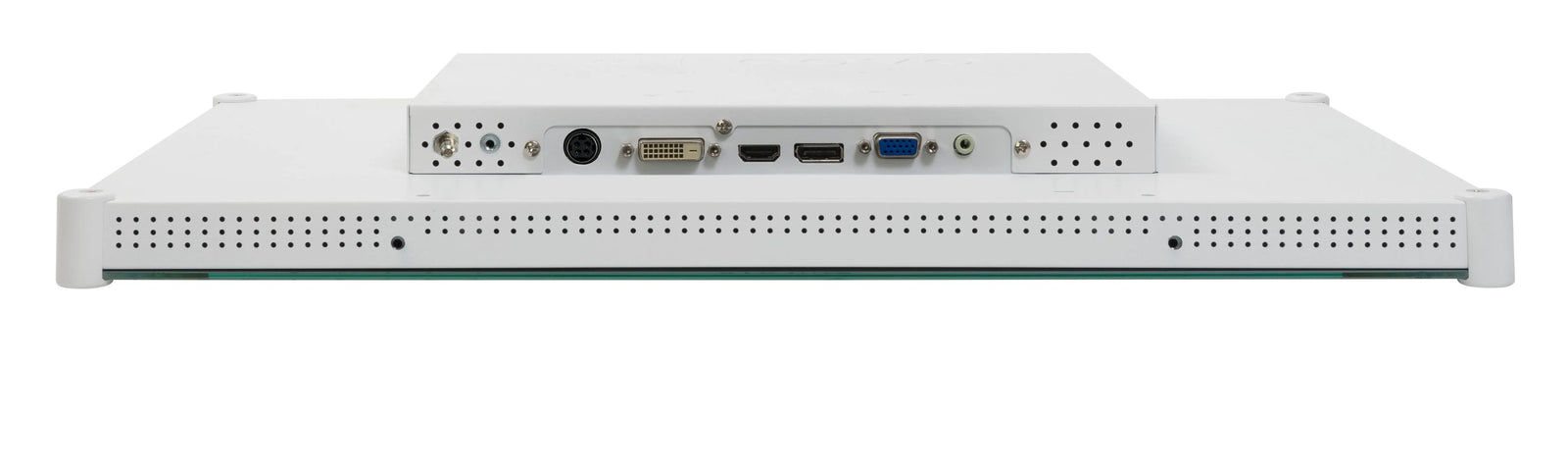

| Signal Input | DisplayPort x 1, HDMI 1.4 x 1, DVI 24-Pin DVI-D, VGA 15-Pin D-Sub x 1, Composite BNC x 2, S-Video 4-Pin mini DIN x 1 |
| Signal Output | Composite BNC x 2 |
| External Control | RS232 In 2.5 mm Phone Jack |
| Other Connectivity | USB 2.0 x 1 (Service Port) |
| Internal Speakers | 2W x 2 |
| Power Supply | External |
| Power Requirements | DC 24V, 2.71A |
| On Mode | 16W (On) |
| Standby Mode | < 0.5W |
| Off Mode | < 0.3W |
| Glass | Thickness: 3.0 mm (0.12"), Reflection Rate: < 1%, Transmission Rate: > 97%, Hardness: > 9H |
| Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | 10%-90% (non-condensing) |
| Storage Temperature | -20°C-60°C (-4°F-140°F) |
| Storage Humidity | 5%-95% (non-condensing) |
| VESA FPMPMI | Yes (100 x 100 mm & 75 x 75 mm) |
| Stand | Tilt: 0° to 17° |
| Kensington Security Slot | Yes |
| Product with Base (W x H x D) | 513.2 x 368.5 x 155.0 mm (20.2" x 14.5" x 6.1") |
| Product w/o Base (W x H x D) | 513.2 x 324.3 x 56.2 mm (20.2" x 12.8" x 2.2") |
| Packaging (W x H x D) | 614.0 x 477.0 x 204.0 mm (24.2" x 18.8" x 8.0") |
| Product with Base | 6.8 kg (15.0 lb) |
| Product w/o Base | 6.2 kg (13.7 lb) |
| Packaging | 9.3 kg (21.0 lb) |
| Certifications & Compliance | CE, FCC, LVD, BSMI, WEEE, RoHS, REACH, UKCA, EAC, ICES-003(Issue 7), IEC/EN 60601-1, IEC/EN 60601-1-2 |
| Accessories (Supplied) | Audio Cable, Power Adaptor, Power Cord, Quick Start Guide, VGA Cable |
| Optional Accessories | Handle HDL-02, Ceiling Mount (Landscape only) CMP-01 + WMK-03, Wall Mount (Landscape only) PMK-01, WMA-01, WMK-01, WMK-03, Desk mount (Landscape only) DMC-01, DMC-02D, DMS-01D, ES-02 |
AG Neovo provides the following limited warranty. This limited warranty applies only to the original End User and to no other purchaser or transferee.
AG Neovo warrants its LCD Monitor products and parts against defects in materials and workmanship under normal use for a period of Three (3) Years for parts from the date of initial retail purchase. AG Neovo warrants LCD Panel for a period of Three (3) years from the date of initial retail purchase. During this period, AG Neovo will repair or replace a defective product or part without charge.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
The AG Neovo warranty obligations for the product are limited to the terms set forth below.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
AG Neovo warrants its accessories to be free from defects in material and workmanship under normal operating conditions for a period of 12 months limited warranty.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
For information on obtaining warranty service, call your AG Neovo dealer, AG Neovo’s Customer Support hotline, or email service centers.
Europe | +31-10-442-57-37 | service.nl@agneovo.com
