The TX-2401 White touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by surface contaminants and allows 10-point multi-touch capabilities, offering an accurate and responsive touch experience. It is even responsive to latex gloves. Featuring a medical-grade power supply and versatile connectivity (e.g., DisplayPort, HDMI, and VGA inputs), the TX-2401 White is built for flexible use, such as patient check-in, patient queue management, medical research laboratories, or medical computer carts. The monitor is complemented by front IP65 and IK08 ratings, white metal casing, and an edge-to-edge 7H tempered glass overlay, ensuring durability and easy cleaning for continuous operation in healthcare environments.
10-POINT PCAP TOUCH SCREEN
The TX-2401 White touch screen adopts PCAP touch technology with 10-point multi-touch capabilities that are unaffected by contamination, offering a fast, accurate, and responsive touch experience. The seamless touch experience is identical to that of smartphones and tablets, and is even responsive to latex gloves.
ENHANCED SAFETY WITH MEDICAL-GRADE POWER SUPPLY
Compliance with the IEC / EN 60601-1 standard power supply ensures the safety of your staff and patients in clinical settings, preventing electric shocks, as well as energy-related and heat-related hazards.
EASY TO MAINTAIN FOR NON-STOP USE
A commercial-grade panel, high-quality components, and a 7H scratch-resistant tempered glass screen ensure that the display can be used 24/7. The touch screen is cleanable with alcohol, allowing for frequent cleaning to keep your staff and patients in a safe and healthy environment.
FRONT IP65 DUST AND WATER PROTECTION
The TX-2401 White multi-touch monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.
IMPACT-RESISTANT AGAINST VANDALISM
The touch display with an IK08 rating and metal casing prevents damage from impacts or acts of vandalism in high-traffic areas, ensuring a long service life.
MULTIPLE LAYOUTS FOR PUBLIC ACCESS

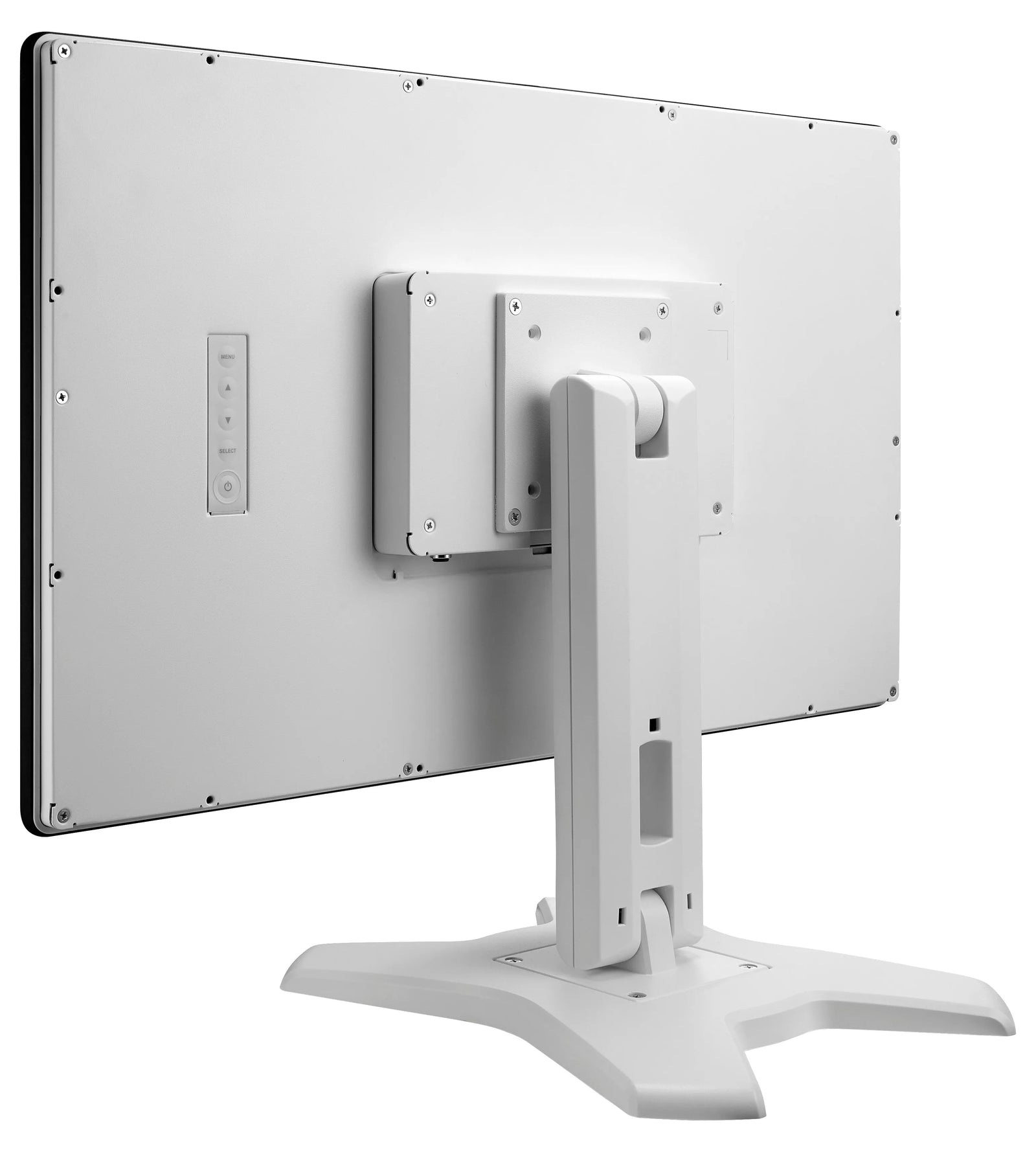

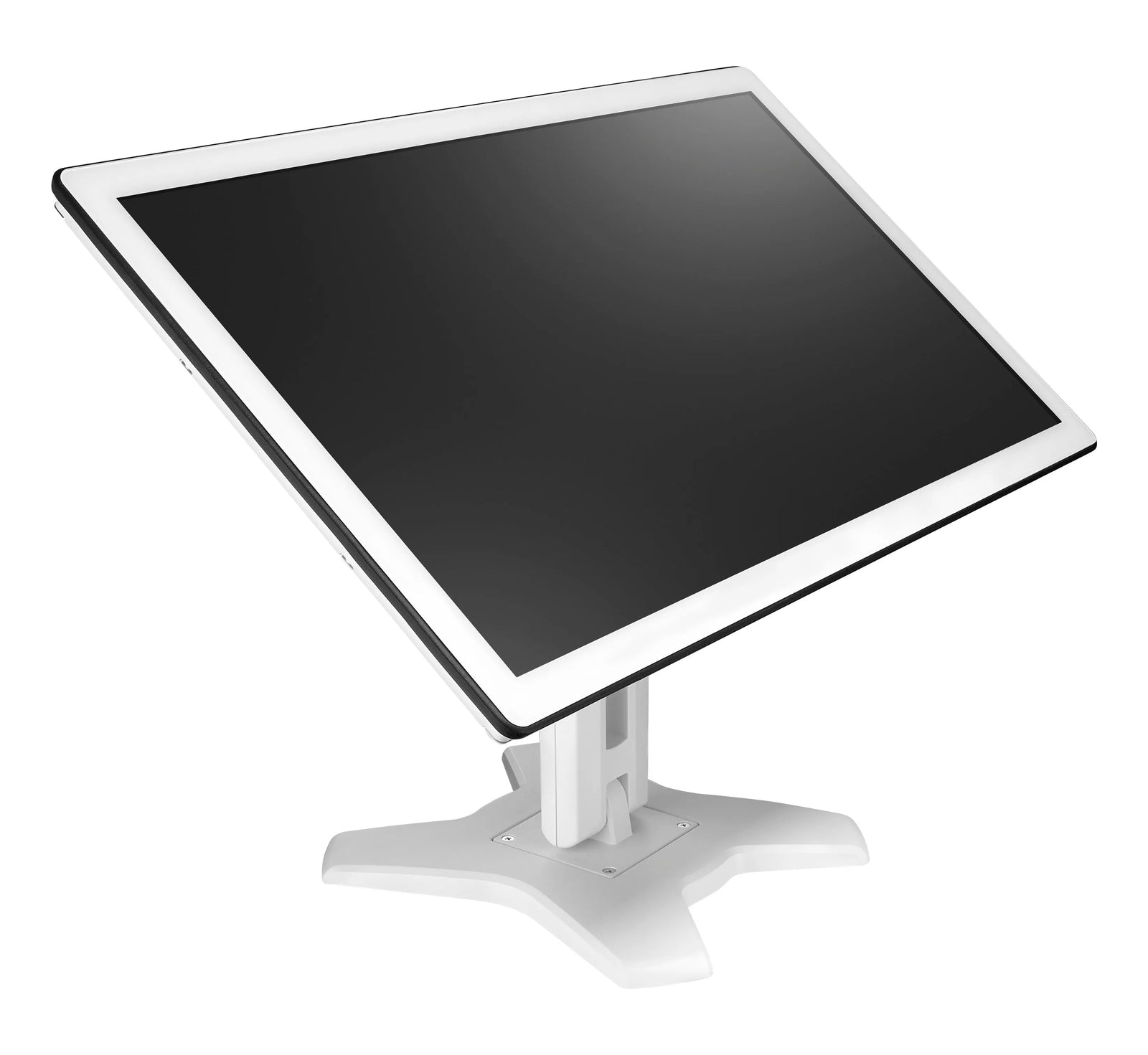

Thanks to VESA compatibility, the TX-2401 White offers flexible mounting options, such as desk mounting, attaching to a monitor arm, or integrating into a medical cart. The included ergonomic stand allows for a significant -2 to 180 degrees of tilt adjustment, facilitating additional flexibility when using. The display features 178 degrees of wide viewing angles to provide consistent colour performance for better viewing.
VERSATILE CONNECTIVITY

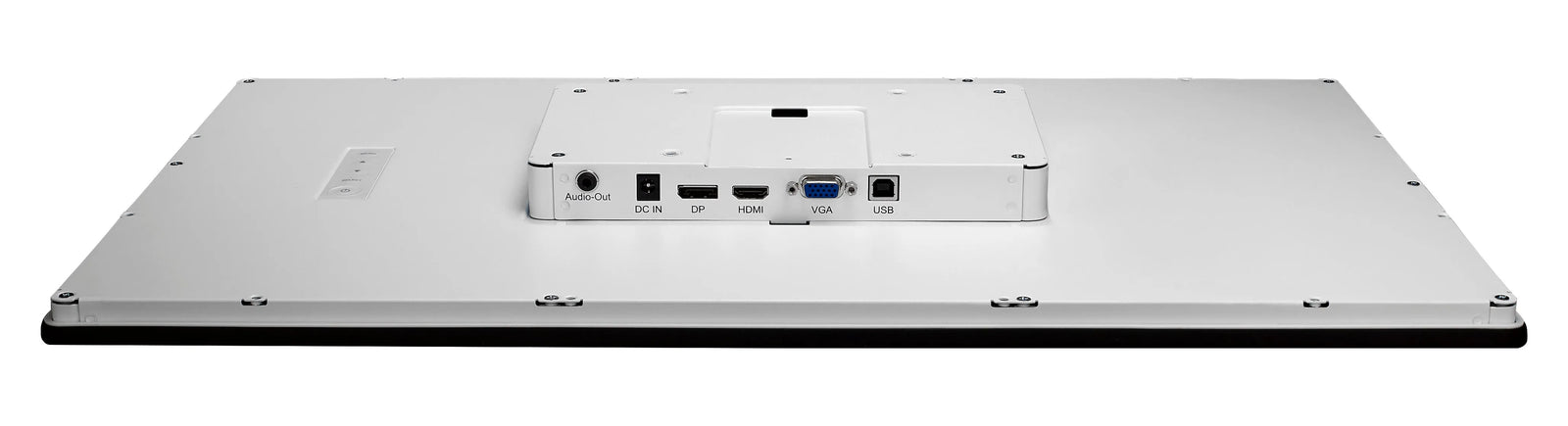

The TX-2401 White provides maximum versatility and enables users to connect to their own devices, such as a high-performance PC or media player, using the DisplayPort, HDMI, or VGA inputs.
CABLE MANAGEMENT

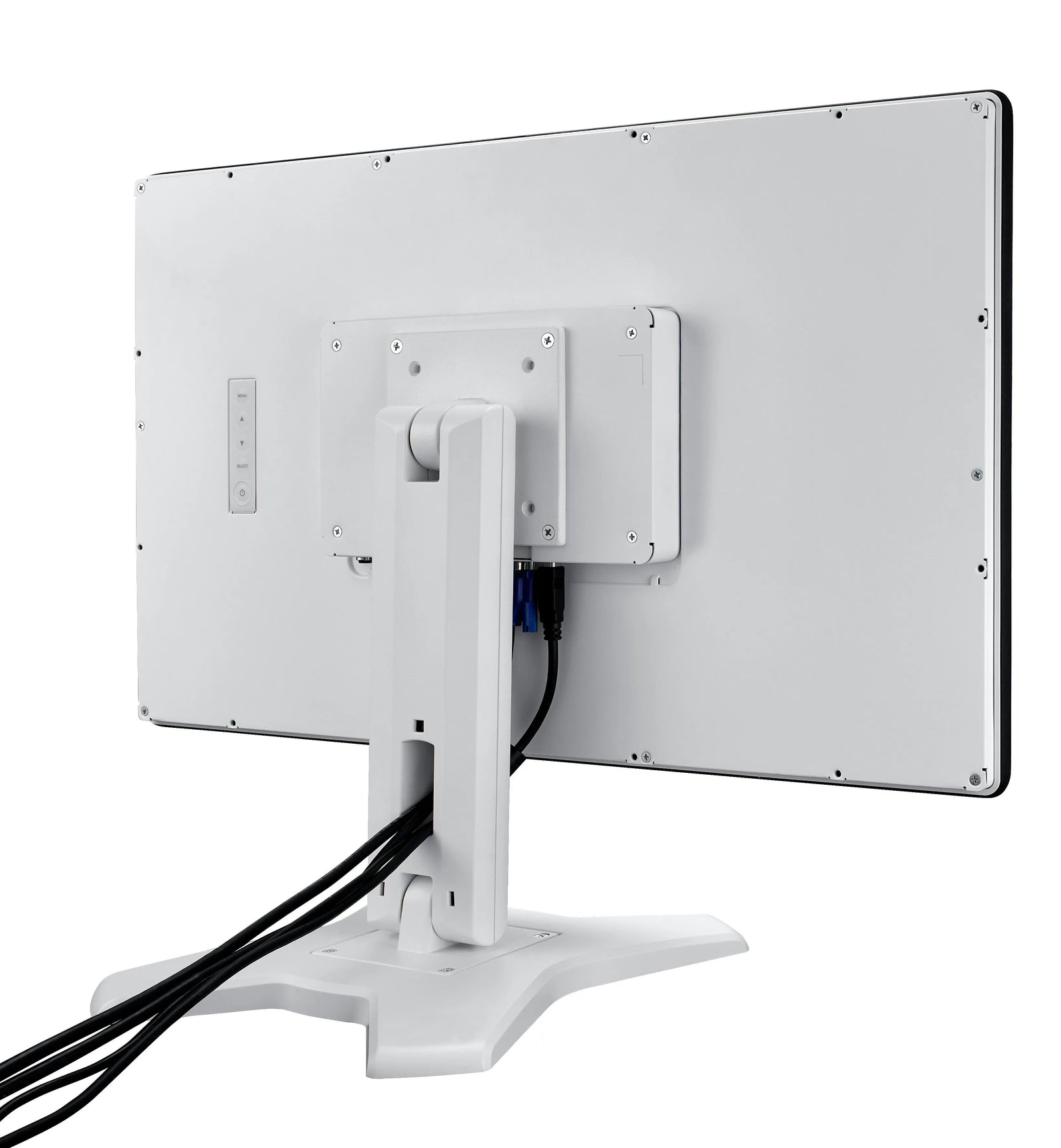

A specially designed monitor stand with integrated cable management keeps cables organized, prevents them from interfering when adjusting the screen, and provides a clutter-free space.
SEAMLESS INTEGRATION
Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choice of the operating system you use.
| Panel | |
|---|---|
| Panel Type | VA |
| Panel Size | 23.8" |
| Max. Resolution | FHD 1920 x 1080 |
| Pixel Pitch | 0.274 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 3000:1 |
| Viewing Angle (H/V) | 178°/178° |
| Display Colour | 16.7M |
| Response Time | 5 ms |
| Surface Treatment | Seriesant1-Glare Treatment (Haze 40%), 3H Hard Coating |
| Frequency | |
| Frequency (H) | 30 kHz-84 kHz |
| Frequency (V) | 56 Hz-76 Hz |
| Signal Input | |
| DisplayPort | 1.2a x 1 |
| HDMI | 1.3 x 1 |
| VGA | 15-Pin D-Sub x 1 |
| Audio | |
| Audio Out | Stereo Audio Jack (3.5 mm) |
| Touch Screen | |
| Technology | Projective Capacitive |
| Positional Accuracy | ±2.5 mm |
| Panel Interface | USB (Type-B)/Service Port |
| Multi-touch Plug & Play | 10-point touch for Windows® 7, 8, 10, 11 |
| Single Touch Support by Driver | Windows VISTA/XP/2000/CE/XP Embedded, Mac OS 10.10-10.14 |
| Multi-touch Support by Driver | Linux 2.6.36 later/3.x.x/4.x.x/5.x.x, Android 2.3 upwards |
| Power | |
| Power Supply | External |
| Power Requirements | DC 12V, 2.5A |
| On Mode | 17 W (On) |
| Standby Mode | < 0.4W |
| Off Mode | < 0.2W |
| Glass | |
| Thickness | 3.3 mm (0.13") |
| Transmission Rate | ≥85% |
| Hardness | ≥7H |
| Operating Conditions | |
| Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | 20%-80% (non-condensing) |
| Storage Conditions | |
| Temperature | -20°C-60°C (-4°F-140°F) |
| Humidity | 10%-90% (non-condensing) |
| Mounting | |
| VESA FPMPMI | Yes (100 x 100 mm) |
| Stand | |
| Tilt | -2° to 180° |
| Dimensions | |
| Product with Base (W x H x D) | 575.1 x 451.3 x 279.7 mm (22.6" x 17.8" x 11.0") |
| Product w/o Base (W x H x D) | 575.1 x 347.0 x 42.4 mm (22.6" x 13.7" x 1.7") |
| Packaging (W x H x D) | 370.0 x 530.0 x 660.0 mm (14.6" x 20.9" x 26.0") |
| Weight | |
| Product with Base | 7.8 kg (17.2 lb) |
| Product w/o Base | 5.7 kg (12.6 lb) |
| Packaging | 11.4 kg (25.1 lb) |
| Regulation Approval | |
| Certifications & Compliance | CE, LVD, WEEE, RoHS, REACH, EAC, UKCA |
| Accessories | Supplied |
| Audio Cable | |
| Batteries | |
| CD | |
| DC Cable | |
| Desiccant | |
| DisplayPort Cable | |
| DVI Cable | |
| DVI to DP Cable | |
| HDMI Cable | |
| IR Daisy Chain Cable | |
| IR Sensor | |
| LAN (RJ45) Cable | |
| Plane Frame Joint | |
| Power Adaptor | |
| Power Box | |
| Power Cord | |
| Power Switch Cover and Screw | |
| Quick Start Guide | |
| Remote Control | |
| RJ45 to RS232(DB9) Cable | |
| RS232 Cable | |
| RS232 Daisy Chain Cable | |
| Screw Stud | |
| Side Bracket Package | |
| Touch Pen | |
| USB Cable | |
| USB-C Cable | |
| User Manual (printed) | |
| VGA Cable | |
| Wall Mount | |
| Warranty Card | |
| Wi-Fi / Bluetooth Module | |
| Wired OSD Controller | |
| Optional Accessories | |
| Wall Mount (Landscape only) | PMK-01 |
| WMK-01 | |
| WMK-03 |
AG Neovo provides the following limited warranty. This limited warranty applies only to the original End User and to no other purchaser or transferee.
AG Neovo warrants its LCD Monitor products and parts against defects in materials and workmanship under normal use for a period of Three (3) Years for parts from the date of initial retail purchase. AG Neovo warrants LCD Panel for a period of Three (3) years from the date of initial retail purchase. During this period, AG Neovo will repair or replace a defective product or part without charge.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
The AG Neovo warranty obligations for the product are limited to the terms set forth below.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
AG Neovo warrants its accessories to be free from defects in material and workmanship under normal operating conditions for a period of 12 months limited warranty.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
For information on obtaining warranty service, call your AG Neovo dealer, AG Neovo’s Customer Support hotline, or email service centers.
Europe | +31-10-442-57-37 | service.nl@agneovo.com
