AG Neovo MX-24 Healthcare Monitors

24" 1080P Dicom Compatible Monitor

• Description
• Specifications
• Warranty
• Downloads

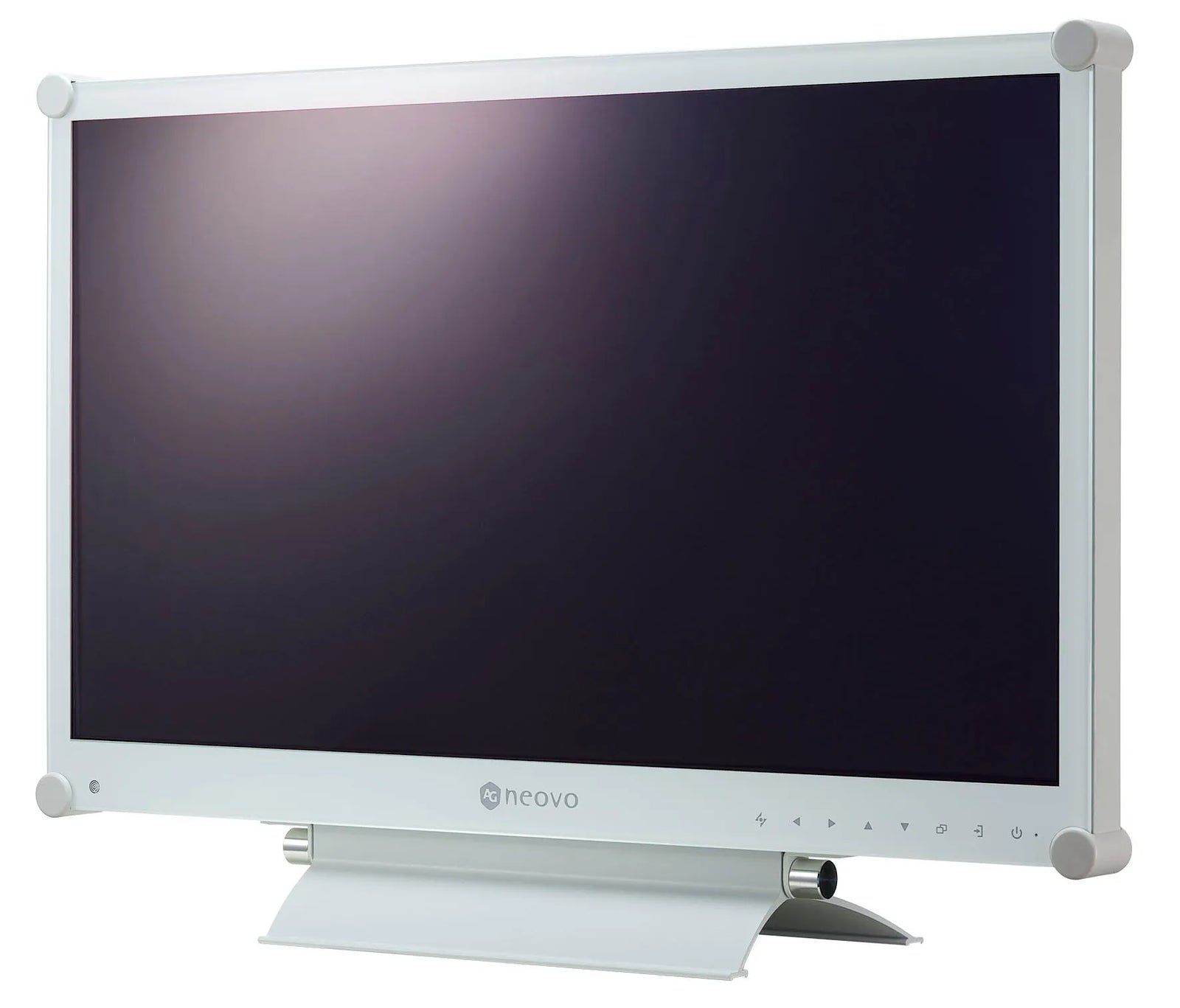

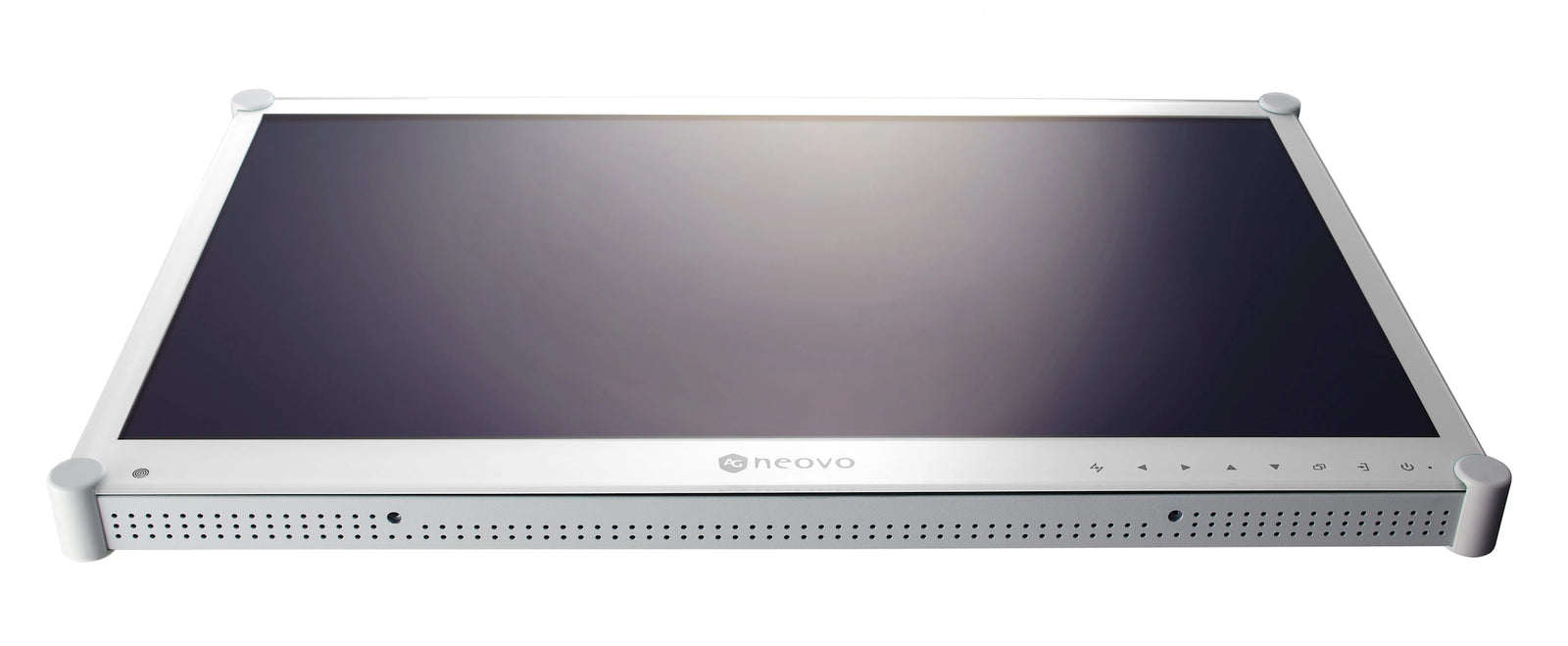

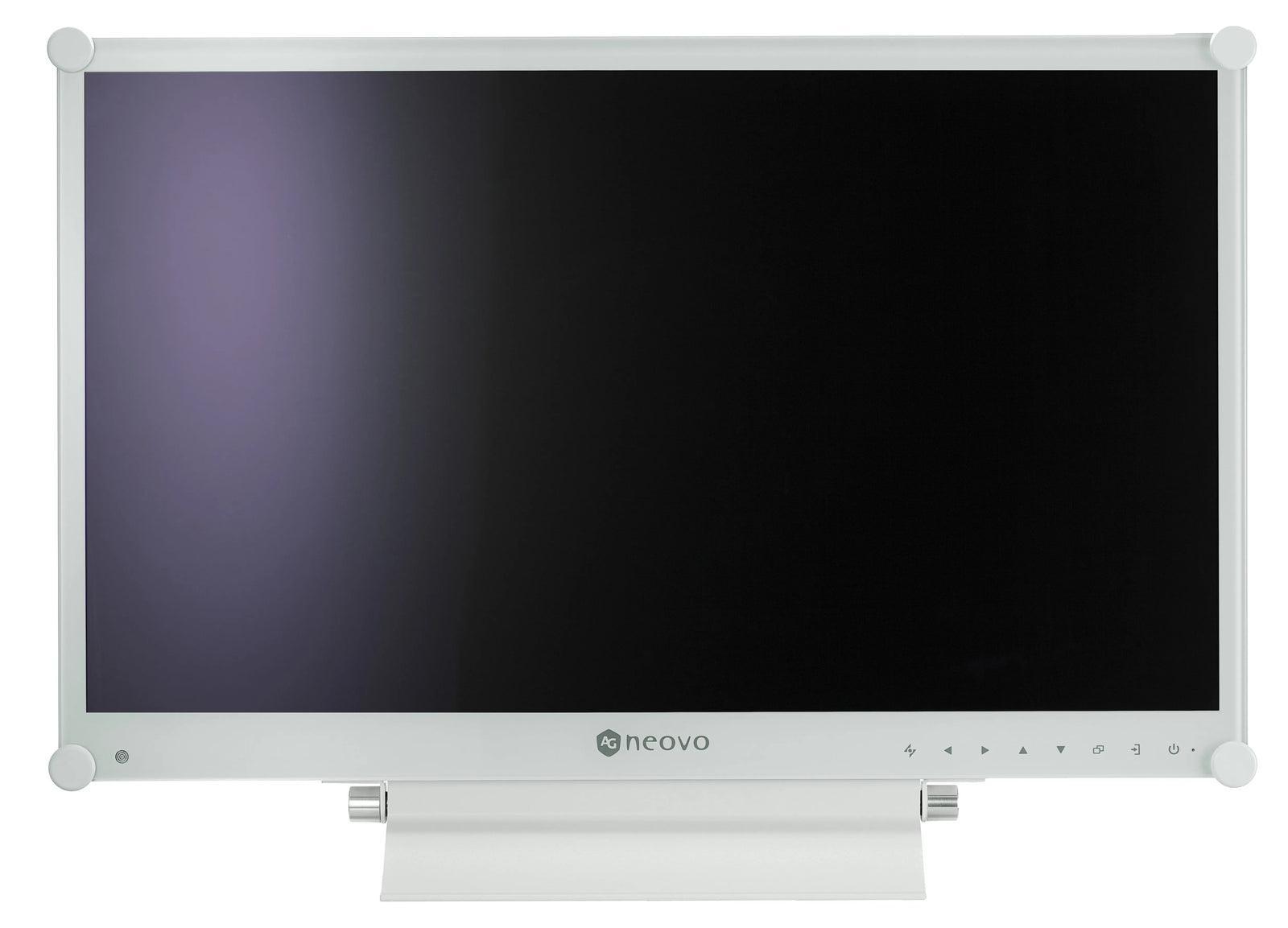

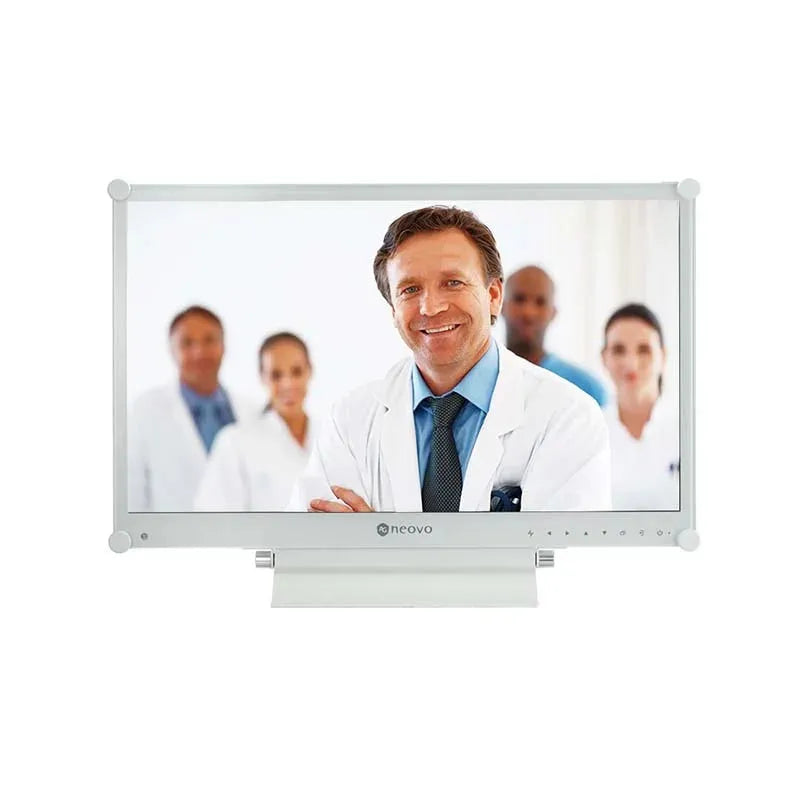

• The MX-24 is a 24-inch DICOM monitor featuring Full HD 1080p resolution, certified with IEC/EN 60601-1 and IEC/EN 60601-1-2 medical electrical equipment standard, with medical-grade low-voltage power supply. Compatible with DICOM Part 14 standard, it ensures accurate and excellent medical image quality, colour reproduction, and image contrast. Equipped with NeoV™ Optical Hard Glass, the MX-22 withstands alcohol and other commonly used cleaning solutions, allowing medical professionals to sanitize it easily.


  EASY CLEAN AND ROBUST PROTECTION

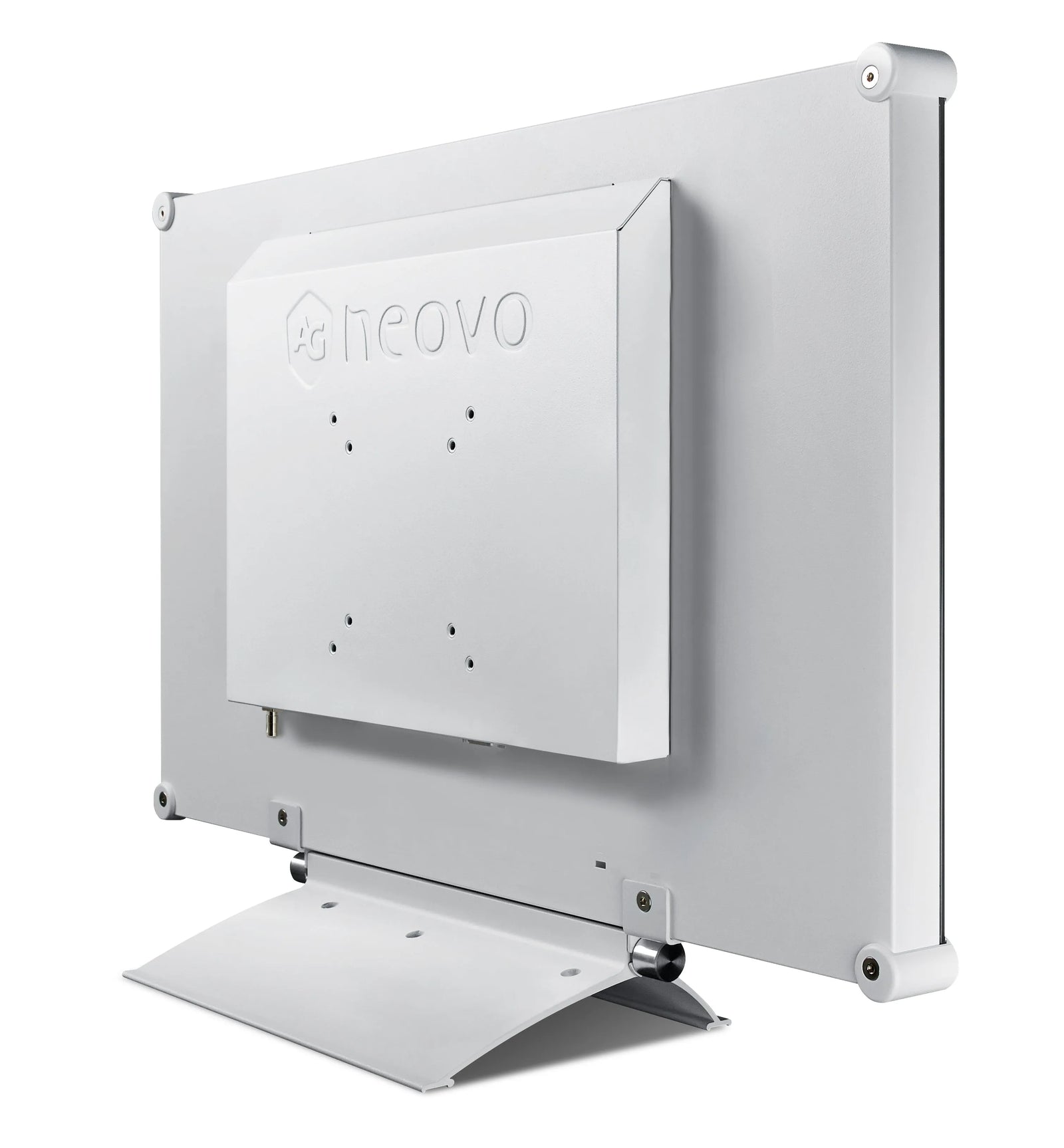

  The special design of NeoV Optical Hard Glass and white metal casing prevent dust and waterproof for easy clean and robust protection.

  DICOM PART 14 CALIBRATION
  DICOM Part 14 calibration corrects gamma and luminance to achieve the smooth grayscale for the accurate and consistent appearance of clinical data and other medical images.

  CERTIFIED WITH IEC/EN 60601-1 AND IEC/EN 60601-1-2
  In addition to medical-grade power supply, the MX-Series is fully certified with IEC/EN 60601-1 and IEC/EN 60601-1-2 that ensures safety, performance and reliability.

  PIP/PBP SUPPORT
  This 24-Inch DICOM monitor enhances work efficiency with PiP/PbP support for multitasking.

• Feature	Specification
  Panel	VA
  Panel Type	23.8"
  Max. Resolution	FHD 1920 x 1080
  Pixel Pitch	0.274 mm
  Brightness	250 cd/m²
  Contrast Ratio	20,000,000:1 (DCR)
  Viewing Angle (H/V)	178°/178°
  Display Colour	16.7M
  Response Time	5 ms
  Surface Treatment	Seriesant1-Glare Treatment (Haze 40%),3H Hard Coating
  Frequency (H)	24 kHz-83 kHz
  Frequency (V)	50 Hz-75 Hz

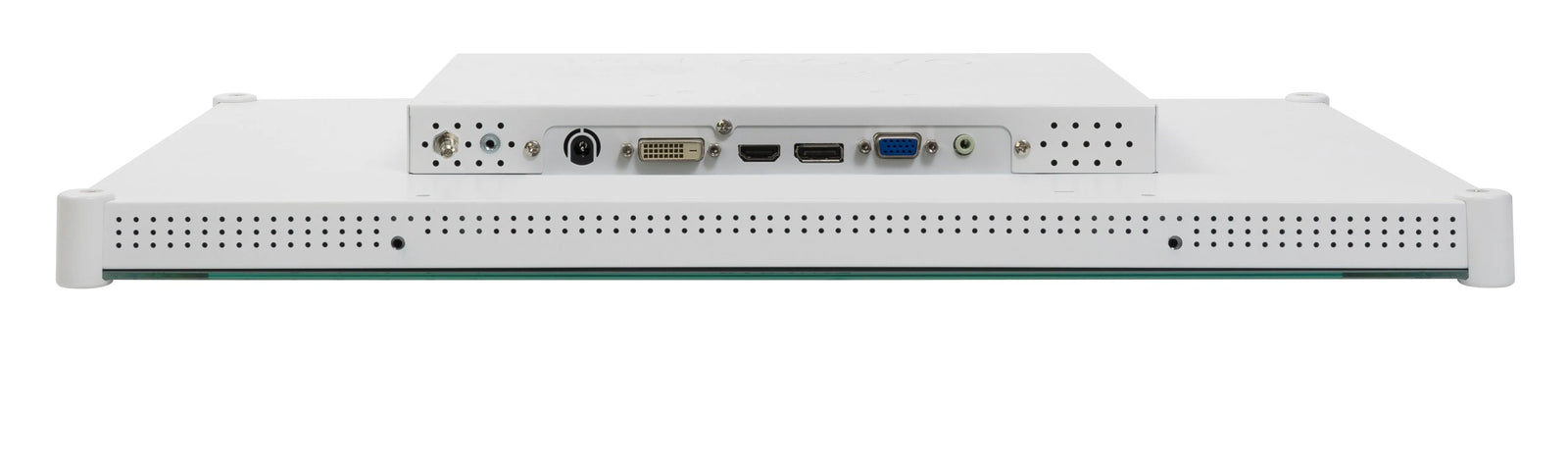

  Signal Input	DisplayPort x 1
  	HDMI 1.4 x 1
  	DVI 24-Pin DVI-D
  	VGA 15-Pin D-Sub x 1
  Audio	Audio In
  	Stereo Audio Jack (3.5 mm)
  Internal Speakers	2W x 2
  Power Supply	External
  Power Requirements	DC 12V
  	2.5A
  Power Consumption (On Mode)	18W (On)
  Power Consumption (Standby Mode)	< 0.5W
  Power Consumption (Off Mode)	< 0.3W
  Glass	Thickness: 3.0 mm (0.12")
  	Reflection Rate: < 1%
  	Transmission Rate: > 97%
  	Hardness: > 9H
  Operating Conditions	Temperature: 0°C-40°C (32°F-104°F)
  	Humidity: 10%-90% (non-condensing)
  Storage Conditions	Temperature: -20°C-60°C (-4°F-140°F)
  	Humidity: 5%-95% (non-condensing)

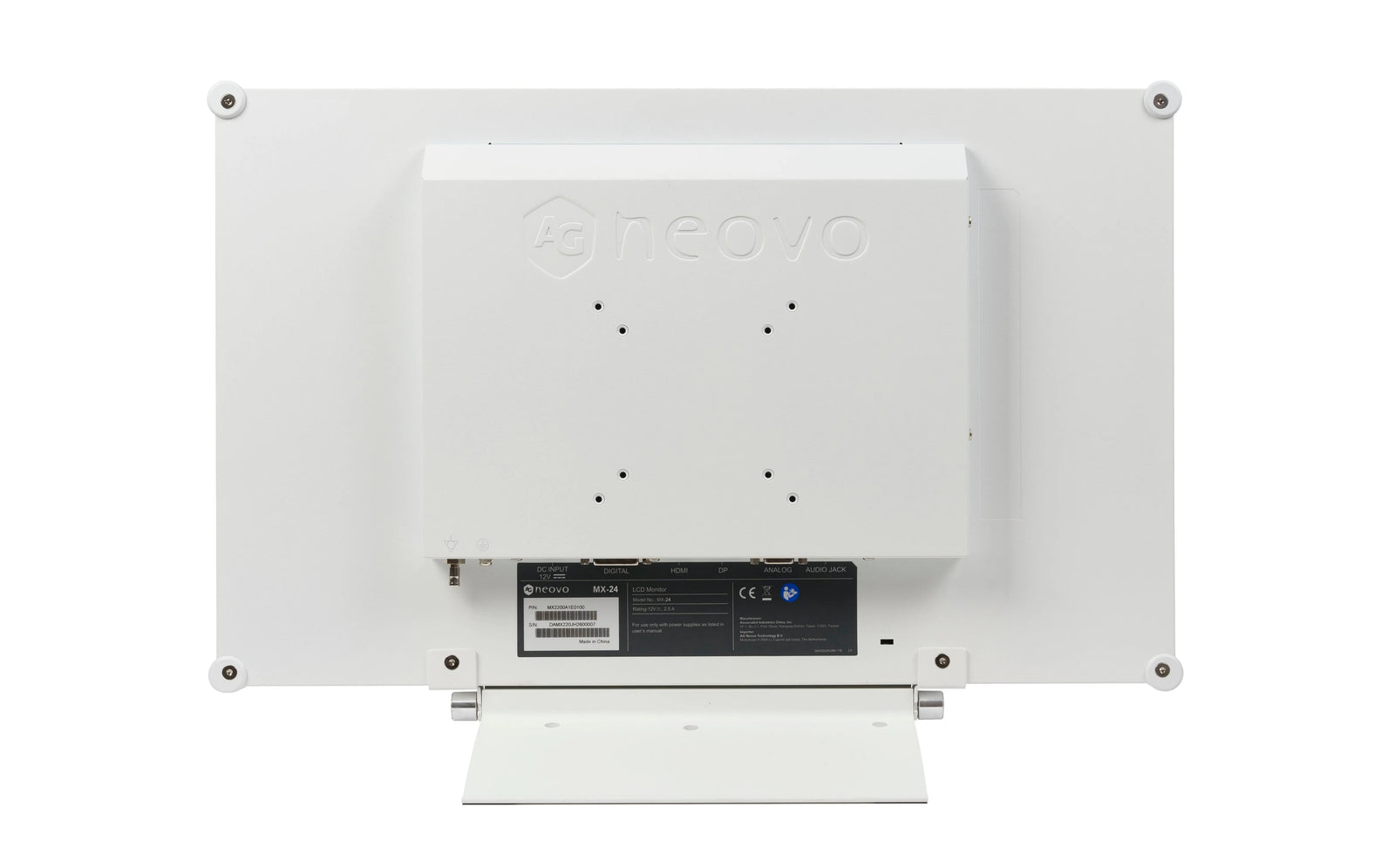

  Mounting	VESA FPMPMI
  	Yes (100 x 100 mm & 75 x 75 mm)
  Stand	Tilt: 3° to 21°
  Security	Kensington Security Slot
  Dimensions	Product with Base (W x H x D): 562.4 x 392.8 x 196.0 mm (22.1" x 15.4" x 7.7")
  	Product w/o Base (W x H x D): 562.4 x 352.6 x 56.2 mm (22.1" x 13.9" x 2.2")
  	Packaging (W x H x D): 672.0 x 517.0 x 249.0 mm (26.5" x 20.4" x 9.8")
  Weight	Product with Base: 7.8 kg (17.2 lb)
  	Product w/o Base: 7.0 kg (15.4 lb)
  	Packaging: 10.9 kg (24.0 lb)
  Regulation Approval	Certifications & Compliance
  	CE
  	LVD
  	WEEE
  	RoHS
  	REACH
  	EAC
  	IEC/EN 60601-1
  	IEC/EN 60601-1-2
  Accessories	Supplied
  	Audio Cable
  	Power Adaptor
  	Power Cord
  	Quick Start Guide
  	VGA Cable
  Optional Accessories	Handle
  	HDL-02
  	Ceiling Mount (Landscape only): CMP-01 + WMK-03
  	Wall Mount (Landscape only): PMK-01, WMA-01, WMK-01, WMK-03
  	Desk mount (Landscape only): DMC-01, DMC-02D, DMS-01D, ES-02

• AG Neovo provides the following limited warranty. This limited warranty applies only to the original End User and to no other purchaser or transferee.

  FOR LCD DISPLAYS

  AG Neovo warrants its LCD Monitor products and parts against defects in materials and workmanship under normal use for a period of Three (3) Years for parts from the date of initial retail purchase. AG Neovo warrants LCD Panel for a period of Three (3) years from the date of initial retail purchase. During this period, AG Neovo will repair or replace a defective product or part without charge.

  Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.




  WHAT THE WARRANTY COVERS

  The AG Neovo warranty obligations for the product are limited to the terms set forth below.

  1. AG Neovo warrants the product against defects in materials for a period of three (3) years for all series of TFT LCD panel and three (3) years for parts.
  2. With respect to LCD display pixel quality inspection of the defective display pixels must be performed in black screen. A maximum of 3 bright pixels or 3 dark pixels is allowed in an LCD panel; the total number of dark and bright pixels should not exceed 3 pixels for the whole area.
  3. If a defect arises within the warranty period, please contact the AG Neovo service centre; you should provide your products serial number, and your contact information, such as address, and phone number.
  4. AG Neovo warrants replacement products or parts provided under this warranty against defects in materials and workmanship from the date of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage.




  WHAT THE WARRANTY DOES NOT COVER

  1. Products on which the serial number has been defaced, modified or removed;
  2. Products, which are not accompanied by a copy of the original invoice or where information on the original invoice has been altered or erased in any manner whatsoever.
  3. Damage, deterioration or malfunction resulting from:
     • Accident, abuse, misuse, neglect, fire, water/liquids, lightning, or other acts of nature, unauthorised product modification, or failure to follow instructions supplied with the Products.
     • Repair or attempted repair by anyone not authorised by AG Neovo.
     • Any damage of the Products due to shipment.
     • Removal or installation of the Products.
     • External causes to the Products, such as electric power fluctuations or failure.
     • Use of supplies or parts not meeting the specifications of AG Neovo.
     • Normal wears and tear.
     • Any other cause, which does not relate to a Product defect.
     • Damage to, or abuse of, the coating on the surface of the display.
     • Scratched or broken panel.
     • Cracked Printed Circuit Board or abused housing and/or base.
     • Exposure to an excessive dusty and/or humid environment.
     • Because LCD panel is the liquid characteristic, damage caused by static (non-moving) images displayed for lengthy periods of time (also referred to as “burn-in”).

  AG Neovo has the right to revise the policy.

  Please contact local AG Neovo office to get detailed information.

  ---




  FOR ACCESSORIES

  AG Neovo warrants its accessories to be free from defects in material and workmanship under normal operating conditions for a period of 12 months limited warranty.

  Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.




  WARRANTY CONDITIONS

  1. The warranty applies only to products distributed by AG Neovo.
  2. The warranty applies only to defects in material or workmanship as limited above and does not include normal wear items. The warranty applies only to defects which occur during normal use and does not extend to damage to products or parts which results from alterations, repairs, modifications, faulty installation or service by anyone other than an authorised AG Neovo Service Centre; damage to products or parts caused by accident, abuse, misuse, maintenance, mishandling, misapplication, or use in violation of instructions furnished by us; damage which occurs in shipment or any damage caused by an act of God, such as lightning or line surges.
  3. You must retain your bill of sale, invoice or receipt.
  4. Any replacement parts provided to the purchaser in fulfillment of this warranty does not extend the warranty period only the residual portion of the original warranty period remains.

  AG Neovo has the right to revise the policy.

  Please contact local AG Neovo office to get detailed information.

  For information on obtaining warranty service, call your AG Neovo dealer, AG Neovo’s Customer Support hotline, or email service centers.

  Europe |  +31-10-442-57-37 | service.nl@agneovo.com

• Document Type	Downloads
  Data Sheet	Download
  User Manual	Download
  Declaration	Download
  Technical Drawing	Download
