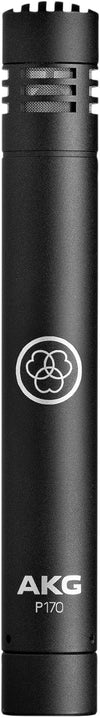

The P170 is a small-diaphragm condenser microphone for recording of overheads, percussion, acoustic guitars and other strings. Its lightweight 1/2-inch true condenser transducer diaphragm delivers outstanding clarity and transient response. The P170 utilizes the experience of sound engineers from around the world and is considered an affordable alternative to the legendary AKG C451 B.
| Polar Pattern | Cardioid | Audio Frequency Bandwidth | 20 – 20,000 Hz |
| Equivalent Noise Level | 19 dB-A | Sensitivity | 15 mV/Pa |
| Signal to Noise Ratio | 75 dB-A | Preattenuation Pad | -20 dB |
| Electrical Impedance | ≤ 200 Ohms | Recommended Load Impedance | ≥ 1000 Ohms |
| Length | 160 mm | Diameter | 22 mm |
| Net Weight | 130 g | Audio Output Type | Balanced XLR |
| Output Gender | Male (3-pin) | Powering Voltage | 44 – 52 V |
| Current | ≤ 3 mA | Applications | Project Studio, Live Instrument |
| Instrument Use | Drums/Percussion, Horns/Woodwinds, Piano/Strings | Included Accessories | P170 Microphone, Stand Adapter |
| Description | Downloads |
|---|---|
| AKG P170 High-performance Instrument Microphone | 3101H00410 DataSheet | Download |
| AKG P170 High-performance Instrument Microphone | 3101H00410 Owner's Manual | Download |
