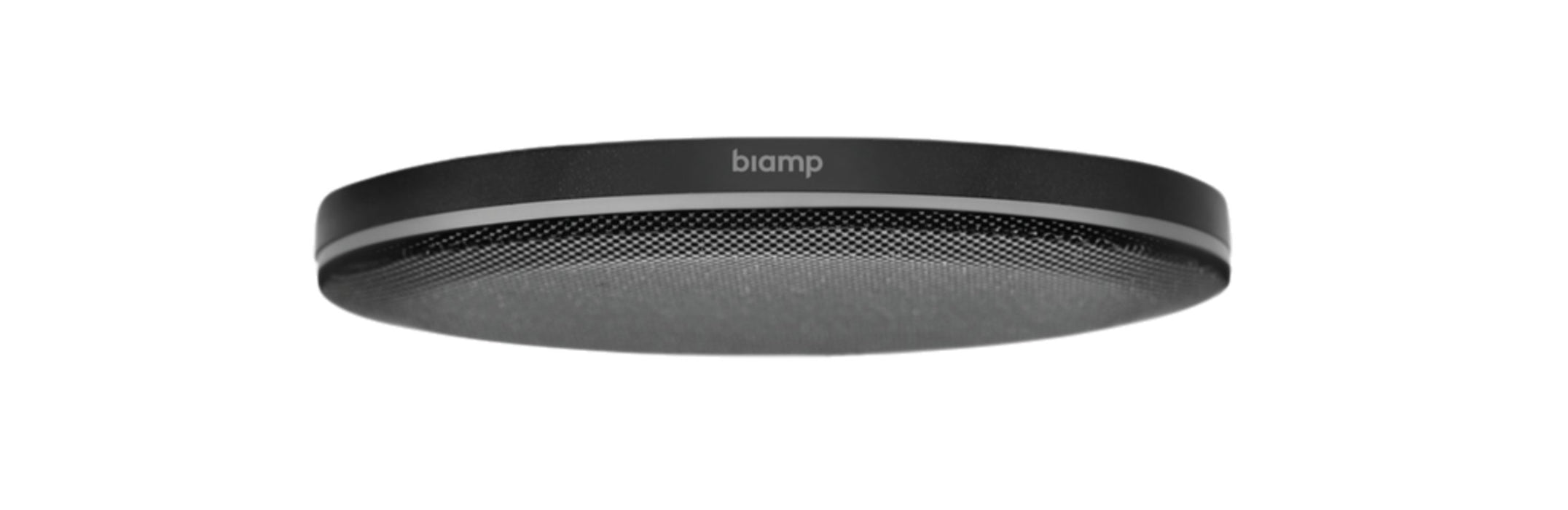

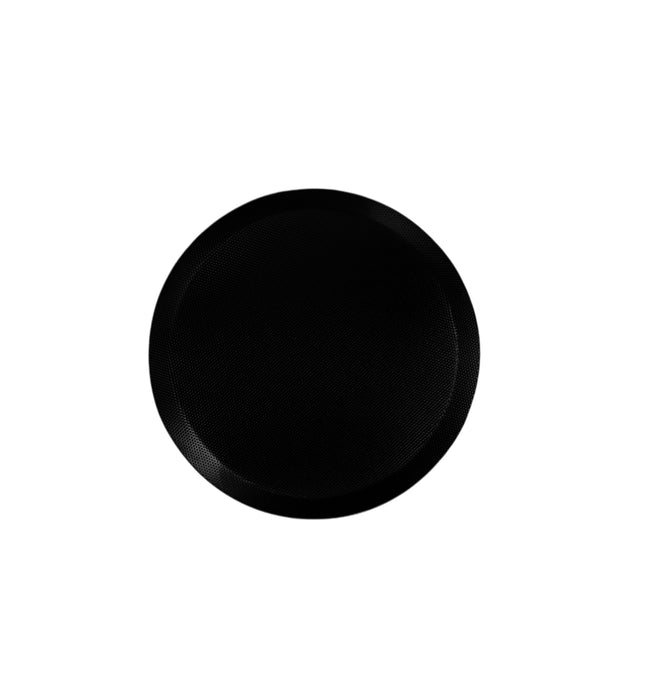

AVB Beamtracking, surface-mount black ceiling microphone
The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.
The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting.

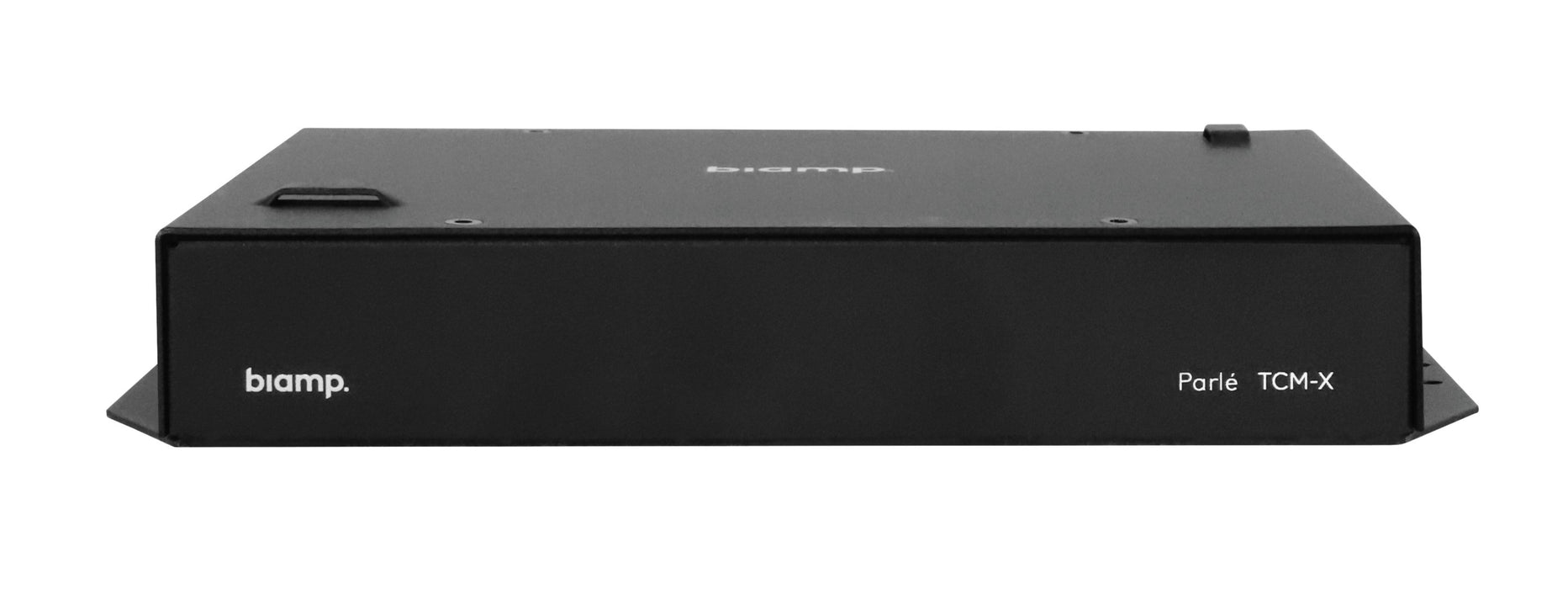

Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX to the network box. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX).
The TCM-X is well suited for a variety of room types and sizes with 10 foot ceilings or lower that require high-quality audio solutions and low profile or unobtrusive microphones.
Key Features
Measures 5.90 inches (150mm) in diameter

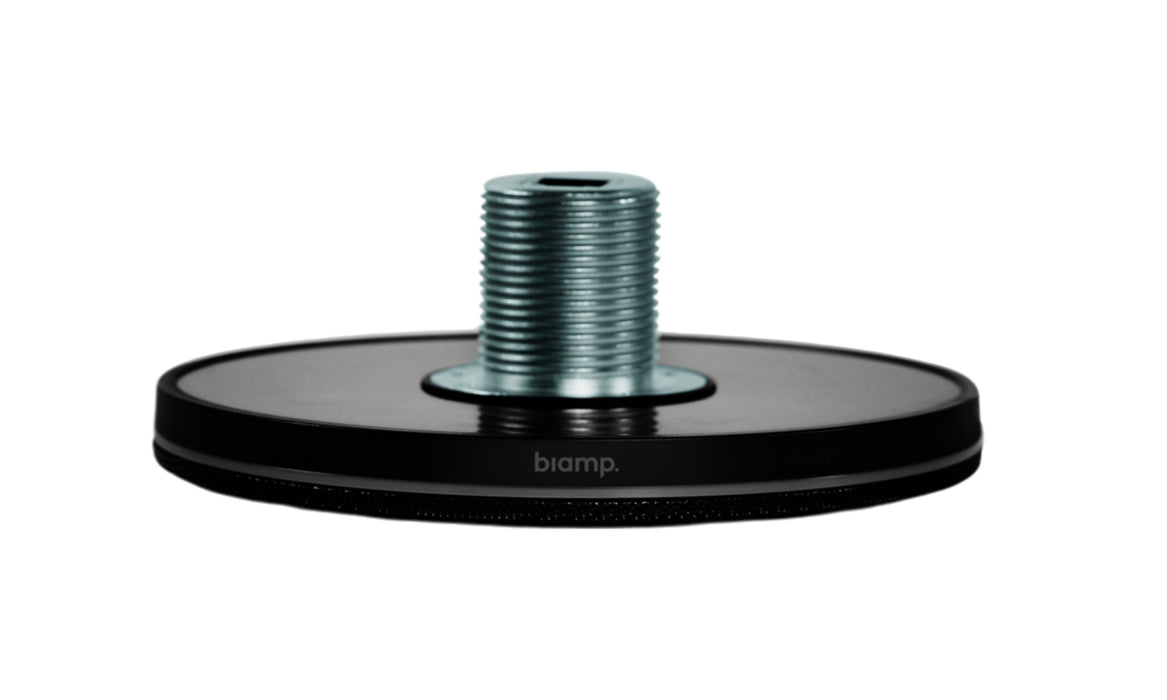

Mounts directly to the ceiling to virtually disappear in room
Beamtracking technology actively tracks and intelligently mixes conversations
Four 90-degree zones for full 360-degree room coverage
Network box includes DSP for Beamtracking
Uses only one channel of AEC per microphone
Single cable connection via CAT5 cable
Beamtracking technology works out-of-box without any lobe aiming or room mapping
LED mute status indicator
Available in either black or white
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
Additional RJ-45 connection
CE marked, UL listed, and RoHS compliant
5-year warranty
Compliant with the US Trade Agreement Act (TAA)
| Height | 1.2 inches (30 mm) | Width | 6.8 inches (172 mm) |
| Depth | 5.2 inches (132 mm) | Diameter | 5.9 inches (150 mm) |
| Weight | 1.4 lbs (625 g) | Power | PoE (IEEE 802.3at Class 3, 15.4W) Indicators: Power Indicator (Green/Yellow/Red LED) |

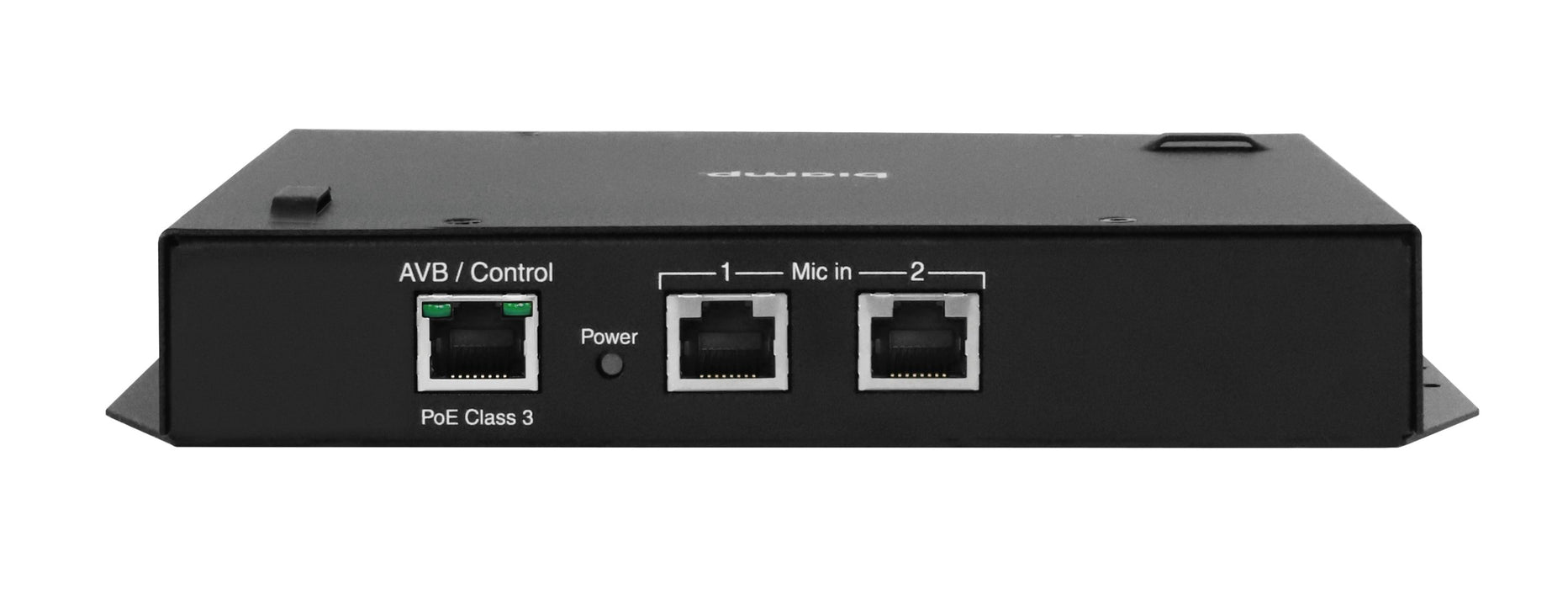

| Power Indicator(s) | Microphone: Mute Indicator (Green/Red LED) | Network Connections | Network Box Connectors - Three RJ-45: One between TCM-X network box and switch One between network box and microphone One between TCM-X network box and TCM-XEX |
| Ambient Operating Temperature | 32 - 104° F (0 - 40° C) | Humidity | 0–95% relative |
| Altitude | 0–10,000 ft (0–3000 m) MSL | Microphone | Microphone Technology: 16-Element Digital Array Polar Pattern: Active Beamformed SNR (at 1kHz, 94dBSPL A-Weighted): > 76dB Connector: RJ-45 (6.6 ft / 2 m cable) |
| Digital Interface | Custom/Proprietary | Max Distance Between Devices | 330 ft (100 m) from switch to TCM-X network box 33 ft (10 m) between TCM-X network box and TCM-XEX |
| Frequency Response | (150 Hz - 16 kHz): ±3 dB | Dynamic Range | (THD+N < 1%): 92 dB, A-Weighted |
| SPL | (at < 1% THD): 109 dB | Certified Solutions | TAA Compliant Zoom Certified Microsoft Certified |
| Certifications | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to UL 2043 standards (air handling spaces) |
||
| Description | Downloads |
|---|---|
| BIAMP Parle TCM-X Black Ceiling Microphone | 911.0507.900 DataSheet | Download |
