NovaStar MX20 LED Display Controller
SKU: MX20
£1,355.00 (Excl. VAT)
- Description
- Specifications
-

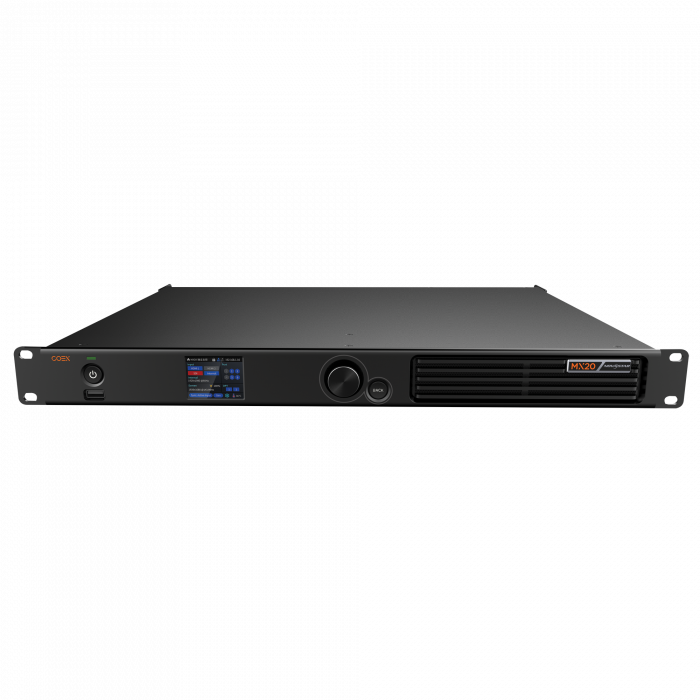

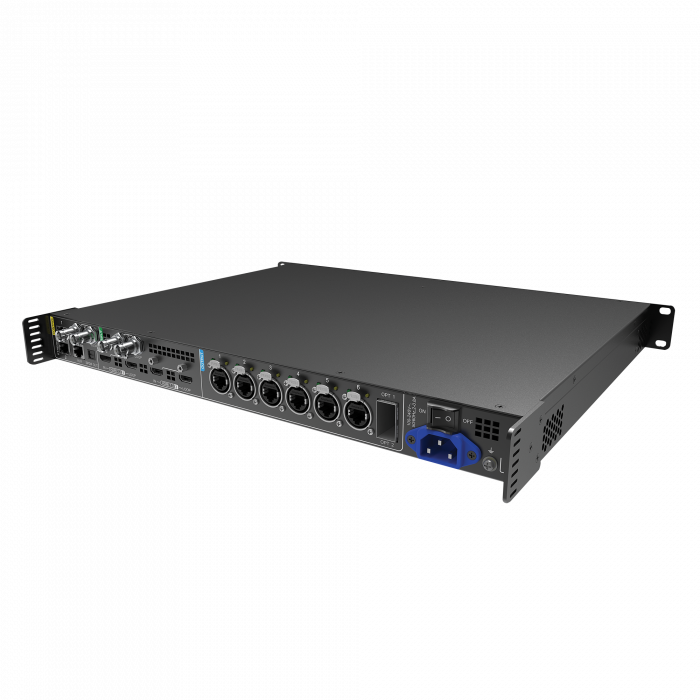

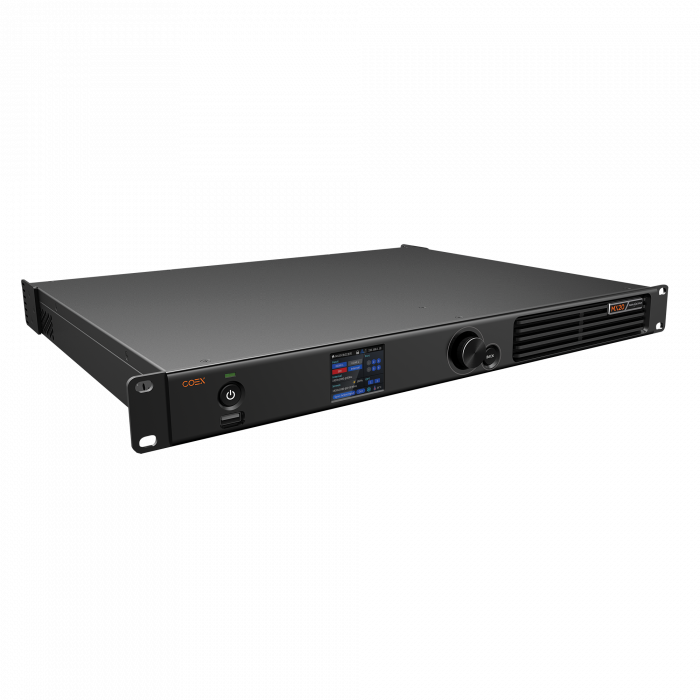

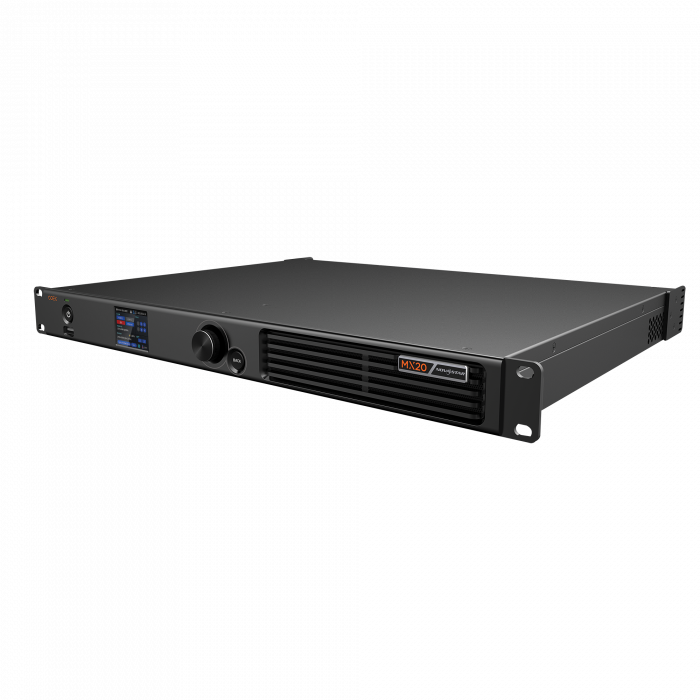

NovaStar MX20 LED Display Controller
Novastar's MX20 is an all-in-one LED display controller that integrates video processing and LED system control. With multiple inputs and outputs on board, the MX20 offers several setup possibilities. It has two HDMI 1.3 inputs + loop and one 3G-SDI input + loop, while the outputs include six Ethernet ports, two 10G optical ports and an S/PDIF optical output. There are also two network ports, one auxiliary port and a Genlock input and loop on board. A control knob and a back button, together with a 2-inch LCD screen, make it easy to control the device. The MX20 can also be controlled by the comprehensive, user-friendly VMP software, which ensures easy operation and control. Cascading control via Ethernet is also possible and both SNMP and Art-Net protocols are supported. Advanced features include three independent layers, image scaling, 14Ch colour correction, low latency support and display system monitoring. The MX20 can be mounted in a 19-inch rack.
-
Category Specifications Inputs HDMI 1.3: 2 ports 3G-SDI: 1 port Outputs Main Outputs: 6 ports HDMI 1.3 Loop: 2 ports 3G-SDI Loop: 1 port S/PDIF (Out): 1 port Ethernet Speed 1 Gbit/s Optical SFP Slot Type: 10G SFP Slot Quantity: 2 Software Specifications Control Software: VMP Scaling Function: Yes Layers: 3 GenLock: In & Out DMX Control: Art-Net Control & Programming Display: LCD, 2" Screen Max Loading Capacity: 3.9 Mpx Max Input Resolution: 1920x1200 Control Options: Ethernet Electrical Specifications Power Supply: 100-240 V AC 50/60 Hz Power Consumption: 50W Power Connector: IEC Data Connections Data In: RJ45 Data Out: etherCON, RJ45 Mechanical Specifications Width (w/ handles): 483 mm (19.02") Width (w/o handles): 445 mm (17.52") Height: 44 mm (1.73") Depth (w/ handles): 384 mm (15.12") Depth (w/o handles): 359 mm (14.13") Weight: 4.5 kg (9.92 lb) Rack Units: 1U IP Rating IP20 (Indoor Use Only) Thermal Specifications Max Temp: 50°C (122°F) Min Temp: -20°C (-4°F) Humidity: 0-80% RH Included Items CAT-5 Cable, HDMI Cable, IEC Cable
