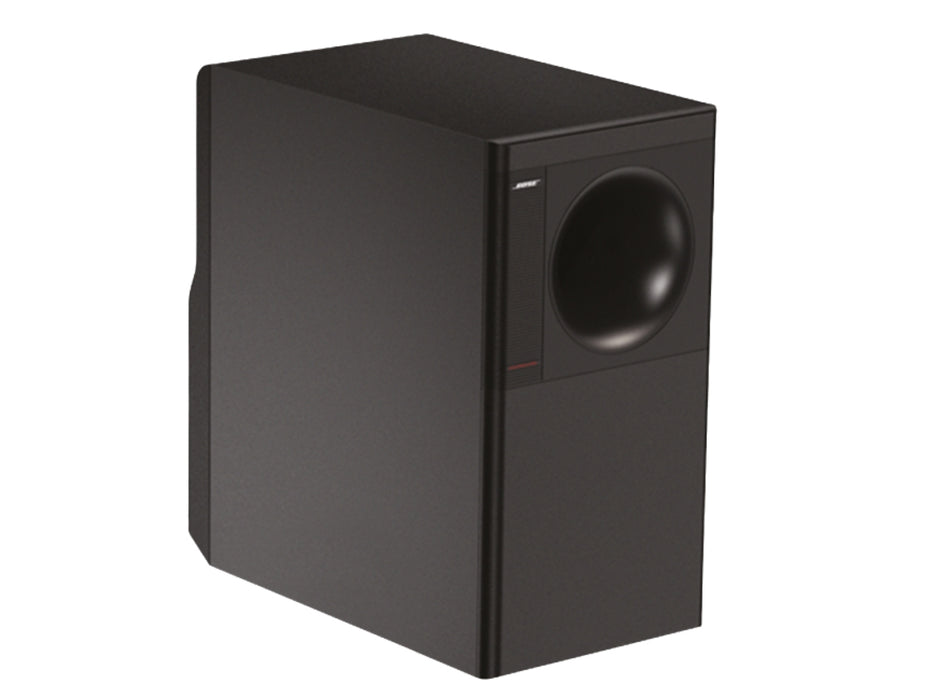

Bose FreeSpace 3 Surface-Mount Bass Module Black | 40146
Designed to provide surface-mount bass augmentation for new and existing background music systems. Features one 5.25-inch (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion. For indoor applications only.
FEATURES
Low-frequency loudspeaker featuring one 5.25-inch (133 mm) woofer that delivers deep, non-localized bass down to 40 Hz without audible distortion. For surface-mount applications.
Speaker technology filters out audible distortion to deliver non-localized bass
Designed to work with the FreeSpace 3 surface and flush satellite speakers, or existing systems where additional bass reinforcement is desired
Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module
Selectable 70/100V or low impedance
Applications
Designed for a wide range of applications, including:
Retail stores
Restaurants and bars
Lobbies and conference roomsWarranty Period
5 yearsIncluded in Packaging
(1) installation guide(1) mounting bracket
(1) wiring panel cover
(1) FreeSpace 3 Module
Mechanical Diagrams
-
Feature Description EN 54-24 Certified No Colors Black, White Enclosure Material High-density wood composite with solid color PVC laminate Environmental Indoor only Suspension/Mounting Wall-mount bracket, preattached Product Dimensions (H×W×D) 14.0 in × 7.5 in × 13.6 in (356 mm × 191 mm × 345 mm) / Width with bracket: 8.8 in (222 mm) Net Weight 17.5 lb (7.9 kg) Shipping Weight 25.0 lb (11.3 kg) Frequency Range (-10 dB) 40 Hz – 315 Hz Coverage (Horizontal) Omnidirectional below 200 Hz Coverage (Vertical) Omnidirectional below 200 Hz Calculated Max SPL @ 1 m Per channel: 96 dB continuous, 102 dB peak / Mono: 102 dB continuous, 108 dB peak Nominal Impedance 5 Ω mono direct (transformer bypassed) Power Handling (Continuous) 70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono Power Handling (Peak) 70/100 V: 800 W peak mono / Low impedance: 200 W peak per channel stereo or 400 W peak mono Recommended Signal Processing Recommended Sensitivity (SPL/1 W @ 1 m) Per channel: 76 dB / Mono: 79 dB Transformer Taps (100V) 25 W, 50 W, 100 W, 200 W Transformer Taps (70V) 25 W, 50 W, 100 W, 200 W Driver Protection Recommended high-pass filter 40 Hz high-pass filter Low-Frequency Driver 5.25 in (133 mm) dual-voice-coil low-frequency driver -
