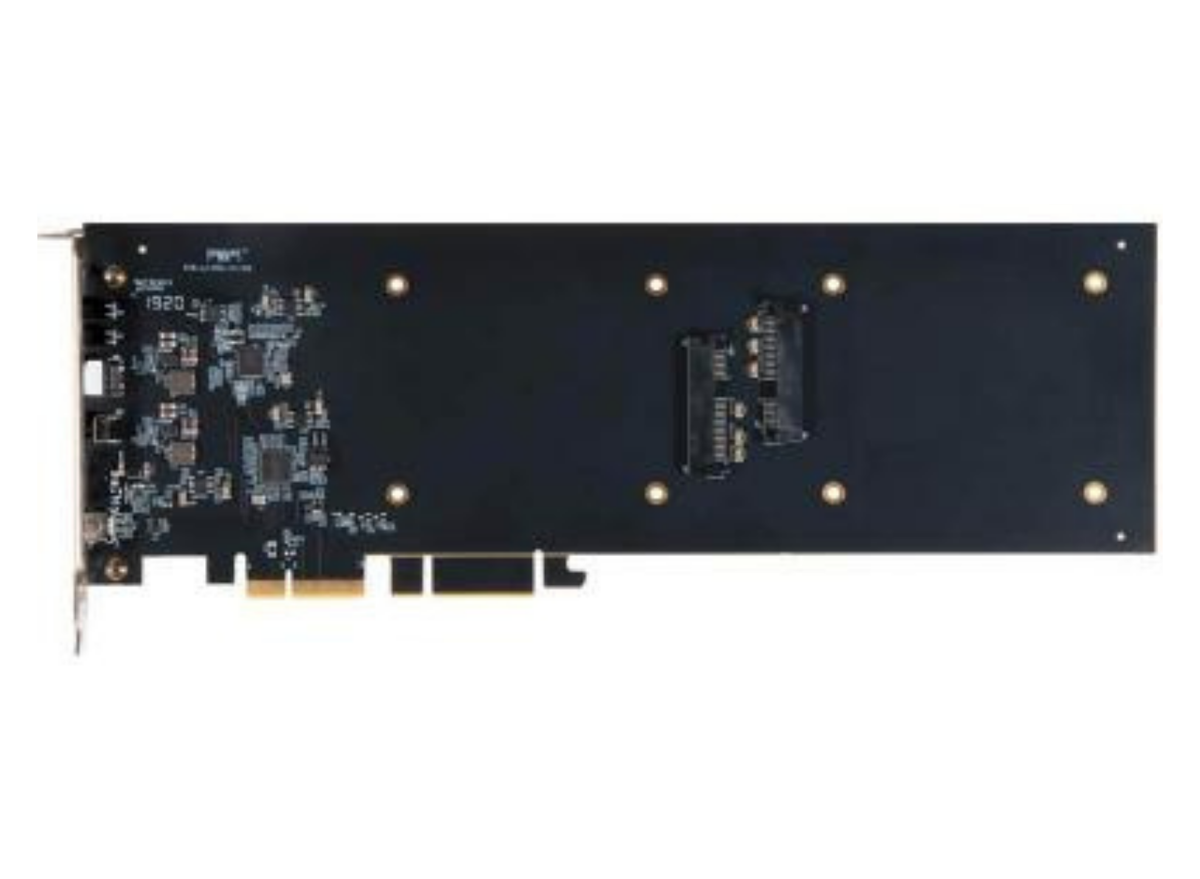

Fusion Dual 2.5-inch SSD RAID
Dual 2.5-inch SSD PCIe 3.0 Card with Hardware RAID Controller,
plus 10 Gbps USB-C port • Add Your Own SSDs
Add up to 16TB of SSD Storage!

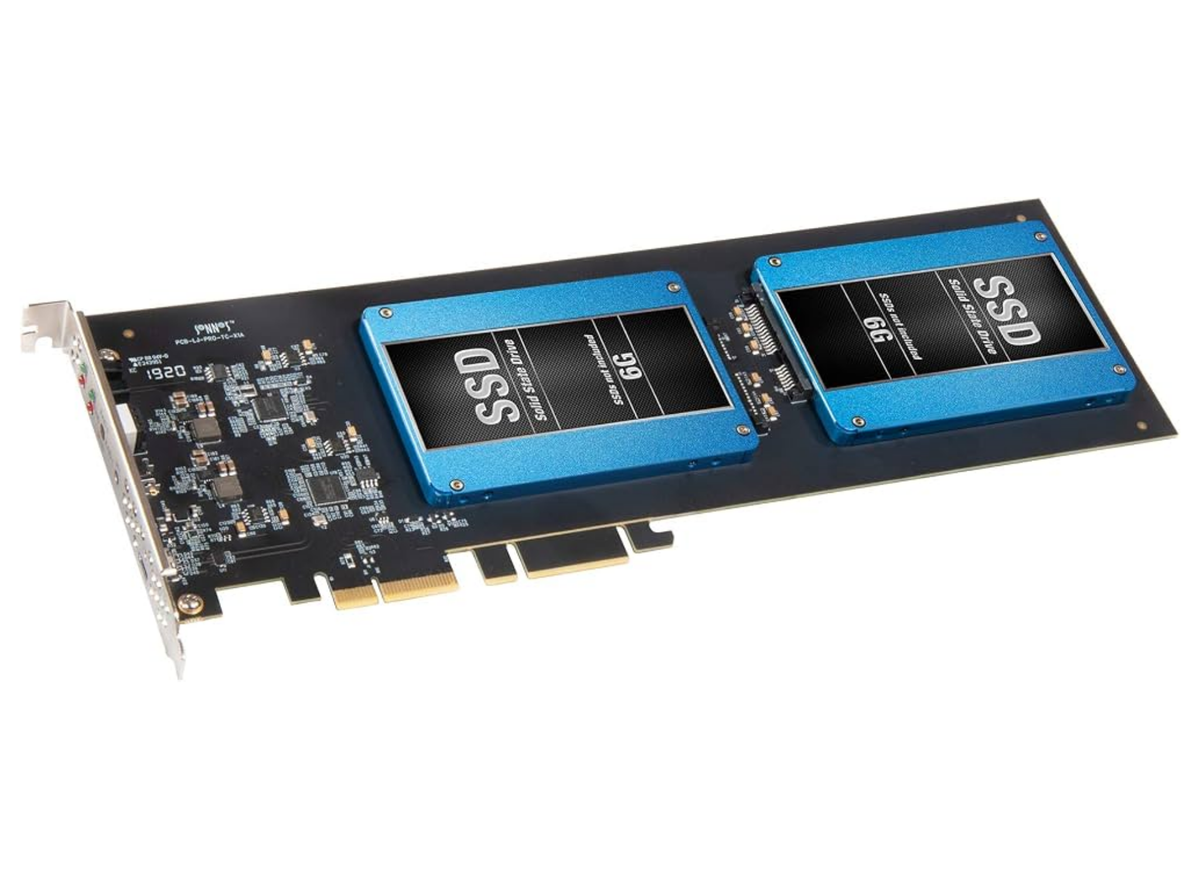

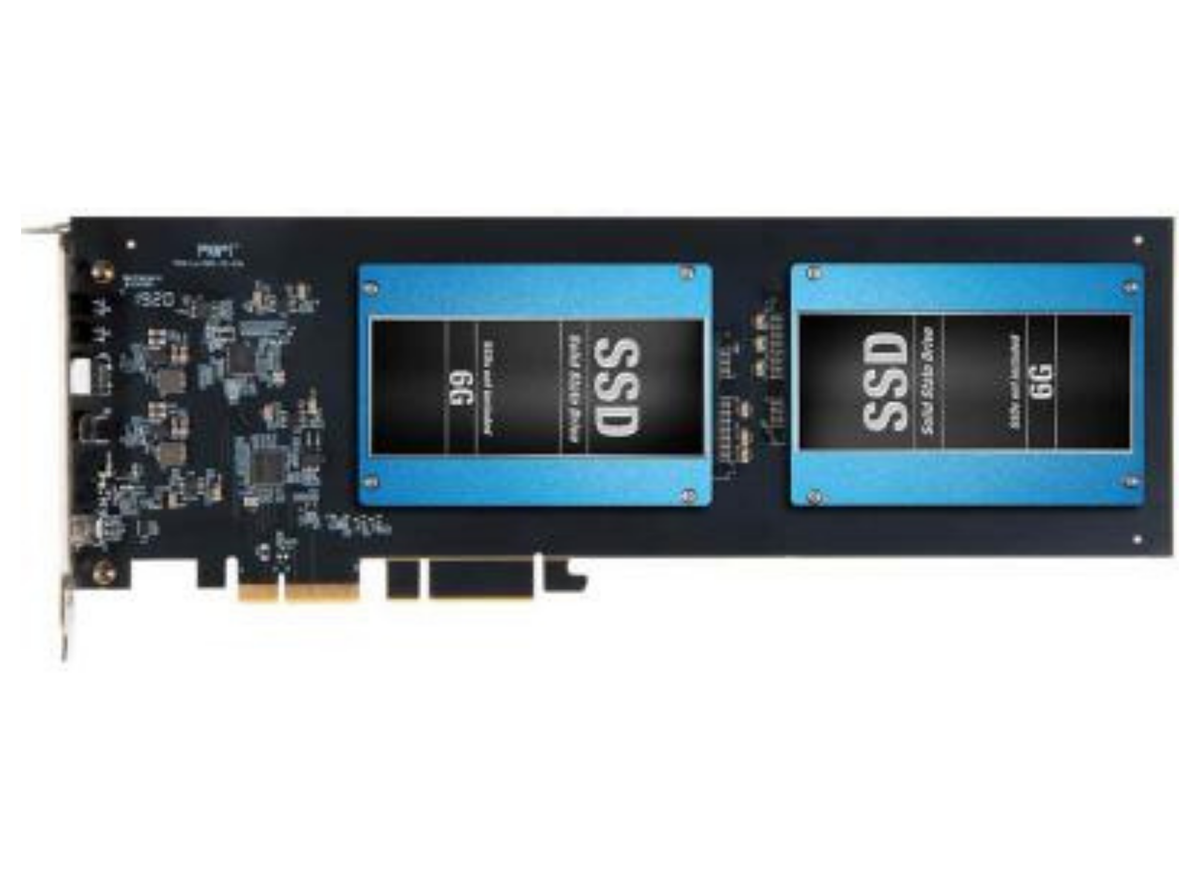

Install Two 2.5-inch SATA SSDs Into a PCIe Card Slot
If you need faster, high-capacity internal storage for your desktop computer or server, 2.5-inch SATA SSDs are the cost-effective choice. Sonnet Fusion™ Dual 2.5-inch SSD RAID PCIe card enables you to upgrade your system in a flash, mounting one or two SSDs (sold separately) with up to 16TB capacity in a single full-length PCIe card slot, with no power or data cables, adapters, or mounting trays required.
Install into a Thunderbolt Expansion System
Install into the new 2019 Mac Pro
Install into a Legacy Mac Pro (and move to a 2019 Mac Pro later)
Install into a Windows or Linux Computer
Great 2-Drive Hardware RAID 0 Performance
Install the Sonnet Fusion card into a PCIe 3.0 slot of a computer or Thunderbolt 3 expansion system and achieve great transfer speeds up to 1000 MB/s.
Still use a Mac Pro 5,1 tower? Enjoy performance up to 800 MB/s now, and migrate the Sonnet card to the new Mac Pro (2019) to enjoy even better performance.
Disk Striping
Increases performance by interleaving data into blocks (stripes) across two or more drives simultaneously to increase speed.
Fast RAID 1 Performance
Looking for the safety of a simultaneous backup? RAID 1 performance of up to 560 MB/s may be obtained with any compatible computer or expansion system.
100% Redundancy
If primary drive crashes, the mirrored drive will automatically replace the primary drive.
Key Features
Add Up to 16TB of SSD Storage
Mounts two cost-effective 2.5-inch SATA SSDs (sold separately) in a full-length PCIe slot.
Great SSD Performance
Supports data transfers speeds up to 1000 MB/s.
Onboard Hardware RAID Controller
Supports RAID 0, RAID 1, Span, and JBOD configurations in macOS, Windows, and Linux.
USB 3.2 Gen 2 USB-C Port
Includes SuperSpeed USB-C 10 Gbps port to connect a fast external drive.
Great USB Performance
Supports data transfers speeds up to 1000 MB/s.
Power for Peripherals
Supports a USB bus-powered SSD, SSD RAID, or hard drive device with up to 15W power.
Optimized for Thunderbolt
Use in Sonnet Thunderbolt expansion systems at full performance.
Computer Compatibility
Compatible with Mac, Windows, and Linux. See Tech Specs for details.
Hardware RAID Controller Onboard
A high performance RAID controller manages the SSDs you install, supporting Fast (RAID 0), Safe (RAID 1), Volume (Span) and, particularly important to pro audio users, JBOD (Just a Bunch of Disks) configurations, so you can choose the mode that best suits your needs:
Fast
Choose RAID 0 for the best performance.
Safe
Choose RAID 1 for a mirrored backup of your data.
Volume
Choose Span to create a single large volume bridging both drives.
JBOD
Choose JBOD (Just a Bunch of Disks) to work with twice as many audio tracks.
Regardless the mode you select, changing the configuration is easy – with no software to install or jumper blocks to move around, a turn of a switch and the press of a button is all it takes.
Fast USB Speed and Plenty of Power for Bus-powered Devices
Sonnet’s Fusion Dual 2.5-inch SSD RAID card also includes a SuperSpeed USB-C (USB 3.2 Gen 2) port that supports data transfers of up to 1000 MB/s, and provides up to 15W of power to support bus-powered devices—you can connect a fast external drive without installing another card.
Thunderbolt Port? Connect Two SSDs Through One Cable
Got a Thunderbolt connection, but no PCIe card slot? Fusion Dual 2.5-inch SSD RAID card provides full performance and is ideal for use in a Sonnet Thunderbolt expansion systems. The combo enables you to add two SSDs plus a USB-C port to any Mac (M series and Intel), Windows, and Linux computer with Thunderbolt ports.
| Mac Compatibility | Mac Pro 14,8 (2023)(1); Mac Pro 7,1 (2019); macOS 15+; not compatible with macOS 27 | Windows Compatibility | Windows computer with an available full-length PCIe slot; Windows 11 25H2+; Windows Server 2025 |
| Linux Compatibility | Linux computer with an available full-length PCIe slot; supported Linux kernel 6.6 or later | Thunderbolt Expansion System Compatibility | Thunderbolt expansion system with an available full-length PCIe slot |
| Part Number | FUS-SSD-2RAID-E | Warranty | 2 Years |
| Form Factor | Full-height, full-length PCIe card | Bus Interface | PCI Express 3.0 x2 |
| Internal Connectors | Two SATA connectors for 2.5-inch SSDs | External Connector | One USB-C port (10 Gbps USB 3.2 Gen 2) |
| SSDs Supported (1)(2) | SATA 6 Gbps | Boot Support (PCIe Card) | No |
| Supported Drive Configurations | RAID 0; RAID 1; Span; JBOD | S.M.A.R.T. Status Data Reporting Support | No |
| USB-C Peripherals Supported | Industry standard USB 3 peripherals | USB-C Bus-powered Peripherals Supported | 3.0A advertised using USB CC (Channel Configuration); up to 15W for operation or charging |
| USB-C Cables Recommended | USB-C (10 Gbps) | USB Chipsets | ASMedia 3142; ASMedia 1352R |
| USB Standard | Complies with OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface), and xHCI (eXtensible Host Controller Interface) standards | UASP | USB Attached SCSI Protocol supported |
| USB-C Hot Plug | Supports hot-pluggable and hot-swappable device connections | USB-C Boot Support | Not supported |
| Package Contents | Fusion Dual 2.5-inch SSD RAID PCIe Card; Drive mounting screws; Documentation |
