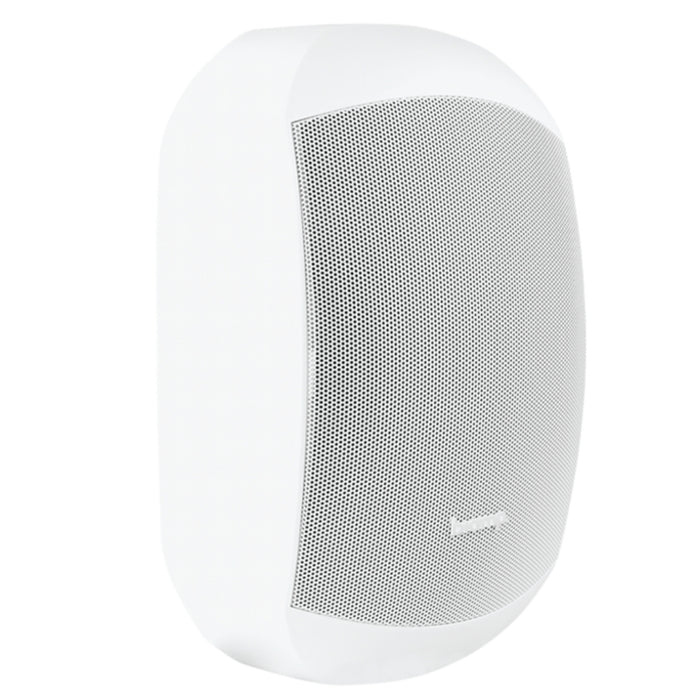

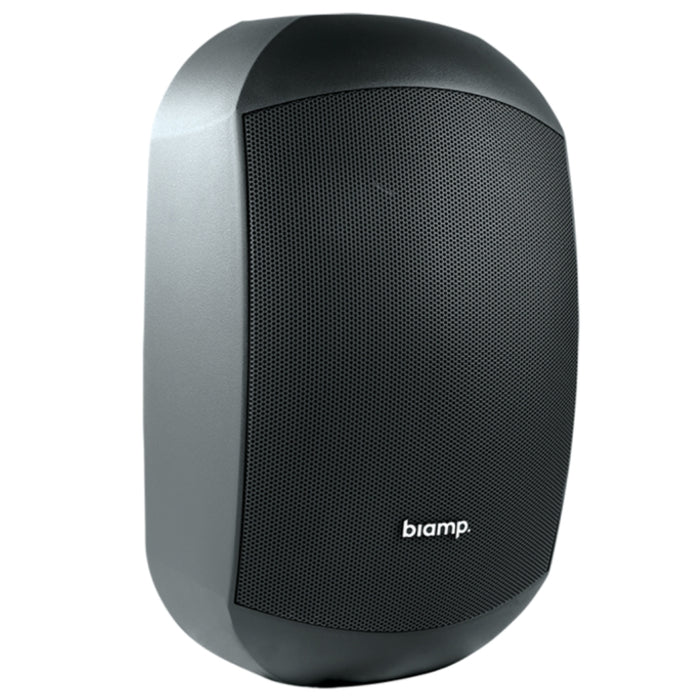

BIAMP MASK6CT Two-Way 6.5" Surface Mount Loudspeaker
SKU: 911.0644.900
£182.40 (Excl. VAT)
- Description
- Specifications
- Downloads
-
BIAMP MASK6CT Two-Way 6.5" Surface Mount Loudspeaker | High-Performance Indoor/Outdoor Audio
FEATURES
• Zoom Certified
• IP64 rated for outdoor applications such as patios or concourses
• Waterproof connector sealing for outdoor applications • Innovative ClickMount™ bracket allows all audio connections to be made at the bracket
• Integrated spirit level for fast, hassle-free positioning and mounting
• Tap switch allows for 70V/100V or 16Ω low impedance operation
• Loudspeaker overload protection for 24/7 failsafe operationAPPLICATIONS
· Bars and Restaurants
· Hotels
· Casinos Retail Outlets
· Health and Fitness Clubs Houses of Worship
· Exhibit Halls Corporate Meeting RoomsDESCRIPTION
The Desono MASK6CT two-way, 6.5" surface mount loudspeaker delivers crystal clear sound for all your public address and background music needs. Available in black or white, its 6.5” coated paper cone woofer and a 1” silk dome tweeter results in a high SPL and extremely low distortion, ensuring unprecedented clarity over the entire frequency spectrum.The MASK6CT utilizes a 5-position switchable transformer ranging from 3W to 60W with low-impedance bypass for constant-voltage operation, making it an excellent choice for large areas of BGM.
Designed with the installer in mind, the MASK6CT ships with the patented ClickMount bracket, enabling all audio connections to be made at the bracket itself. Pre-defined horizontal and vertical notches in the bracket make loudspeaker adjustments fast and repeatable. To complete the installation, simply ‘click’ the loudspeaker in place.
The Desono MASK6CT is designed for outdoor applications such as patios or concourses, and an ideal choice for both indoor and outdoor distributed audio applications that demand superior speech intelligibility and full range music reproduction.
-
Feature Specification Operating Mode Passive Operating Environment Indoor/Outdoor Operating Range (-10dB) 65 Hz to 22 kHz Nominal Beamwidth (H x V) 100° x 50° Transducers LF: 1 x 6.5" (165 mm) coated paper cone HF: 1 x 1" (25 mm) soft dome Continuous Power Handling @ Nominal Impedance 49V 150W @ 16Ω (600W peak) Nominal Sensitivity @ 1m @ 1W: 90 dB @ 2.83V: 87 dB Nominal Maximum SPL @ 1m Peak: 118 dB Continuous: 112 dB Transformer 70V: 60W, 30W, 15W, 7.5W, 3W 100V: 60W, 30W, 15W, 6W Protection 3-step self-resetting protection Recommended Amplifiers 150W-300W @ 16Ω (49V - 69V) Input Connection Audio connections made at the ClickMount bracket; lever-action input and output terminals accept up to 16 AWG conductors Controls Power tap / low impedance selector switch Mounting Provisions ClickMount bracket Environmental IP64 per IEC 60529 Dimensions H x W x D 12.9" x 7.8" x 7.5" (328 mm x 198 mm x 190 mm) Weight 9.7 lbs (4.4 kg) Finish Refer to the Technical Drawings (page 3) Accessories (included) ClickMount bracket; safety cable Options Accessories MASKCL(-BL/-W): 90° mounting bracket, black/white MASKCV(-BL/-W): 2-cluster mounting bracket, black/white MASKCW(-BL/-W): 4-cluster mounting bracket, black/white -
Description Downloads BIAMP MASK6CT Two-Way 6.5" Surface Mount Loudspeaker DataSheet Downloads
