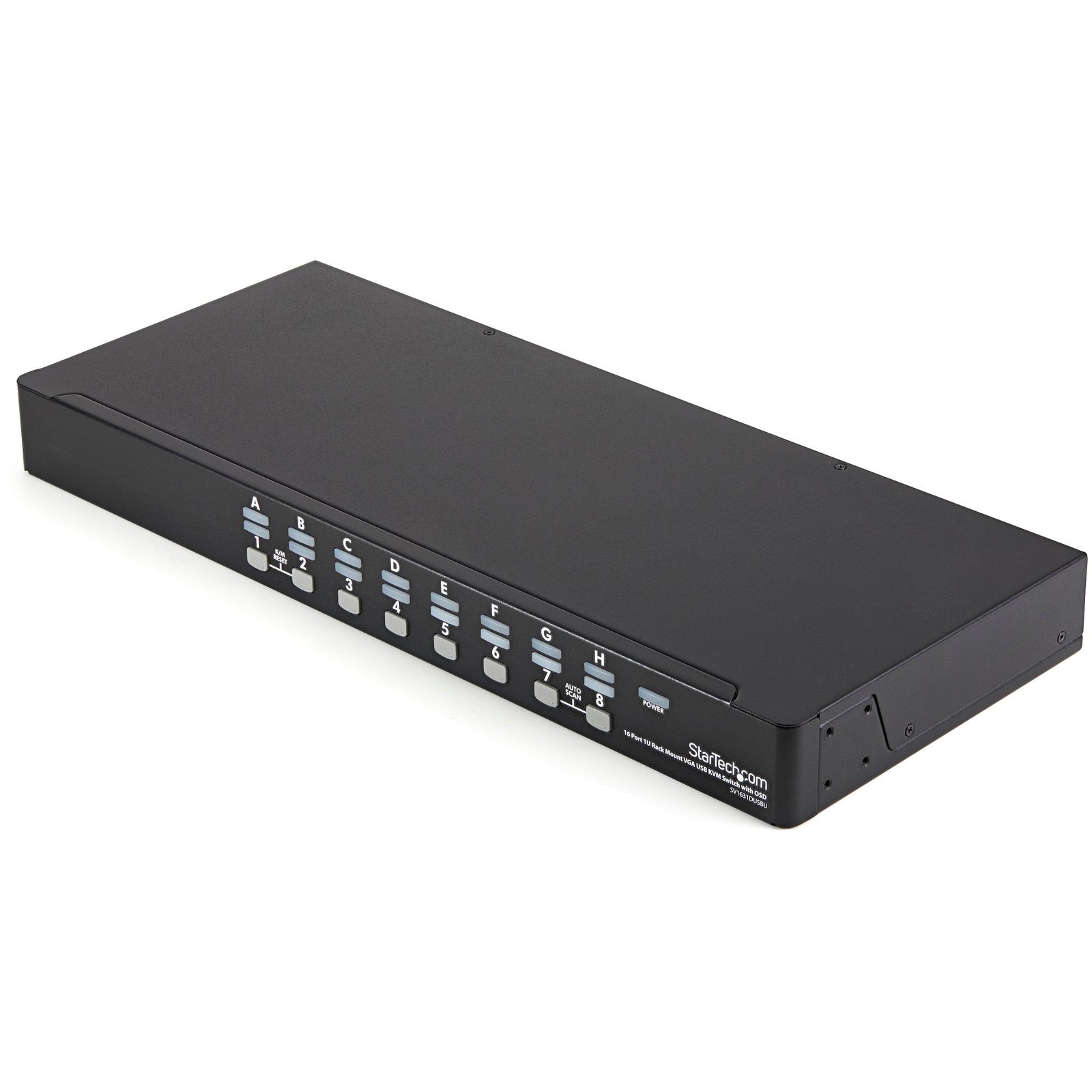

The SV1631DUSBUK 16 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 16 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 16 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 16-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 136 computers from this single switch.
Applications
Effectively manage your server farms from a single console
Useful in Software QA labs where testing is being done across multiple platforms
Great for PC test/burn-in computer control, avoiding the cost of buying additional peripherals
Central control for multiple systems in a Datacenter
Systems management in Co-location/ISP facilities
Manufacturing line computer control and management
| Category | Detail |
|---|---|
| Warranty Information | 3 Years |
| Connector(s) | |
| Console Interface(s) | 2 - USB 2.0 Type-A (4 pin, 480Mbps) |
| 1 - VGA (15 pin, High Density D-Sub) | |

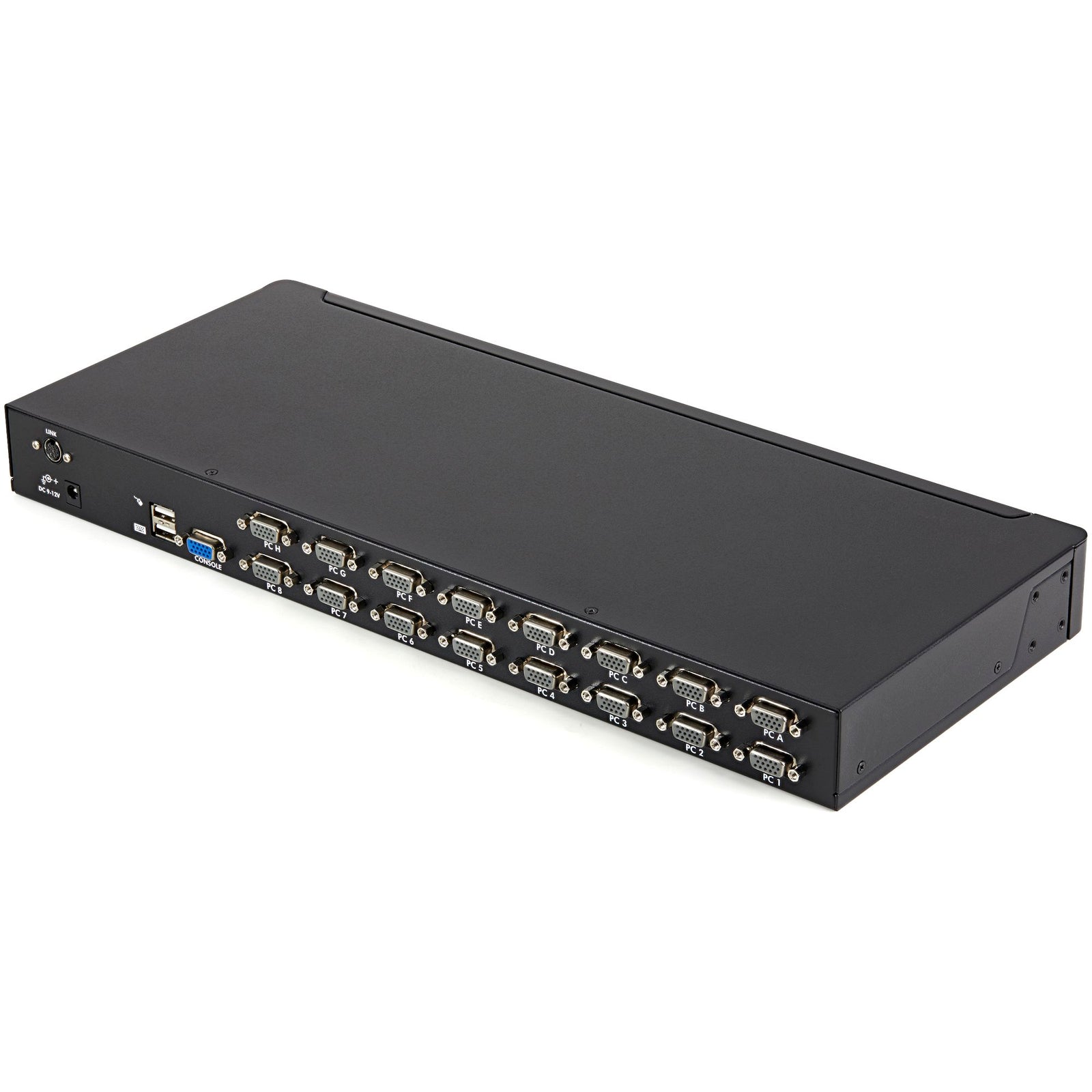

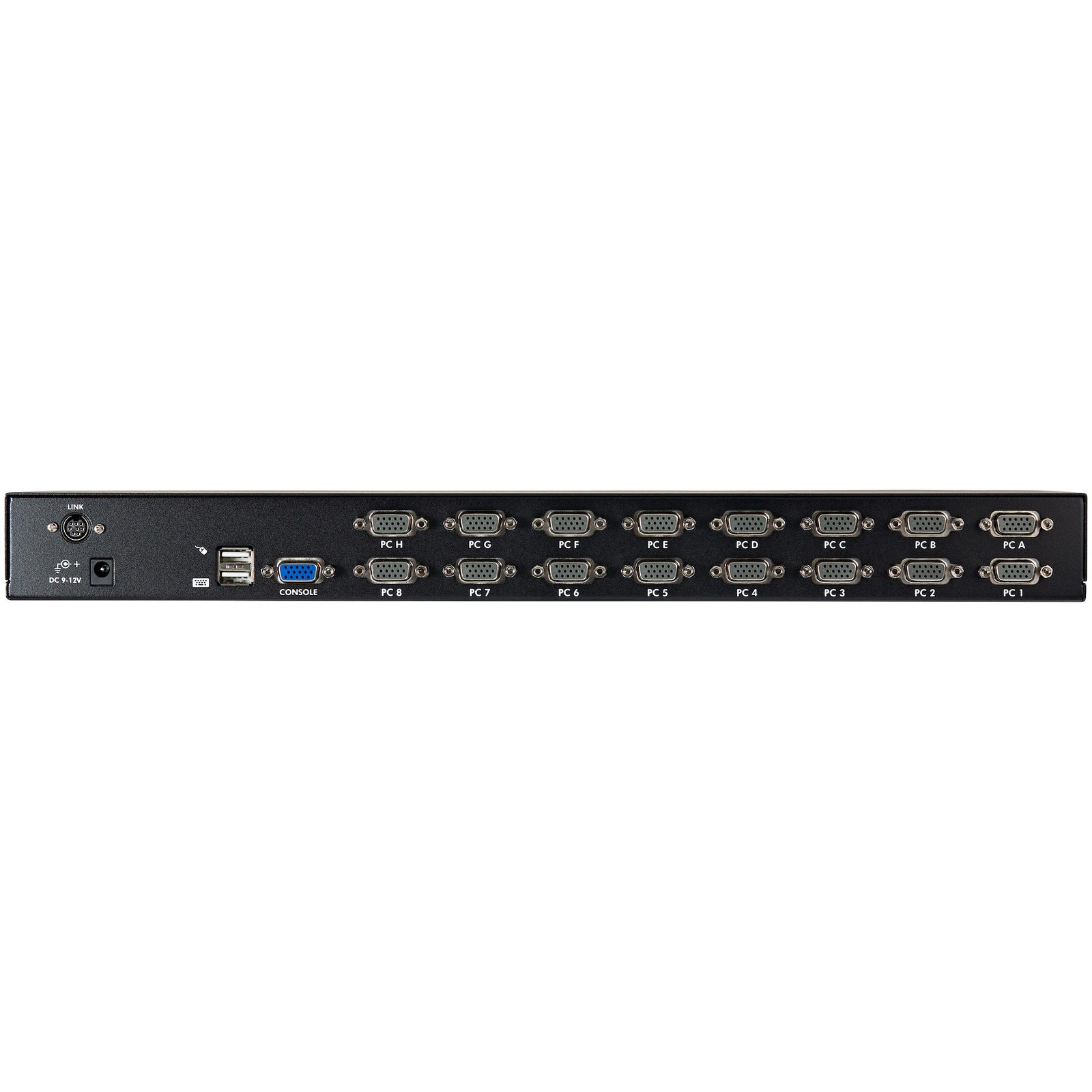

| Host Connectors | 16 - VGA (15 pin, High Density D-Sub) |
| Environmental | |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
| Hardware | |
| Audio | No |
| KVM Ports | 16 |
| PC Interface | USB |
| PC Video Type | VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | Yes |
| Cables Included | Yes |
| Daisy-Chain | Yes |
| Indicators | |
| LED Indicators | 16 - Green (PC Online) |
| 1 - Green (Power) | |
| 16 - Red (PC Selected) | |
| Packaging Information | |
| Package Height | 4.9 in [12.5 cm] |
| Package Length | 23.3 in [59.3 cm] |
| Shipping (Package) Weight | 13.0 lb [5.9 kg] |
| Package Width | 10.4 in [26.4 cm] |
| Package Quantity | 1 |
| Performance | |
| On-Screen Display | Yes |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Analog Resolutions | 1920 x 1440 @ 60Hz (1920 x 1200 @ 60Hz - Wide Screen) |
| Wide Screen Supported | Yes |
| Maximum Number of Users | 1 |
| Maximum Cascaded Computers | 136 |
| Port Selection Support | Push Button, Hotkeys, and OSD (On Screen Display) |
| MTBF | 158,000 hours |
| Physical Characteristics | |
| Weight of Product | 5.3 lb [2.4 kg] |
| Product Length | 17.2 in [43.8 cm] |
| Color | Black |
| Material | Steel |
| Product Width | 7.1 in [18.0 cm] |
| Product Height | 1.8 in [4.5 cm] |
| Product Depth | 7.5 in [190 mm] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.6A |
| Output Voltage | 12V DC |
| Output Current | 1.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |

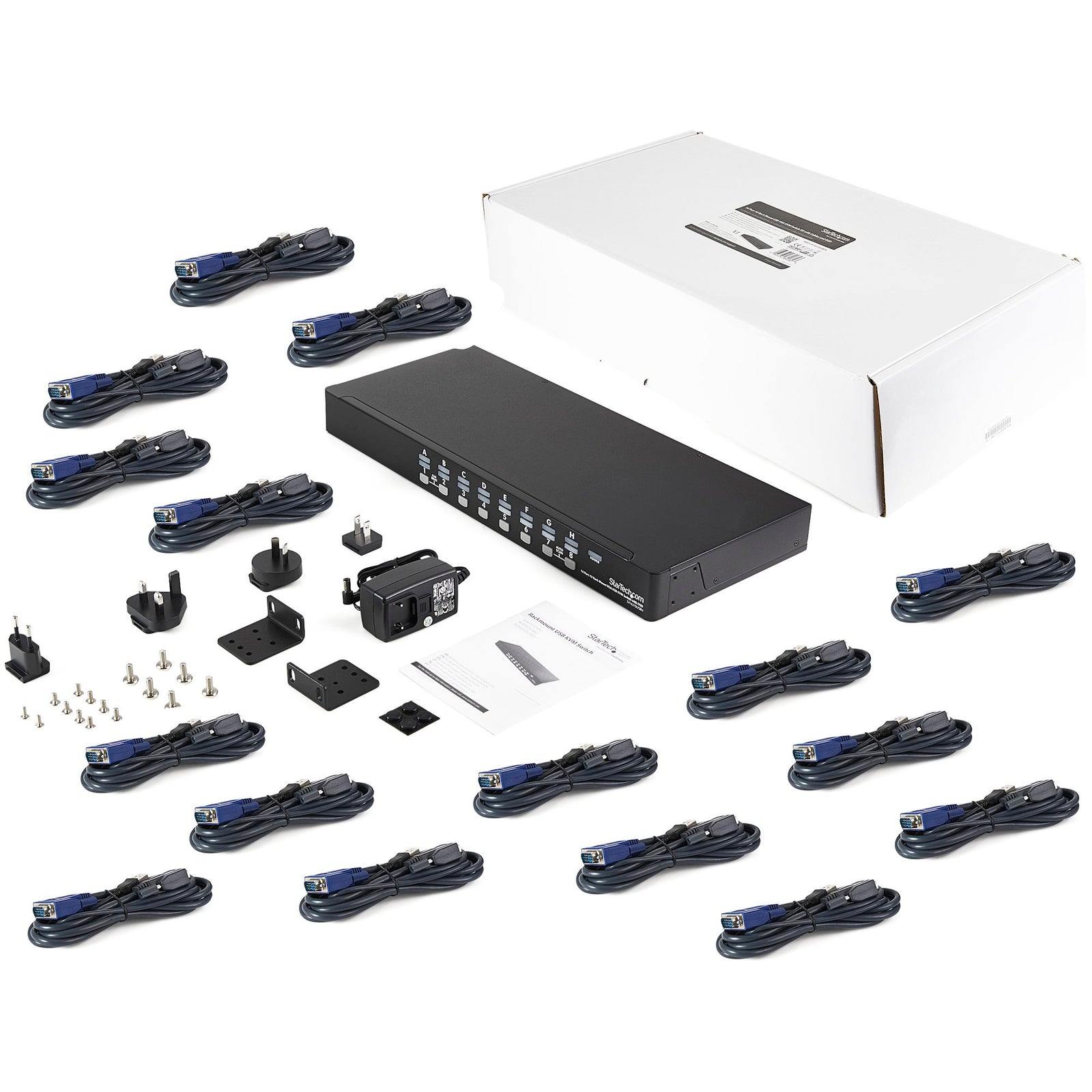

| What's in the Box | |
| Included in Package | 1 - 16-port USB KVM switch |
| 2 - Mounting brackets | |
| 16 - 6ft 2-in-1 USB VGA KVM cables | |
| 1 - Screw kit | |
| 4 - Foot pads | |
| 1 - Universal power adapter (NA/EU/UK/AU) | |
| 1 - Instruction manual |
