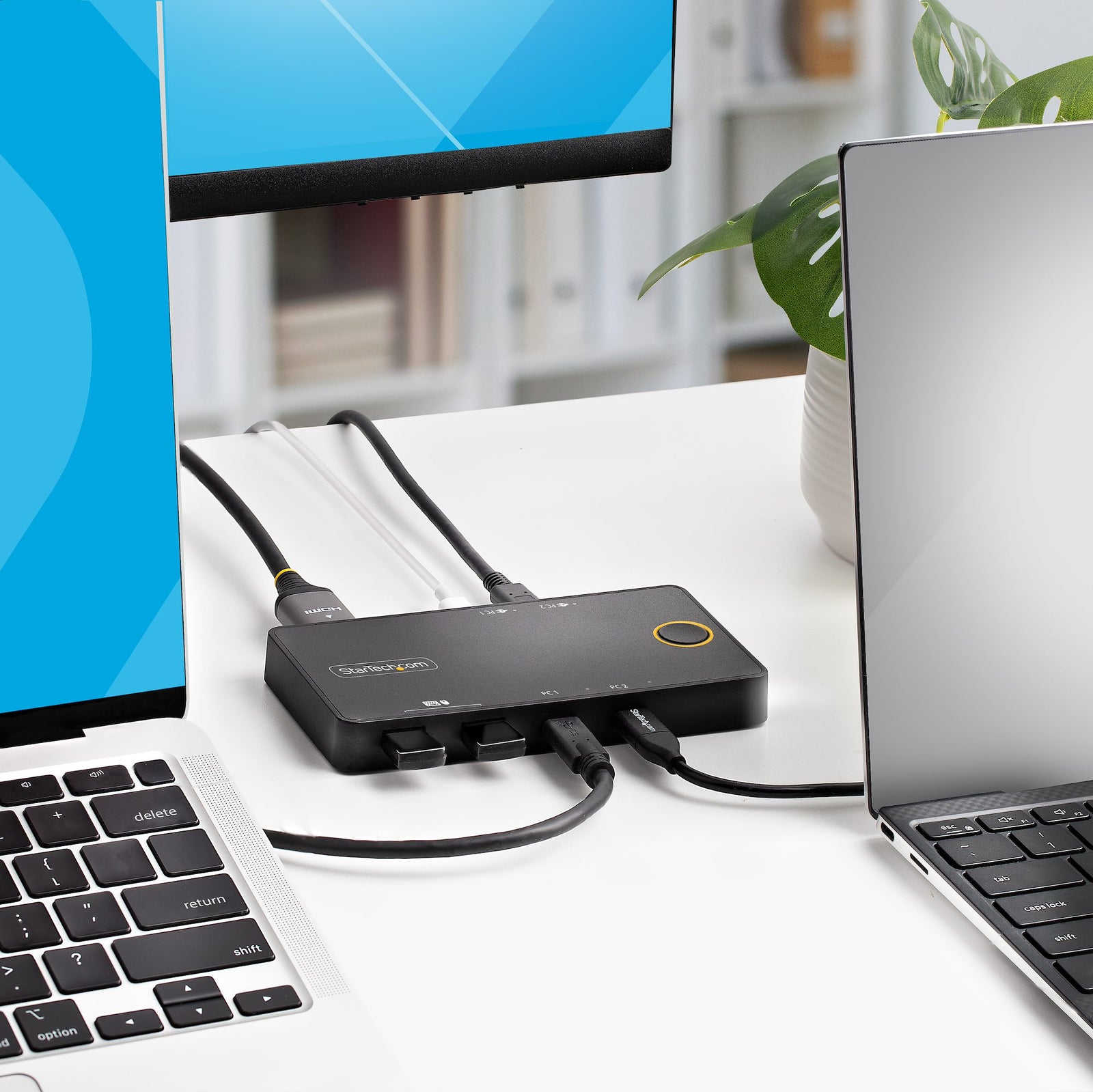

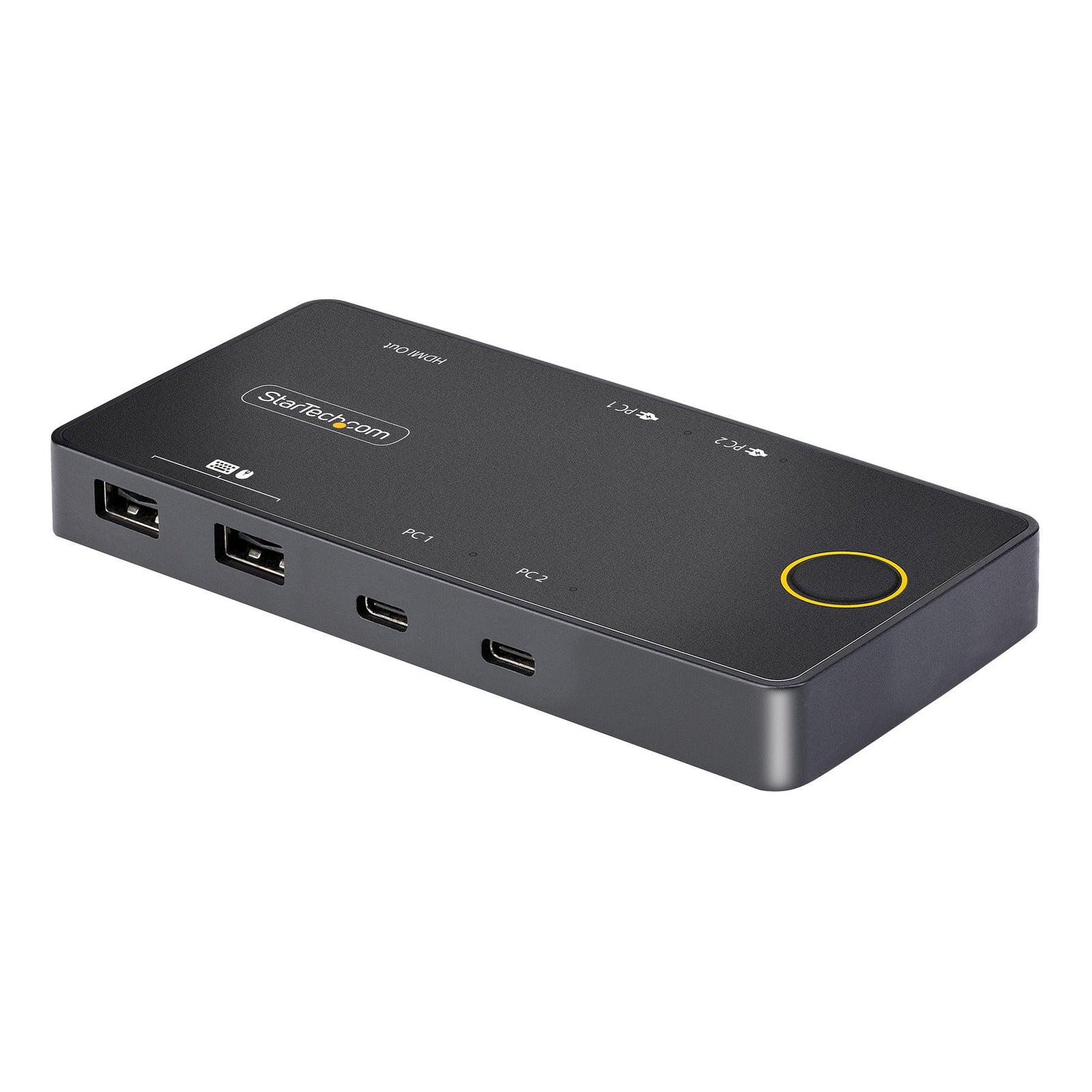

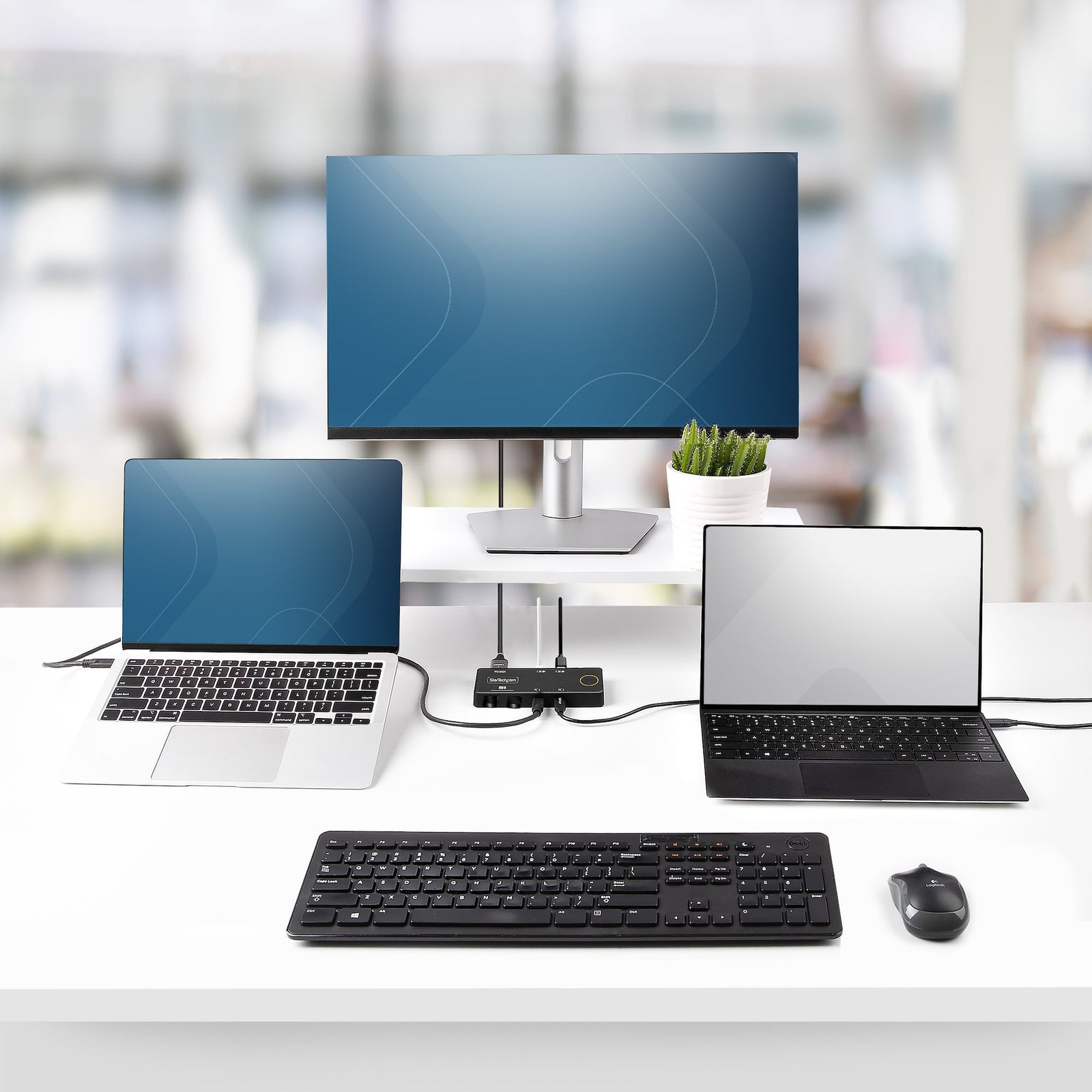

This USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.
100W Power Delivery Pass-through
Dual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.
Universal Compatibility
The 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Ready for Quick Deployment

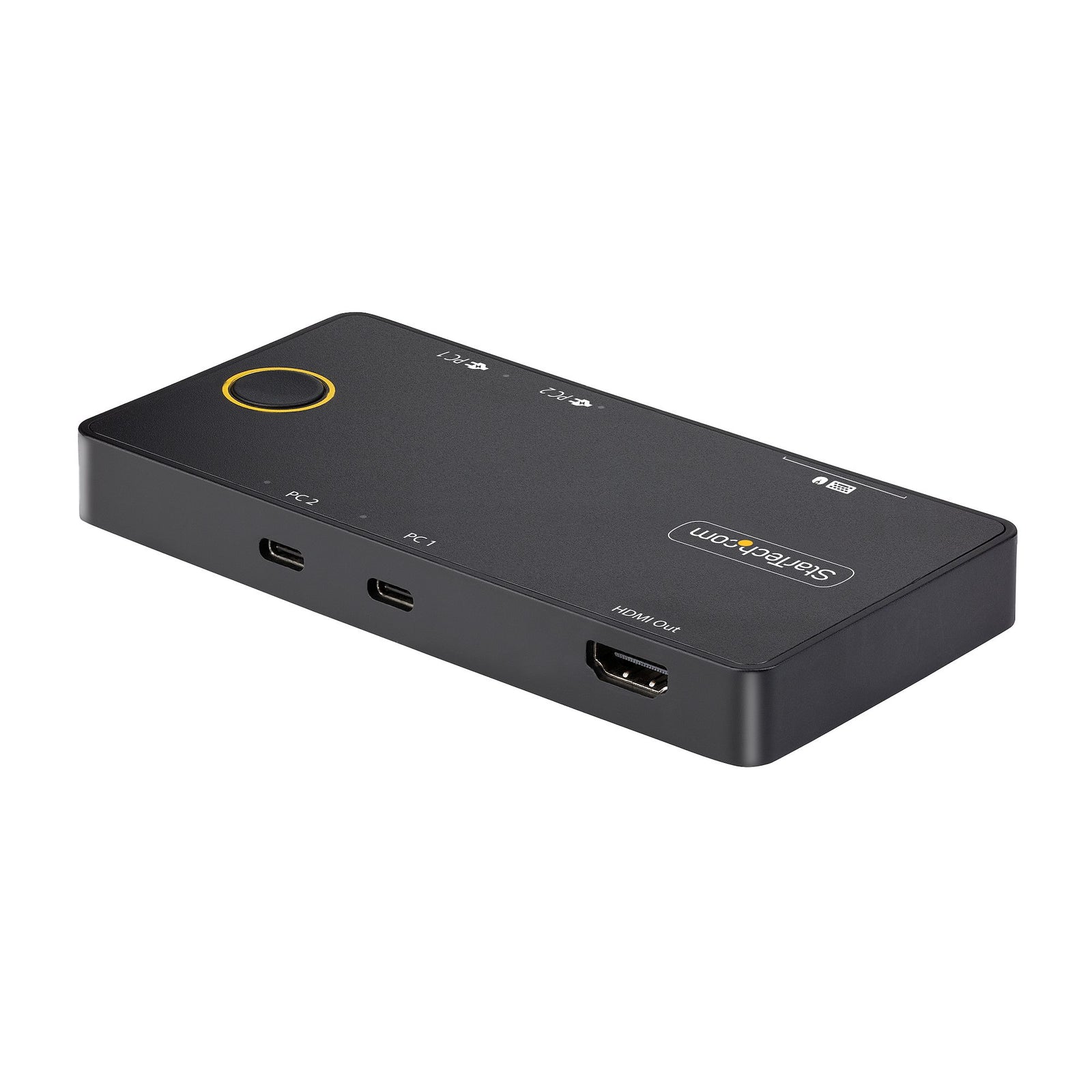

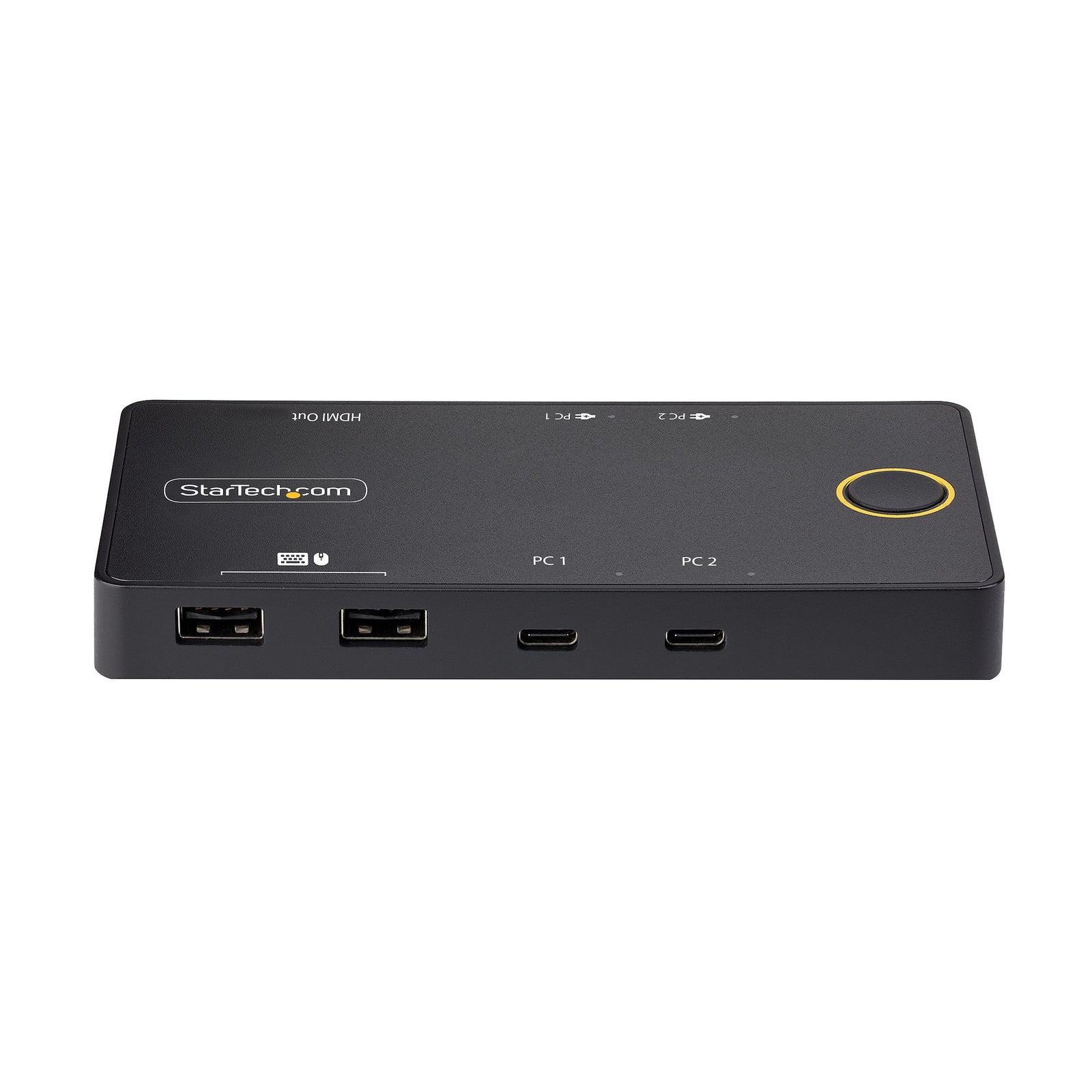

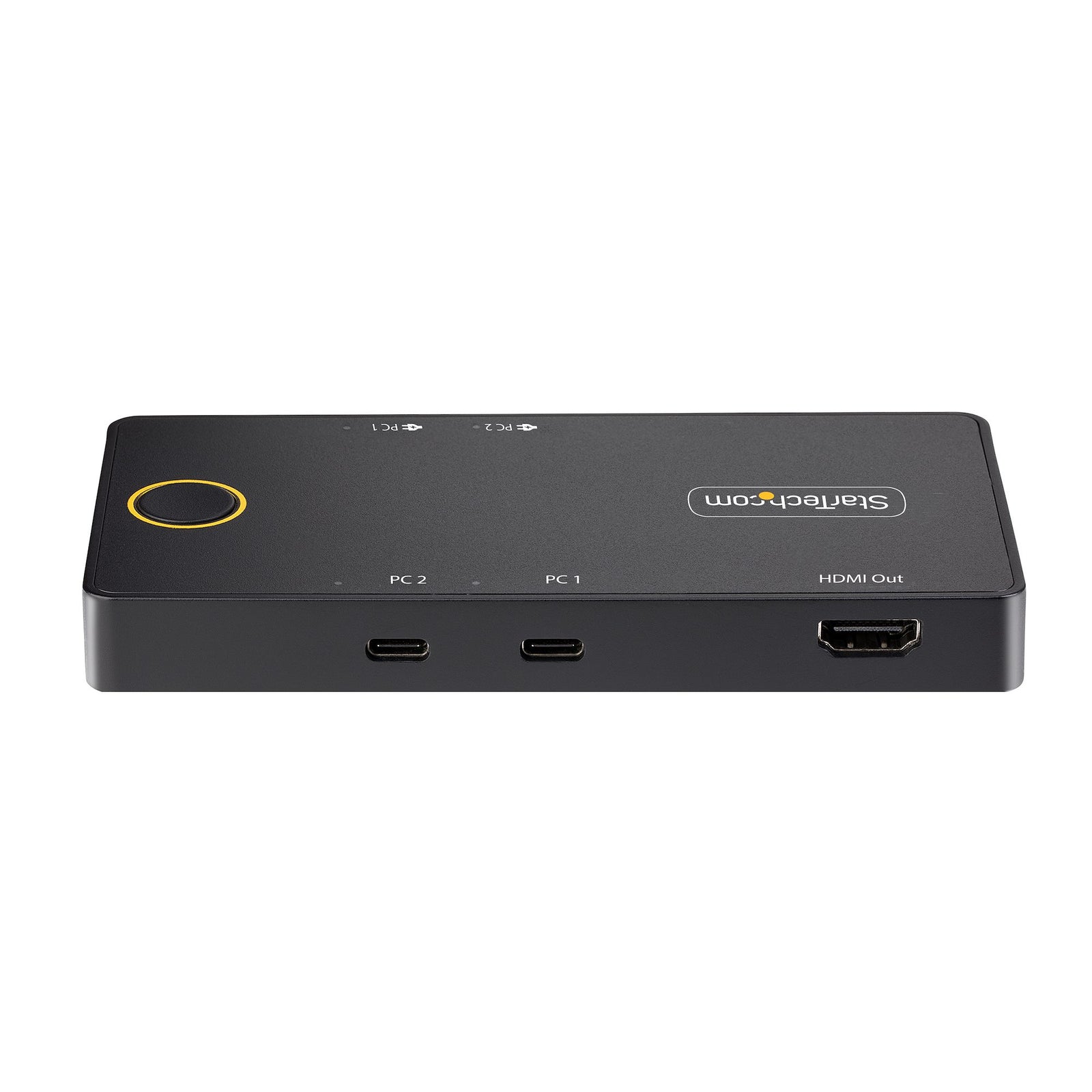

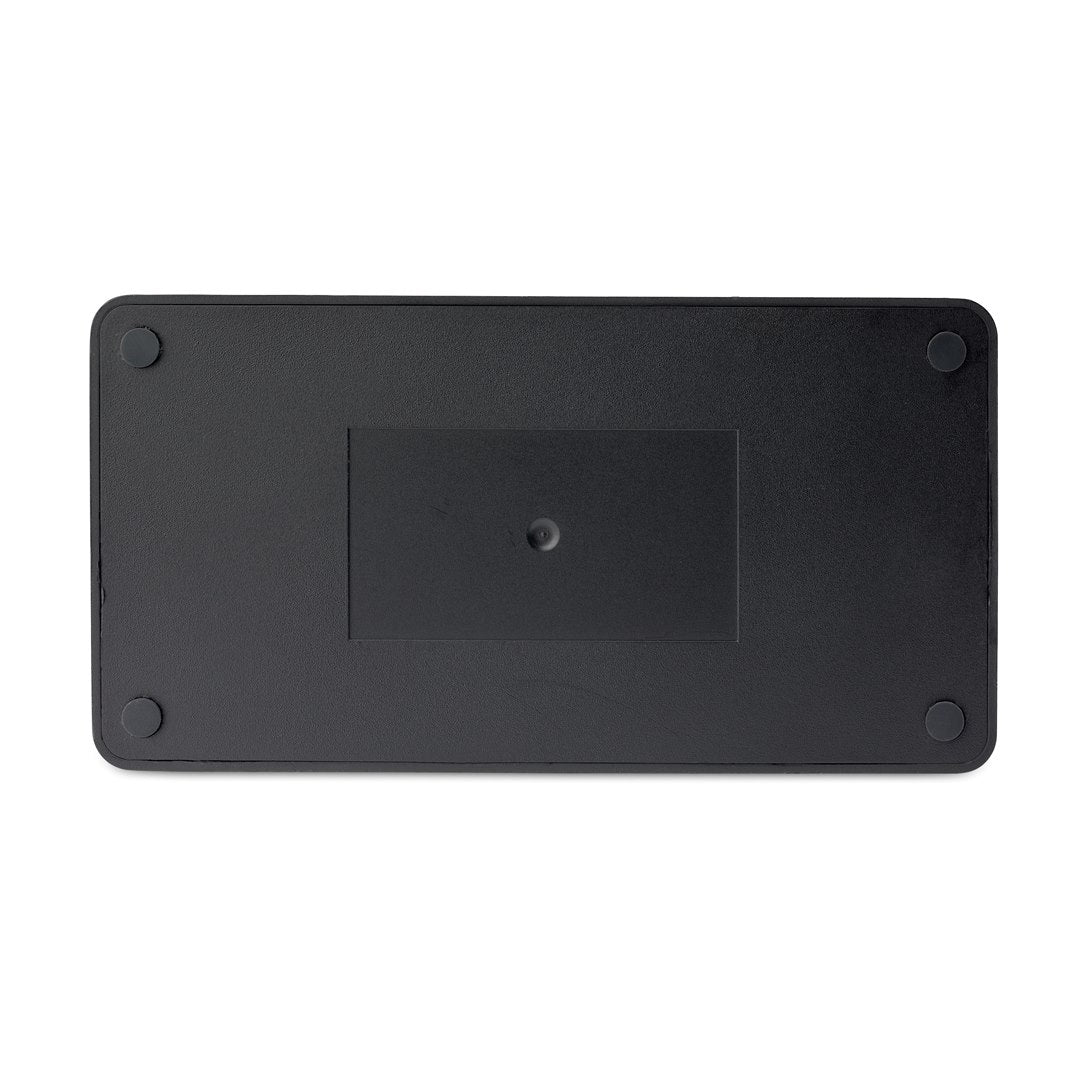

The KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way - located on the other side of the unit.
Applications
Ideal for sharing peripherals between personal and work laptops in a home office
Switch a display, mouse, and keyboard between two laptops while charging them
| Category | Details |
|---|---|
| Warranty Information | |
| Warranty | 2 Years |
| Connector(s) | |
| Console Interface(s) | 2 - USB 2.0 Type-A (4 pin, 480Mbps) 1 - HDMI 2 - USB Type-C (24 pin) USB Power Delivery Only |
| Host Connectors | 2 - USB 3.2 Gen 2 USB Type-C (Power Delivery + Data, 24 Pin, 10 Gbps) |
| Environmental | |
| Operating Temperature | 5°C to 55°C (41°F to 131°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 122°F) |
| Humidity | 20% ~ 80% RH |
| Hardware | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB-C |
| PC Video Type | HDMI |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | Yes |
| Industry Standards | HDMI 2.1 TMDS |
| Chipset ID | VLI - VL103R, VLI - VL171, Parade - PS186, VLI - VL817 |
| Daisy-Chain | No |
| Indicators | |
| LED Indicators | 2 - Power Input LED: Solid Blue = USB-C Power Adapter connected 2 - Host Connection LED: Solid Blue = Port Selected |
| Packaging Information | |
| Package Length | 12.3 cm [4.8 in] |
| Package Width | 17.3 cm [6.8 in] |
| Package Height | 8.8 cm [3.5 in] |
| Shipping (Package) Weight | 438.0 g [15.5 oz] |
| Package Quantity | 1 |
| Performance | |
| On-Screen Display | No |
| IP Control | No |
| Hot-Key Selection | No |
| Maximum Data Transfer Rate | 480Mbps (USB 2.0) |
| Maximum Digital Resolutions | 4096 x 2160 @ 60Hz |
| Supported Resolutions | 5120 x 1440 @ 60Hz 4096 x 2160 @ 60Hz 3840 x 2160 @ 60Hz 3440 x 1440 @ 60Hz 2560 x 1440 @ 60Hz 2560 x 1080 @ 75Hz 1920 x 1200 @ 60Hz 1920 x 1080 @ 60Hz |
| Wide Screen Supported | Yes |
| Audio Specifications | HDMI - 7.1 Channel Audio |
| Auto Scan | None |
| Port Selection Support | Push Button |
| General Specifications | |
| Power Delivery Pass-through | 100W |
| Maximum Device Charging | 90W |
| MTBF | 50,000 Hours |
| Physical Characteristics | |
| Color | Black |
| Product Length | 14.0 cm [5.5 in] |
| Product Width | 7.0 cm [2.8 in] |
| Product Height | 1.5 cm [0.6 in] |
| Weight of Product | 200.0 g [7.1 oz] |
| Material | ABS |
| Cable Length | 3ft (1m) |
| Power | |
| Power Source | Bus Powered and Host USB-C Power Adapter |
| Power Consumption (In Watts) | 10W |
| Software | |
| OS Compatibility | No Drivers or Software Required |
| Special Notes / Requirements | |
| Note | Host device must support USB-C DP Alt Mode for video functionality to work Host device must support Power Delivery to charge when a USB-C Power Adapter is connected to the Power Delivery Pass-through Port |
| What's in the Box | |

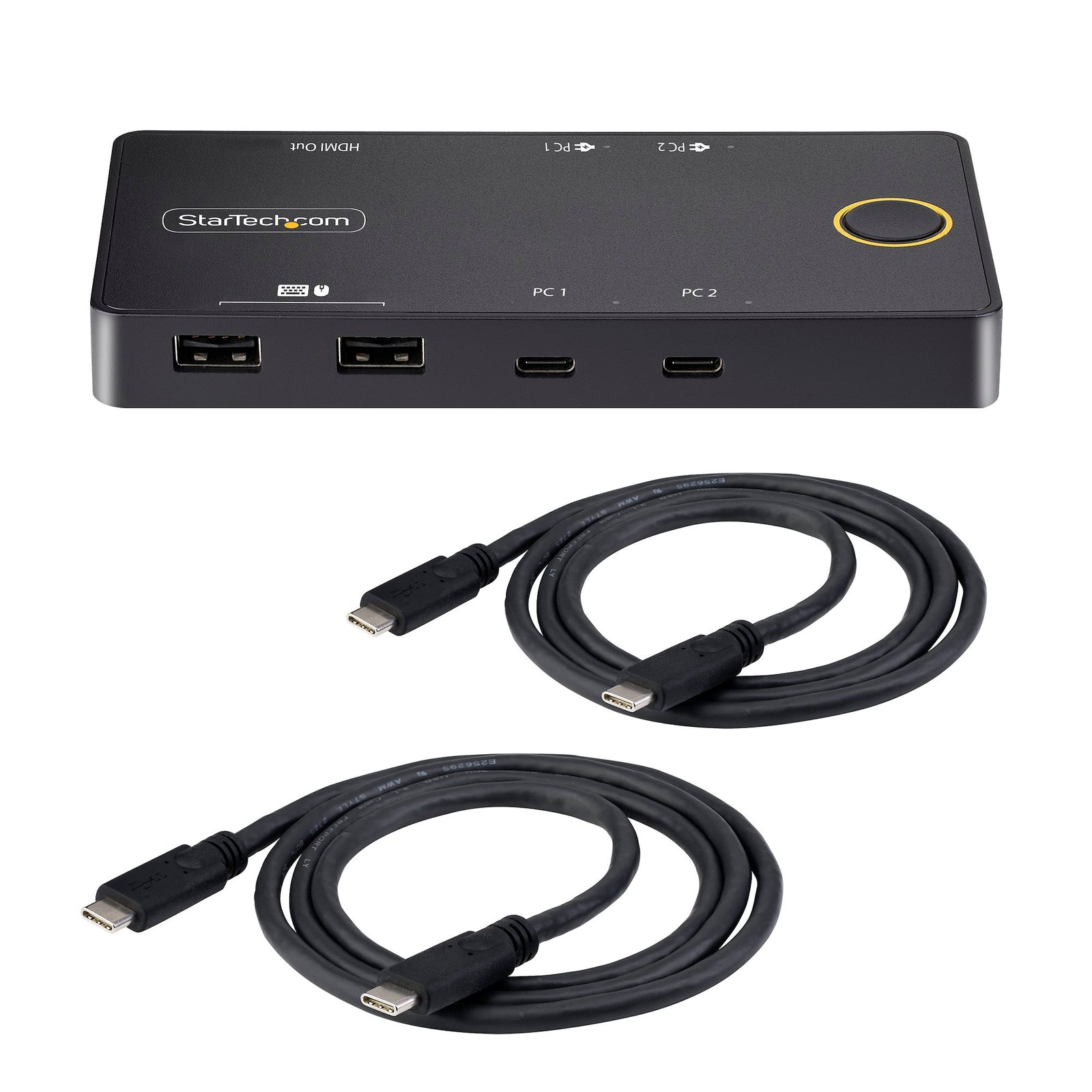

| Included in Package | 1 - KVM Switch 2 - USB-C Host Cables 1 - Quick-Start Guide |
