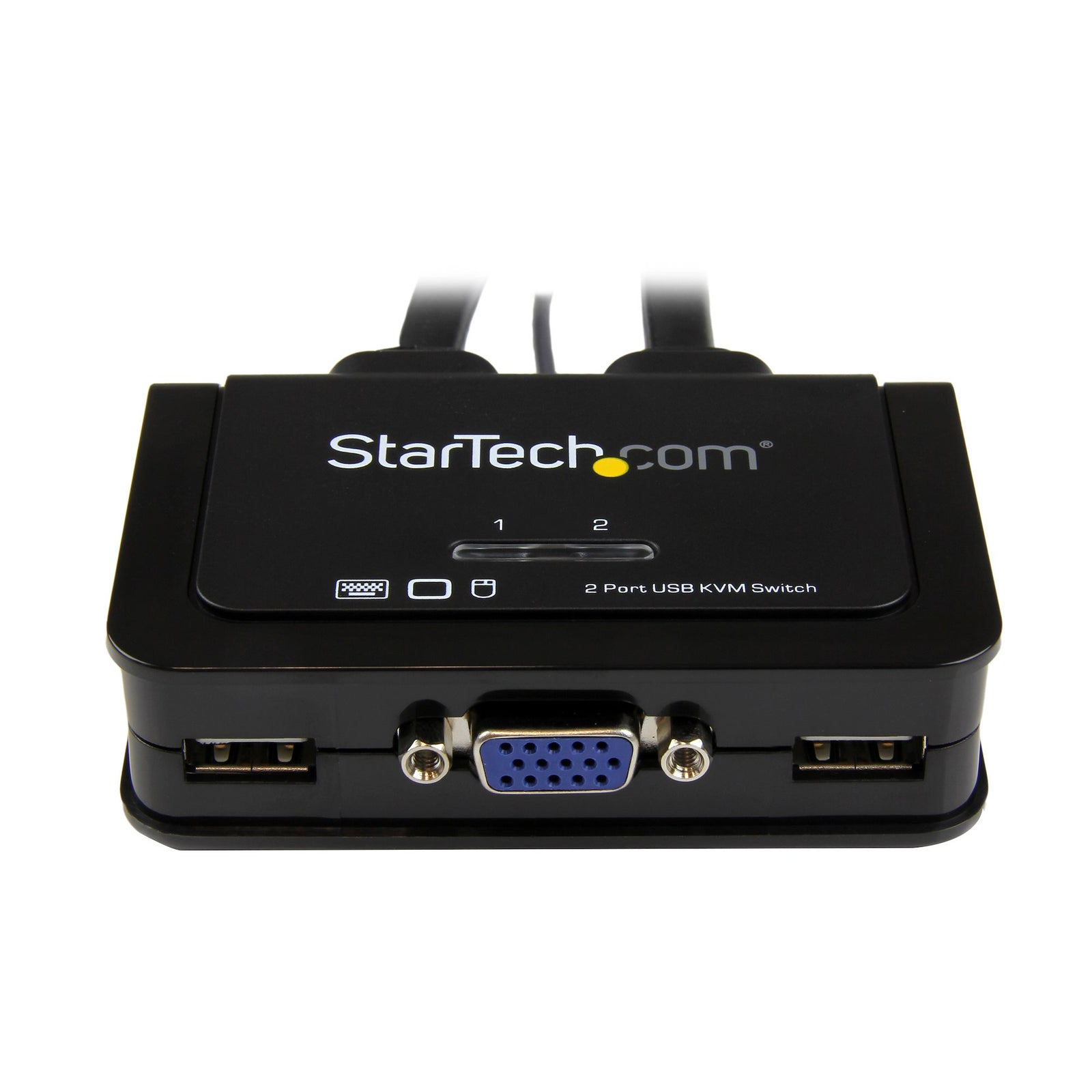

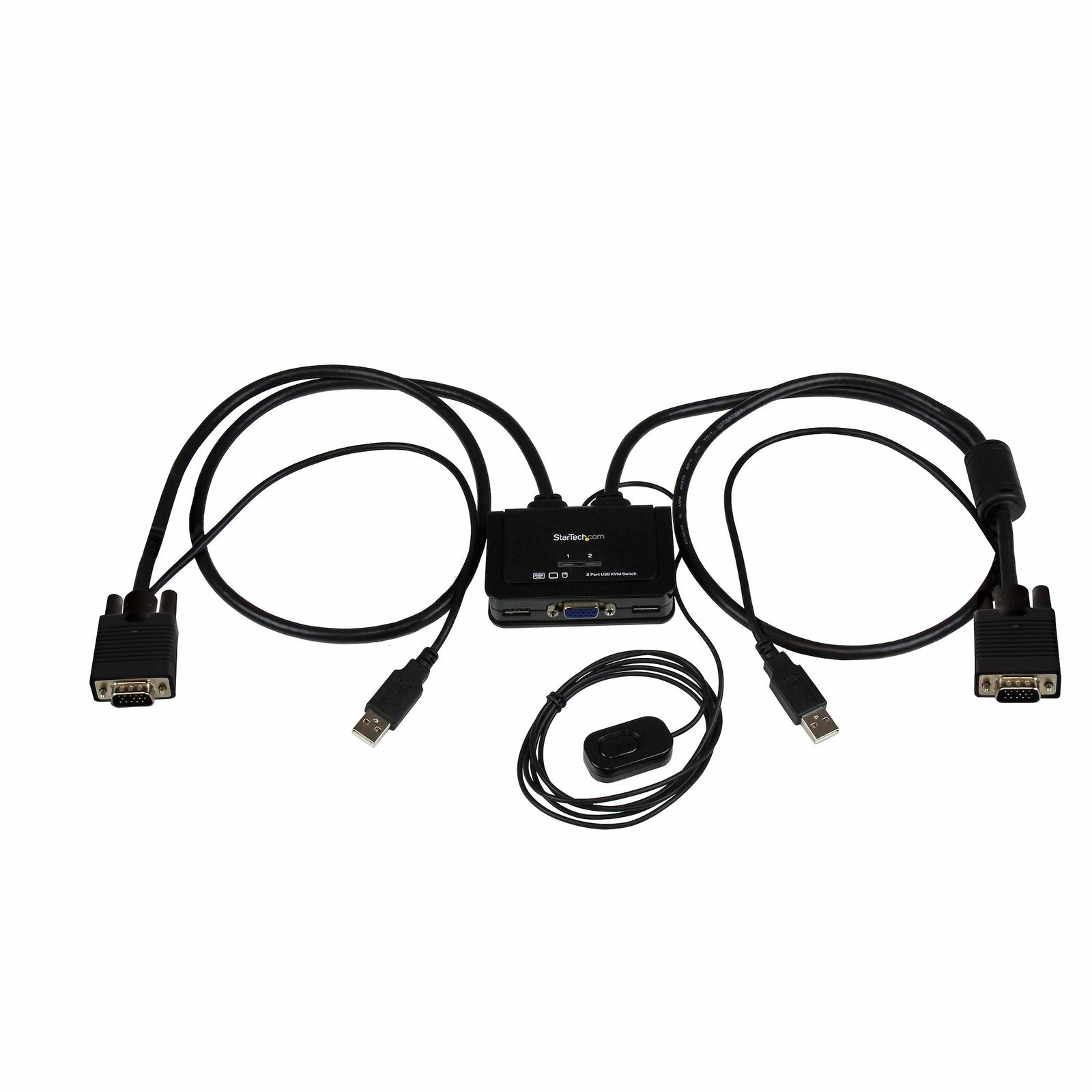

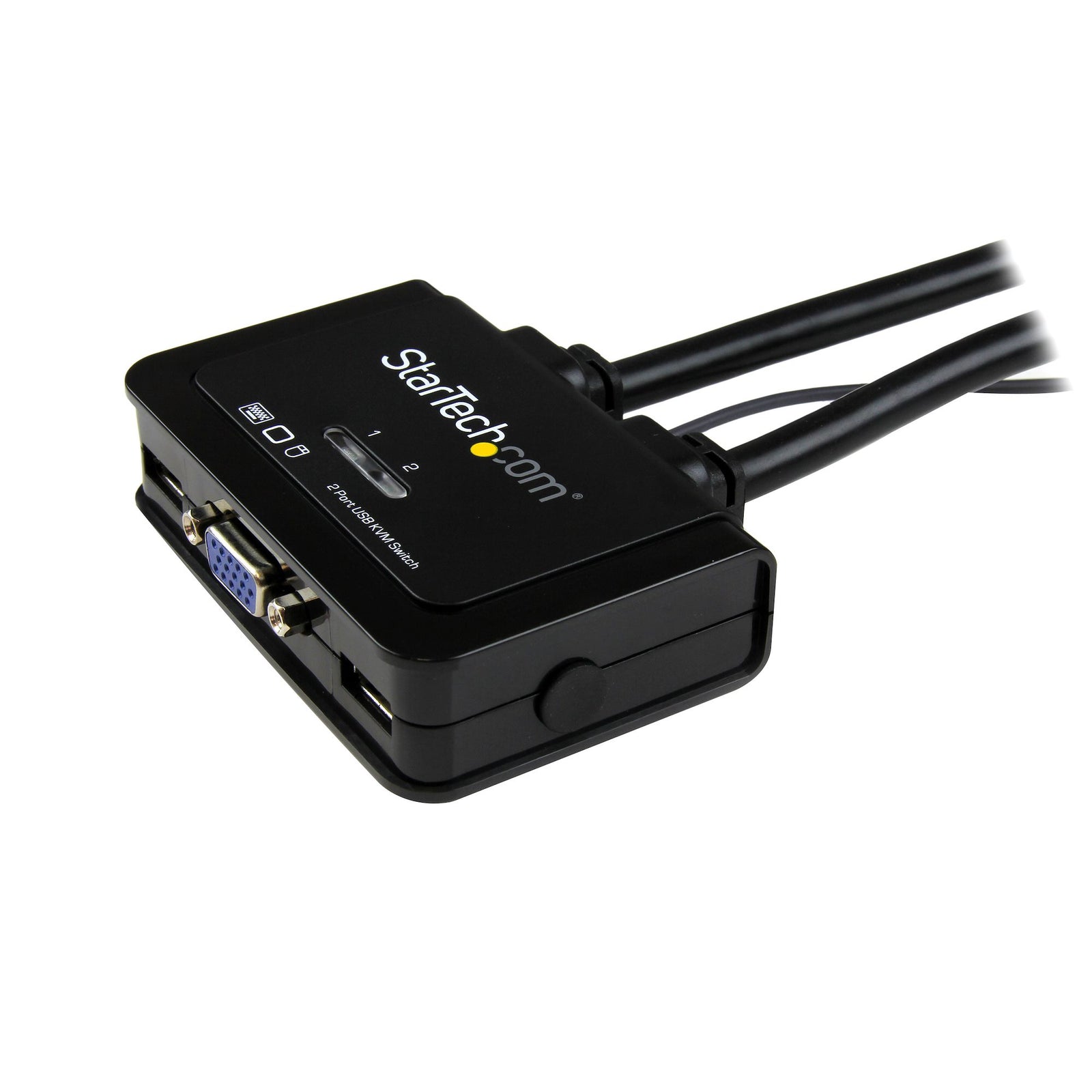

The SV211USB 2-Port VGA Cable KVM Switch lets you control two VGA, USB-equipped PCs with a single monitor, keyboard and mouse.
To help organize your desk without sacrificing valuable work space, this VGA USB KVM switch features a compact footprint and integrated KVM cables that can be connected directly to your systems. Plus, the KVM is USB-powered, eliminating the need for a bulky external power adapter and wall outlet.

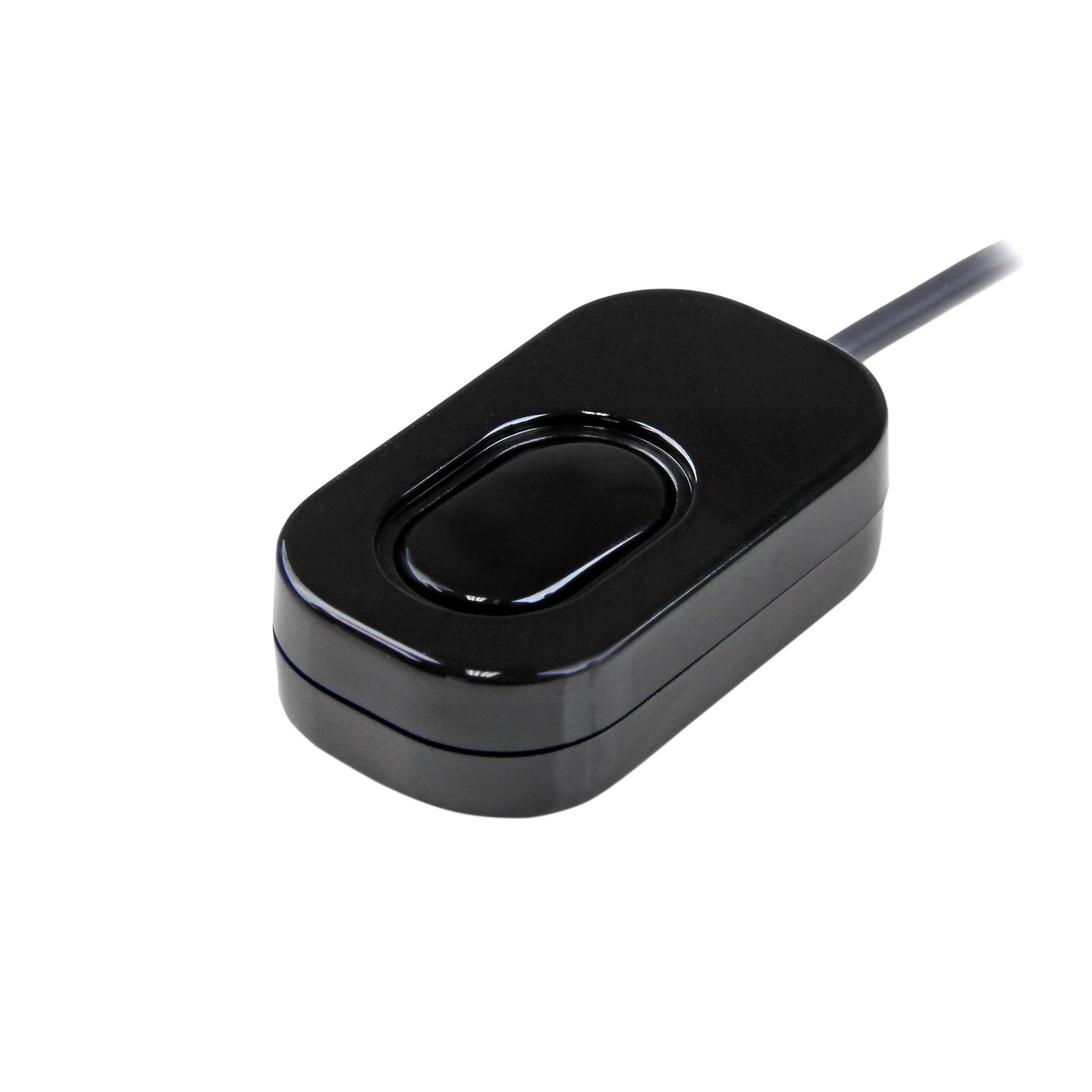

This VGA KVM switch offers support for resolutions up to 2048x1536, for the ability to drive a high-resolution VGA display. For simple switching between connected systems, the KVM features a convenient push-button remote switch on a 1.5 meter (5ft) cable, as well as keyboard hot-key support and PC or Mac® compatible switching software.
Applications
Great for PC test/burn-in computer control, saving the desk space required for two monitors, keyboards and mice
Perfect for sharing computers and attached peripherals in the home or home office
Dual system control for single user workstations, increasing user productivity in the office
| Category | Specification |
|---|---|
| Warranty Information | Warranty: 2 Years |
| Connector(s) | Console Interface(s): |
| 1 - VGA (15 pin, High Density D-Sub) | |
| 2 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| Host Connectors: | |
| 1 - VGA (15 pin, High Density D-Sub) | |
| 1 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Storage Temperature: -20°C to 60°C (4°F to 140°F) | |
| Humidity: 0~90% RH Non-Condensing | |
| Hardware | Audio: No |
| KVM Ports: 2 | |
| PC Interface: USB | |
| PC Video Type: VGA | |
| Number of Monitors Supported: 1 | |
| Rack-Mountable: No | |
| Cables Included: Yes | |
| Daisy-Chain: No | |
| Indicators | LED Indicators: 1 - PC Selection indicator |
| Packaging Information | Package Height: 6.0 cm [2.4 in] |
| Package Length: 24.4 cm [9.6 in] | |
| Shipping (Package) Weight: 434.0 g [15.3 oz] | |
| Package Width: 16.2 cm [6.4 in] | |
| Package Quantity: 1 | |
| Performance | On-Screen Display: No |
| IP Control: No | |
| Hot-Key Selection: Yes | |
| Port Selection Support: Push Button, Hotkeys, and Software | |
| Physical Characteristics | Weight of Product: 321 g [11.3 oz] |
| Color: Black | |
| Material: Plastic | |
| Cable Length: 850 mm [33.5 in] | |
| Product Length: 88 mm [3.5 in] | |
| Product Width: 6.6 cm [2.6 in] | |
| Product Height: 2.3 cm [0.9 in] | |
| Power | Power Source: USB-Powered |
| Input Voltage: 5V DC | |
| Output Voltage: 5V DC | |
| Software | OS Compatibility: |
| Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11 | |
| Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022 | |
| Mac OS 10.x (Tested up to 10.9), 9.x | |
| Special Notes / Requirements | Note: OS Compatibility refers to KVM software only - the KVM itself can be used without software on any platform |

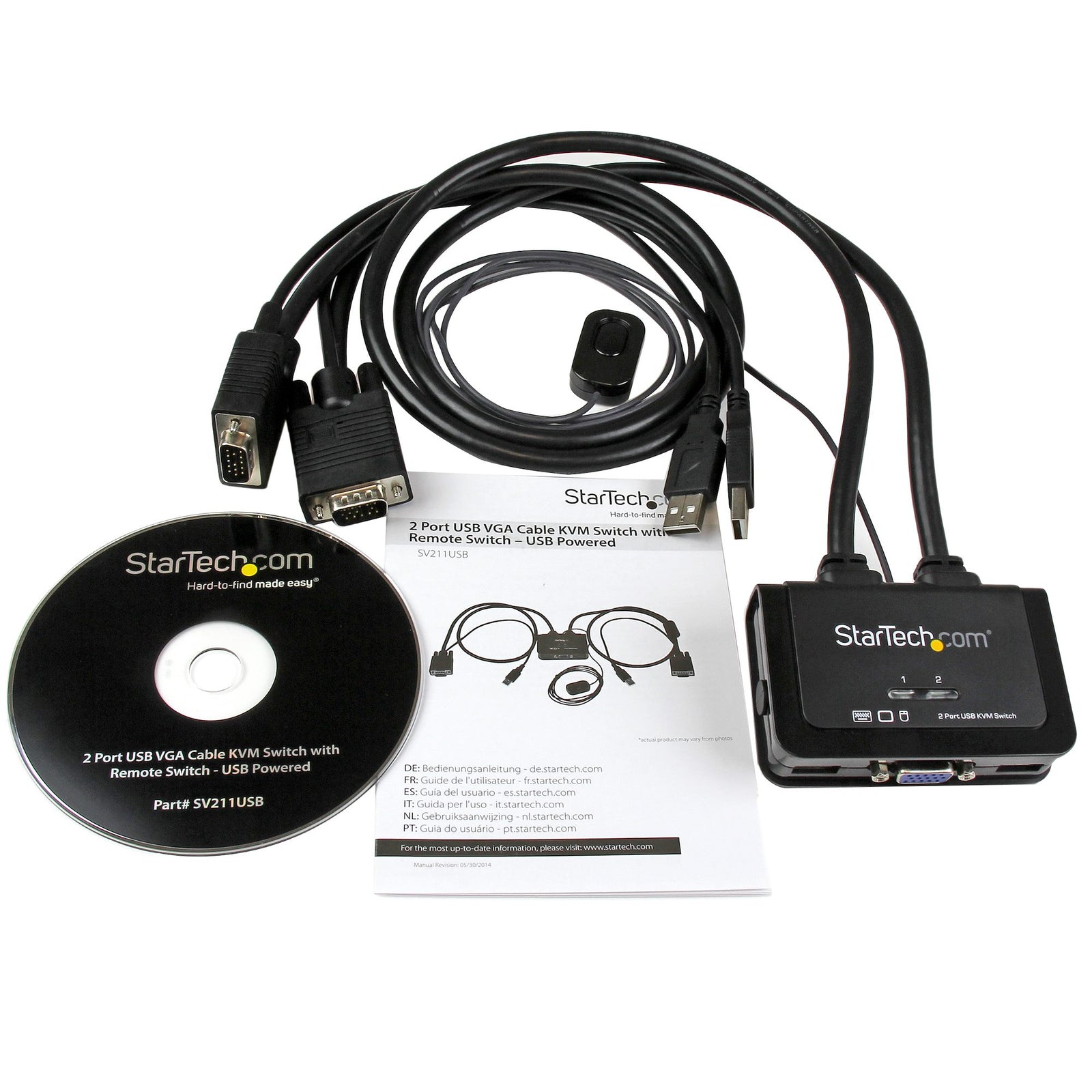

| What's in the Box | Included in Package: |
| 1 - KVM Switch | |
| 1 - Software CD | |
| 1 - Instruction Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| Manuals | Downloads |
