The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source.
Applications
Four system control for single user workstations with dual head video cards, increasing user productivity in the office
Control up to four dual display multimedia computers with a single set of console peripherals (Keyboard, Mouse, and two Monitors)
Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications, and multiple screens
Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals
| Category | Details |
|---|---|
| Warranty Information | Warranty: 3 Years |
| Connector(s) | Console Interface(s): |
| 2 - DVI-I (29 pin) | |
| 4 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| 2 - 3.5 mm Mini-Jack (3 Position) | |
| Host Connectors: | |
| 8 - 3.5 mm Mini-Jack (3 Position) | |
| 8 - DVI-I (29 pin) | |
| 4 - USB B (4 pin) | |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Storage Temperature: -20°C to 60°C (-4°F to 140°F) | |
| Humidity: 90% RH | |
| Hardware | Audio: Yes |
| KVM Ports: 4 | |
| PC Interface: USB | |
| PC Video Type: DVI | |
| Number of Monitors Supported: 2 | |
| Rack-Mountable: Optional | |
| Cables Included: No | |
| Daisy-Chain: No | |
| Indicators | LED Indicators: |
| 4 - Green - Host Online, Red - Host Selected | |
| 1 - Green - Power | |
| Packaging Information | Package Height: 86 mm [3.4 in] |
| Package Length: 29.6 cm [11.7 in] | |
| Package Width: 24.6 cm [9.7 in] | |
| Shipping (Package) Weight: 1.8 kg [3.9 lb] | |
| Package Quantity: 1 | |
| Performance | On-Screen Display: No |
| DVI Support: Yes - Single Link | |
| IP Control: No | |
| Hot-Key Selection: Yes | |
| Maximum Analog Resolutions: 2048x1536 @85Hz | |
| Maximum Digital Resolutions: 1920x1200 @60Hz | |
| Maximum Number of Users: 1 | |
| Port Selection Support: Push Button and Hotkeys | |
| MTBF: 140,000 hours | |
| Physical Characteristics | Weight of Product: 1.3 kg [2.8 lb] |
| Color: Black | |
| Material: Steel | |
| Product Width: 22 cm [8.7 in] | |
| Product Height: 6 cm [2.4 in] | |
| Product Depth: 130 mm [5.1 in] | |
| Power | Power Source: AC Adapter Included |
| Input Voltage: 100 - 240 AC | |
| Input Current: 0.8A | |
| Output Voltage: 12V DC | |
| Output Current: 1.5A | |
| Center Tip Polarity: Positive | |
| Plug Type: M | |
| Power Consumption (In Watts): 18 | |
| Software | OS Compatibility: OS independent; No software or drivers required |

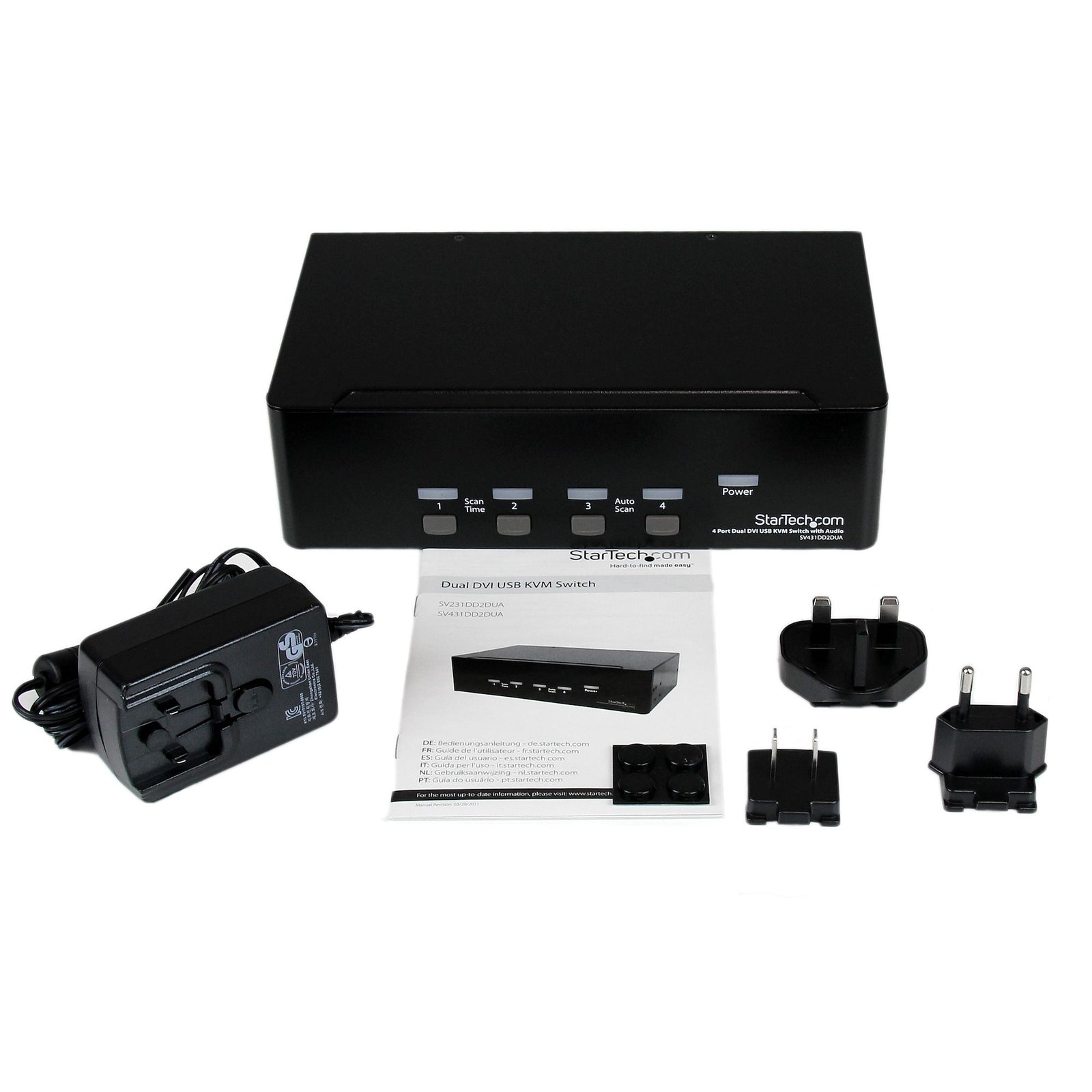

| What's in the Box | Included in Package: |
| 1 - 4-port dual DVI USB KVM | |
| 4 - Foot Pads | |
| 1 - Universal Power Adapter (NA/EU/UK/AU) | |
| 1 - Instruction Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
