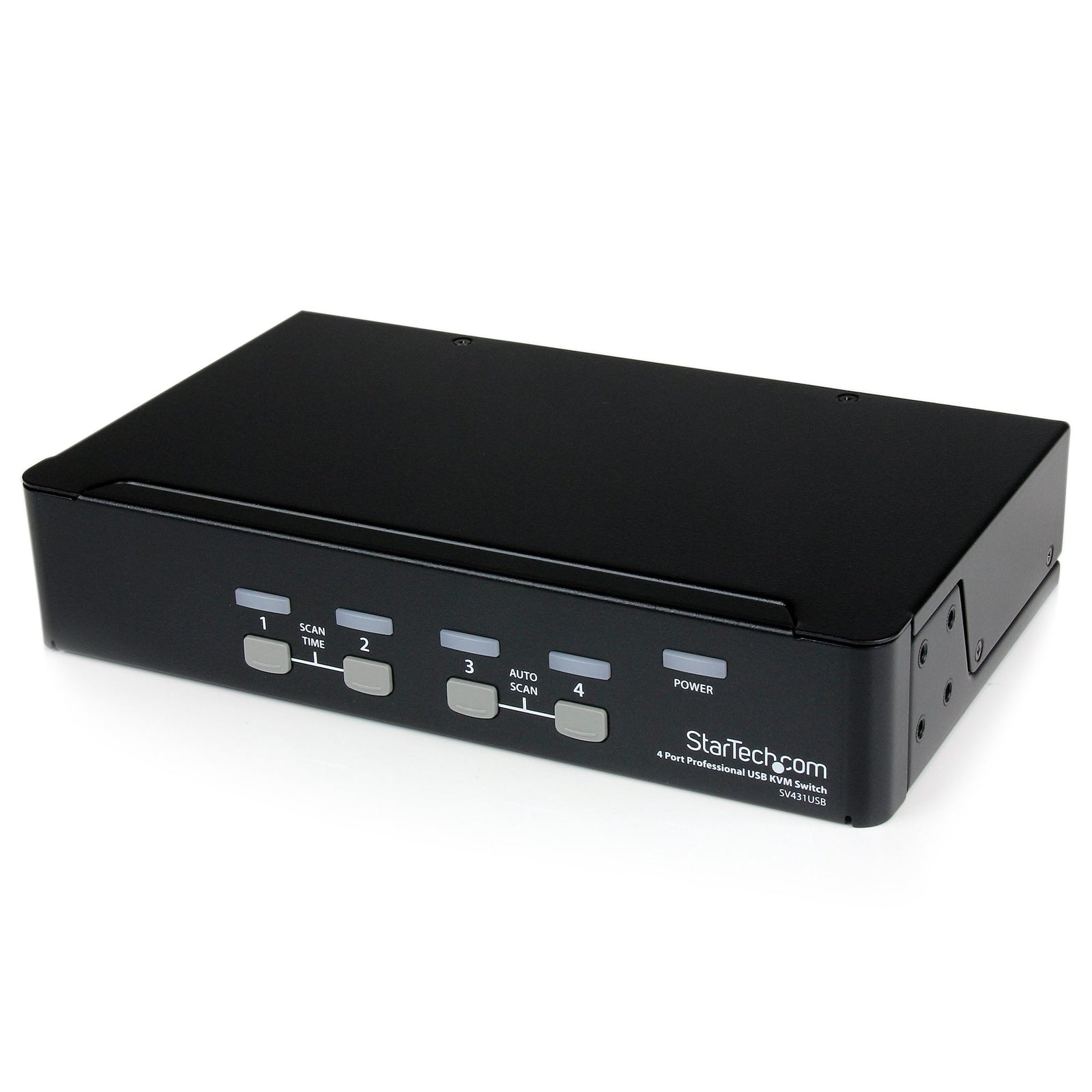

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.
Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.
Applications
Sharing computers and USB devices in the home/SOHO/multimedia environment
Perfect for manufacturing line computer control, simplifying access to multiple systems
Great for PC test/burn-in computer control saving the desk space required for two monitors, keyboards and mice
Dual system control for single user workstations increasing user productivity in the office
| Category | Details |
|---|---|
| Warranty Information | |
| Warranty | 3 Years |
| Connector(s) | |
| Console Interface(s) | 1 - VGA (15 pin, High Density D-Sub) 4 - USB 2.0 Type-A (4 pin, 480Mbps) |

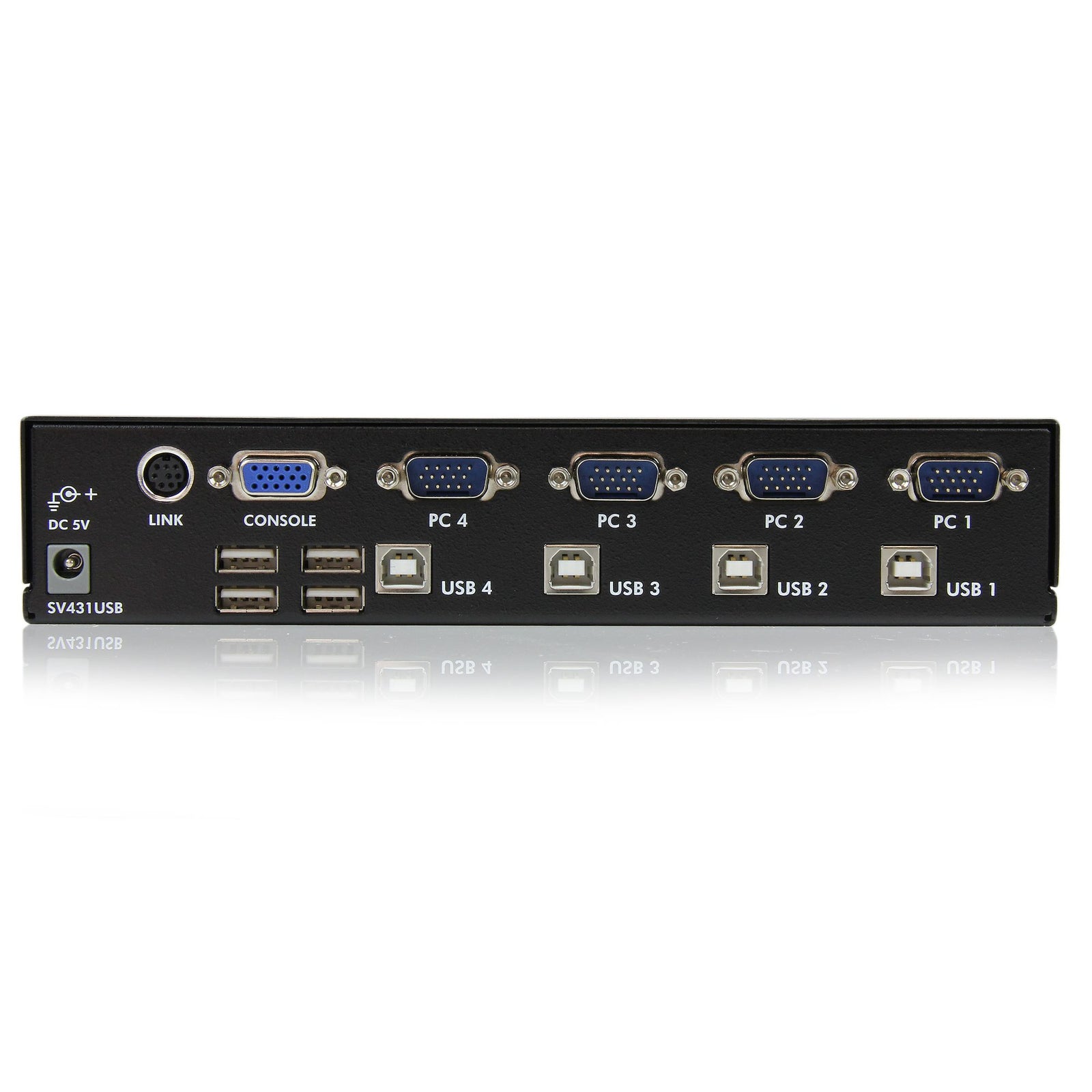

| Host Connectors | 4 - USB B (4 pin) 4 - VGA (15 pin, High Density D-Sub) |
| Hardware | |
| Audio | No |
| KVM Ports | 4 |
| PC Interface | USB |
| PC Video Type | VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | Optional |
| Cables Included | No |
| U Height | 1U |
| Daisy-Chain | No |
| Packaging Information | |
| Package Height | 7.4 cm [2.9 in] |
| Package Length | 29.4 cm [11.6 in] |
| Shipping (Package) Weight | 1.3 kg [2.8 lb] |
| Package Width | 19.8 cm [7.8 in] |
| Package Quantity | 1 |
| Performance | |
| On-Screen Display | No |
| DVI Support | No |
| IP Control | No |
| Hot-Key Selection | No |
| Maximum Cable Length | 5 m [16.4 ft] |
| Maximum Analog Resolutions | 1920 x 1440 |
| Auto Scan | 3, 8, 15 & 30 seconds |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button |
| MTBF | 82,506 hours |
| Physical Characteristics | |
| Weight of Product | 988 g [34.9 oz] |
| Color | Black |
| Material | Steel |
| Product Length | 22 cm [8.7 in] |
| Product Width | 13 cm [5.1 in] |
| Product Height | 4.4 cm [1.7 in] |
| Power | |
| Power Source | Not Included (not required for standard applications) |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.4A |
| Output Voltage | 5 DC |
| Output Current | 2A |
| Center Tip Polarity | Positive |
| Plug Type | N |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | In order to use the SV431USB with a USB keyboard that has additional USB ports, such as an Apple Macintosh keyboard, or to use the SV431USB with a USB hub, an additional power supply may be required |
| What's in the Box | |

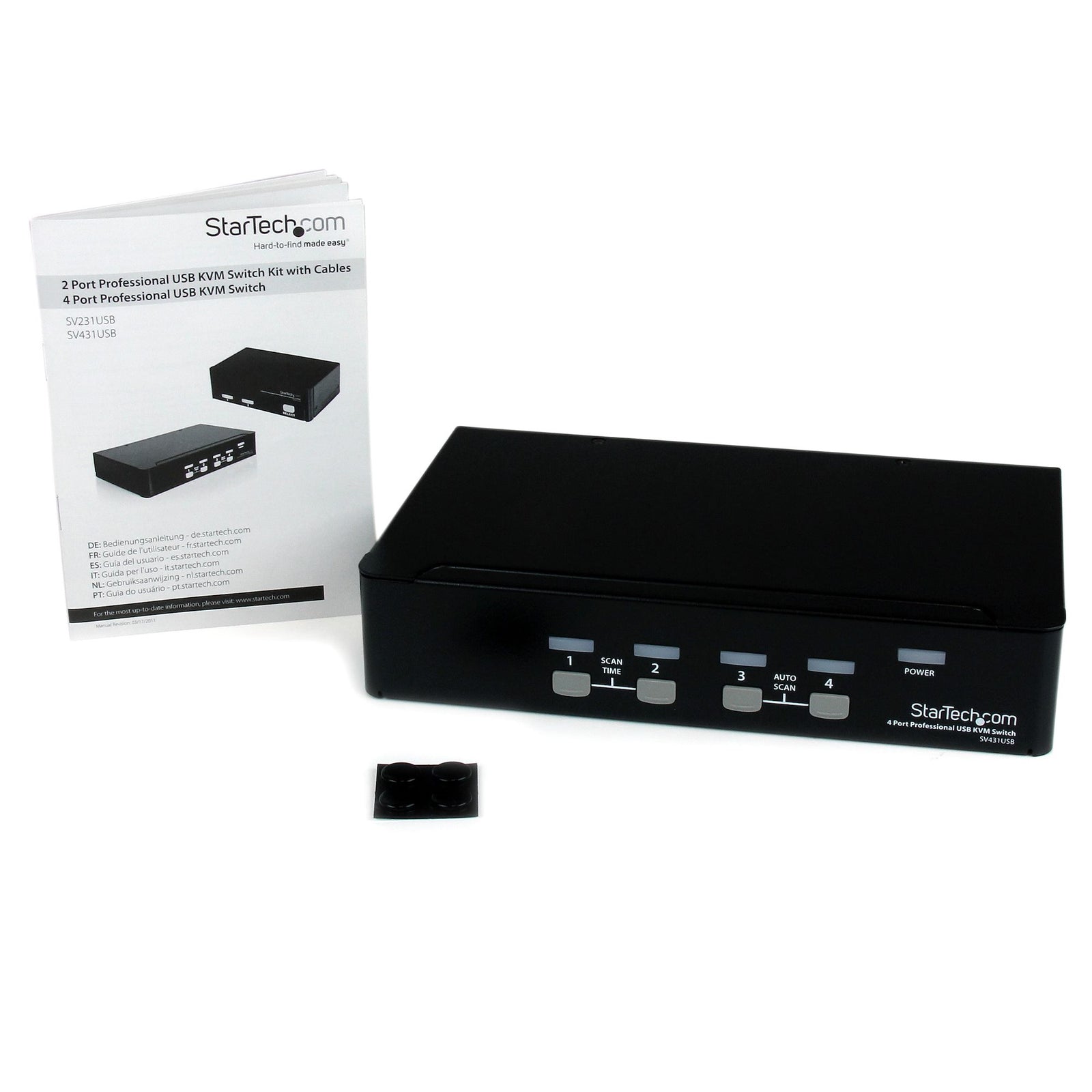

| Included in Package | 1 - 4 Port VGA USB KVM Switch 4 - Rubber Feet 1 - Instruction Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| Manuals | Downloads |
