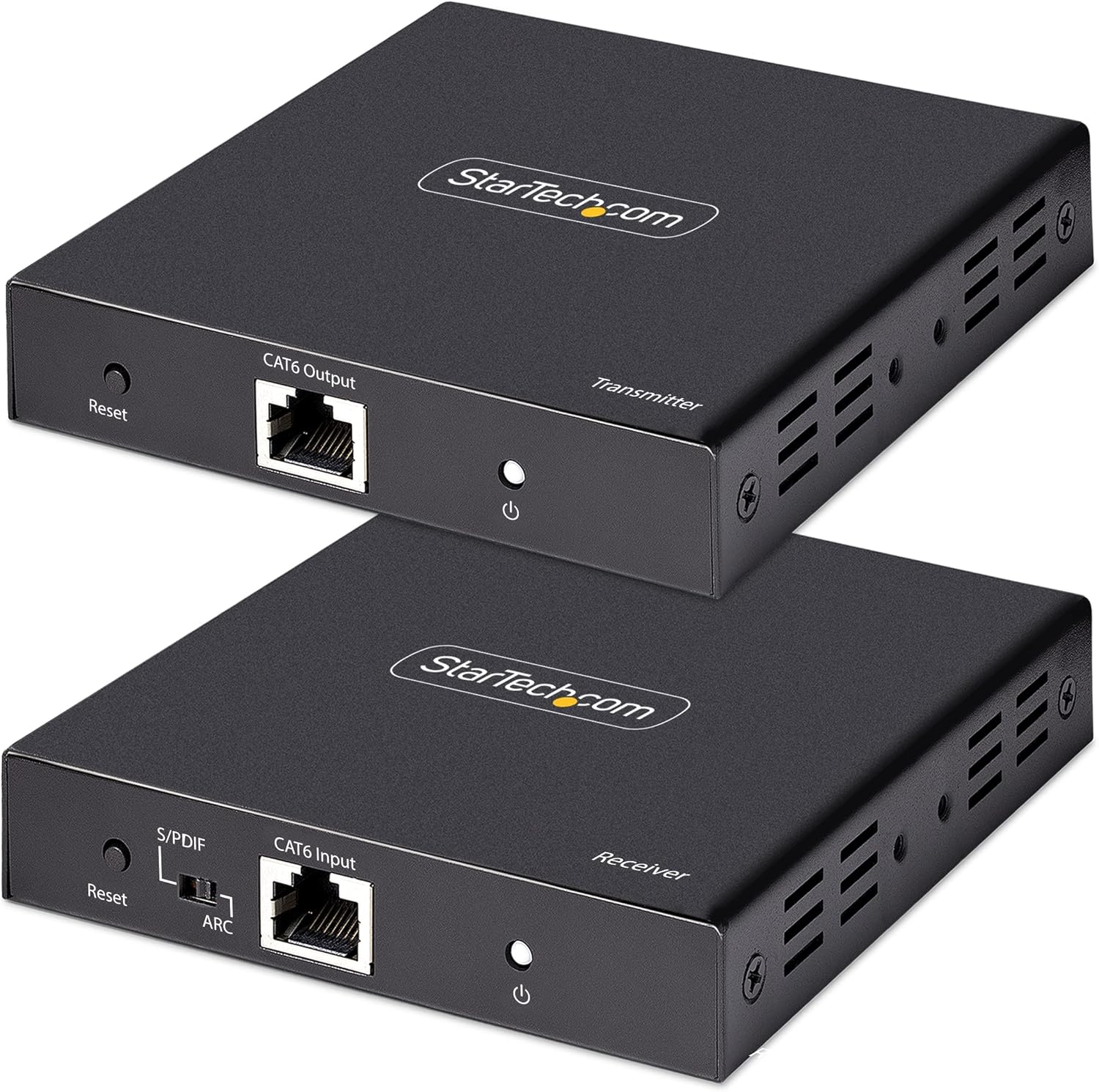

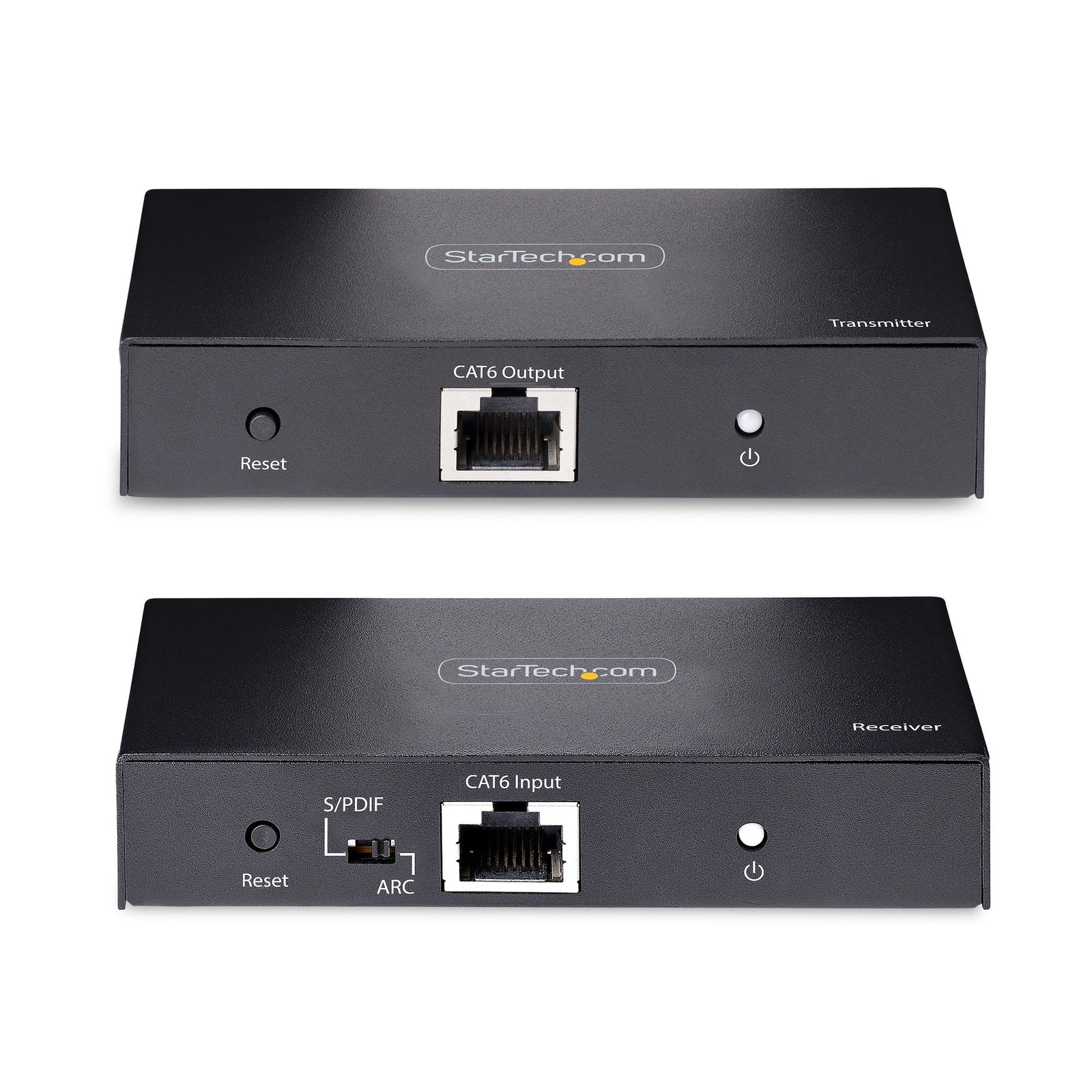

This HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.
4K 60Hz Resolution
This HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.
Power-Over-Cable

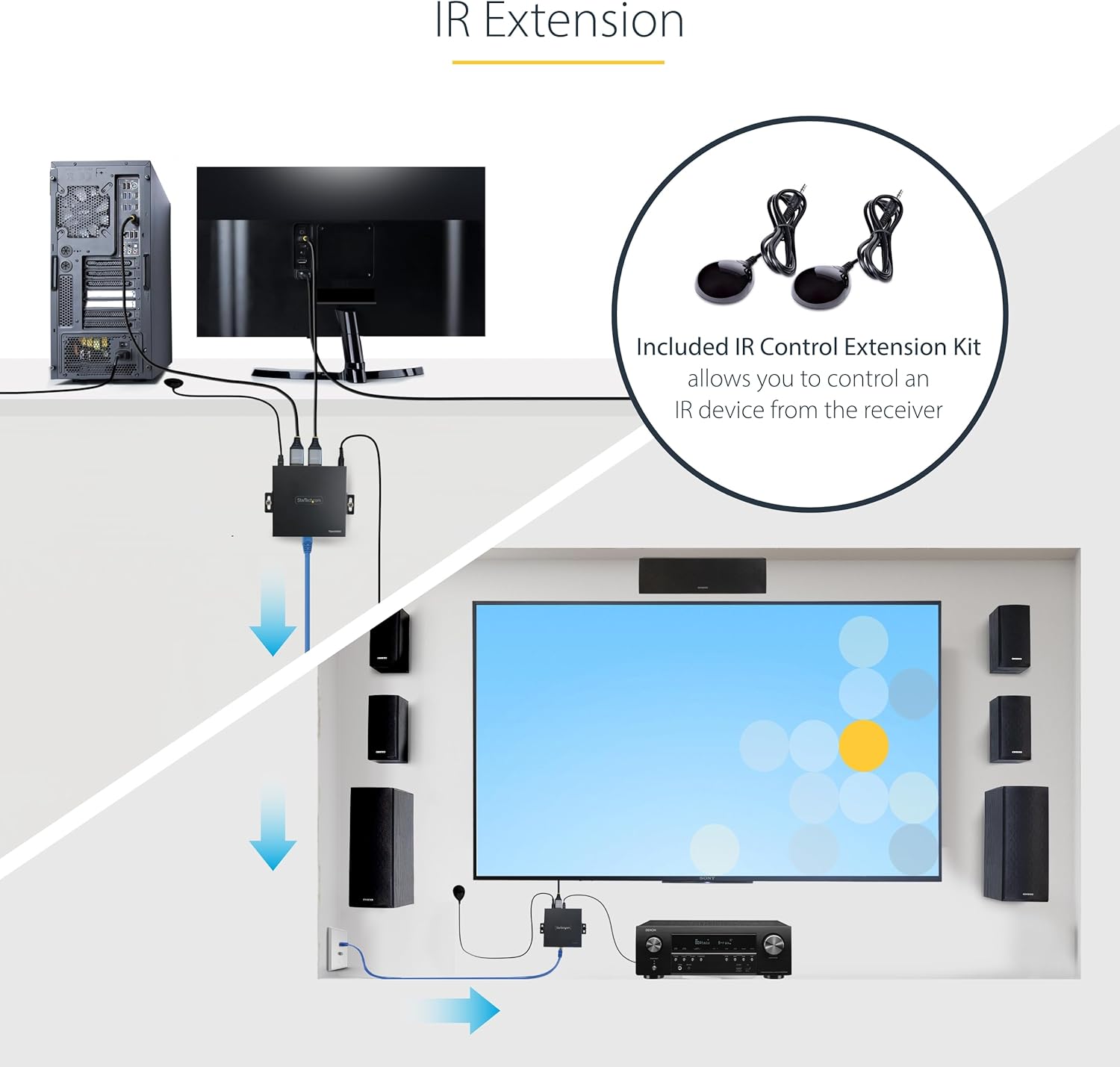

Connect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.
Versatile Installation Options
The 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders - to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
Applications

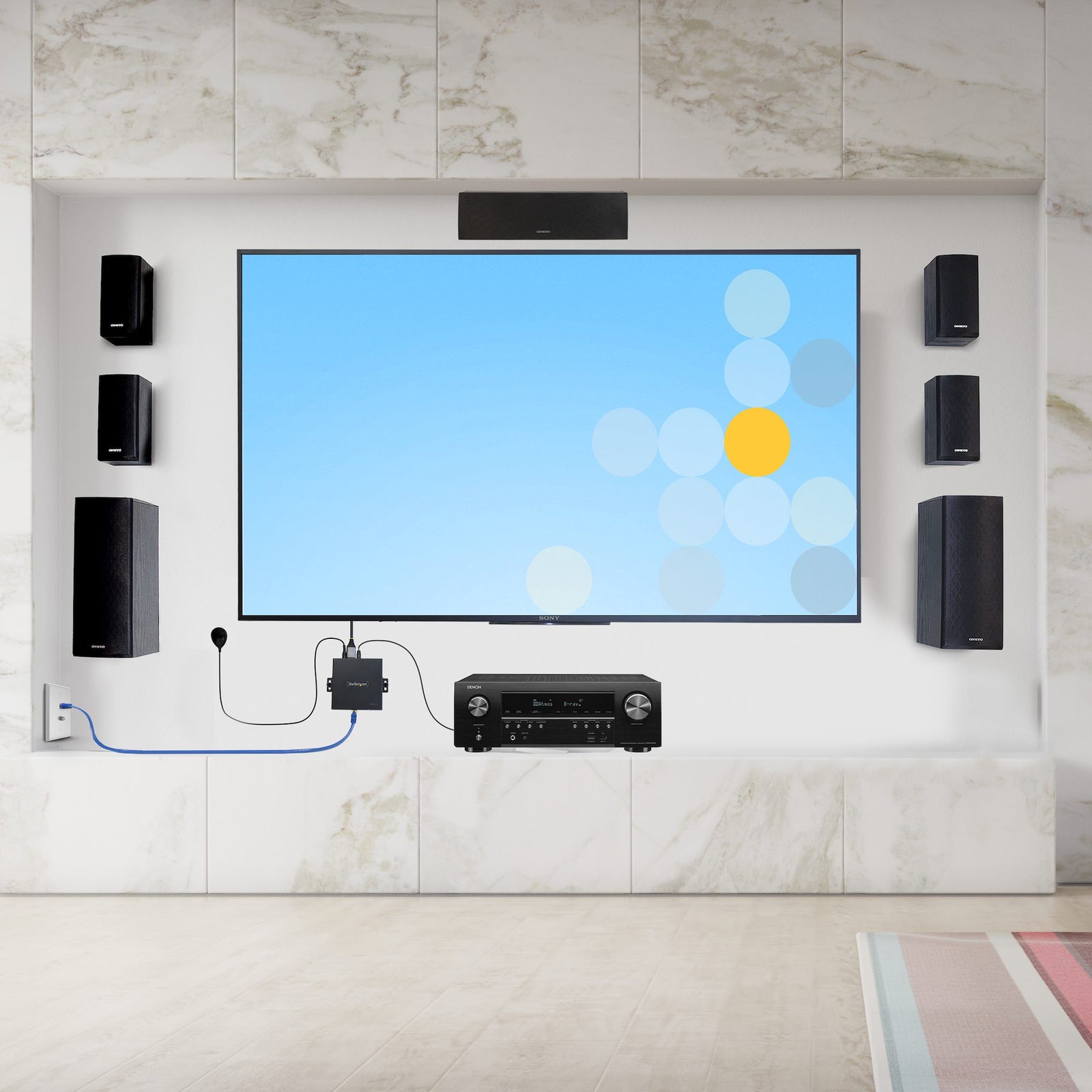

Extend a 4K 60Hz HDMI signal in offices, building lobbies, shopping centers, airports, and more
Extend a HDMI signal to locations that lack power outlets

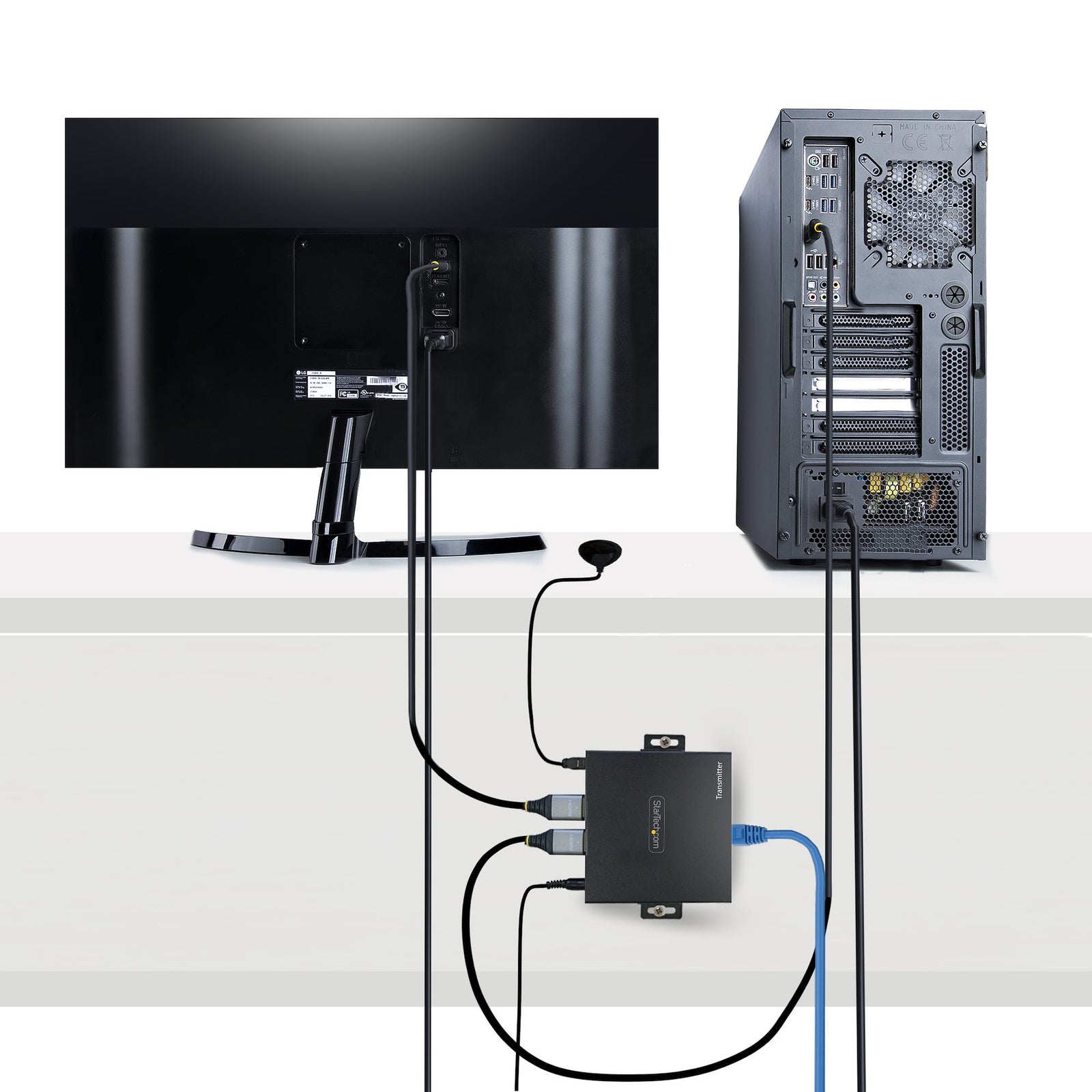

Display the same image on a display locally and to a remote location
| Category | Details |
|---|---|
| Warranty | 3 Years |

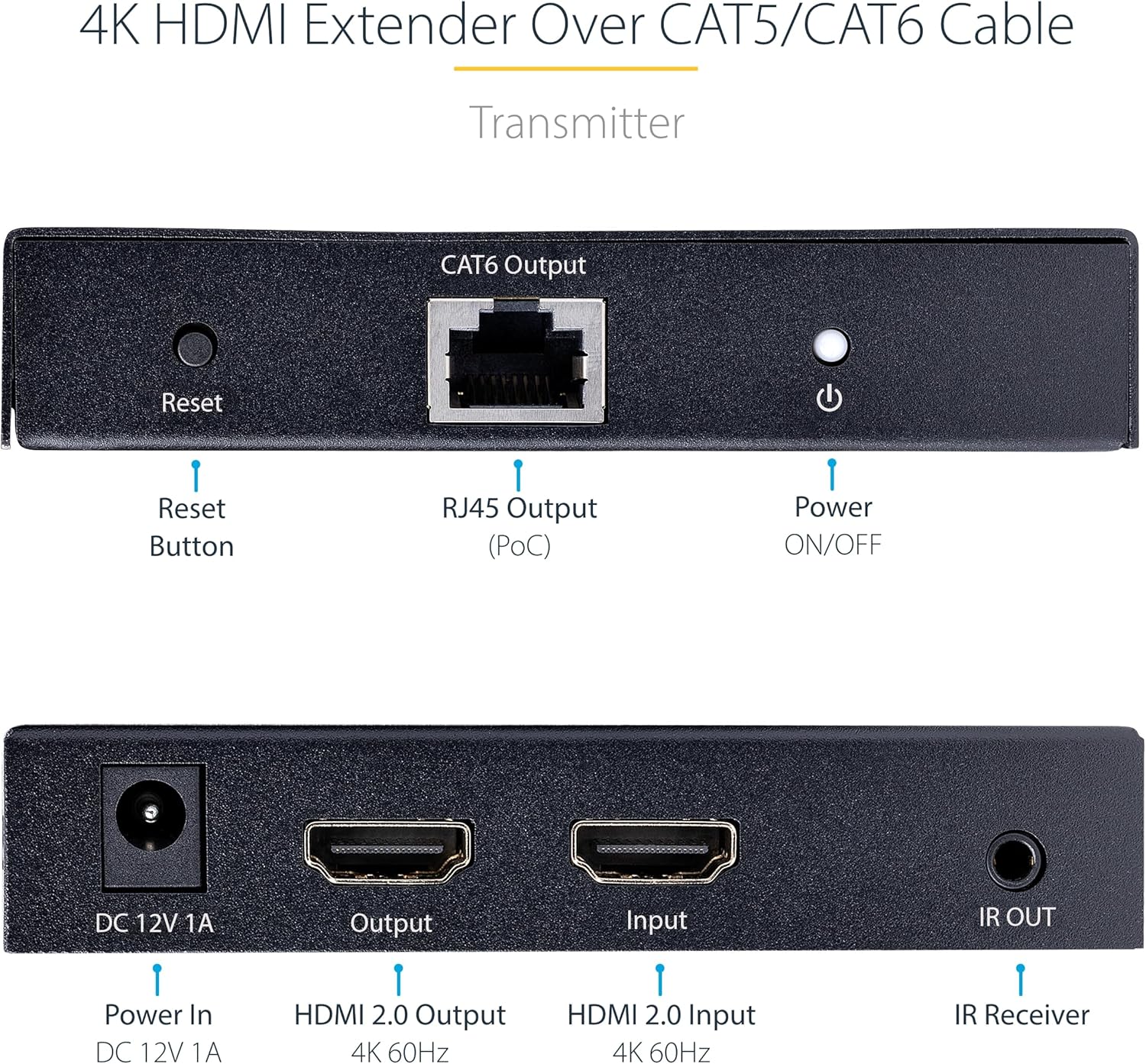

| Local Unit Connectors | 1 x HDMI, 1 x RJ-45, 1 x Barrel Power Connector (Size M, OD: 5.50, ID: 2.10), 1 x 3.5mm Stereo Female 3 pos |

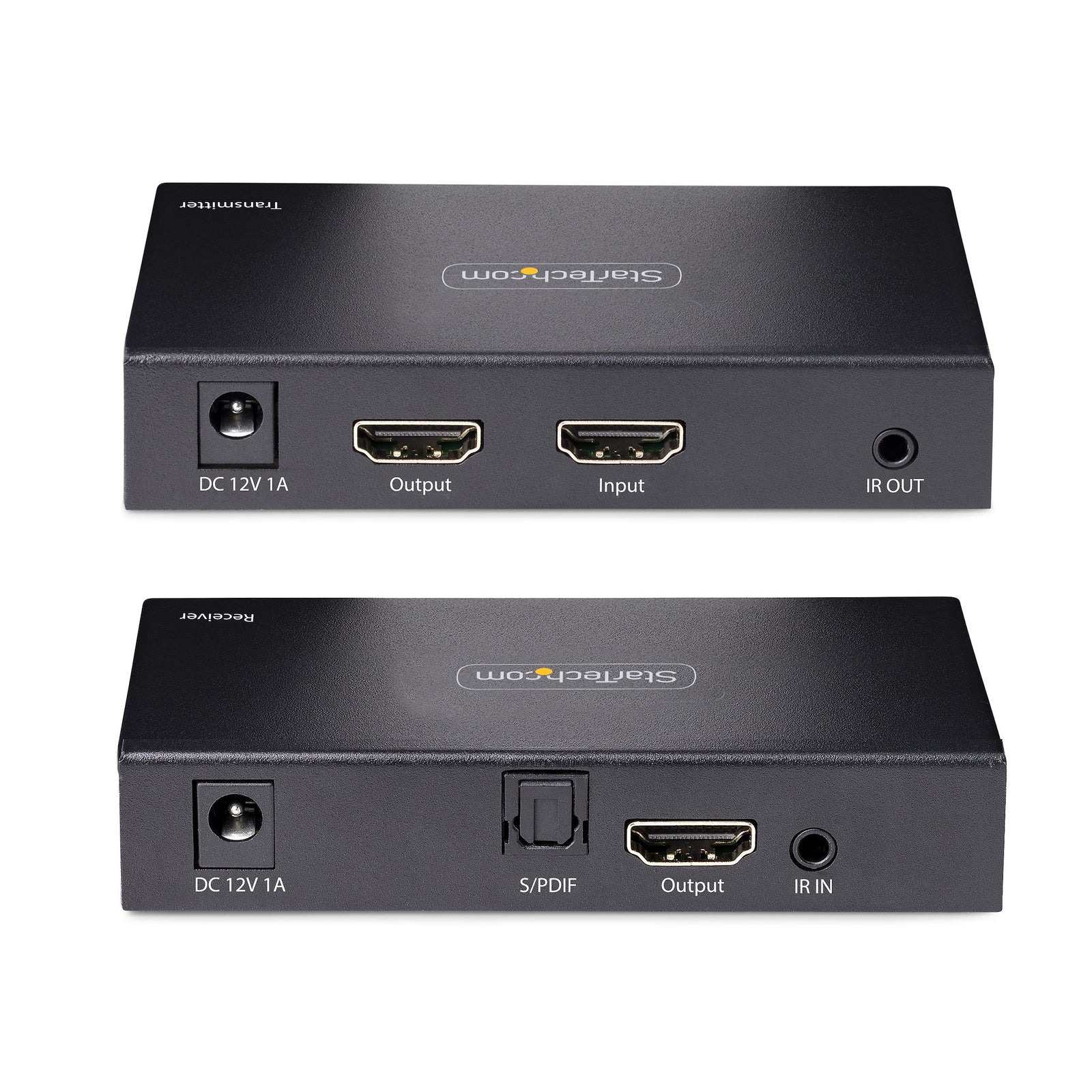

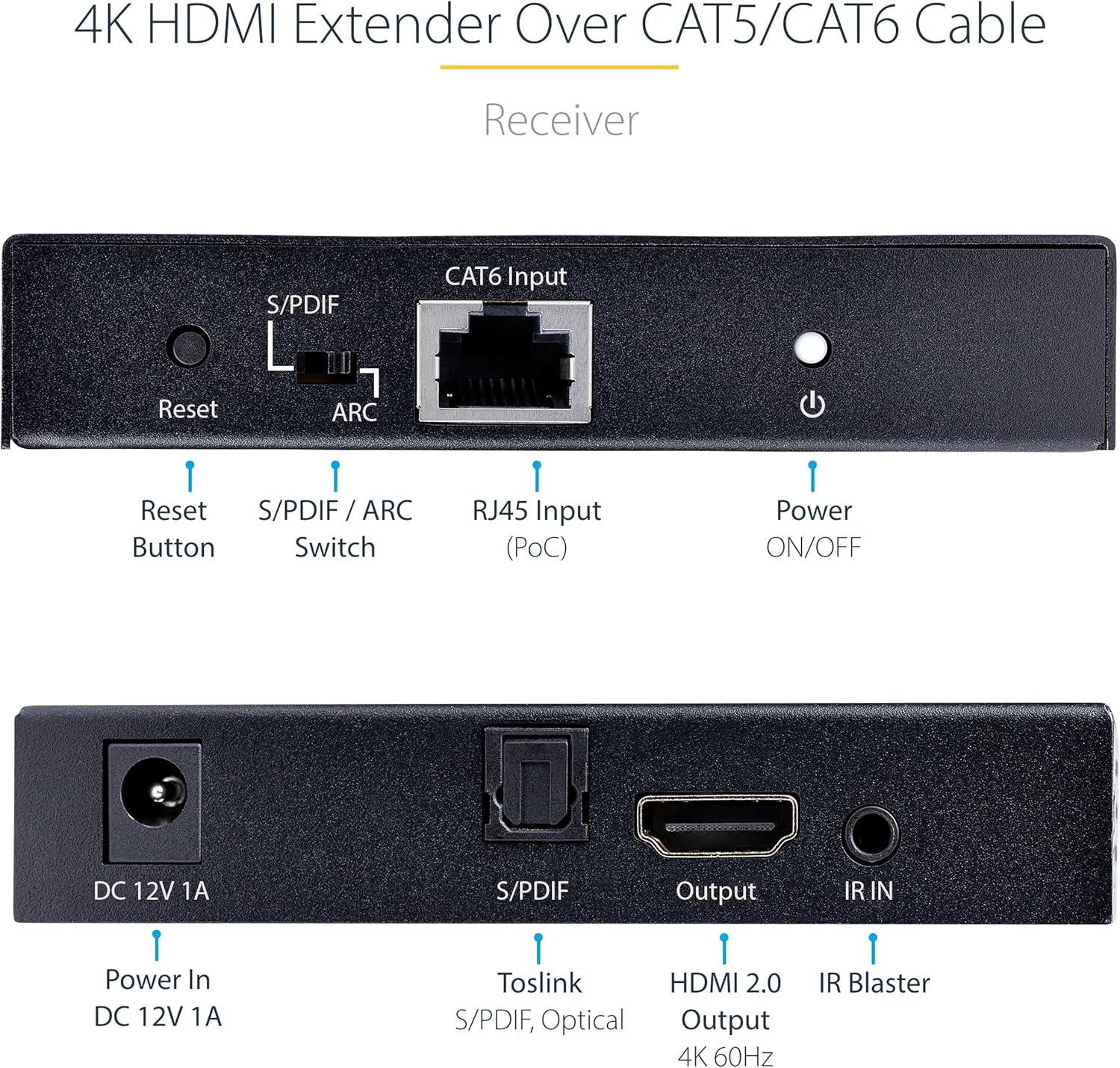

| Remote Unit Connectors | 1 x HDMI, 1 x 3.5mm Stereo Female 3 pos, 1 x Toslink (SPDIF, Optical), 1 x Barrel Power Connector (Size M, OD: 5.50, ID: 2.10), 1 x RJ-45 |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Humidity | 0% - 90% RH (non-condensing) |
| Cabling | Cat 5e UTP or better |

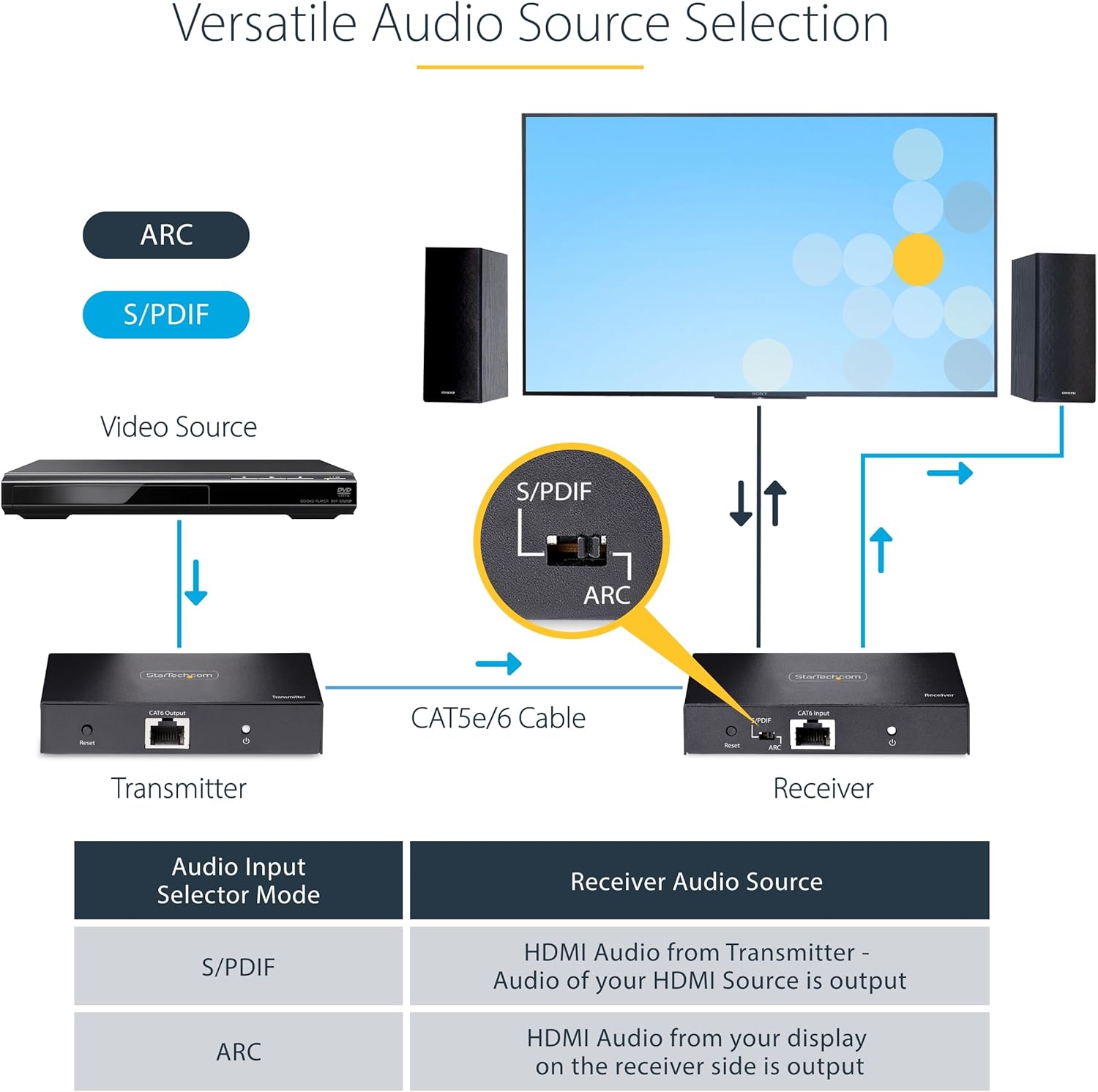

| Audio | Yes (7.1 Channel Audio via HDMI) |
| Rack-Mountable | No |
| Daisy-Chain | Yes |
| Indicators | 1 x Flashing Blue: Power connected, no HDMI input signal. 1 x Solid Blue: Power connected, HDMI input signal detected |
| Package Dimensions (L x W x H) | 18.2 cm x 24.0 cm x 8.3 cm (7.2 in x 9.4 in x 3.3 in) |
| Shipping Weight | 0.9 kg (2.0 lb) |
| Package Quantity | 1 |
| Max Distance | 70m (230ft) |
| Maximum Resolution | 3840x2160 @ 60Hz |
| Supported Resolutions | 3840x2160 (4K) @ 60Hz, 2560x1600 @ 60Hz, 1920x1200 @ 60Hz, 1920x1080 (1080p), 1280x720 (720p) |
| Wide Screen Supported | Yes |
| Power Source | AC Adapter Included, Input Voltage: 100-240 AC, Output Voltage: 12V DC, Output Current: 1A, Center Tip Polarity: Positive, Plug Type: M |
| Power Consumption | 0.1W |
| Product Dimensions (L x W x H) | 10.6 cm x 9.9 cm x 2.6 cm (4.2 in x 3.9 in x 1.0 in) |
| Weight of Product | 210g (7.4 oz) |
| Material | Metal |
| OS Compatibility | No Drivers or Software Required |

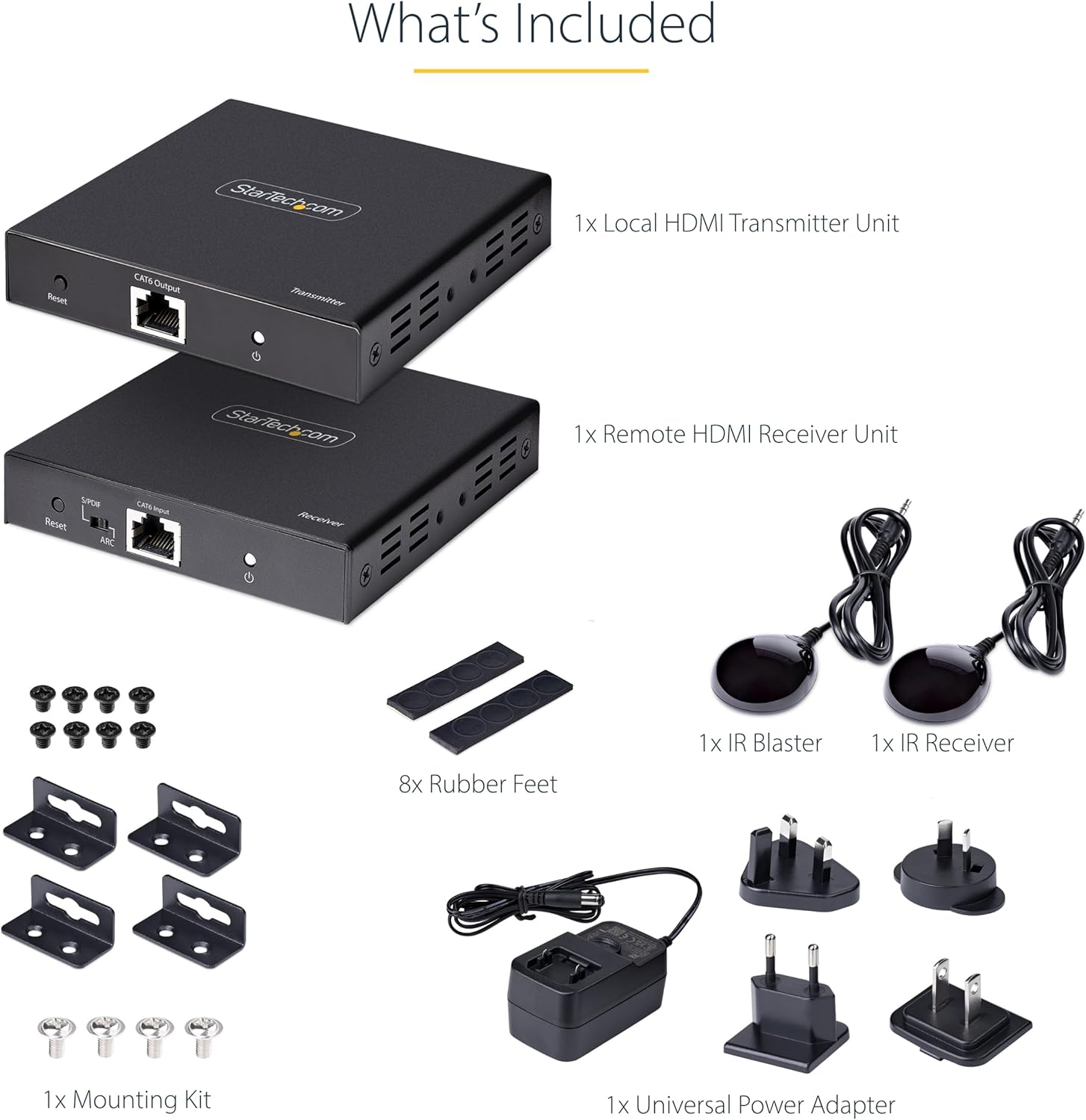

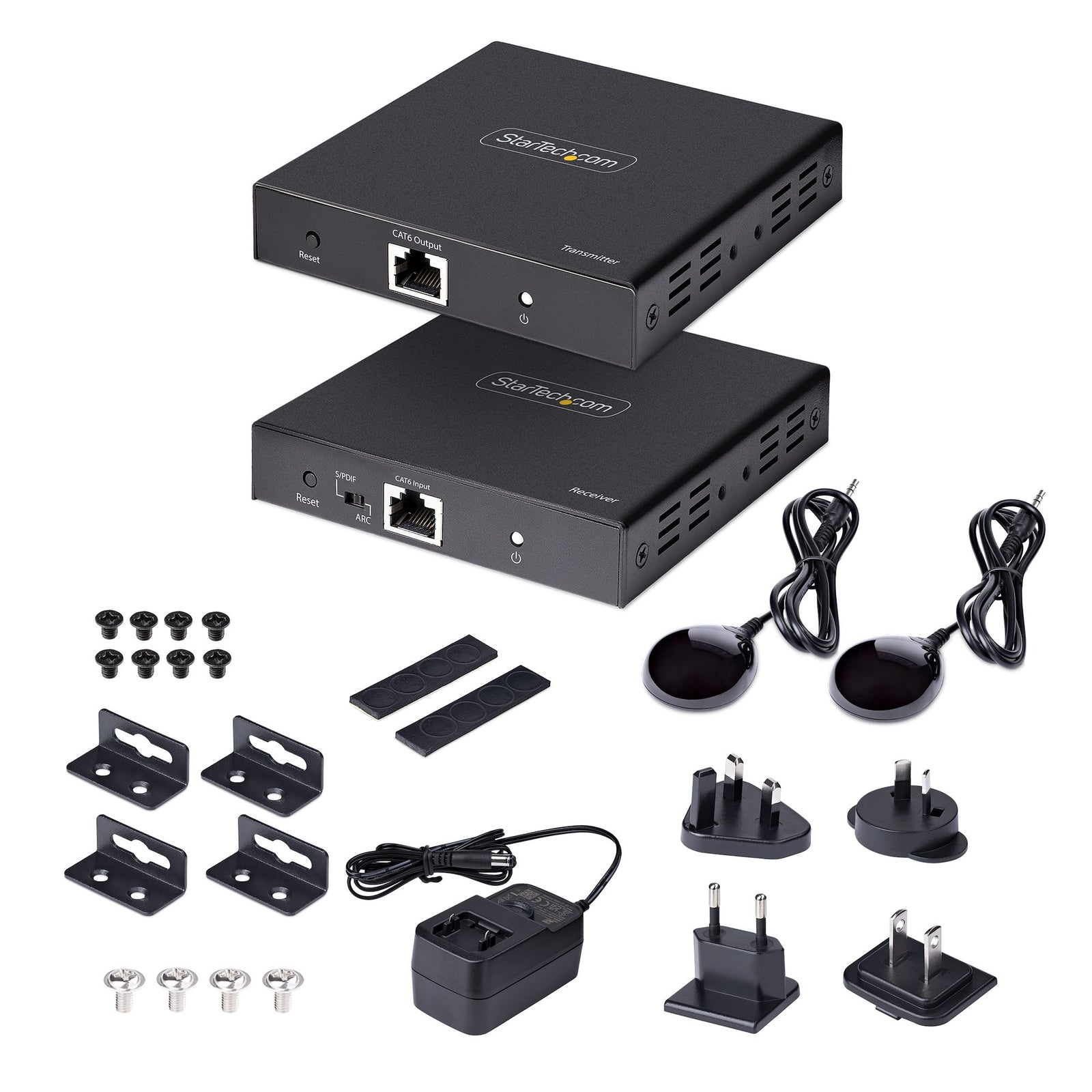

| What's in the Box | 1 x Local HDMI Transmitter Unit, 1 x Remote HDMI Receiver Unit, 1 x IR Blaster, 1 x IR Receiver, 8 x Rubber Feet, 1 x Mounting Kit, 1 x Power Adapter, 1 x Quick-Start Guide |
| Description | Downloads |
|---|---|
| Startech 4K UHD Extender Kit up to 70m Range | 4K70IC-EXTEND-HDMI DataSheet | Downloads |
| Startech 4K UHD Extender Kit up to 70m Range | 4K70IC-EXTEND-HDMI Quick Start Guide | Downloads |
