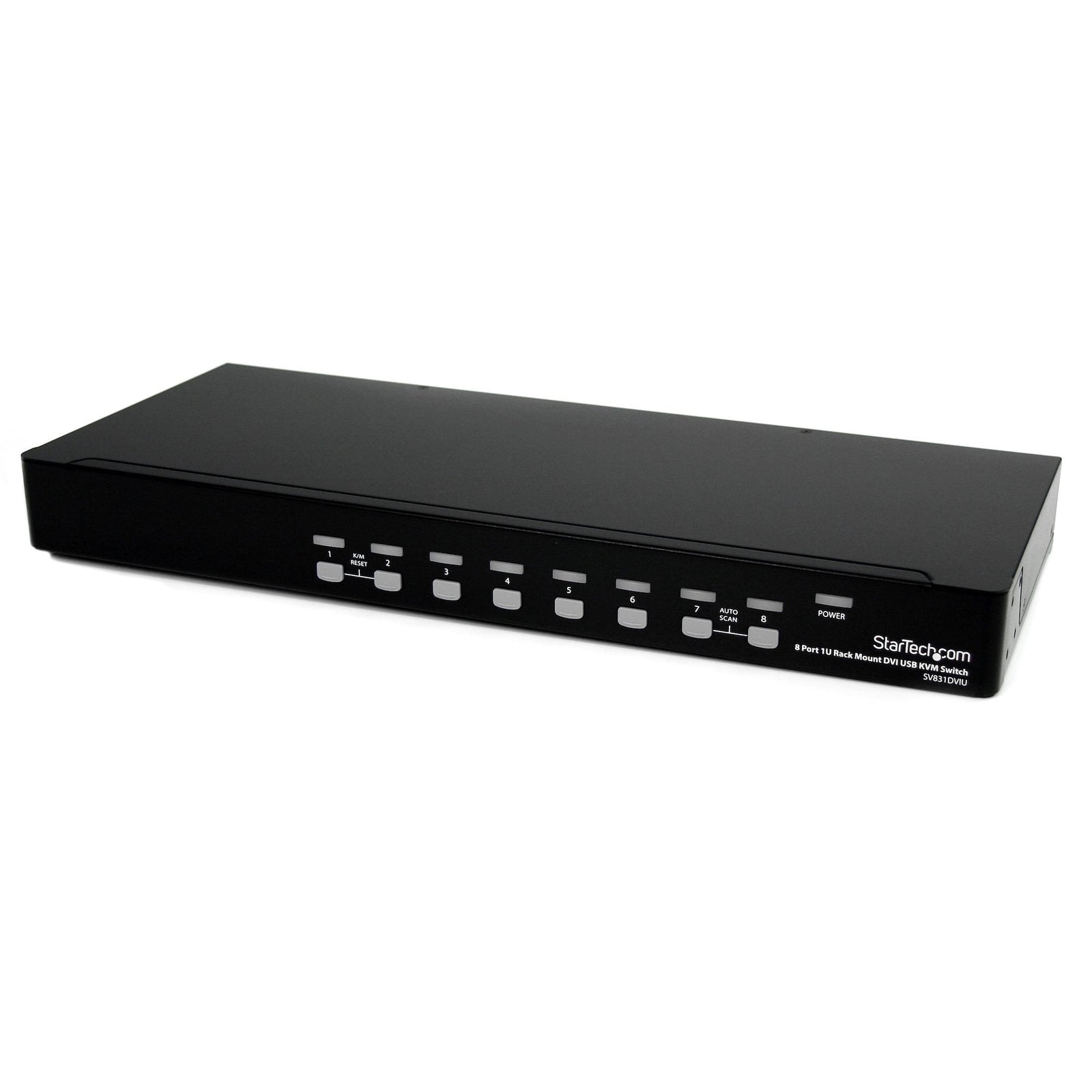

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.
Applications
Ideal for software development and QA test labs with multiple PCs and platforms connected to one console
Single console administration of your co-location/ISP facility
Create a streamlined access solution in your Datacenter or Server Farm
Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Perfect for manufacturing line computer control, simplifying access to multiple systems
| Category | Detail |
|---|---|
| Warranty Information | |
| Warranty | 3 Years |
| Connector(s) | |
| Console Interface(s) | 1 - DVI-I (29 pin) |
| 2 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| Host Connectors | 8 - USB B (4 pin) |
| 8 - DVI-I (29 pin) | |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
| Hardware | |
| Audio | No |
| KVM Ports | 8 |
| PC Interface | USB |
| PC Video Type | DVI |
| Number of Monitors Supported | 1 |
| Rack-Mountable | Yes |
| Cables Included | No |
| U Height | 1U |
| Daisy-Chain | No |
| Packaging Information | |
| Package Height | 8.8 cm [3.5 in] |
| Package Length | 58.8 cm [23.1 in] |
| Shipping (Package) Weight | 3.7 kg [8.3 lb] |
| Package Width | 26.4 cm [10.4 in] |
| Package Quantity | 1 |
| Performance | |
| On-Screen Display | No |
| DVI Support | Yes - Single Link |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Cable Length | 4.6 m [15.0 ft] |
| Maximum Digital Resolutions | 1920 x 1200 |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 134,000 hours |
| Physical Characteristics | |
| Weight of Product | 2.5 kg [5.5 lb] |
| Color | Black |
| Material | Steel |
| Product Length | 18 cm [7.1 in] |
| Product Width | 43.8 cm [17.2 in] |
| Product Height | 4.4 cm [1.7 in] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 1.8A |
| Output Voltage | 12V DC |
| Output Current | 4A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 48W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Supports SUN keyboard emulation |

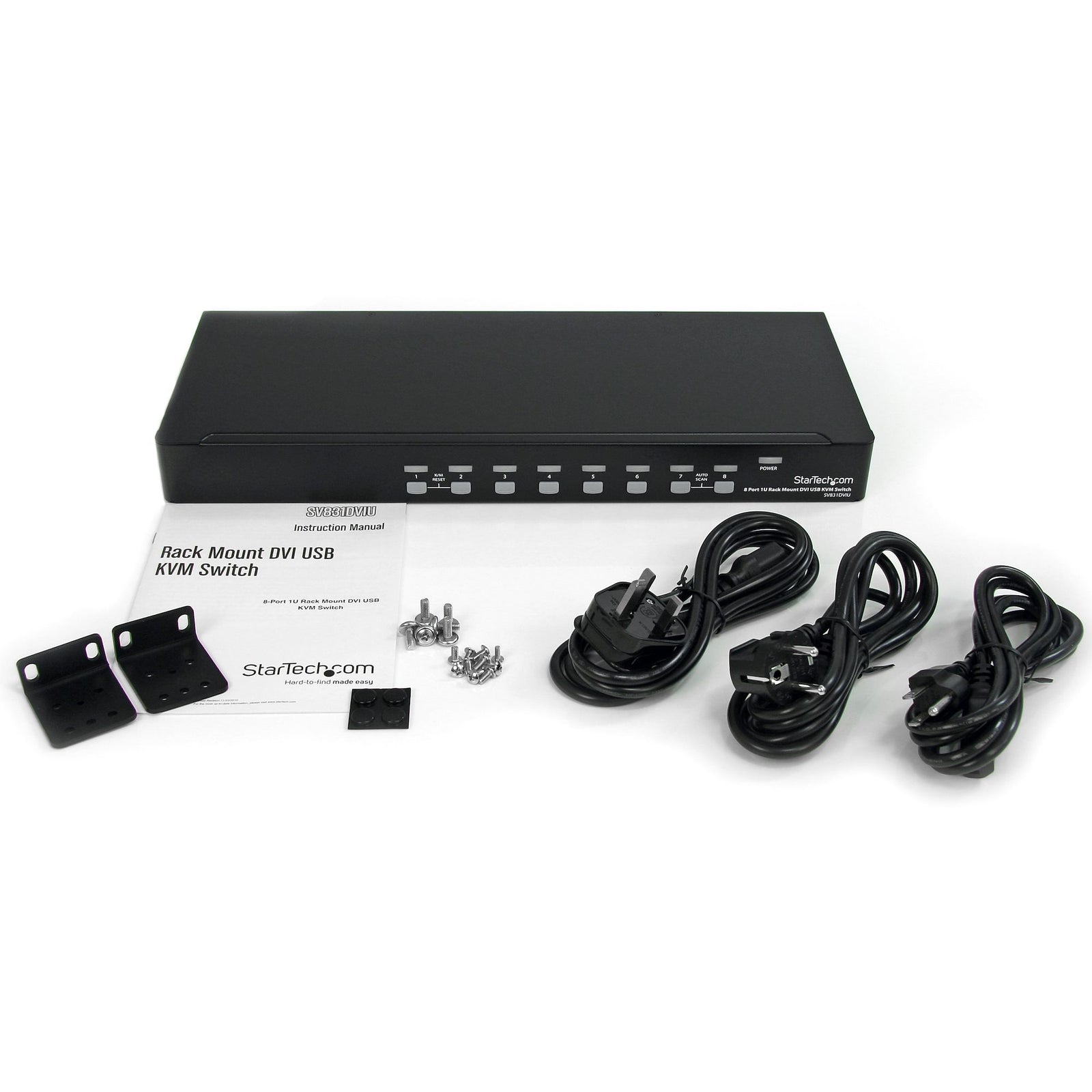

| What's in the Box | |
| Included in Package | 1 - 8 Port DVI USB KVM Switch |
| 1 - Set Rack-mount brackets | |
| 3 - Universal power adapter: NA/EU/UK or Australia/New Zealand | |
| 1 - User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
