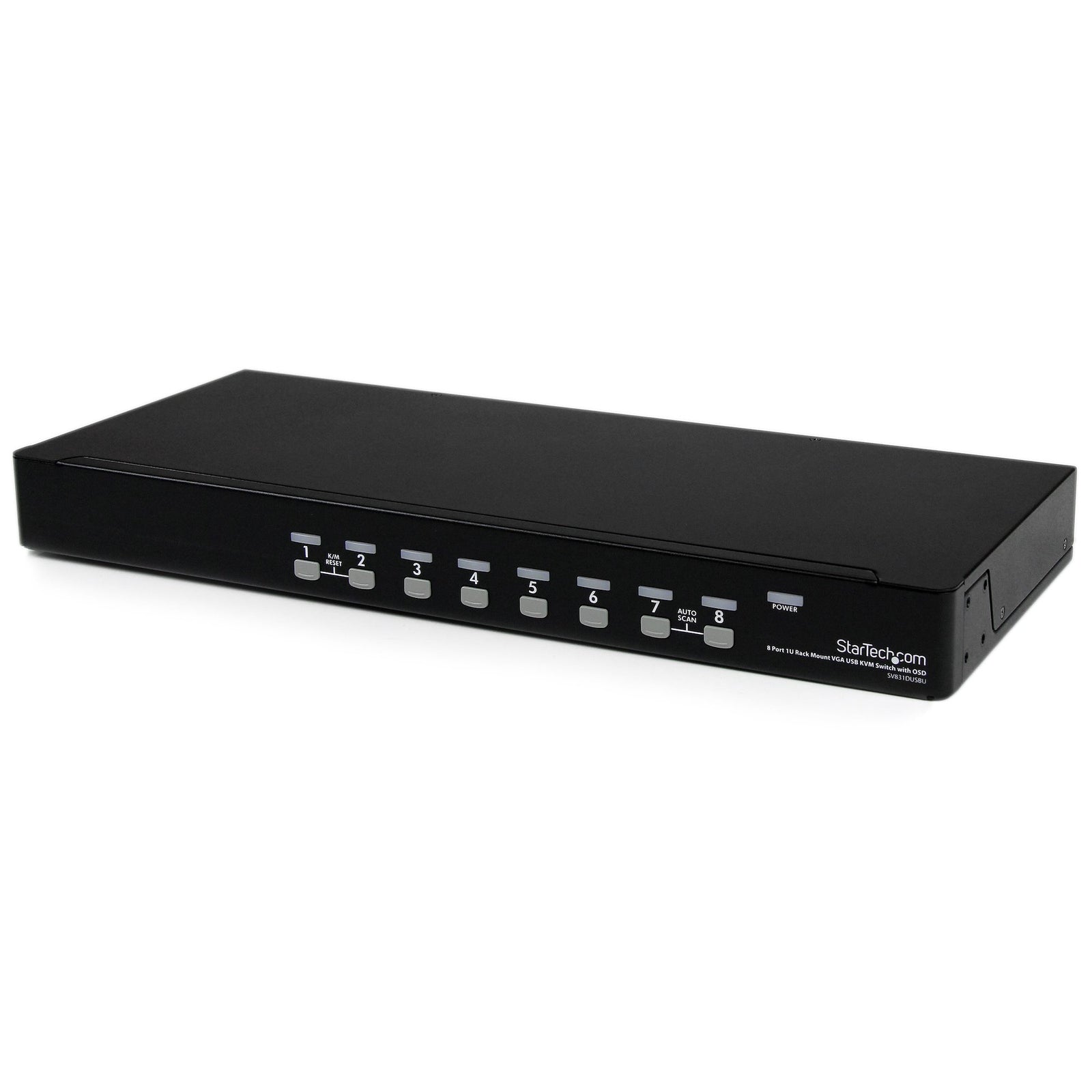

The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.

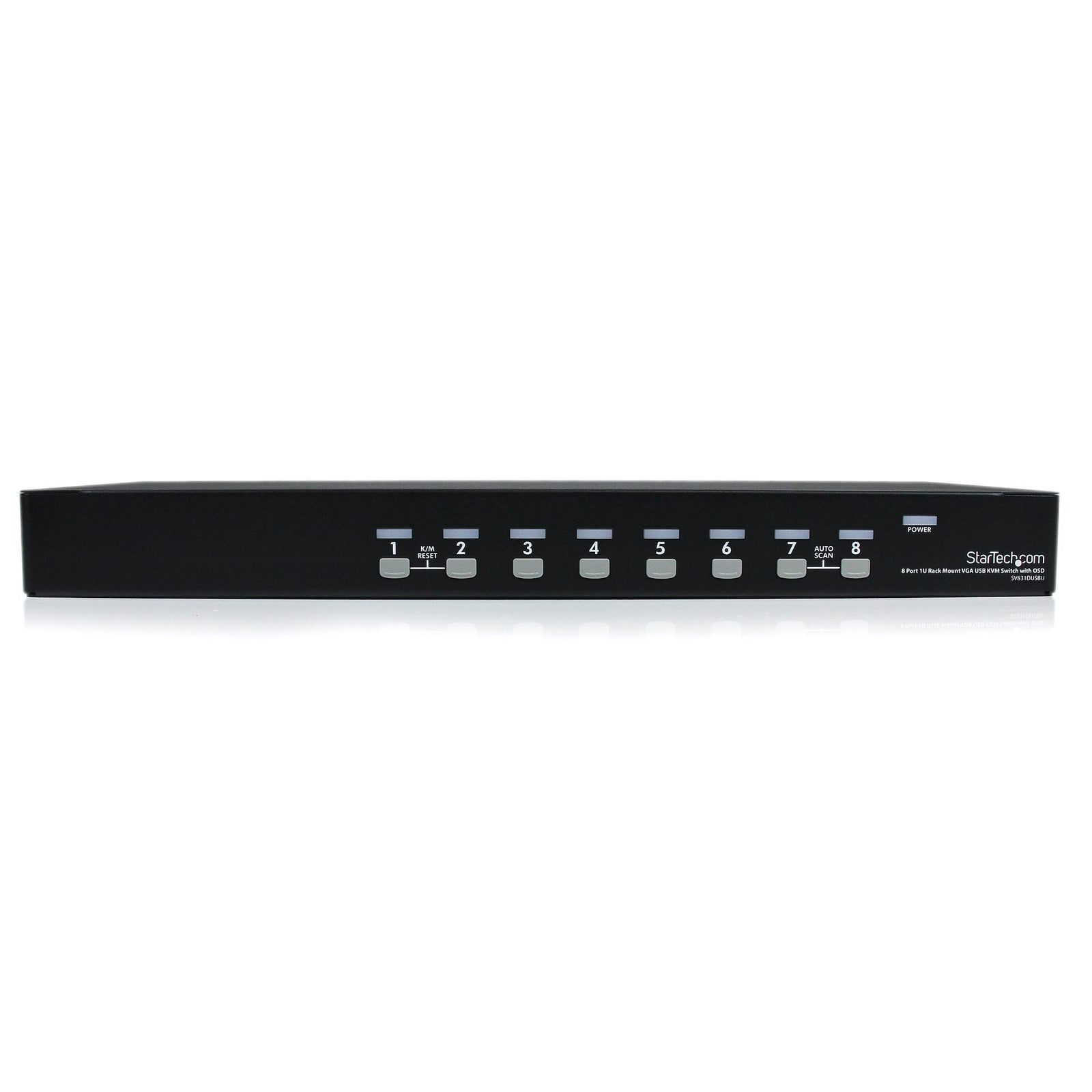

The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
Applications
Add single console administration to your Co-location/ISP facility saving you time and money
Create a scalable, streamlined access solution in your Datacenter or Server Farm
Perfect for manufacturing line computer control, simplifying access to multiple systems
Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Monitor multiple systems simultaneously in Software QA labs
| Category | Specification |
|---|---|
| Warranty Information | Warranty: 3 Years |

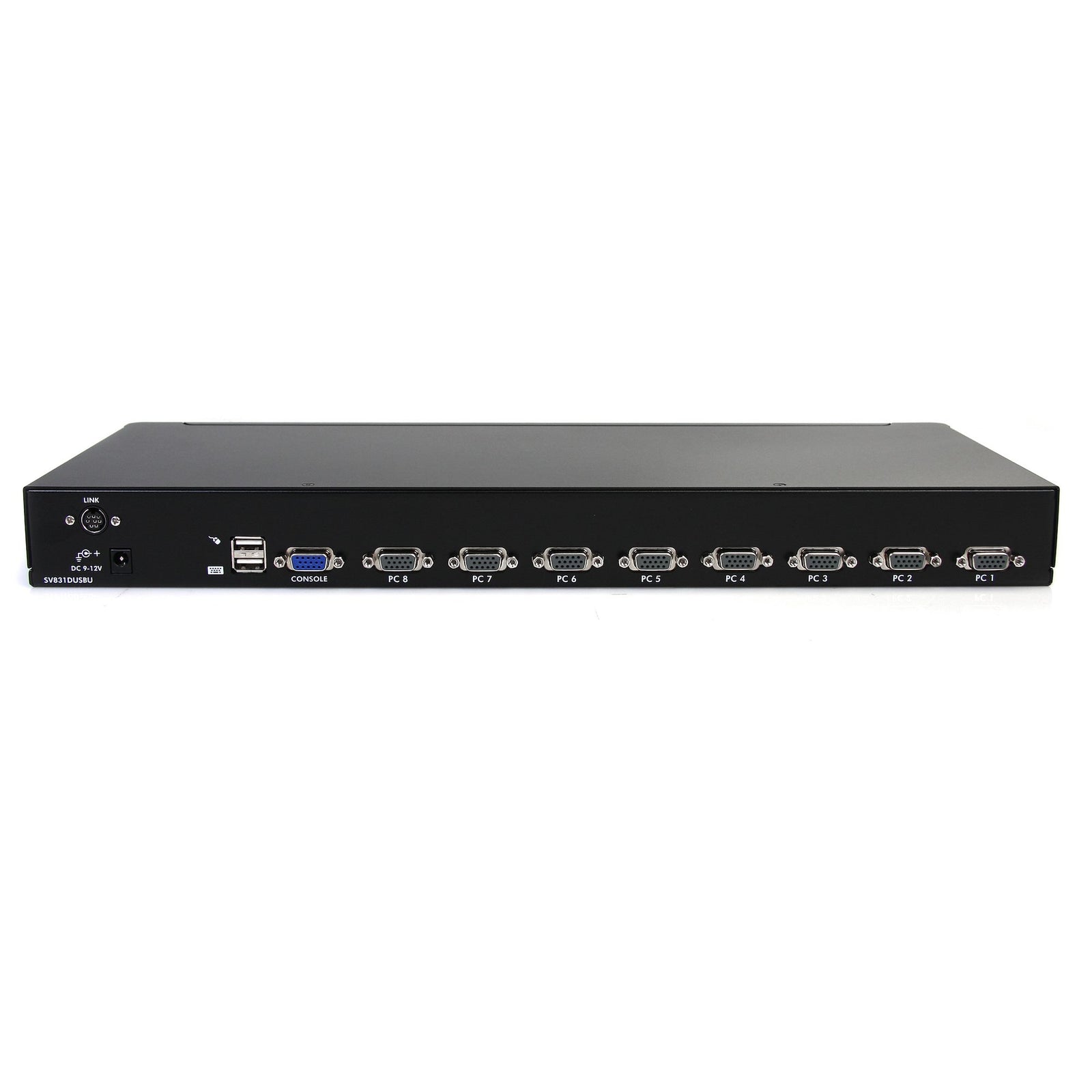

| Connector(s) | Console Interface(s): |
| 2 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| 1 - VGA (15 pin, High Density D-Sub) | |
| Host Connectors: | |
| 8 - VGA (15 pin, High Density D-Sub) | |
| Environmental | Operating Temperature: 5°C to 40°C (41°F to 104°F) |
| Storage Temperature: -20°C to 60°C (-4°F to 140°F) | |
| Humidity: 80% RH | |
| Hardware | Audio: No |
| KVM Ports: 8 | |
| PC Interface: USB | |
| PC Video Type: VGA | |
| Number of Monitors Supported: 1 | |
| Rack-Mountable: Yes | |
| Cables Included: No | |
| Daisy-Chain: Yes | |
| Indicators | LED Indicators: |
| 8 - Red - Selected PC | |
| 1 - Green - Power | |
| 8 - Green - Online PC | |
| Packaging Information | Package Quantity: 1 |
| Package Length: 22.6 in [57.3 cm] | |
| Package Width: 3.5 in [8.9 cm] | |
| Package Height: 10.6 in [26.8 cm] | |
| Shipping (Package) Weight: 7.3 lb [3.3 kg] | |
| Performance | On-Screen Display: Yes |
| IP Control: No | |
| Hot-Key Selection: Yes | |
| Maximum Analog Resolutions: 1920 x 1440 @ 60Hz | |
| Wide Screen Supported: Yes | |
| Maximum Number of Users: 1 | |
| Maximum Cascaded Computers: 64 | |
| Port Selection Support: Push Button, Hotkeys, and OSD | |
| MTBF: 150000 hours | |
| Physical Characteristics | Color: Black |
| Material: Steel | |
| Product Length: 17.2 in [43.8 cm] | |
| Product Width: 7.1 in [18.0 cm] | |
| Product Height: 1.8 in [4.5 cm] | |
| Weight of Product: 4.9 lb [2.2 kg] | |
| Power | Power Source: AC Adapter Included |
| Input Voltage: 100 - 240 AC | |
| Input Current: 0.6A | |
| Output Voltage: 12V DC | |
| Output Current: 1.5A | |
| Center Tip Polarity: Positive | |
| Plug Type: M | |
| Power Consumption (In Watts): 18 | |
| Software | OS Compatibility: OS independent; No software or drivers required |

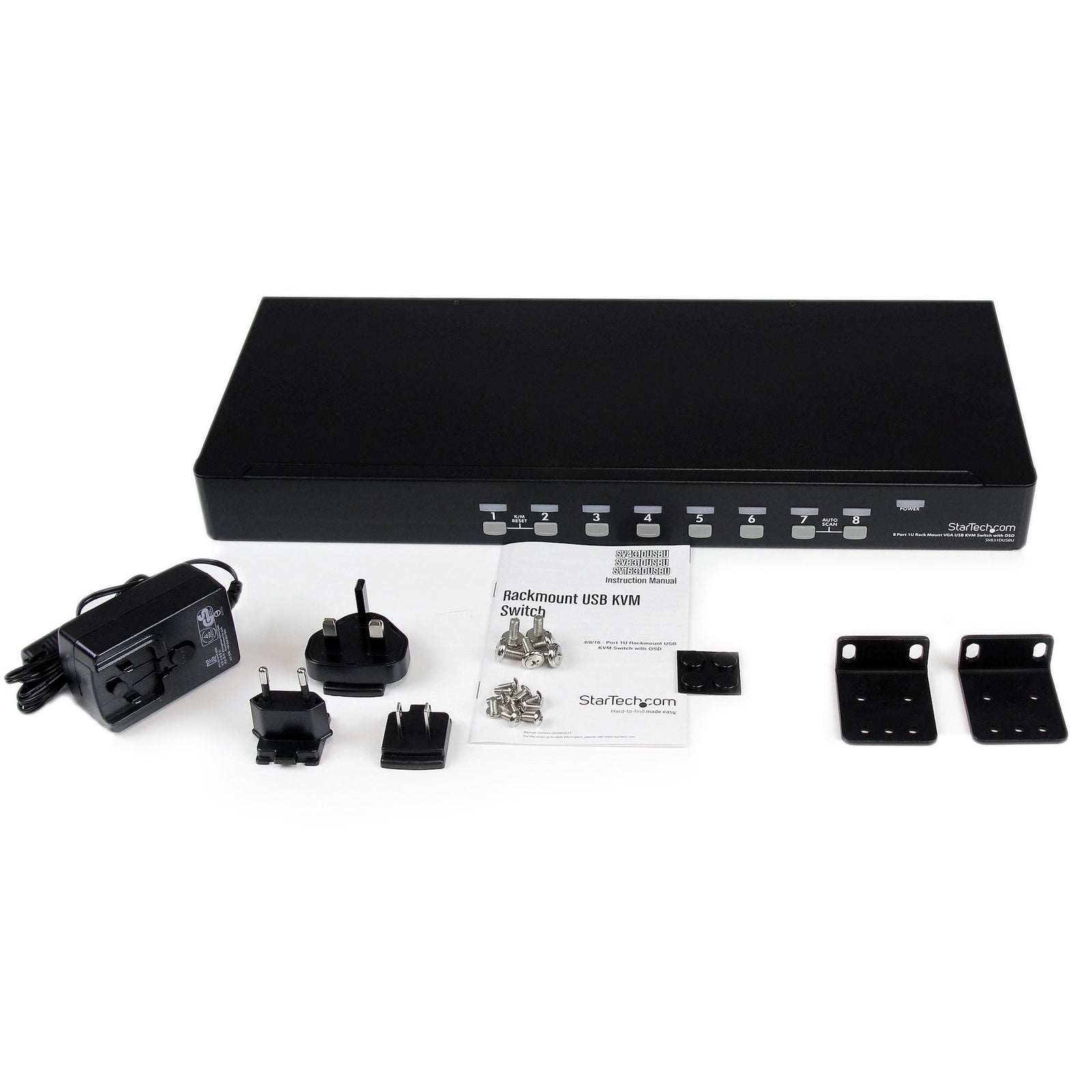

| What's in the Box | Included in Package: |
| 1 - 8 Port USB KVM Switch | |
| 2 - Mounting Brackets | |
| 1 - Bag of Screws | |
| 1 - Pack Rubber Feet | |
| 1 - Universal Power Adapter (NA/UK/EU) | |
| 1 - User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| Manuals | Downloads |
