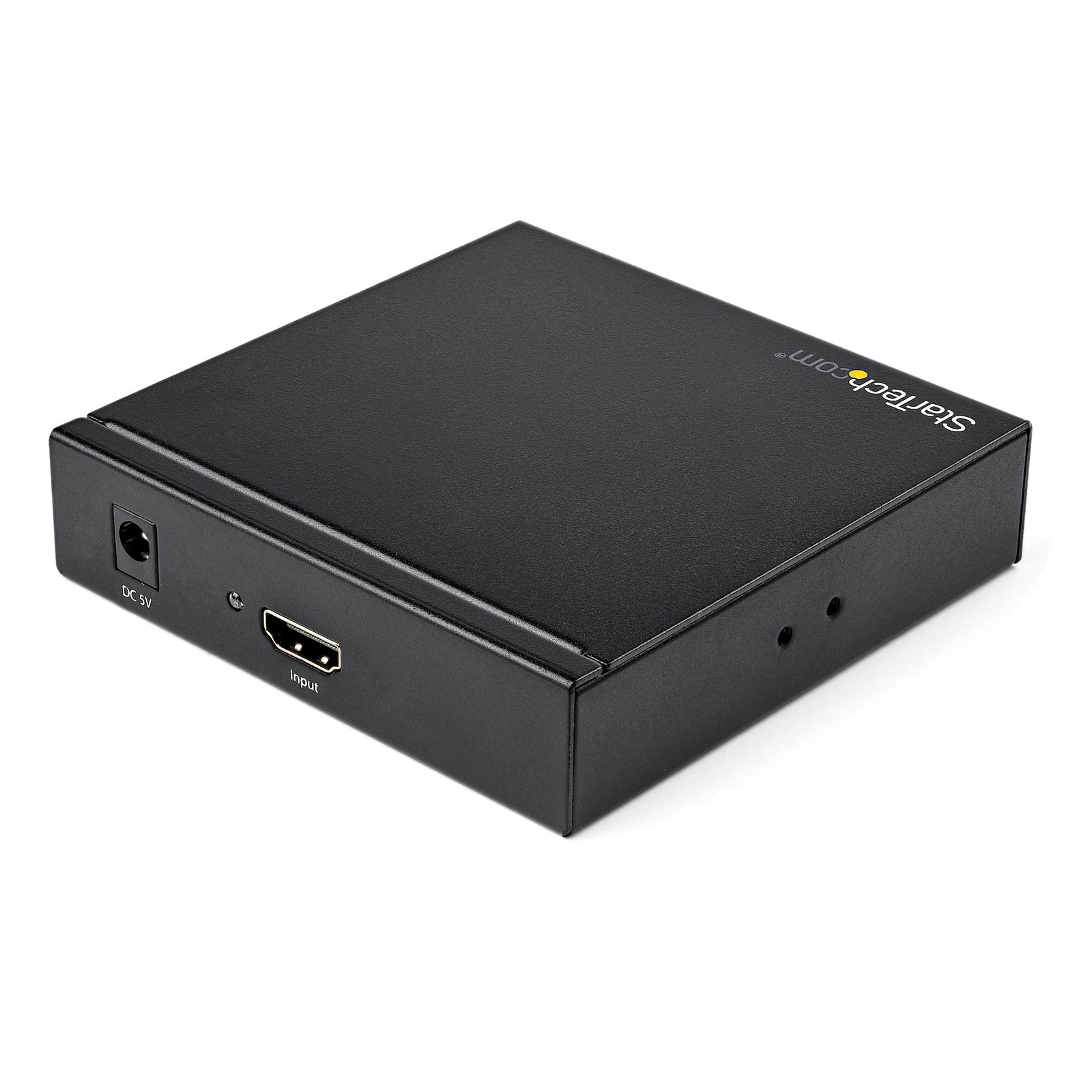

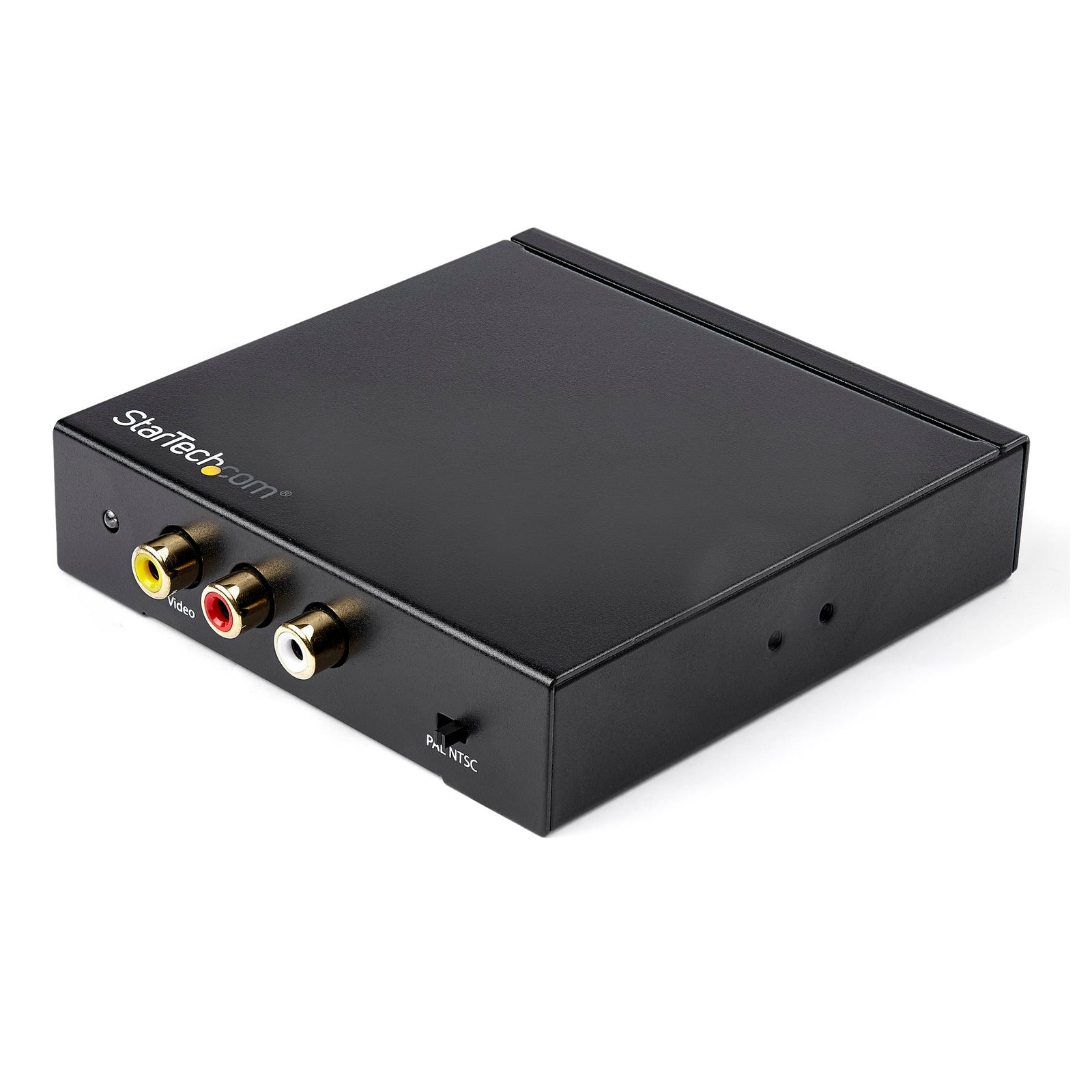

Startech HDMI to RCA Converter Box with Audio
This HDMI to RCA converter box with audio converts a digital HDMI video source (with supporting audio) to work with analog RCA composite video televisions and displays, in both NTSC and PAL systems.
Uncompromised Quality
This HDMI to composite video converter provides features that ensure the highest quality output image, such as noise reduction, frame rate conversion and adaptive contrast enhancement.
With support for high-definition input resolutions up to 1080p, this RCA adapter lets you convert your HDMI signal to composite video and audio while still producing a crystal-clear picture.
Ultimate Convenience
This lightweight composite adapter is compact and highly portable, so you can use it virtually anywhere. Offering support for a wide range of HDTV and PC input resolutions, this versatile RCA converter is a perfect solution for using newer devices with your existing legacy displays.
The ability to convert and use your new HDMI equipped device with your older televisions or displays not only offers flexibility but also saves you the cost of upgrading hardware, making it extremely convenient for home or office applications.
Hassle-Free Setup
To ensure easy operation and installation, this unique RCA composite video converter allows for plug-and-play installation without any additional software or drivers.
HD2VID2 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Applications
Convert your HDMI signal to RCA composite video
Continue to use standard definition displays with HDMI source devices
Ideal for presentations that use dated projection systems
Stream your new home videos onto your older TVs/displays
| Specifications | Details |
|---|---|
| Warranty | 2 Years |

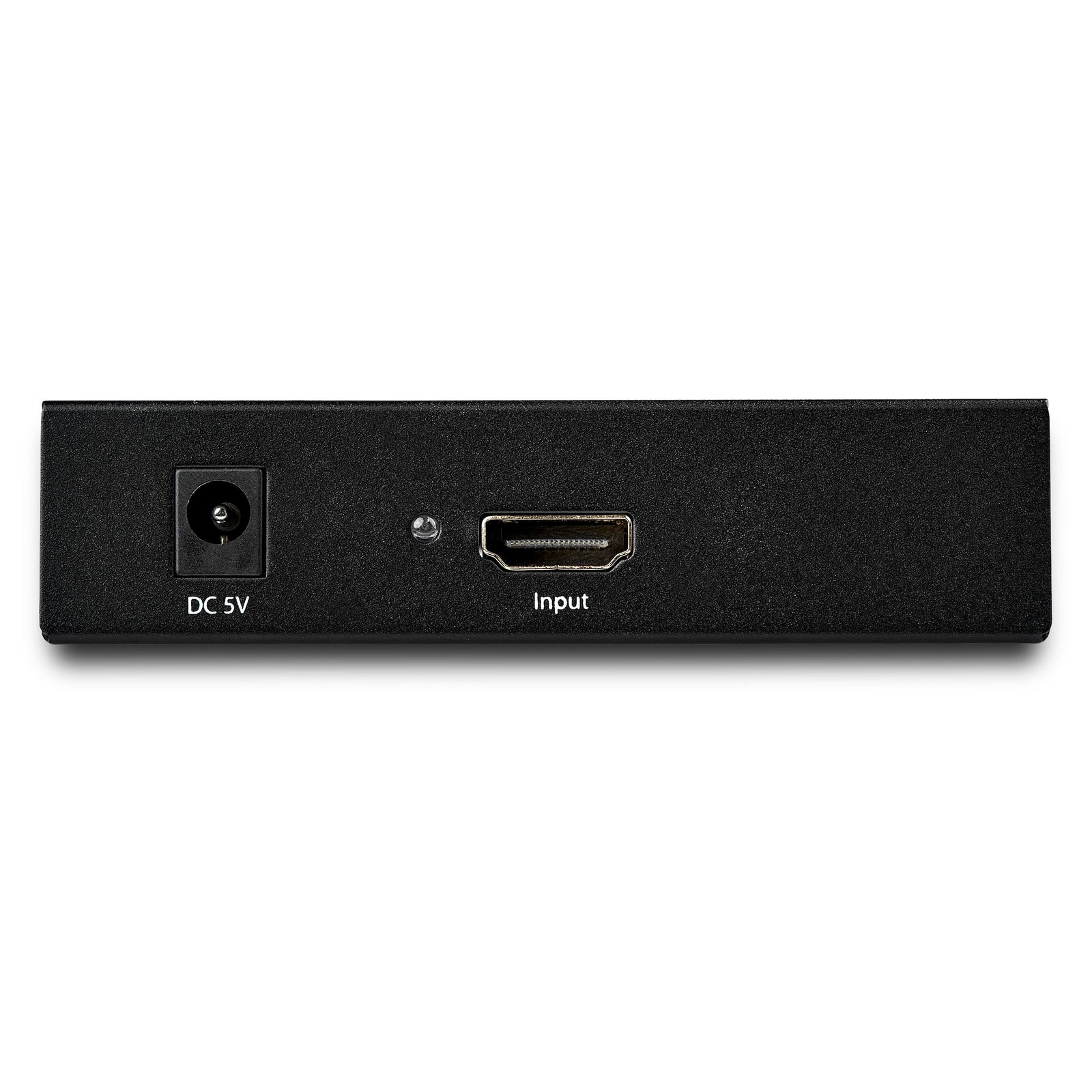

| Connector A | 1 - HDMI (19 pin) |

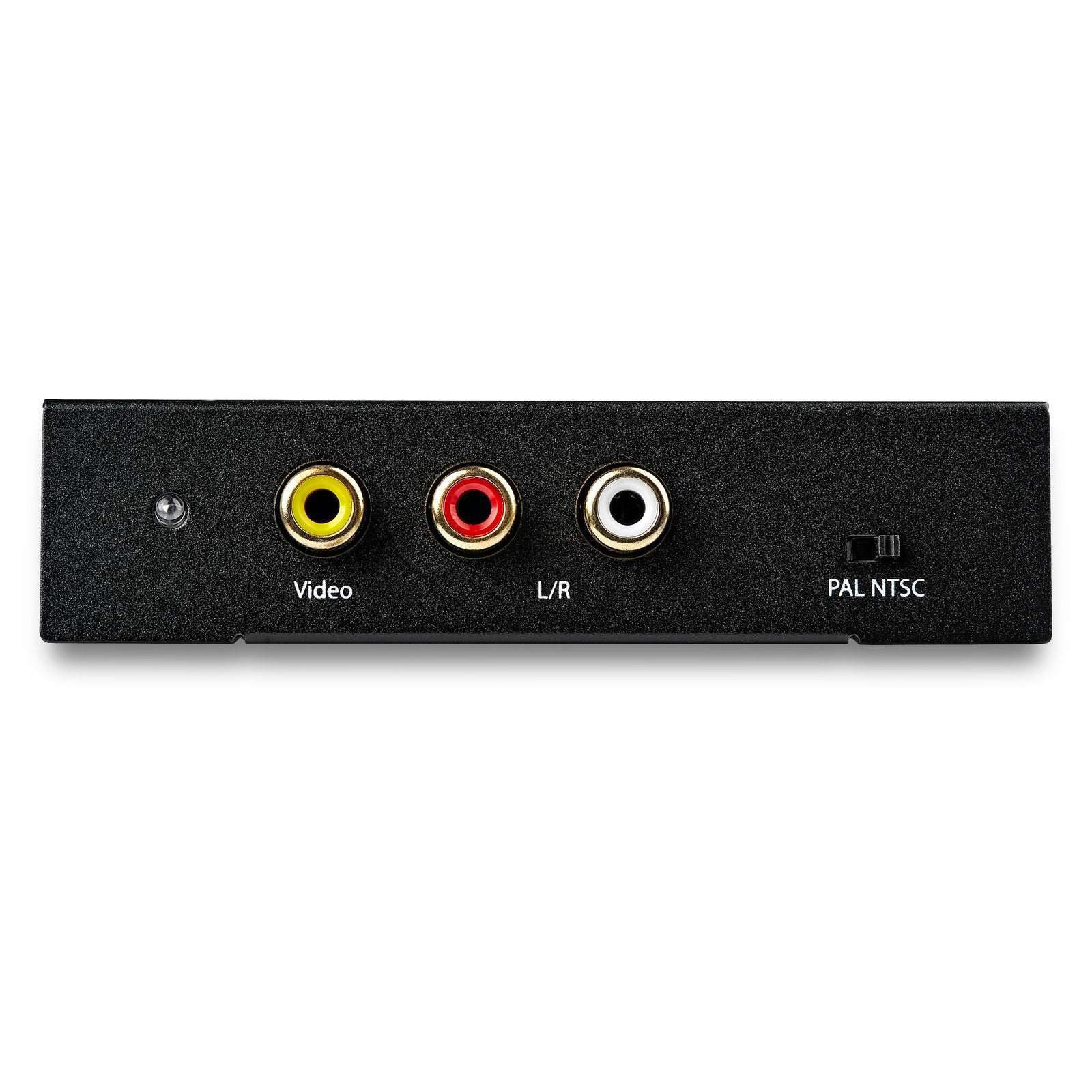

| Connector B | 1 - Composite Video (1 x RCA) |
| Input Connector(s) | 1 - Stereo Audio (2 x RCA) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 20~90% RH |
| Active or Passive Adapter | Active |
| AV Input | HDMI |
| AV Output | Composite |
| Audio | Yes |
| Industry Standards | Standard HDMI, DVI 1.0 |
| Indicators | 1 - Input LED, 1 - Power LED |
| Shipping Weight | 0.5 kg [1.2 lb] |
| Package Quantity | 1 |
| Package Length | 21.4 cm [8.4 in] |
| Package Width | 15.2 cm [6.0 in] |
| Package Height | 5.2 cm [2.0 in] |
| Supported Resolutions (Input) | TV - 1080p, 720p, 576p, 480p @ 60Hz |
| PC - 1920x1080, 1280x800, 1280x768, 1224x768, 800x600, 640x480 @ 60Hz | |
| Supported Resolutions (Output) | 480i, 576p |
| MTBF | 1,301,084 hours |
| Color | Black |
| Material | Steel |
| Product Length | 10.8 cm [4.3 in] |
| Product Width | 10.0 cm [3.9 in] |
| Product Height | 2.5 cm [1.0 in] |
| Weight of Product | 286.0 g [10.1 oz] |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.4 A |
| Output Voltage | 5 DC |
| Output Current | 1000 mA |
| Plug Type | M |

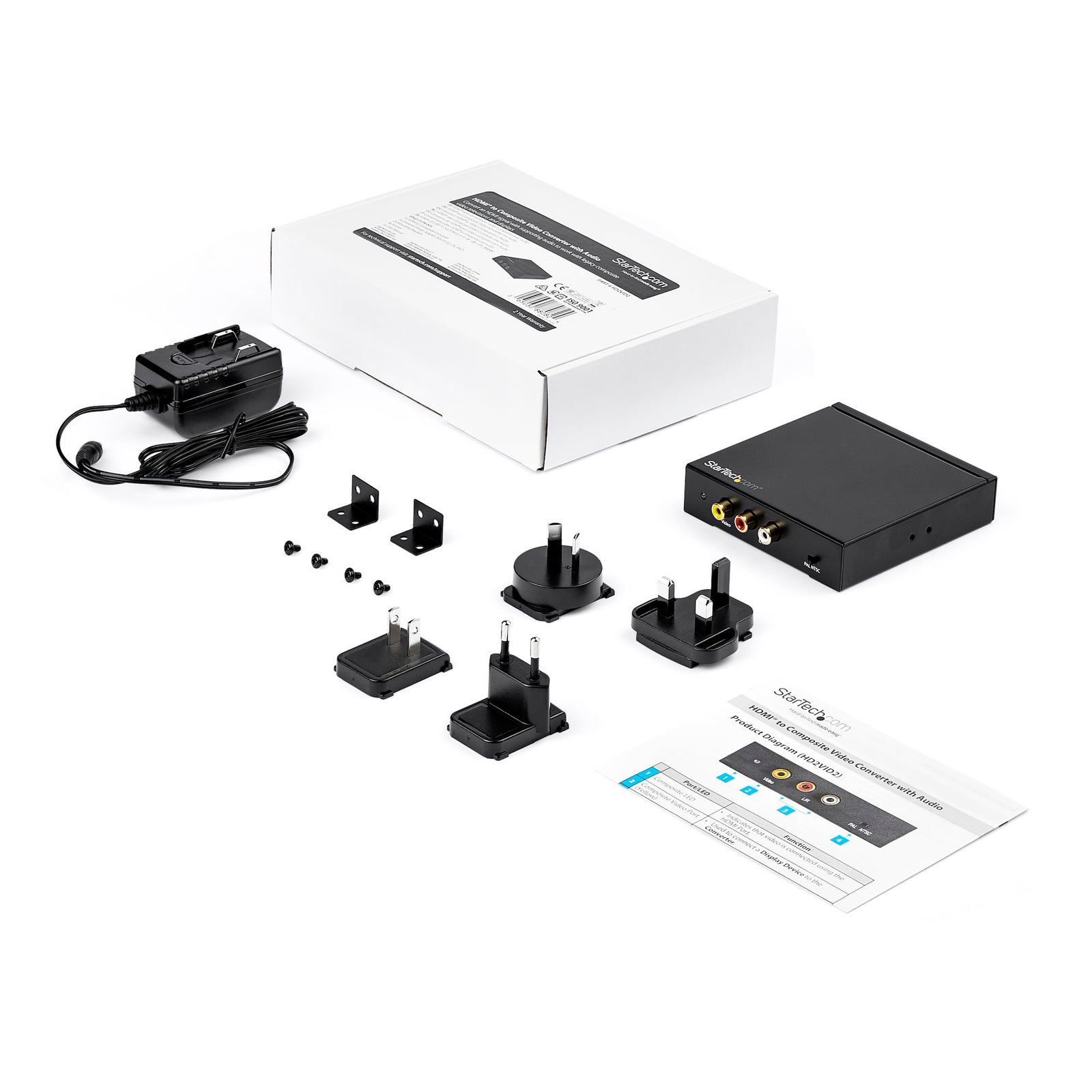

| Included in Package | 1 - HDMI to Composite Converter |
| 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ) | |
| 2 - Mounting Brackets | |
| 4 - Screws | |
| 1 - User Manual |
| Description | Downloads |
|---|---|
| Startech HDMI to RCA Converter Box with Audio | HD2VID2 DataSheet | Downloads |
| Startech HDMI to RCA Converter Box with Audio | HD2VID2 Quick-Start Guide | Downloads |
