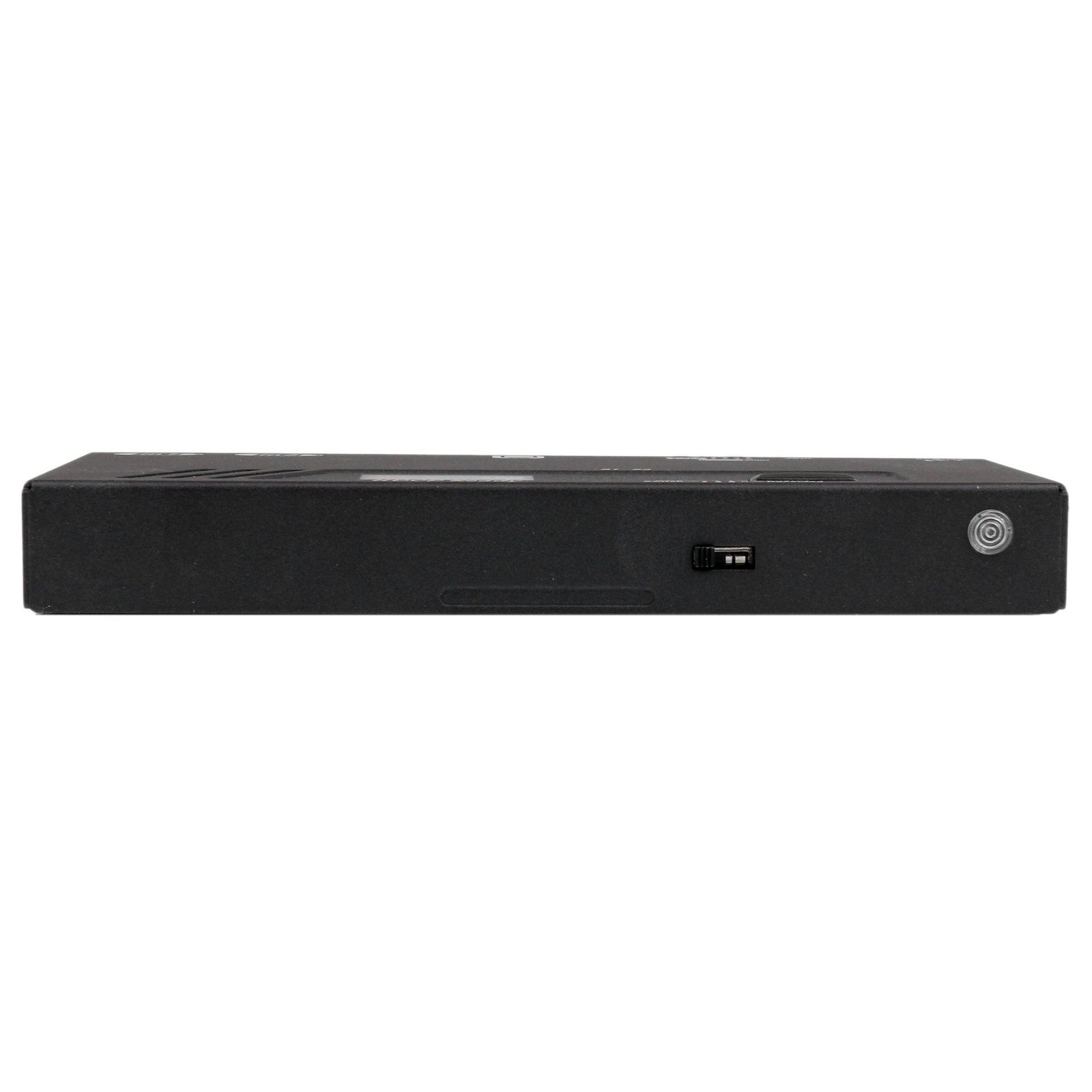

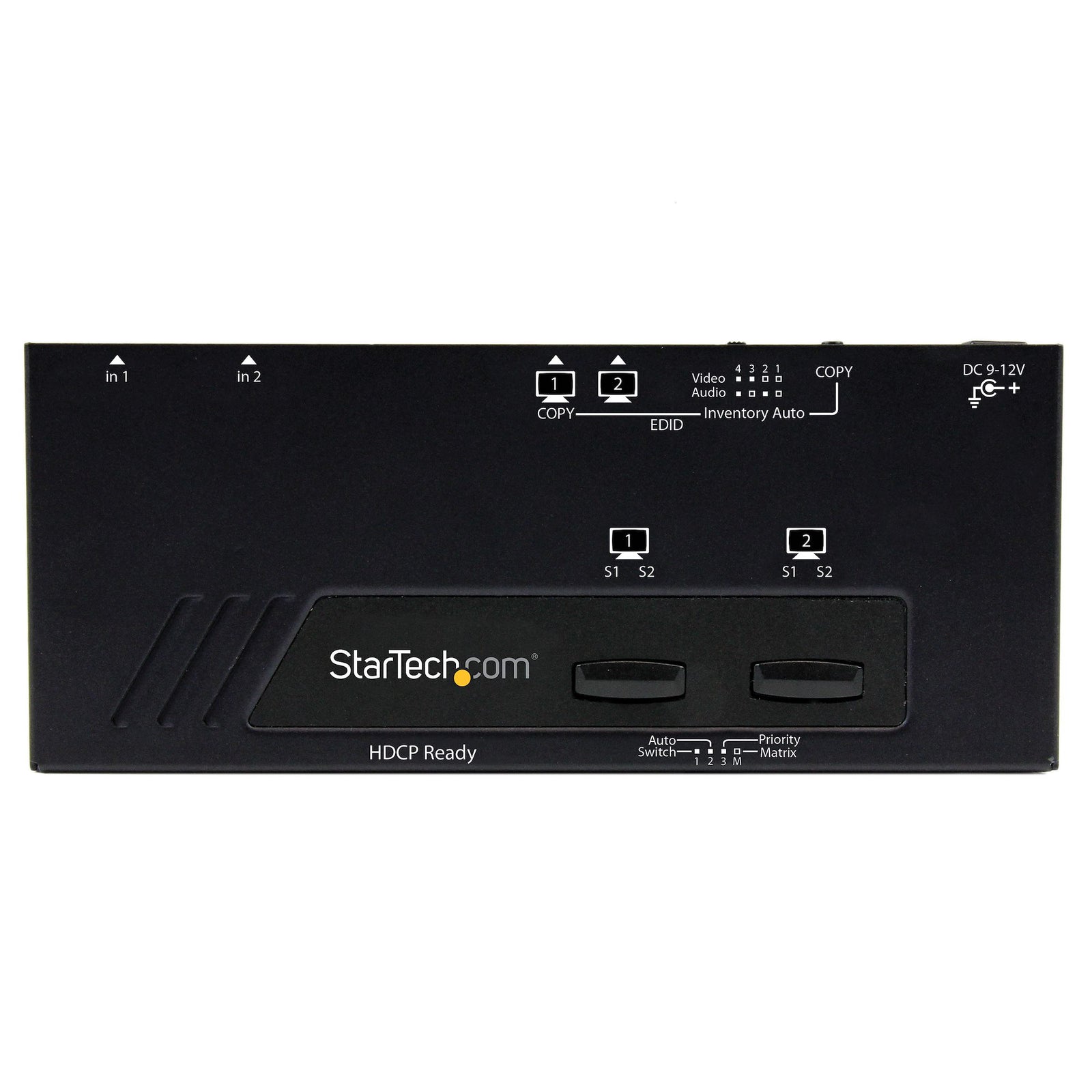

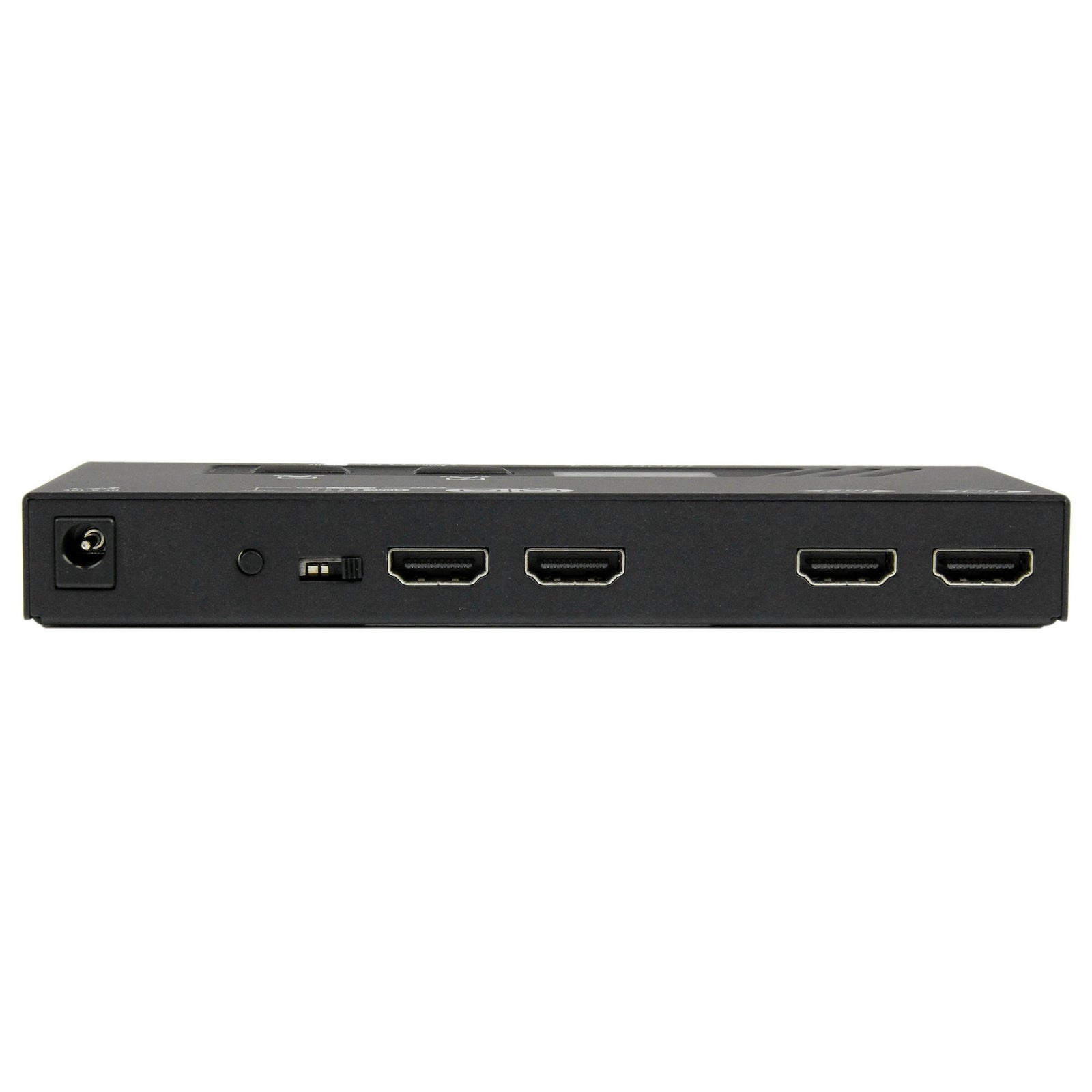

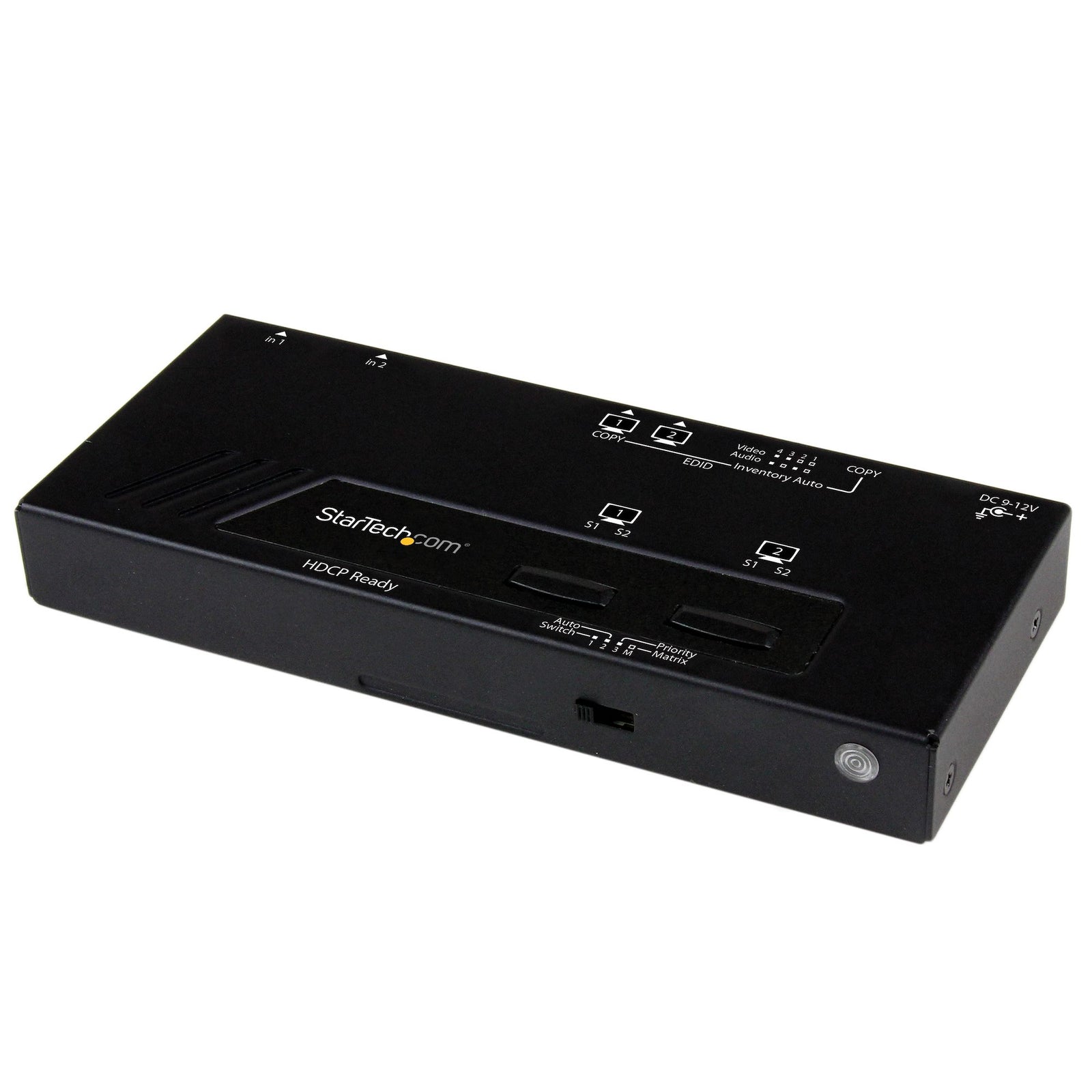

Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS222HDQ 2X2 HDMI Matrix Switcher. This easy-to-use HDMI Matrix switch ensures seamless transition while switching video and display sources, with EDID copy maintaining your video resolution.
Seamless Signal Selection
Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.
Effortless Control
Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.
Versatile Switching Options
Enjoy hassle-free operation with four different switching modes:
Automatic port selection: Enables your most recently activated video source to be displayed automatically.
Priority port selection: Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Matrix port selection: Independently switch two displays between two video sources.
Manual port selection: Enables you to manually select your HDMI source with easy-to-use front panel buttons.
This product is TAA compliant and backed by a Startech.com 2 warranty with lifetime technical support
Applications
Connect and switch between two video sources and two displays on a test bench, for troubleshooting computers
Switch between different video sources on your digital signage display in hospitals, shopping centers, or schools
Run multimedia presentations with supporting data displayed on another monitor in business conference rooms or at trade shows
Automatically switch between your Blu-ray player, set top box, or gaming console in a home theatre environment
The StarTech.com Advantage
Save your time, by conveniently accessing multiple HDMI source devices with 2 independent HDMI displays
Hassle-free operation, with four video selection modes including automatic, priority, matrix and manual
Worry-free switching, with EDID copy video and connection emulation ensuring no signal loss
| Category | Details |
|---|---|
| Warranty | 2 Years |
| Connector A | 2 x HDMI (19 pin) |
| Connector B | 2 x HDMI (19 pin) |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Storage Temp | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0% ~ 80% |
| AV Input/Output | HDMI / HDMI |
| Ports | 2 |
| Cabling | HDMI |
| Audio Support | Yes |
| Rack-Mountable | Yes |
| LED Indicators | 4 indicators (Source/Display status) |
| Max Distance | 10m (33 ft) |
| Max Resolution | 1920x1200 / 1080p |
| Supported Res. | 1920x1200, 1080p, 720p |
| Wide Screen | Supported |
| Color | Black |
| Material | Aluminum and Plastic |
| Product Size | 15.7 x 6.5 x 2.0 cm (6.2 x 2.6 x 0.8 in) |
| Product Weight | 290 g (10.2 oz) |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240V AC |
| Input Current | 0.6 A |
| Output Voltage | 12V DC |
| Output Current | 1.5 A |
| Power Use | 18W |
| Plug Type | M |

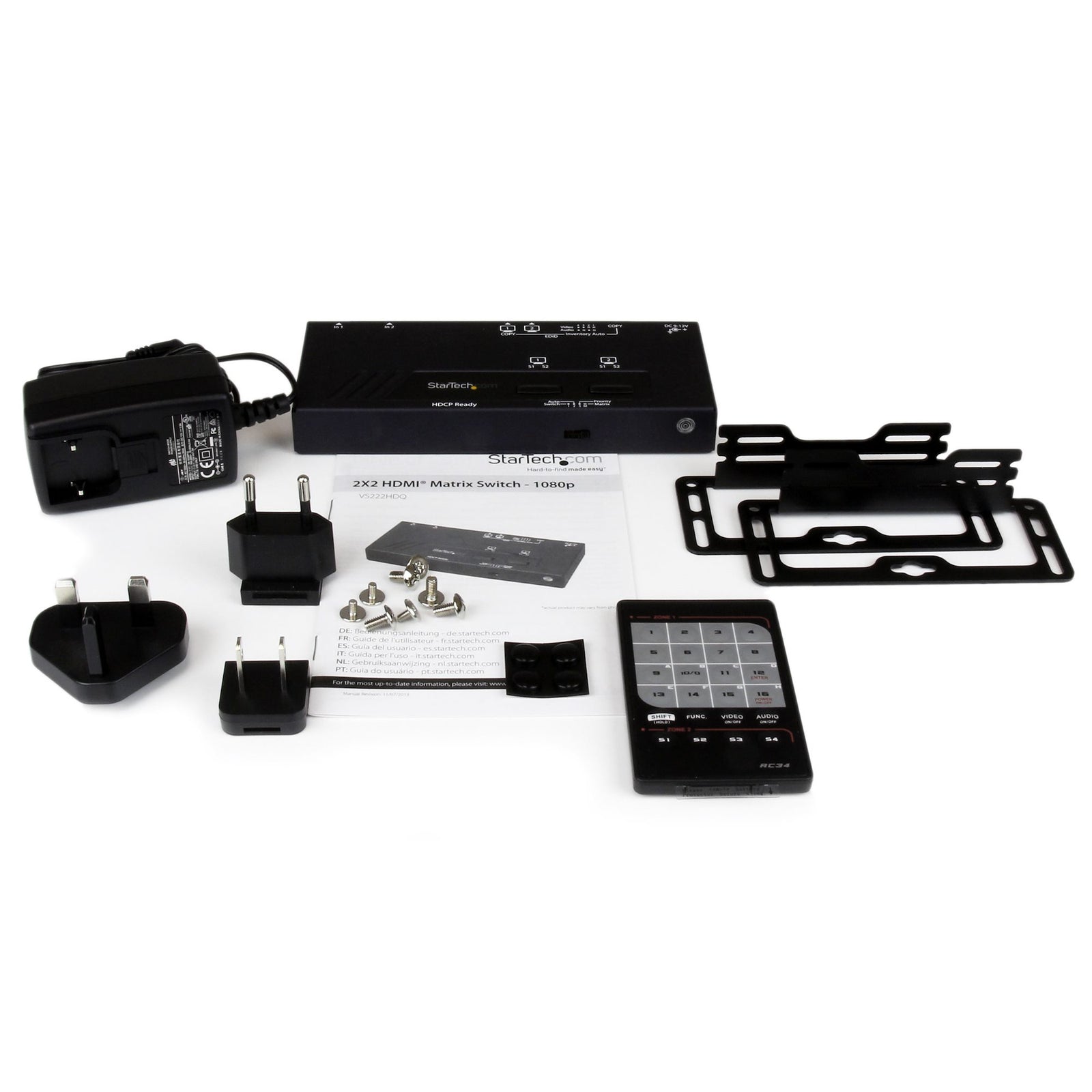

| In the Box | Matrix switch, remote, adapter, kit, manual |
| Description | Downloads |
|---|---|
| StarTech VS222HDQ 2x2 HDMI Matrix Switch w/ Automatic and Priority Switching | 1080p | TAA DataSheet | Downloads |
| StarTech VS222HDQ 2x2 HDMI Matrix Switch w/ Automatic and Priority Switching | 1080p | TAA Instruction Manual | Download |
