StarTech VS424HDPIP 4x4 HDMI Matrix Switch | PiP Multiview & Video Wall
The VS424HDPIP 4X4 HDMI Matrix Switch with Picture-and-Picture (PAP) gives you the power to seamlessly combine and distribute four HDMI audio/video sources across four different HDMI displays, with the added ability to combine multiple images on the same display.
See the Whole Picture

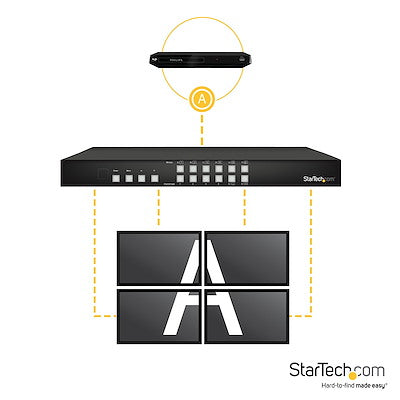

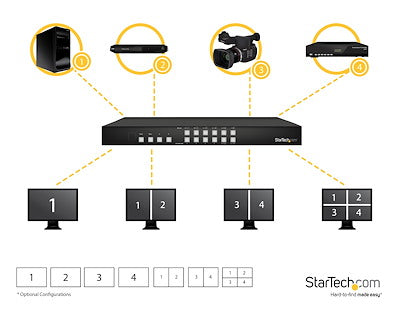

The split-screen multiplexing switch combines the flexibility of a matrix switch with the scalability of a video wall, giving you the freedom to combine video sources on a single display. You can also distribute different video combinations independently across four individual displays. The switch offers full matrix configuration supporting four different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) / TV Wall Mode (1x4).
Control Your Output
Fitting your boardroom or digital signage application with a VS424HDPIP dramatically increases your communication possibilities. Not only does the picture-and-picture matrix switch increase your communication by a factor of four per display, but it also enables you to adjust your video sources remotely using your local TCP/IP network, or the included IR remote control.
Increase the Versatility of Your Displays
The VS424HDPIP is a flexible video switch that can improve any video display application. The picture-and-picture technology enables you to share up to four distinct images on the same screen, reducing required video real estate and saving you from wasting money on additional displays in your digital signage applications. For security monitoring, you can combine four video sources onto a single display to view everything more efficiently and broadcast those feeds to four different displays in different locations -- you can even zoom into to a single feed for a closer look without disrupting the remaining three displays. For versatile installation options, mounting hardware is included ensuring a tidy and professional installation.
The VS424HDPIP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Add multi-screen configurations to your boardroom, for improved collaboration and idea sharing
Use in your digital signage applications to provide multiple video sources on the same screen, and distribute to four different locations
Run multimedia presentations with supporting data showing on another display in business conference rooms or at trade-shows
Ideal for connecting/switching multiple sources in test bench facilities, data centers, help desks and video broadcasting facilities
Monitor multiple security sources (cameras) simultaneously
| Category | Details |
|---|---|
| Warranty Information | |
| Warranty | 2 Years |
| Connector(s) | Connector Type(s) |
| 1 - DB-9 (9 pin, D-Sub) | |
| 1 - RJ-45 | |
| 1 - IrDA (Infrared, SIR/FIR) | |
| Connector A | 4 - HDMI (19 pin) |
| Connector B | 4 - HDMI (19 pin) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 20% - 90 % RH (non-condensing) |
| Hardware | |
| Ports | 4 |
| AV Input | HDMI |
| AV Output | HDMI |
| Cabling | HDMI |
| Audio | Yes |
| Indicators | LED Indicators |
| 1 - Power LED | |
| 1 - Menu LED (OSD) | |
| 2 - Menu Operation LED (+ / -) | |
| 4 - Output Selection LED (A / B / C / D) | |
| 4 - Input Selection LED (1 / 2 / 3 / 4) | |
| 1 - Mode Selection LED (Matrix / Dual / Wall) | |
| 1 - Save LED | |
| 1 - Lock LED | |
| Packaging Information | |
| Package Height | 14.4 cm [5.7 in] |
| Package Length | 57.6 cm [22.7 in] |
| Package Width | 41.4 cm [16.3 in] |
| Shipping (Package) Weight | 4.4 kg [9.6 lb] |
| Performance | |
| Maximum Digital Resolutions | 1920x1200 |
| Supported Resolutions | 1920x1200 |
| 1920x1080 | |
| 1280x720 | |
| 640x480 | |
| Wide Screen Supported | Yes |
| Audio Specifications | |
| Physical Characteristics | |
| Color | Black |
| Material | Aluminum |
| Product Length | 43.6 cm [17.2 in] |
| Product Width | 25.0 cm [9.8 in] |
| Product Height | 4.9 cm [1.9 in] |
| Weight of Product | 2.8 kg [6.2 lb] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 1 A |
| Output Voltage | 12V DC |
| Output Current | 3 A |
| Power Consumption (In Watts) | 36 |

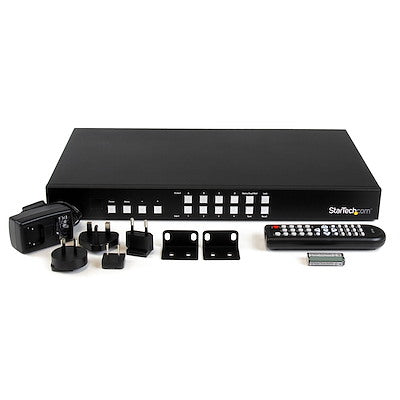

| What's in the Box | Included in Package |
| 1 - 4x4 HDMI matrix switch | |
| 1 - remote control | |
| 2 - mounting brackets | |
| 1 - software installation disc | |
| 1 - universal power adapter (NA, EU, UK, ANZ) | |
| 1 - instruction manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
