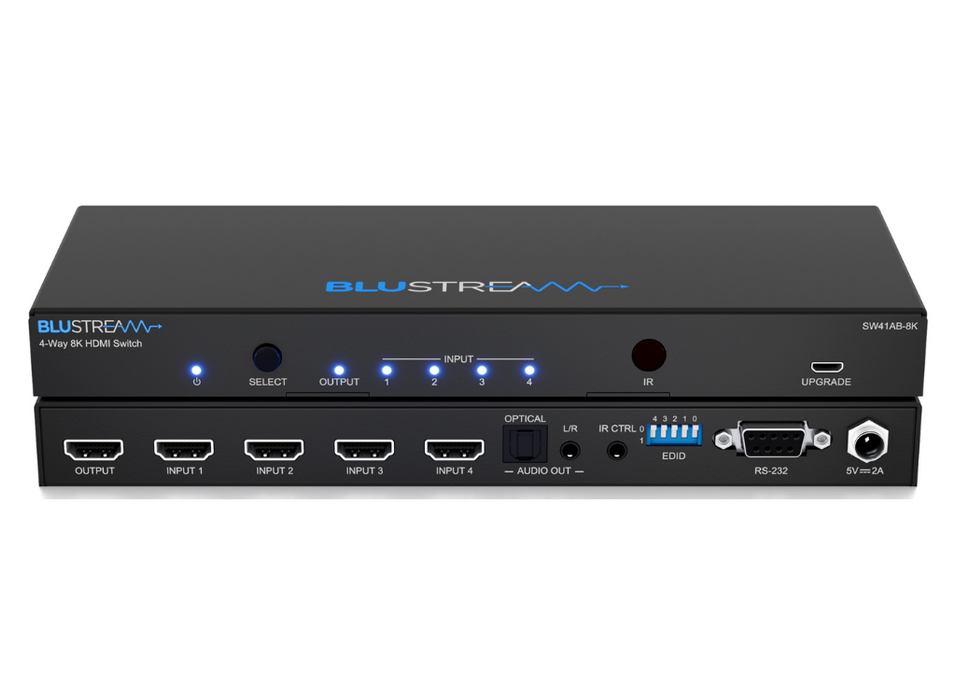

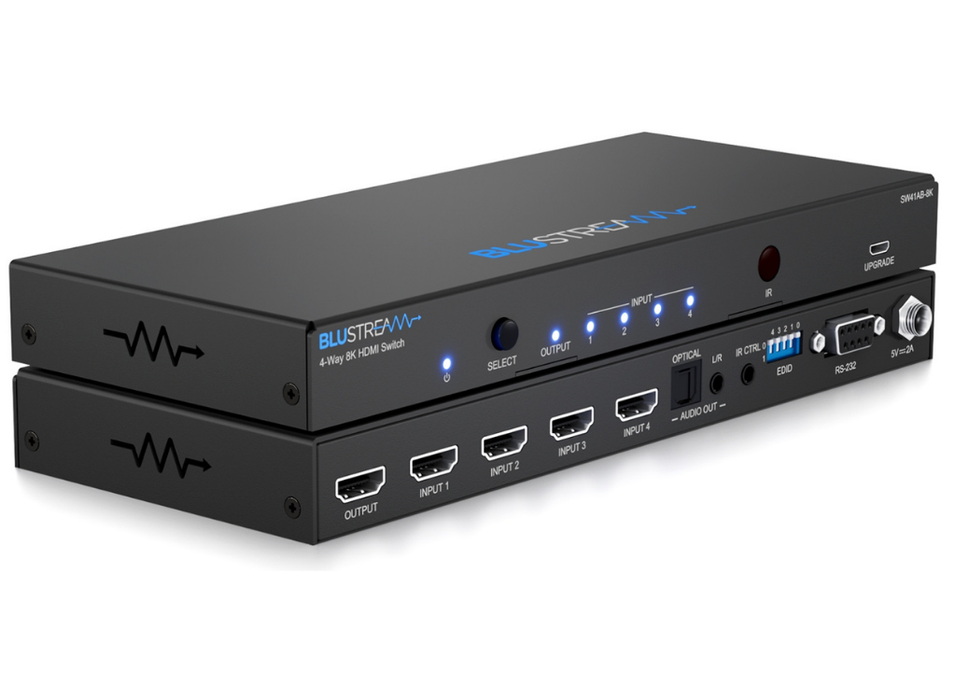

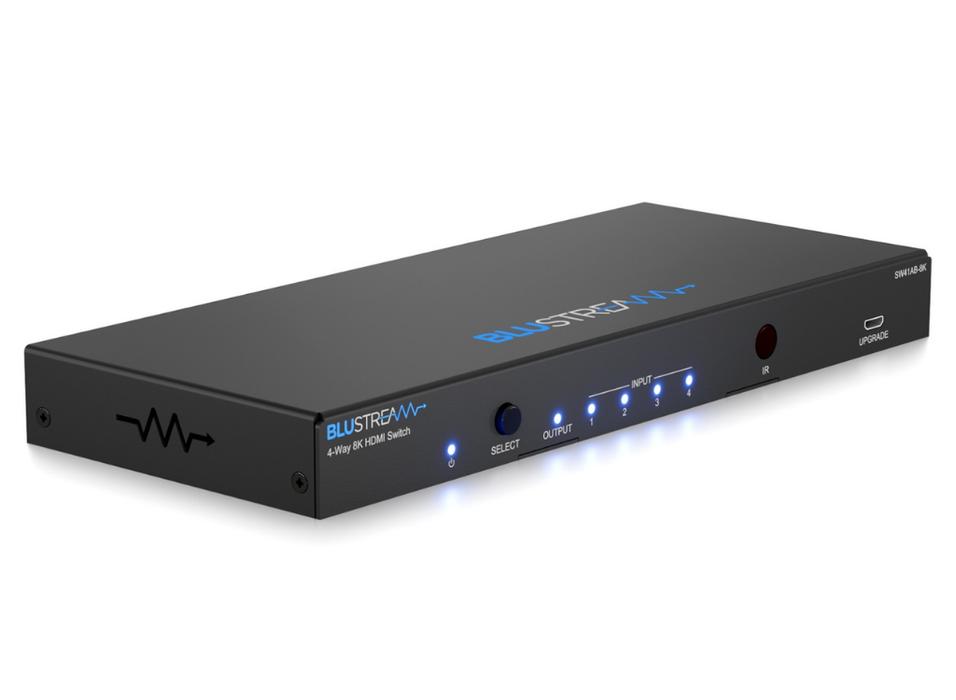

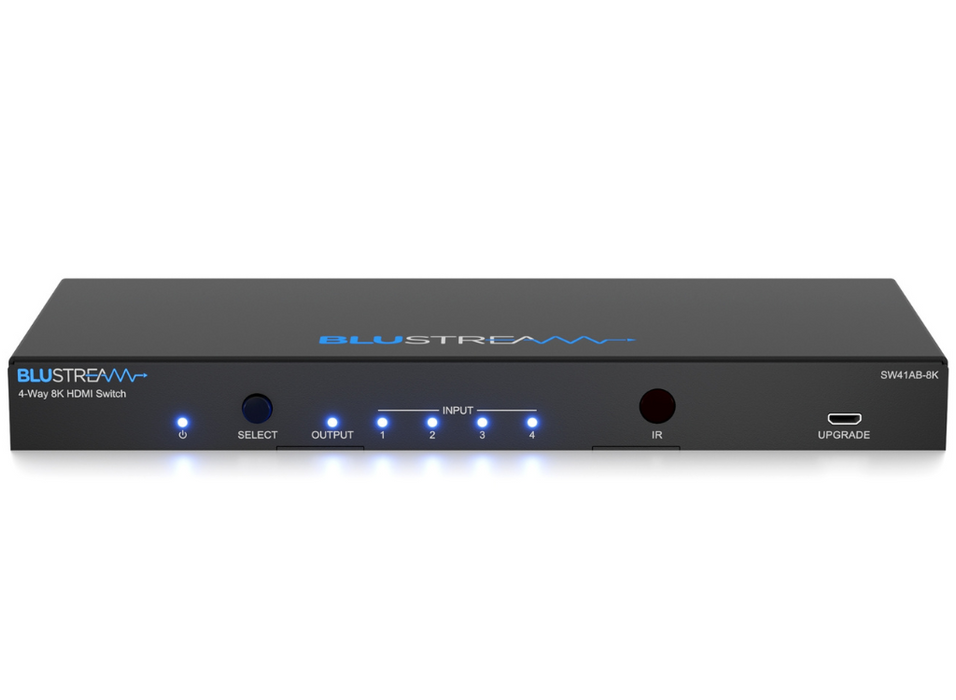

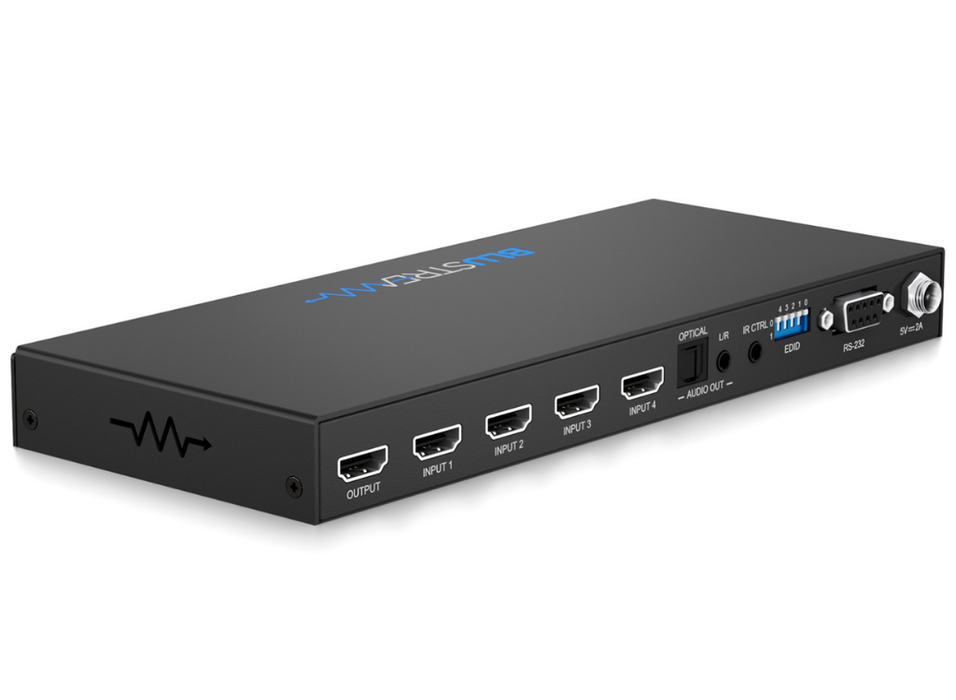

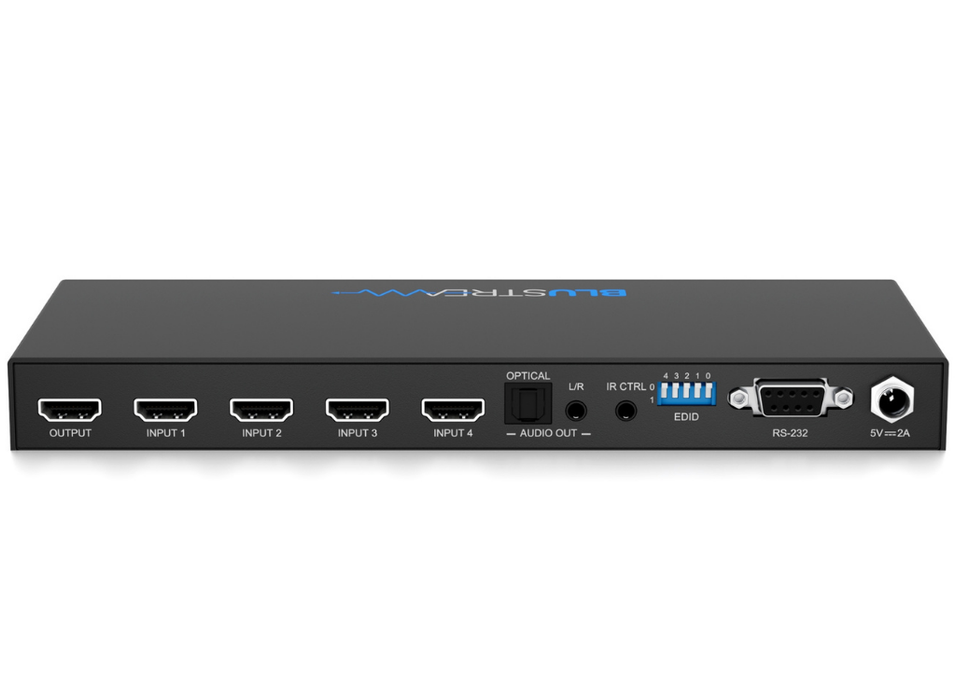

BluStream 4-Way 8K HDMI Switch | SW41AB-8K
SKU: SW41AB-8K
£174.90 (Excl. VAT)
- Description
- Specifications
- Downloads
-
BluStream 4-Way 8K HDMI Switch | SW41AB-8K
The SW41AB-8K HDMI2.1 switcher integrates multiple source devices where the features and functionality of the HDMI2.1 chipset are being utilised for 8K 60Hz, and 4K 120Hz signals.
With selection of 4 x HDMI input sources, the SW41AB-8K can auto-switch based on detecting a 5V hot plug, or a new TMDS signal, RS-232, or manually using IR, or the front panel.
Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. The SW41AB-8K is HDCP2.3 compliant and has advanced EDID management of source devices connected.
Key Features
Features 4x HDMI 2.1 inputs that can be switched to a single HDMI output
Supports HDMI 2.1 40Gbps specification including HDR
Supports up to 8K60 YCbCr 4:2:0 10bit, 8K30 RGB/YCbCr 4:4:4 10bit or 4K120 RGB/YCbCr 4:4:4 10bit
Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Auto HDMI source switching via 5V and / or TMDS signal sensing
Manual HDMI source switching via front panel, IR and RS-232
Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
5V / 12V IR Compatible
HDCP 2.3 compliant with advanced EDID managementBox Contents
1 x SW41AB-8K
1 x REMSW41 Remote Control
1 x 5V/2A DC Power Supply
1 x IR Receiver (IRR)
1 x Mounting Bracket Set
1 x User Manual -
Feature Specification Video Input Connectors 4 x HDMI Type A, 19-pin, female Video Output Connectors 1 x HDMI Type A, 19-pin, female Audio Output Connectors 1 x Optical (S/PDIF), 1 x Analogue L/R (3.5mm stereo jack) IR Input Ports 1 x 3.5mm stereo jack RS-232 Serial Port 1 x DB9, female Dimensions (W x D x H) 196mm x 104mm x 41mm (including connections, without feet) Shipping Weight 0.9kg Operating Temperature 32°F to 104°F (0°C to 40°C) Storage Temperature -4°F to 140°F (-20°C to 60°C) Power Supply 1 x 5V/2A DC -
Description Downloads Datasheet Downloads Manual Downloads
