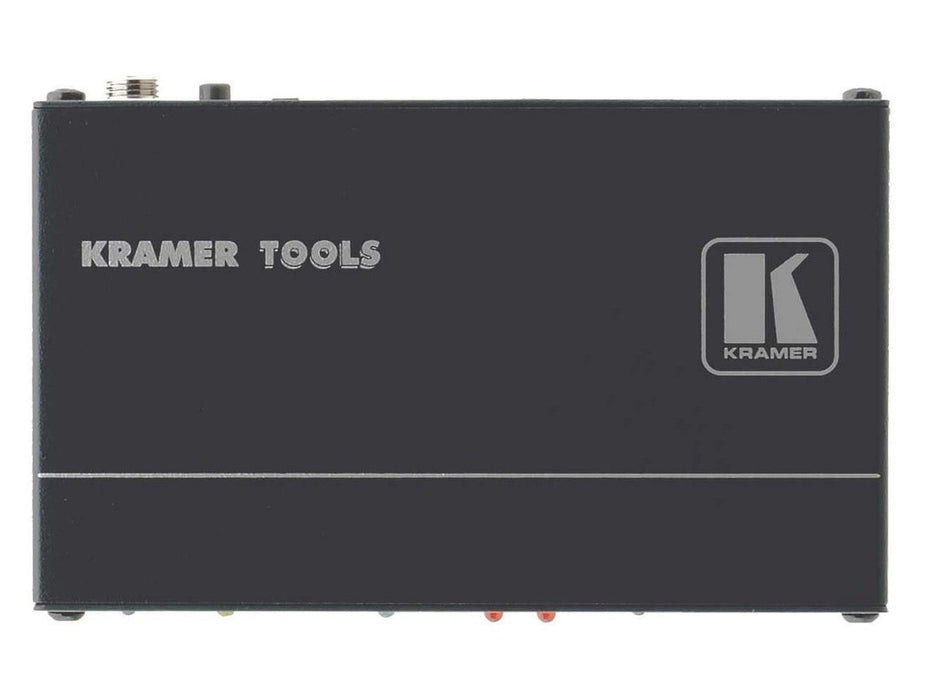

Kramer 2–port Serial Control Gateway | FC-22ETH

SKU: FC-22ETH
Kramer 2–port Serial Control Gateway | FC-22ETH Video Switches Kramer
Availability:
Out of stock
Sold out

£195.74 (Excl. VAT)

- £234.89 (Inc. VAT)
£195.74 - £195.74
- - £234.89
Availability:
Out of stock
payment-icons
Download Product Datasheet i
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.

Book a Free Product Demo

Remote or on-site. No obligation.

Integrator or Installer?

Trade pricing, volume discounts, same-day collection.

Request a Trade Account

Education & Public Sector Solutions

Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.

Create an Account Email Public Sector Team
Official Purchase Orders We accept formal POs with VAT-compliant invoicing for all verified institutions.
Contract & Volume Discounts Competitive rates for multi-site, long-term, or framework-based deployments.
Dedicated Account Management Single point of contact for lead times, coordination, and sourcing.
Flexible 30-Day Terms Available to verified schools, councils, and government bodies.
  • Description
  • Specifications
  • Downloads

  • Kramer 2–port Serial Control Gateway | FC-22ETH

    The FC−22ETH is an Ethernet control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 or RS−485 serial control connections. Multiple control clients can be IP−connected to the FC−22ETH control gateway for concurrent control of two RS−232 or RS−485 controllable devices, such as AV scalers, video displays, and audio amplifiers.

    FC-22ETH

    Features

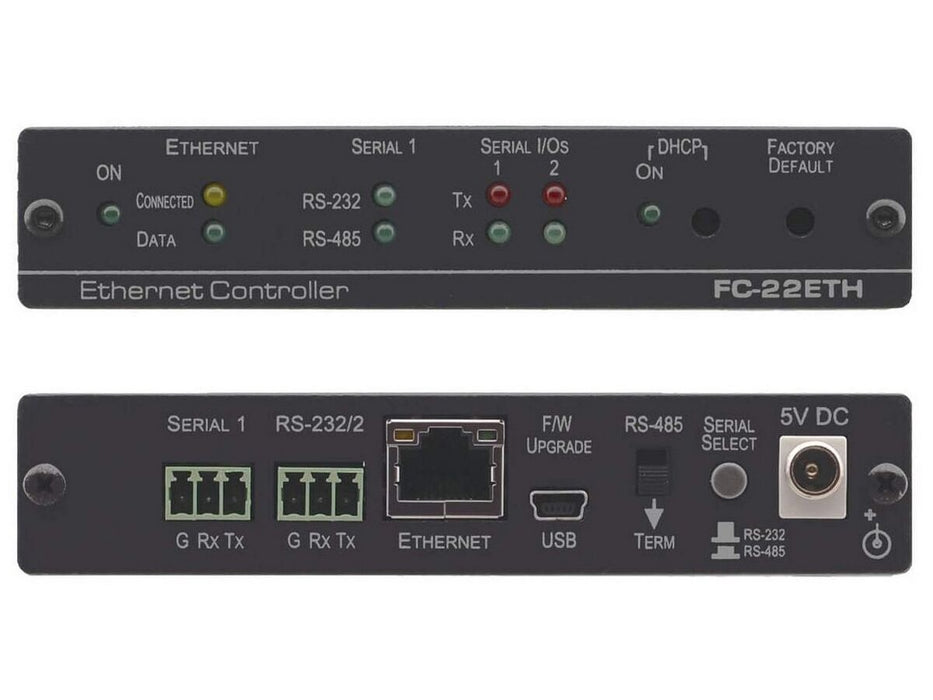

     1 RS–485 or RS–232 Selectable Bidirectional Control Port — Controls a device via bi–directional serial control protocols.
     1 RS–232 Bidirectional Control Port — Controls a device via bidirectional RS–232 serial control protocols.
     1 Ethernet Control Port — Remote protocol–based control port.
     Built–in Web Pages — Remote browser–based control and support.
     Simultaneous IP Control Communication — With up to 40 IP control clients.
     Mini USB Port — For firmware upgrades and local technical services.
     Easy Installation — Plug & play IP auto–setup deployment for simple and cost–reducing installation.

    Applications
     Remote IP control of serial controlled devices
     K–Touch multi–clients IP room control
     LAN–based expansion of K–Config control system

  • Category Attribute Value
    Ports Serial Ports 1 RS-232/RS-485, 1 RS-232 (3-pin terminal)
    Ethernet 1 x RJ-45
    USB 1 x Mini USB (local services)
    Baud Rates Supported Rates 1200 to 115200 bps
    Max Data Handling Up to 150 kbps total
    Controls Buttons Serial Select, RS-485 Terminator, DHCP, Reset
    Indicators LEDs Power, Ethernet, Serial 1, Serial I/O, DHCP
    Power Consumption 5V DC, 200mA
    Environmental Operating Temp. 0° to +40°C (32° to 104°F)
    Storage Temp. –40° to +70°C (–40° to 158°F)
    Humidity 10% to 90% RH (non-condensing)
    Cooling Convection
    Physical Enclosure Aluminum
    Dimensions 12 x 7.15 x 2.44 cm (4.72 x 2.81 x 0.96 in)
    Weight 0.2 kg (0.4 lbs) approx.
    Shipping Dimensions 49 x 18.6 x 58.8 cm (19.29 x 7.32 x 23.15 in)
    Weight 0.4 kg (0.9 lbs) approx.
    Compliance Safety CE
    Environmental RoHS, WEEE
    Accessories Included Power adapter
    Durability Vibration ISTA 1A (in carton)
