MikroTik 1U High-Performance Router | RB1100AHX4
SKU: RB1100AHX4
£305.52 (Excl. VAT)
- Description
- Specifications
- Downloads
-

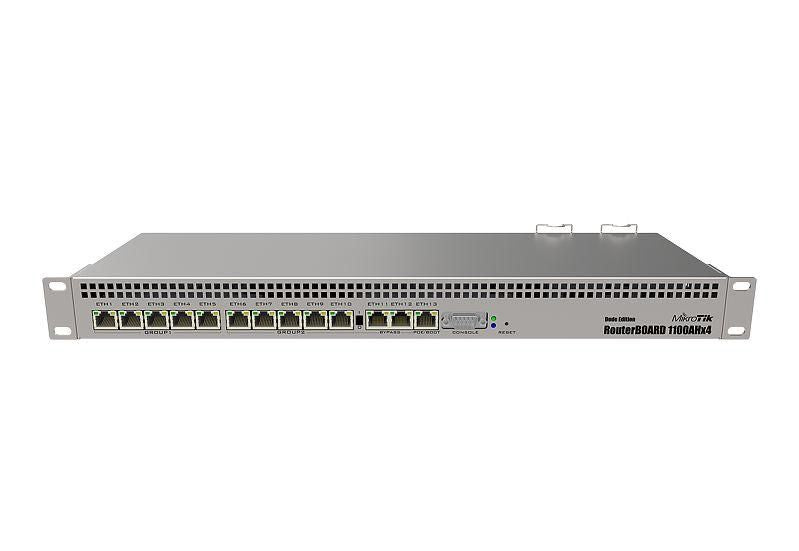

MikroTik RB1100AHx4 Dude Edition 1U Rackmount Gigabit Router | 13×LAN + M.2 + PoE
1U, 13 x Ethernet, 1 GB RAM, 25W, PoE in, RS232, 1.2 kg

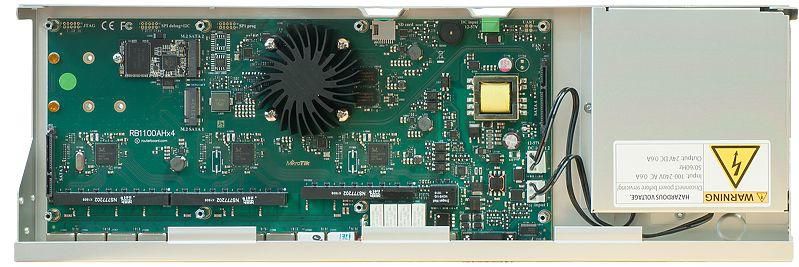

New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

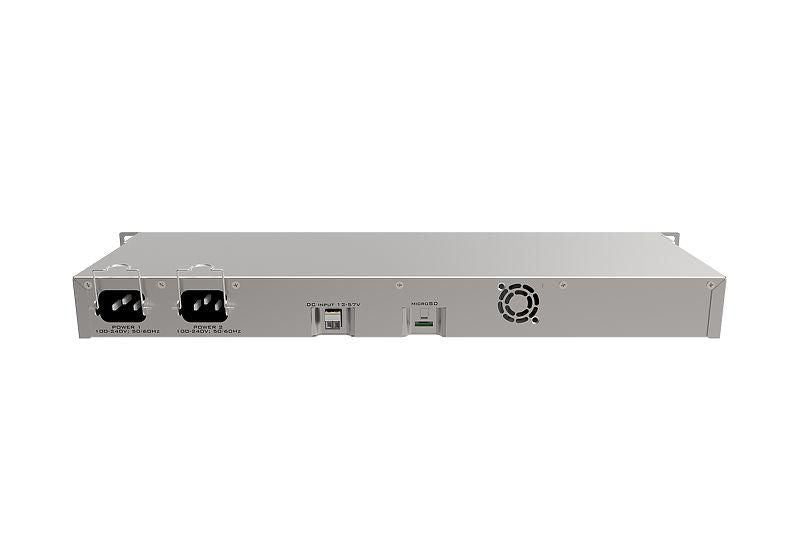

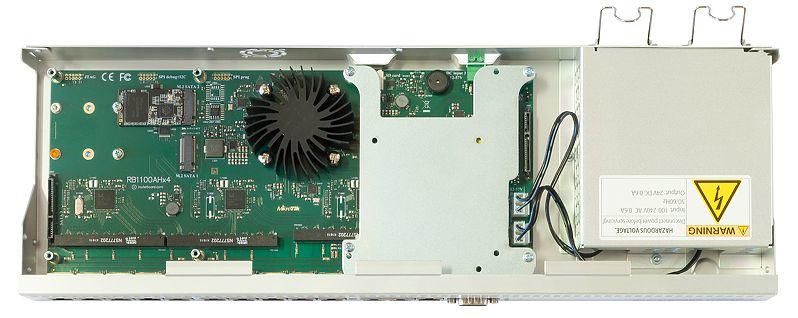

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed. -
LED indicators Yes Product colour Aluminium Rack capacity 1U Rack mounting Yes Built-in processor Yes Internal memory 128 MB Processor cores 4 Processor frequency 1400 MHz Storage media Flash Country of Origin Taiwan EU ECCN Code N/A Tariff No. 8517620000 UNSPSC Code 43222609 US ECCN Code 5A992 Cabling technology 10/100/1000Base-T(X) Ethernet interface type Gigabit Ethernet Ethernet LAN Yes Ethernet LAN data rates 10, 100, 1000 Networking standards IEEE 802.3af, IEEE 802.3at Gross Weight (Package) 2.4 kg Cables included SATA Ethernet LAN (RJ-45) ports 13 AC input voltage 100 - 240 V Power consumption (typical) 25 W Power over Ethernet (PoE) Yes Power source type AC Net Weight (Product, kg) 1.86 kg Product Depth 14.8 cm Product Height 4.7 cm Product Width 44.4 cm Brand Name MikroTik Warranty 1 Year(s) Ethernet WAN Yes Main category Network Subcategory Wired Network Subcategory Wired Routers -
Description Downloads MikroTik 1U High-Performance Router | RB1100AHX4 DataSheet Download
