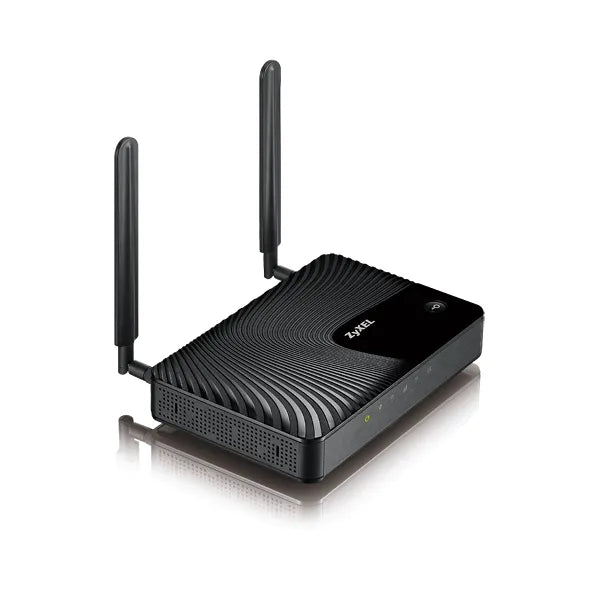

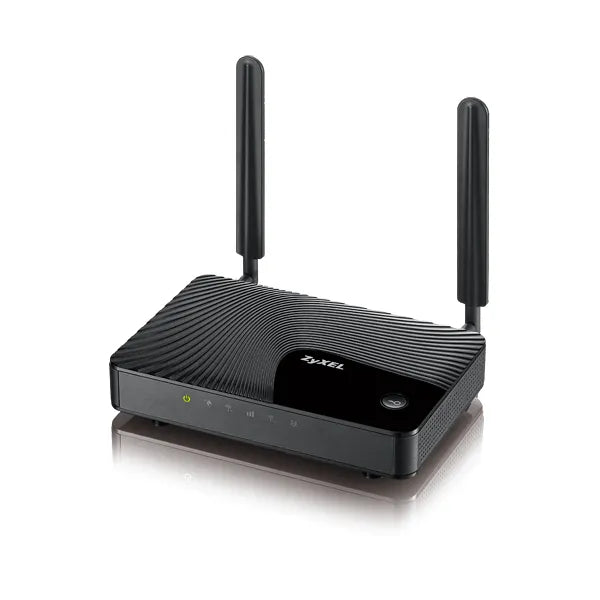

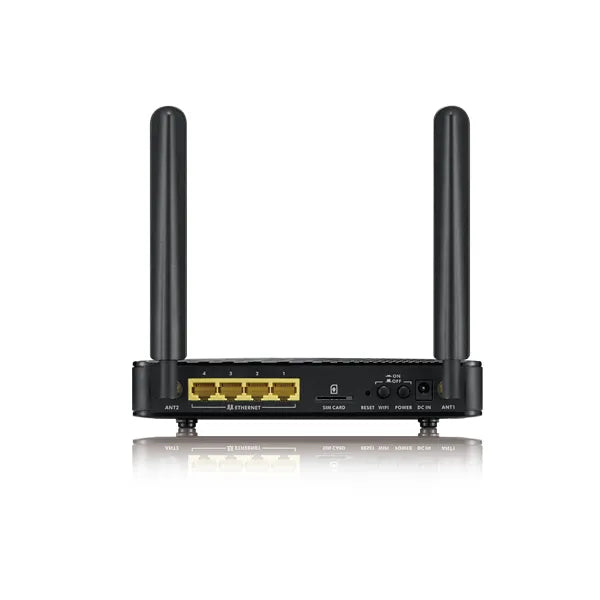

Zyxel LTE3301-M209 LTE 2.4GHz 4G Indoor Router
SKU: LTE3301-M209-EU01V1F
£74.00 (Excl. VAT)
- Description
- Specifications
-
Zyxel LTE3301-M209 LTE 2.4GHz 4G Indoor Router
Mobile technology creates opportunities for new operators to enter networking business with lower investment comparing to building fixed-line infrastructures. To fixed-line operators, mobile network is more important as a backup to offload congested bandwidth for higher customer satisfaction. Mobile network is the trend that operators can never resist. Zyxel, as a global leader of broadband networking, always stay ahead of the trend to offer the market with innovative designs.
The LTE3301-M209 employs LTE — the latest mobile broadband technology with high popularity — to deliver the best possible data rates of up to 150/50 Mbps (DL/UL). With bridge and router modes embedded, the LTE3301-M209 is adaptive to all kinds of devices/gateways for seamless integration with your CPE (Customer Premise Equipment) on-hand in a simple yet complete way to meet your needs.
Maximum freedom of mobility
As LTE markets expand quickly, base station coverage is yet to be completed. The LTE3301-M209 supports single- (LTE) and multi-mode (LTE/3G/2G) so you can stay connected even of there is only 3G or 2G services. Besides, the multi-band support also relieves the concern from varied LTE/3G frequencies in different countries. The flexibility of LTE3301-M209 keeps you online around the world with the maximum freedom of mobility.
Embedded bridge/router mode for all devices/gateways
For network integration, Zyxel embeds both bridge and router modes into the LTE3301-M209. Users can take advantage of the built-in routing functions in all typical applications, while the bridge mode is designed to work with users’ existing or preferred device such as high-end WiFi Access Points, Small Business Gateways or Enterprise Gateways. With the two built-in modes, the LTE3301-M209 can be easily integrated with all kinds of devices/gateways.
State-of-the-art technology
The LTE3301-M209 employs 3GPP release 9, category 4 — the best practice of LTE technology with 150/50 Mbps (DL/UL) data rates. It also supports 3G/2G networks with the up-to-date “Dual Carrier HSPA+ (DC-HSPA+) technology” of 42/5.76 Mbps (DL/UL) data rates. You can enjoy ultra-fast, flexible wireless connection anywhere within LTE/3G/2G signal coverage.
High-speed WiFi of up to 300 Mbps
The LTE3301-M209 comes with 802.11n WiFi compatibility, so you can enjoy high-speed WiFi of up to 300 Mbps without additional devices. With the true wireless connection provided by the LTE3301-M209 of indoor router, there’s no cabling needed for either LTE WAN or wireless LAN.
Application Diagram
-
System Specifications IP Networking Support IPv4/IPv6 dual stack Yes DHCP dynamic and fixed IP address assignment on LAN Yes VPN pass-through firewall Yes NAT/NAPT Yes Port forwarding DMZ Yes DNS/DDNS Yes Support NAT router mode Yes Support bridge mode (IP pass-through) Yes WiFi Security WEP: 64/128-bit Yes WPA/WPA2 Yes Support WPA2 primarily, automatic fallback to WPA Yes WPA/WPA2-PSK Yes MAC address filter with 32 addresses supported Yes Management APN management Yes SIM PIN management Yes SMS management Yes Secure remote management via WebGUI/SSH Yes Over-the-Air (PTA) firmware upgrade: TR-069/WebGUI Yes Hardware Specifications LTE Air Interface Standard compliant: 3GPP release 9 category 4 Yes Peak data rates: 150 Mbps DL / 50 Mbps UL LTE Bands: 1/3/7/8/20/28/38/40 WiFi Air Interface IEEE 802.11 b/g/n 2.4 GHz, data rates up to 300 Mbps Yes WiFi enabled device#: up to 32 Yes WiFi antenna: 2 internal antennas up to 3 dBi Yes UMTS/GSM Air Interface Standard compliant: UMTS/HSPA Band 1/8 Yes GSM/GPRS/EDGE Band 3/8 Yes DC-HSPA+ downlink data rate up to 42 Mbps Yes HSUPA uplink data rate up to 5.76 Mbps Yes UMTS/WCDMA data rate up to 384 Kbps Yes GPRS data rate up to 85.6 Kbps Yes Hardware Interface Four 10/100 Mbps Ethernet RJ-45 LAN ports Yes One 2FF mini SIM card socket Yes One reset to default button Yes One power on/off button Yes One WiFi on/off button Yes One DC power jack Yes One WPS button Yes Two external LTE antennas (up to 3 dBi) Yes LED Indicators Power status Yes Internet status Yes LTE signal strength Yes WiFi status Yes LAN status Yes Power Consumption 12W Physical Specifications Item dimensions (WxDxH) 186 x 120 x 30 mm (7.3" x 4.7" x 1.2") Item weight 350g (0.77 lb.) Packing dimensions (WxDxH) 271 x 192 x 113 mm (10.67" x 7.56" x 4.45") Packing weight 778g (1.72 lb.) Environmental Specifications Operating Environment Temperature: 0°C to 40°C (32°F to 104°F) Yes Humidity: 10% to 90% RH (Non-condensing) Yes Storage Environment Temperature: -10°C to 70°C (14°F to 158°F) Yes Humidity: 0% to 95% RH (Non-condensing) Yes Package Contents LTE indoor router Included LTE antenna x 2 Included Power adapter Included Ethernet cable Included Quick start guide Included Warranty card Included Model Band LTE Frequency LTE3301-M209 Band 1 FDD UL: 1920 - 1980 MHz; DL: 2110 - 2170 MHz Band 3 FDD UL: 1710 - 1785 MHz; DL: 1805 - 1880 MHz Band 7 FDD UL: 2500 - 2570 MHz; DL: 2620 - 2690 MHz Band 8 FDD UL: 880 - 915 MHz; DL: 925 - 960 MHz Band 20 FDD UL: 832 - 862 MHz; DL: 791 - 821 MHz Band 28 FDD UL: 703 - 748 MHz; DL: 758 - 803 MHz Band 38 TDD UL/DL: 2570 - 2620 MHz Band 40 TDD UL/DL: 2300 - 2400 MHz
