Elevate the Traditional Digital Signage Experience with Next-Generation Audience Engagement
INDOOR DIRECT VIEW LED SOLUTIONS
Available in P1.8 and P2.5 pixel pitches (other models available on request)
SMD Led Technology
Easy Access Front Ports/Controls
SMD Led Technology
Built in Android PC
Wireless Mirroring
Quick and Easy Install
Lightweight Design
Full High Definition 1080p
Wide Viewing Angle
Adjustable Backlight
Lifetime Technical Support
Front Serviceability
3-Year Warranty

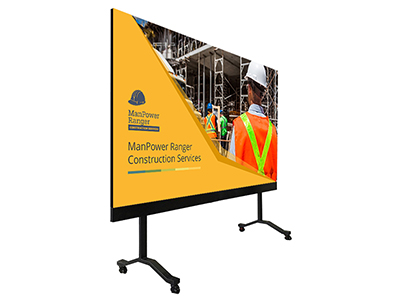

Optional Floor Stand

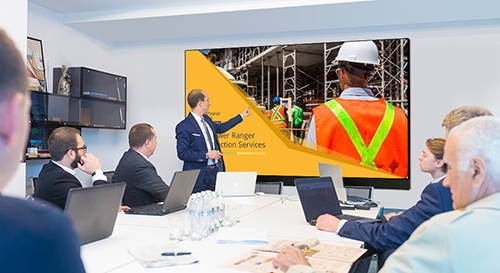

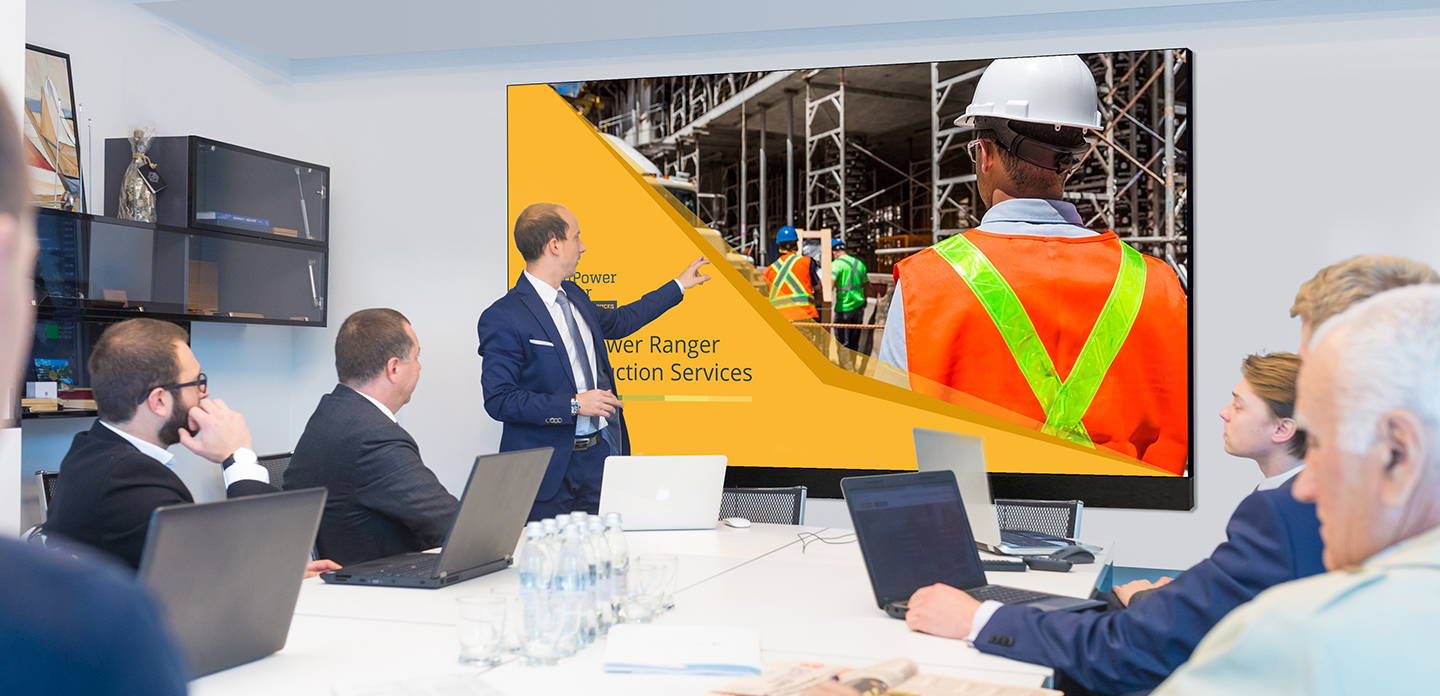

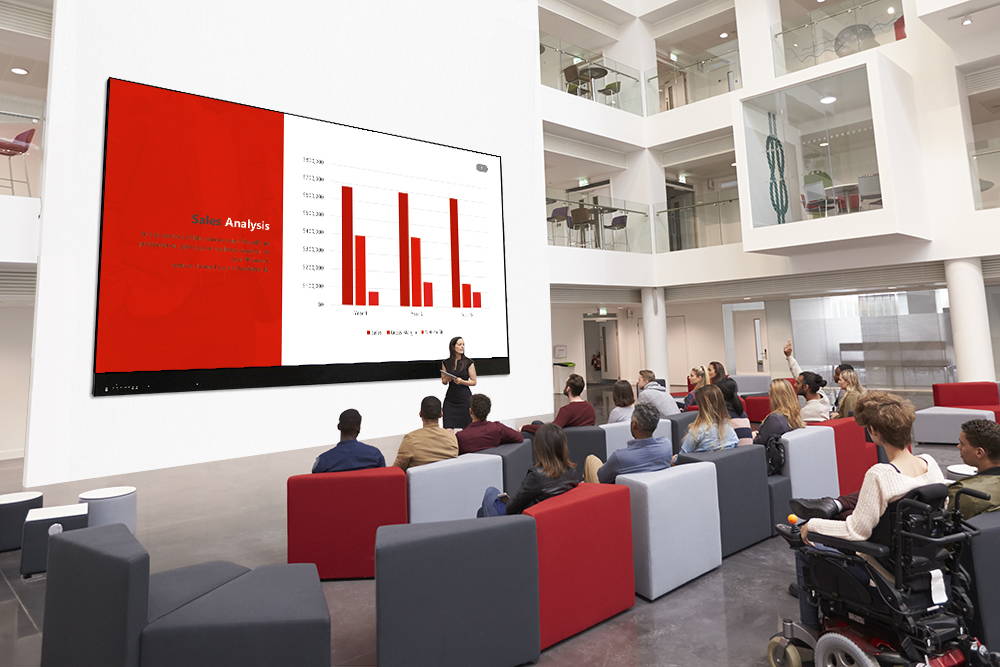

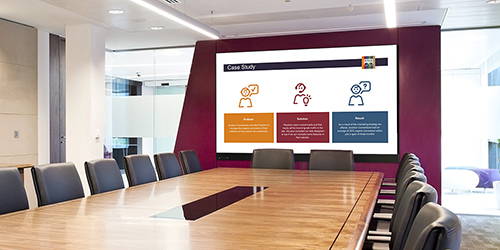

Powerful Meeting Room Presentation Display
Designed with mid- to large-sized meeting rooms in mind, these video walls will revolutionise your meetings. Featuring wireless mirroring and file sharing, easy-access front ports for connecting laptops, remote video conferencing, and multi-window splicing, they are the ultimate presentation displays.
Super Fine HD Pixel Pitch
Optimised for close viewing distances, all of the models in this range have a full high definition resolution thanks to their ultra-high pixel density. This, combined with the seamless nature of Direct View LED technology, makes them the ultimate presentation displays.

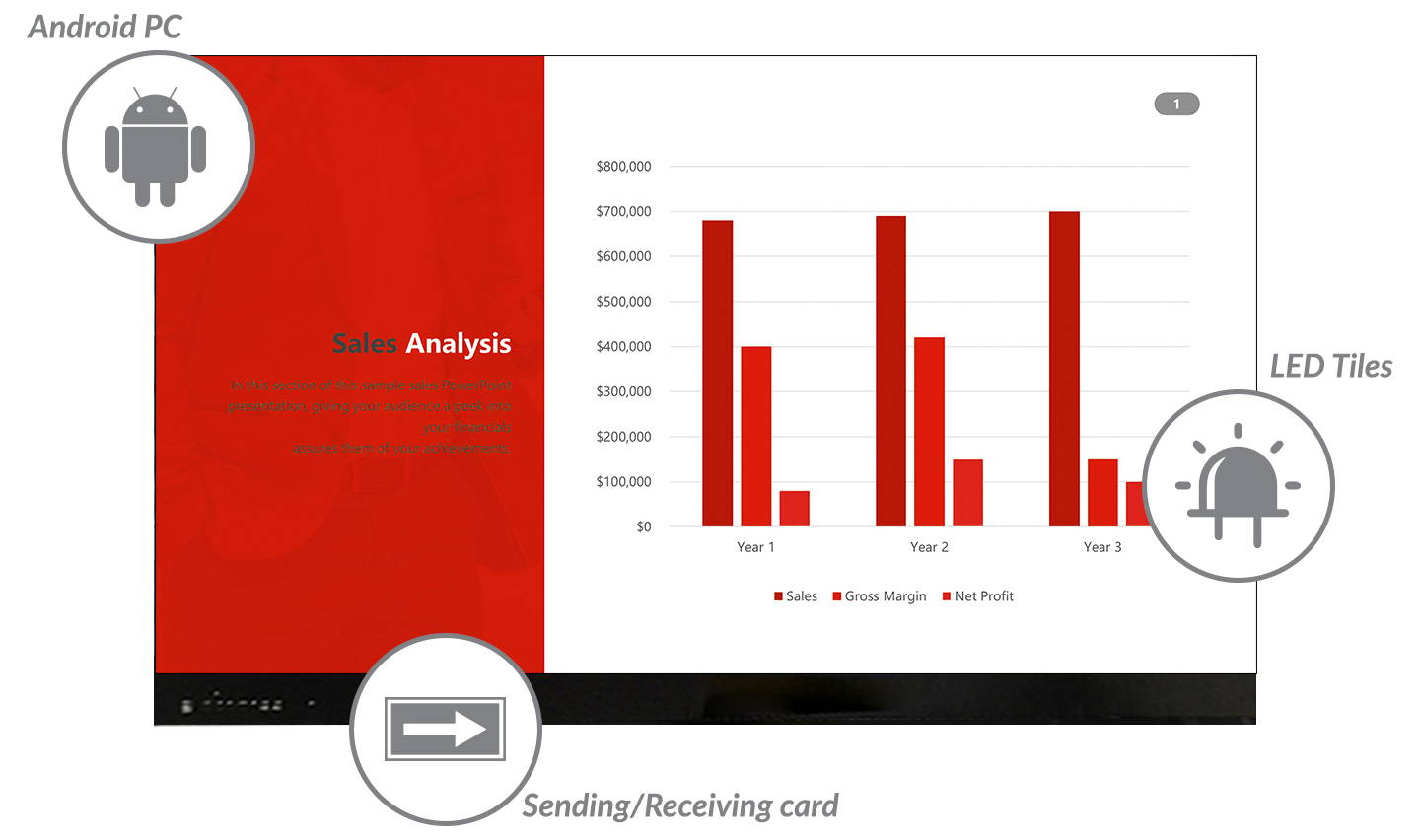

All-in-One Design
Combining the best LED technology on the market with a built-in Android PC, these video walls provide a fully integrated solution for most applications without the need for messy cables or additional hardware.

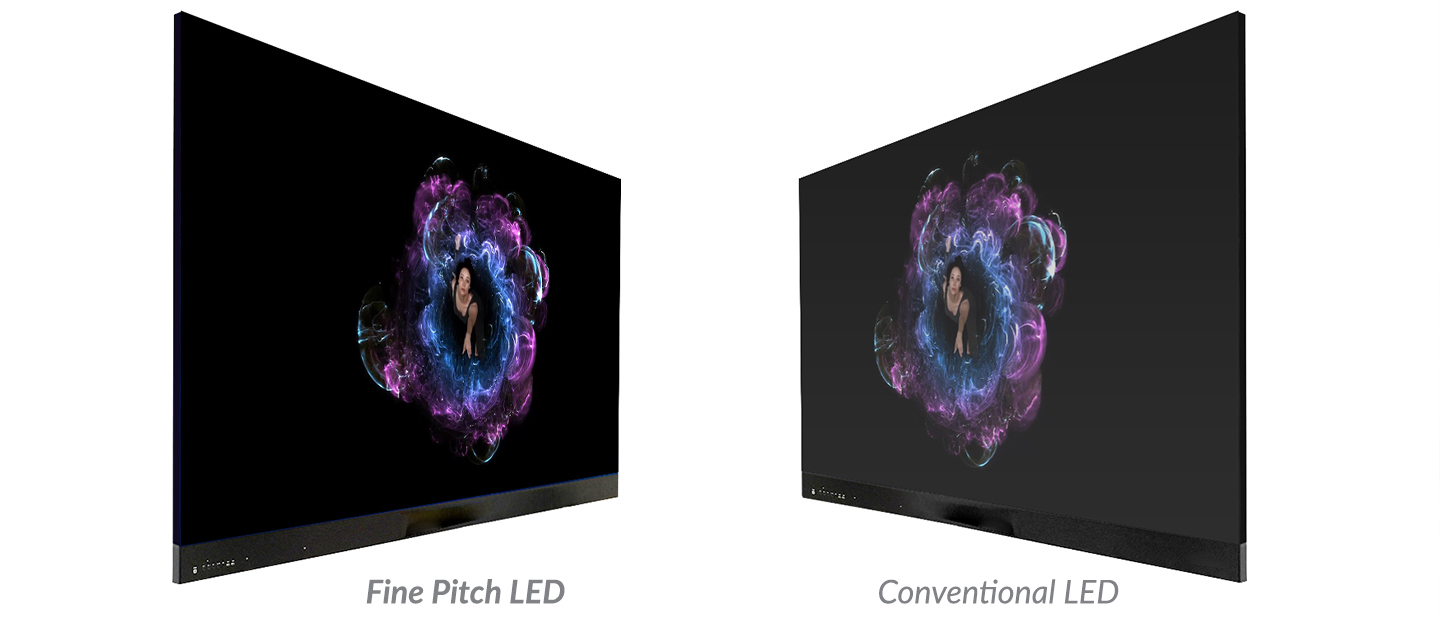

True Black
True Black
Achieve true black and vibrant colours thanks to state-of-the-art SMD LED technology and an ultra-high 5,000:1 contrast ratio. Wow attendees by delivering a truly captivating viewing experience with a remarkable 160° viewing angle.

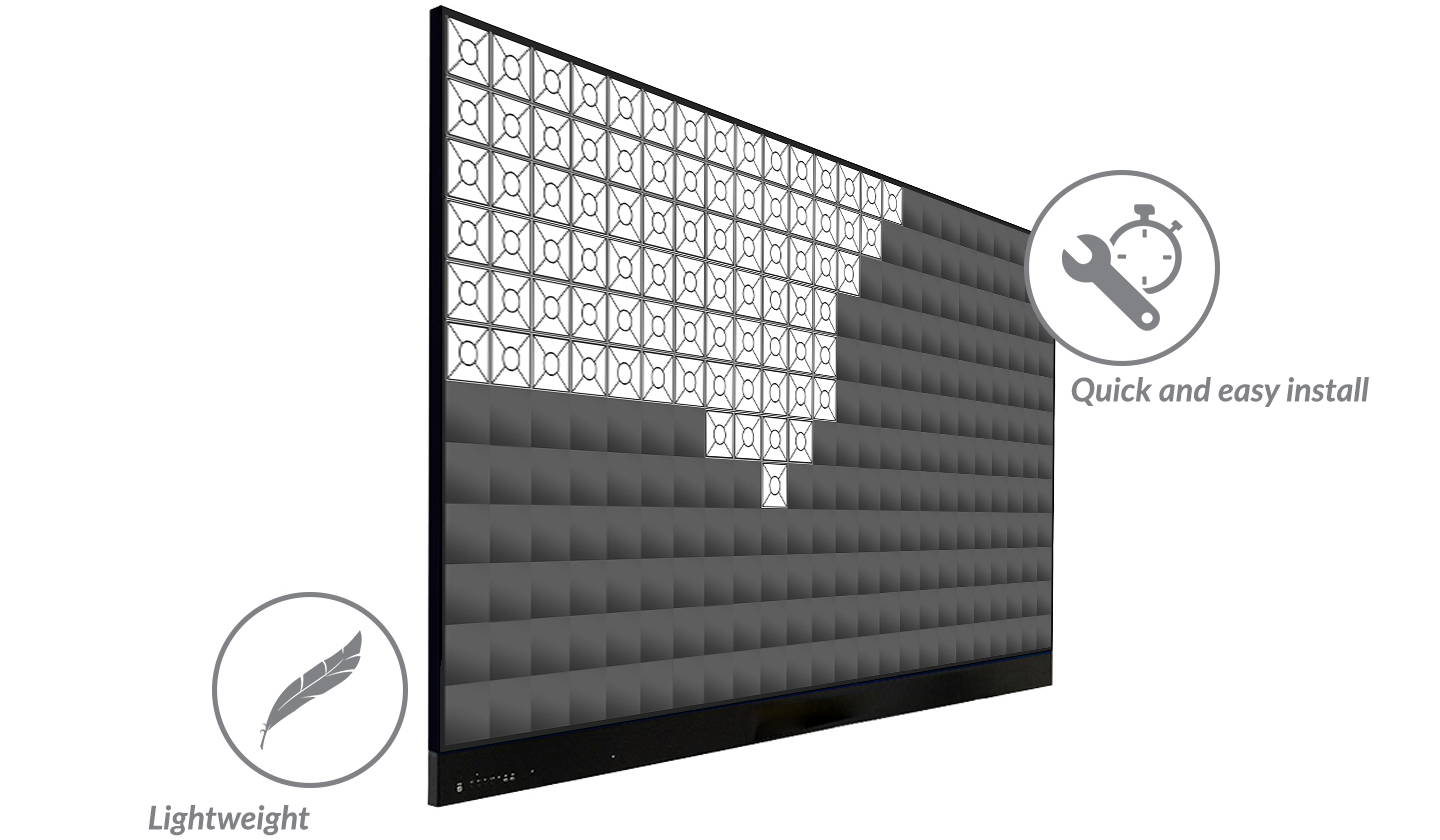

Effortless Installation
Unlike other Direct View LED solutions, this display comes as a complete out-of-the-box solution that is fully colour-calibrated. This, along with the compact, lightweight design, makes it incredibly easy to assemble and install.
Easy Front Maintenance
These video walls can be serviced from the front of the display by quickly and efficiently removing the LED modules, giving ultimate ease of maintenance.

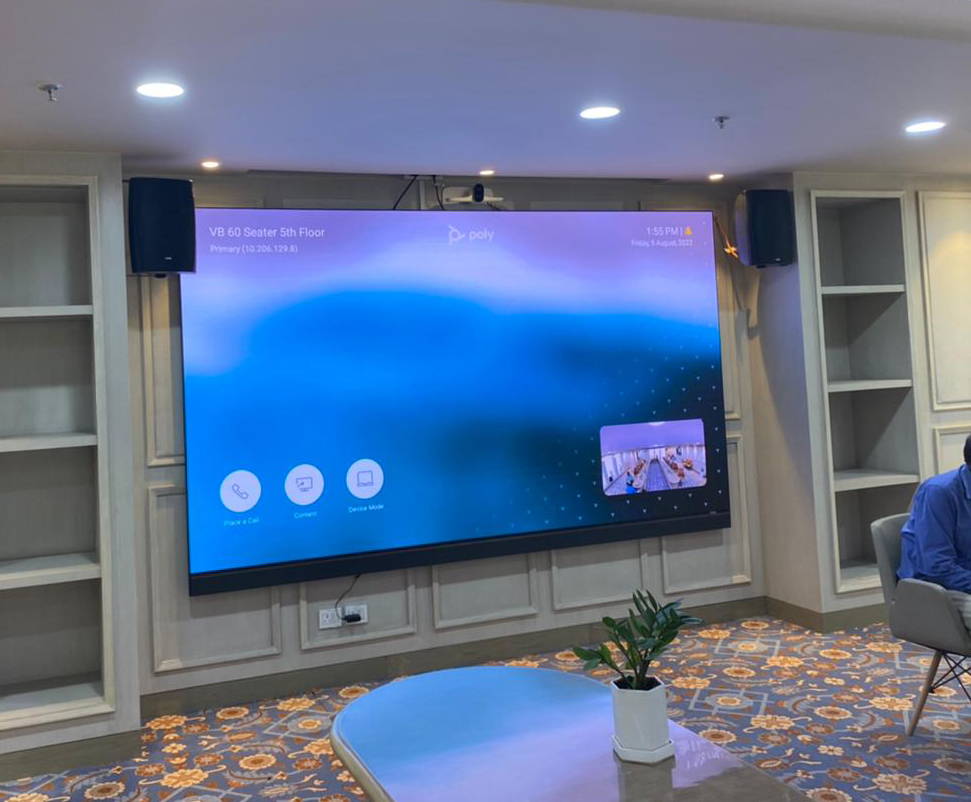

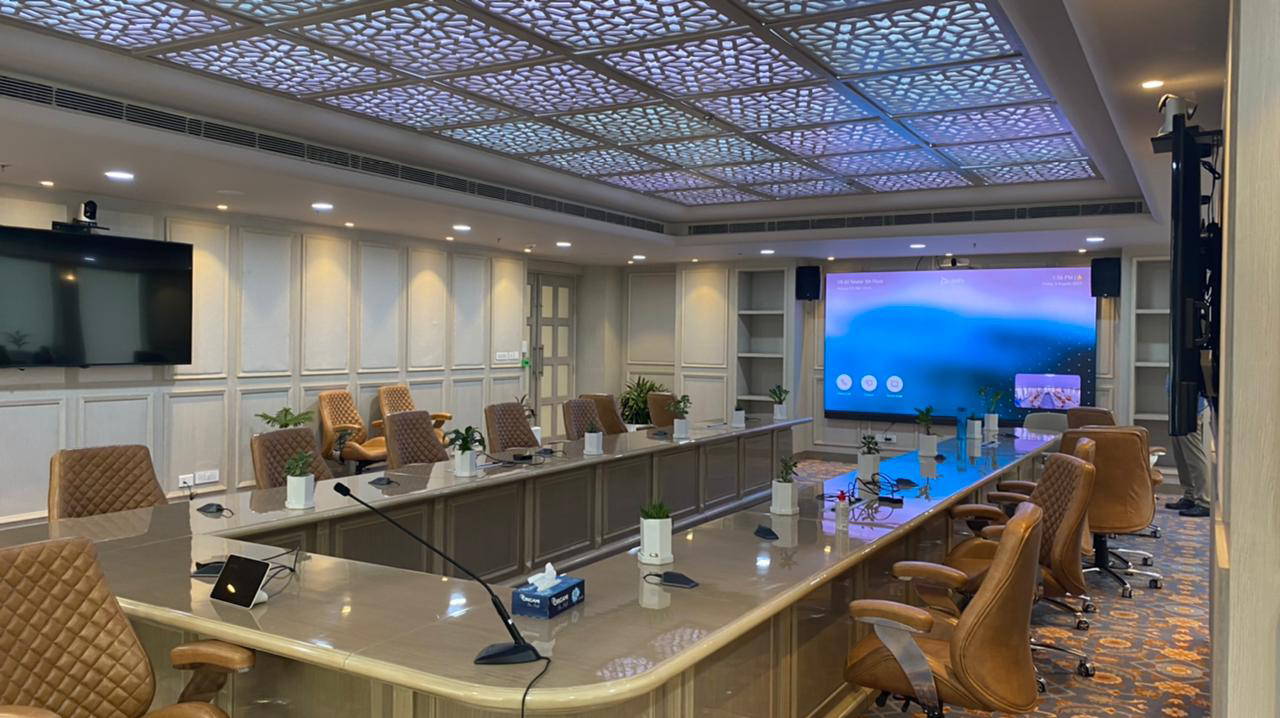

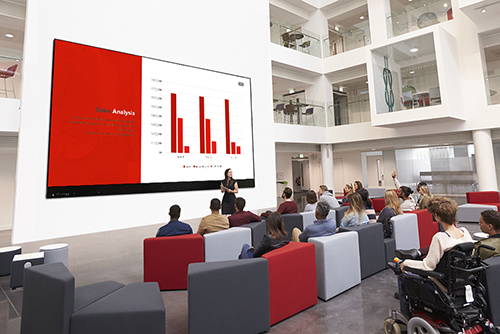

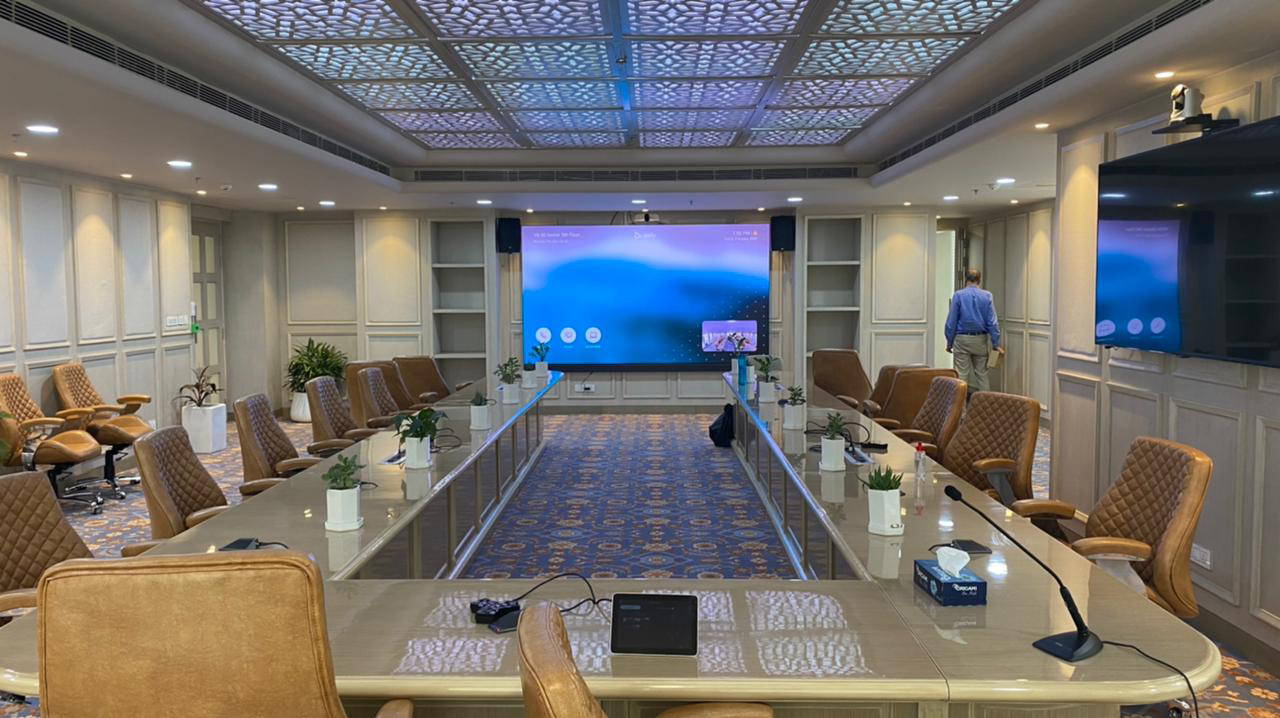

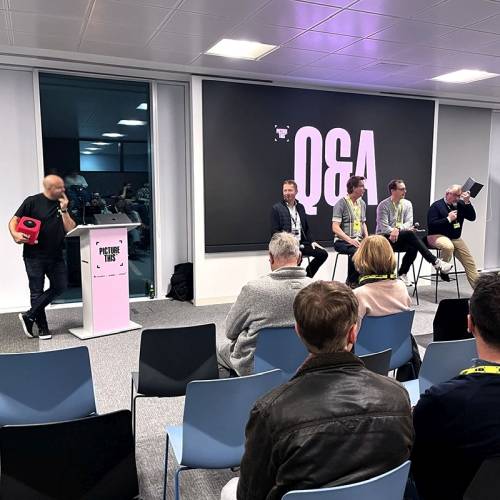

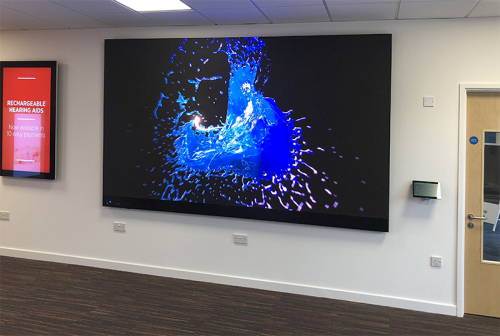

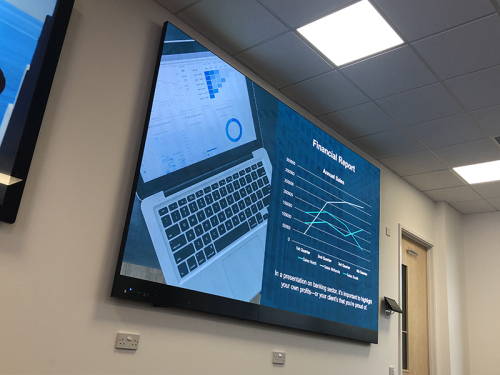

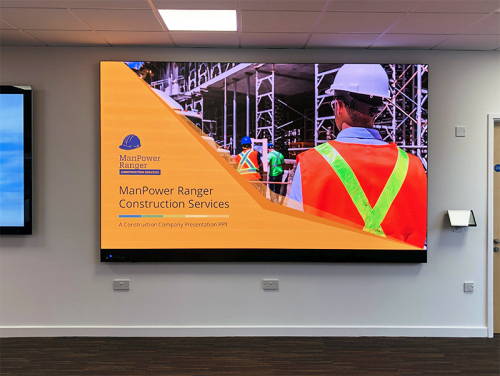

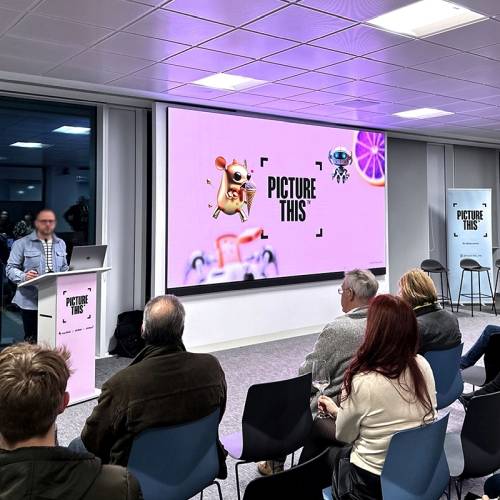

GALLERY
SPECIFICATION
- 138 Inch
- 165 Inch
138 Inch
Pixel Pitch (mm) 1.5
Display Area (mm) 3050x1716
Brightness (cd/m²) 100-500
Unit Size (WxHxD mm) 3063x1846x38.5
VESA Holes 600x600/600x800
Net Weight 201kg
Average Power Consumption 1,020W
Maximum Power Consumption 3,000W
LED
Resolution 1920x1080
Aspect Ratio 16:9
Grayscale 14 Bit
Contrast Ratio 5000:1
Viewing Angle 160°
Maintenance Front Access Only
AV Inputs
Front Inputs
USB x2, HDMI
Power
Input Voltage AC110240V (50Hz60Hz)
Computer
CPU ARM Cortex A72, Cortex A53, 2.0GHz
GPU ARM Mali-T860 MP4
Memory DDR3 2G, 4G
Storage eMMC 8G
LAN 100M/1000M
Wi-Fi 802.11ac
OS Android 7.1
Environmental
Operating Temperature -10°C to 40 °C
Operating Humidity 10% to 85%
IP Rating IP30
Accessories
Included TBC
Optional Floor Stand
165 Inch
Pixel Pitch (mm) 1.9
Display Area (mm) 3660x2059
Brightness (cd/m²) 100-600
Unit Size (WxHxD mm) 3673x2189x38.5
VESA Holes 800x600
Net Weight 282kg
Average Power Consumption 1,040W
Maximum Power Consumption 3,060W
LED
Resolution 1920x1080
Aspect Ratio 16:9
Grayscale 14 Bit
Contrast Ratio 5000:1
Viewing Angle 160°
Maintenance Front Access Only
AV Inputs
Front Inputs
USB x2, HDMI
Power
Input Voltage AC110240V (50Hz60Hz)
Computer
CPU ARM Cortex A72, Cortex A53, 2.0GHz
GPU ARM Mali-T860 MP4
Memory DDR3 2G, 4G
Storage eMMC 8G
LAN 100M/1000M
Wi-Fi 802.11ac
OS Android 7.1
Environmental
Operating Temperature -10°C to 40 °C
Operating Humidity 10% to 85%
IP Rating IP30
Accessories
Included TBC
Optional Floor Stand
