Bespoke Outdoor Digital Signage Solutions Optimised for Crystal Clear Distant Viewing

OUTDOOR DIRECT VIEW LED SOLUTIONS

Available in P4 and P6 pixel pitches (other models available on request)

SMD LED Technology

Front or Rear Serviceability

Seamless Video Wall

Ultra High Contrast Ratio

Easy Installation

Lightweight Design

High Refresh Rate

Full Project Management

IP Rated Enclsoure

Ultra-Wide Viewing Angle

Remote Updates from the Cloud

Optional Ambient Light Sensor

Outstanding High Brightness

Lifetime Technical Support

-Year Warranty

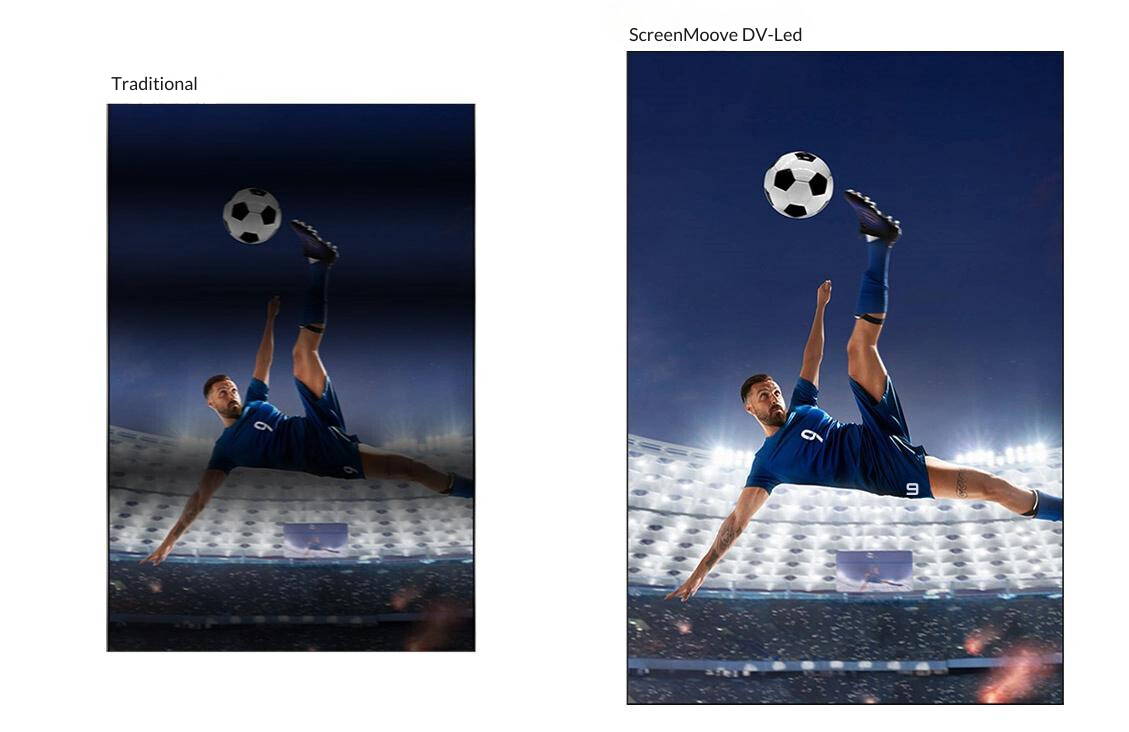

Stunning Image Quality

State of the art SMD-LED technology that delivers remarkable image quality across the seamless display, certain to garner attention. With advanced video processing technology to produce accurate and vibrant colours with no distortion, offering remarkable viewing experiences.

Outstanding High Brightness

With impressive brightness levels, the DV-LED Video Wall has outstanding visibility. The display is sunlight readable even in direct sunlight, instantly catching attention from viewers and ensuring your content always stands out.

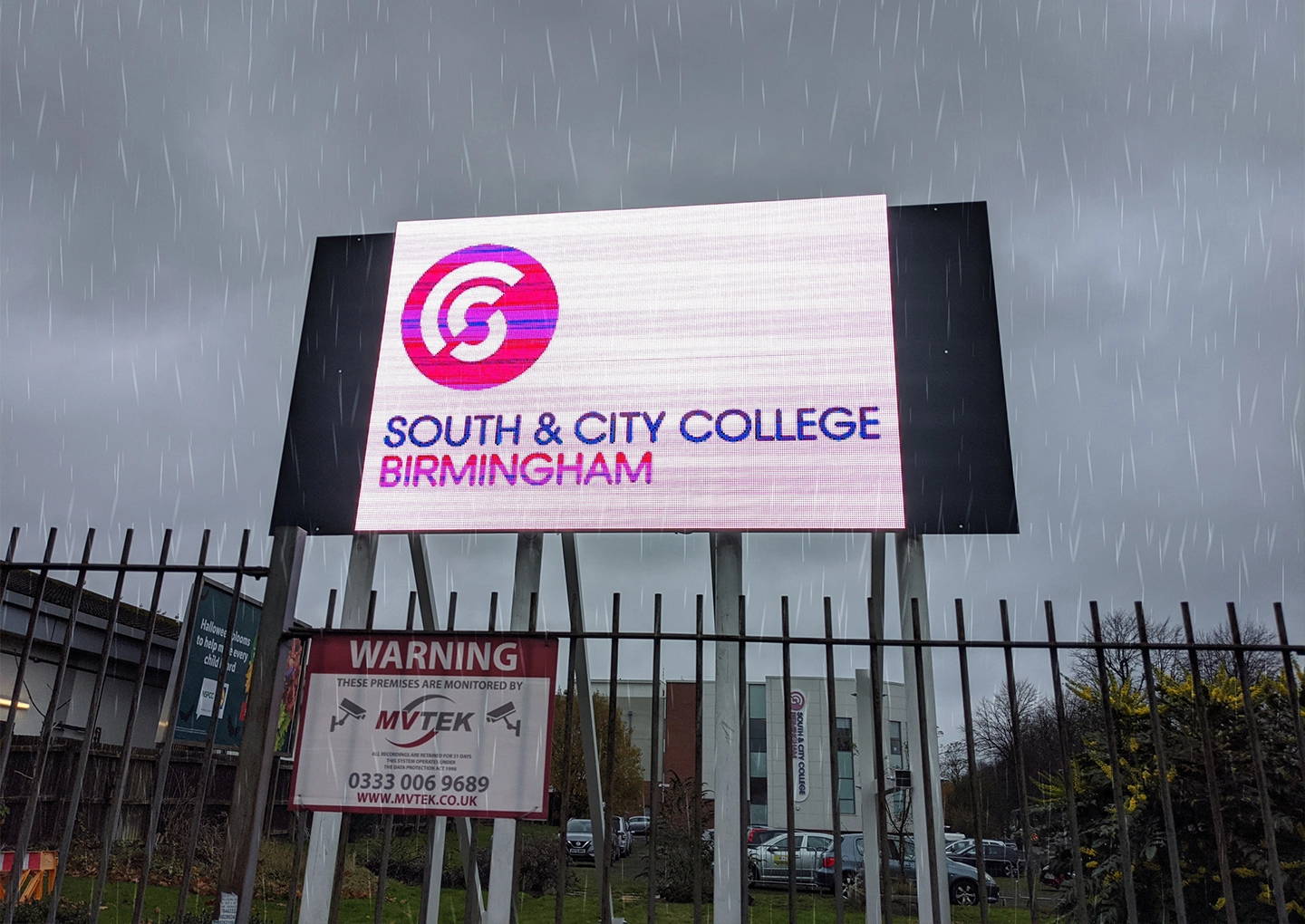

Weatherproof

Designed with a robust aluminium enclosure to protect the display from harsh weather conditions, the outer casing is also IP-rated, keeping out airborne swarf, dust and other particles.

Outdoor Reliability

This display includes a variety of features and services that were designed to maximise the lifespan of your displays, ensuring the high quality and consistency of our solutions.


High Refresh Rate

With a refresh rate more than three times higher than the industry standard, every image and video will come to life with astonishing clarity and precision, delivering a captivating visual experience with fluid transitions.

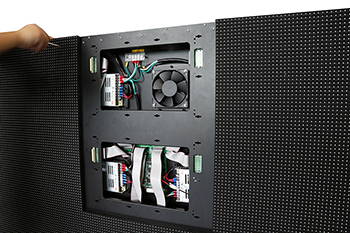

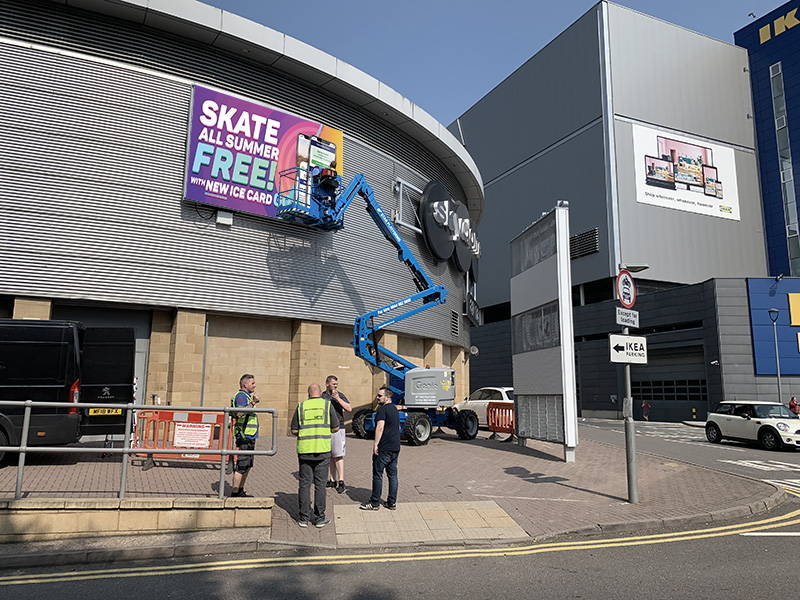

Easy Installation

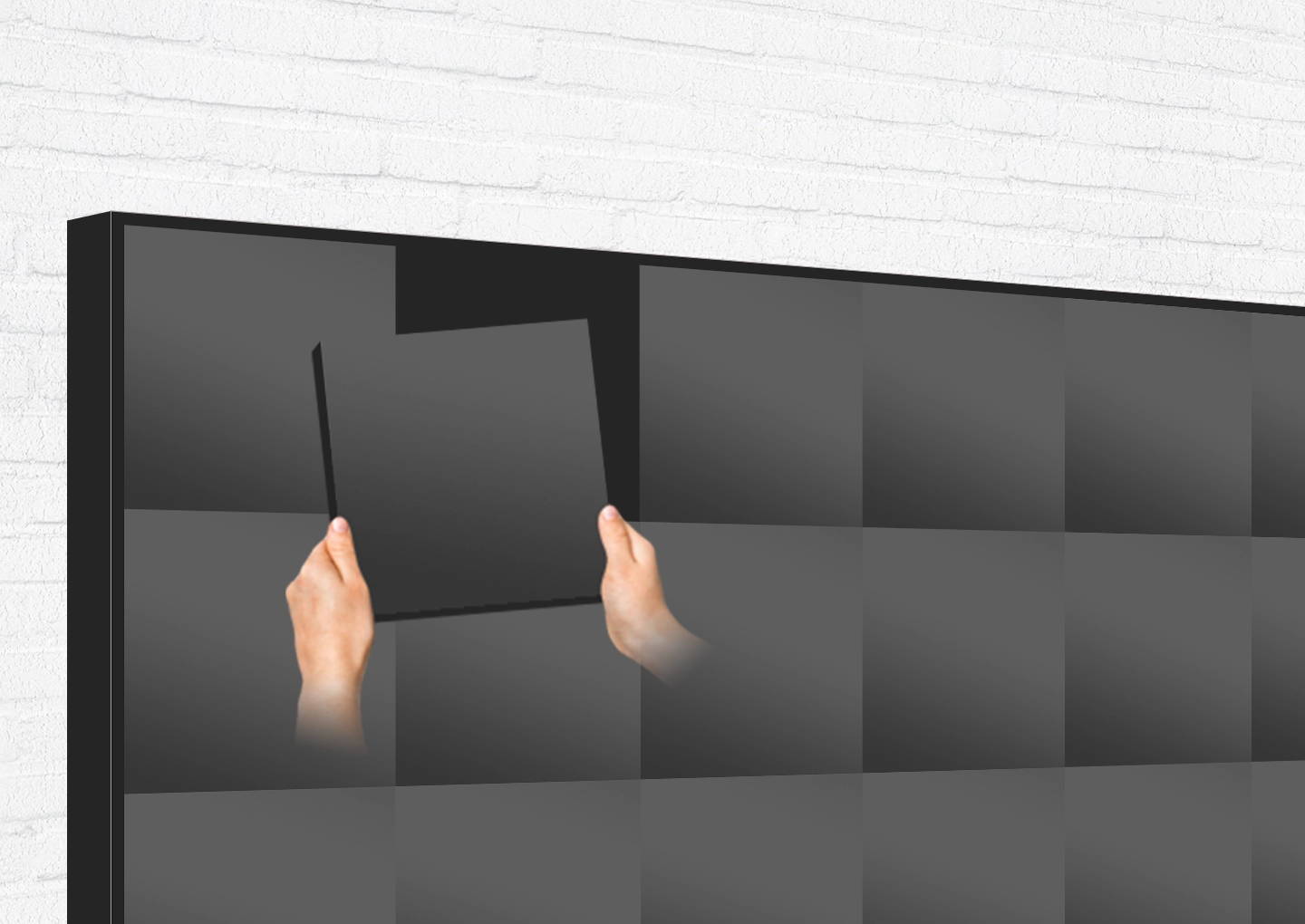

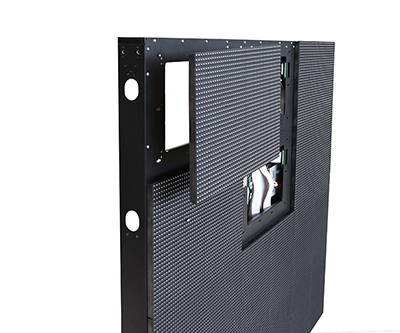

The light and compact design as well as magnetic modules, positioning pins and simple cabinet structure make this display ideal for either permanent installations or rental jobs.

End-to-End Project Management

We understand that every Direct View LED project is unique and each comes with their own set of challenges. In order to help our partners embrace this innovative technology, we are offering full end-to-end project management. From design to installation, our team is dedicated to assisting you every step of the way.

Bespoke displays can be developed to accommodate specific project requirements, installation of the Video Walls can be carried out or assisted by team members to ensure a hassle-free process, and maintenance can be provided when necessary. This all guarantees easy accessibility to the solutions for both you and your customers.

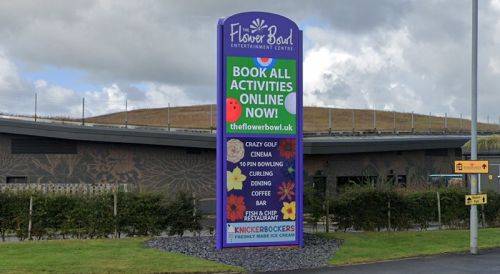

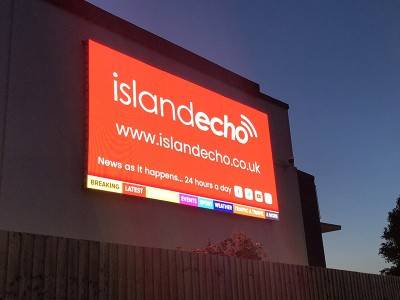

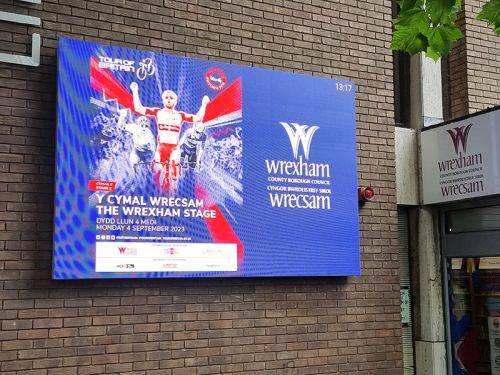

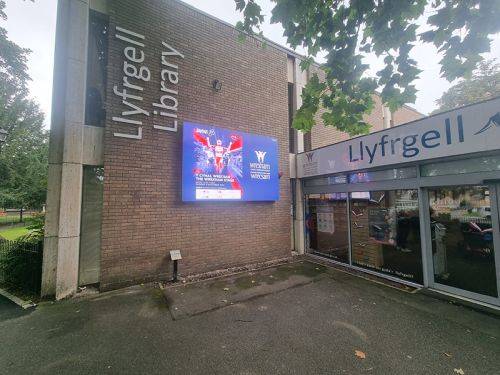

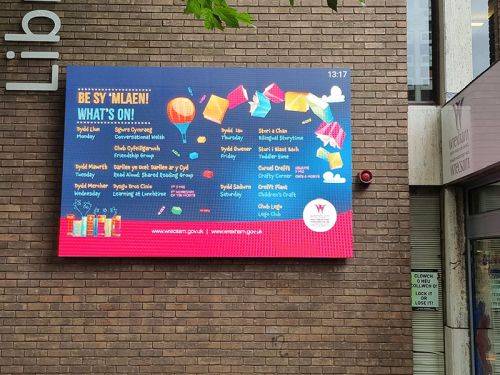

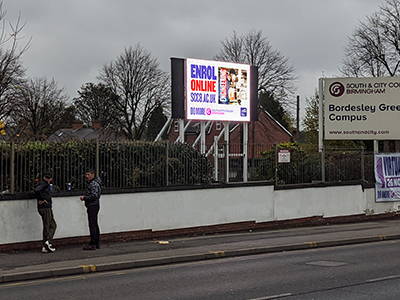

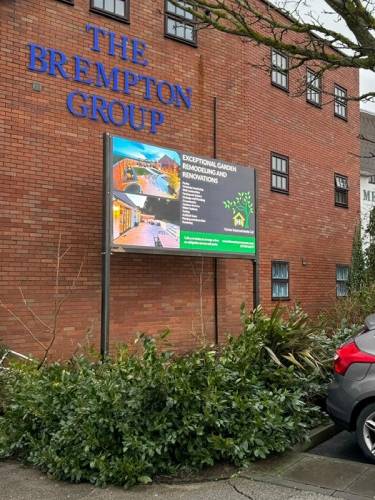

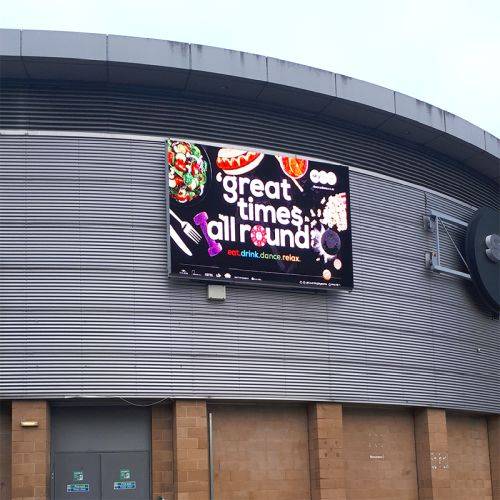

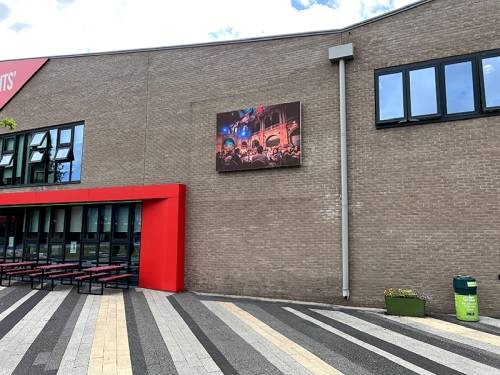

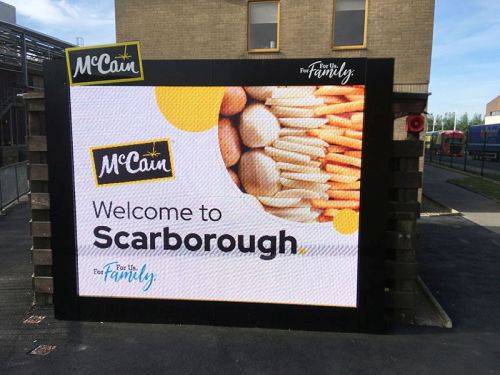

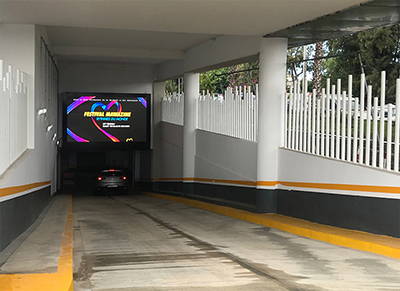

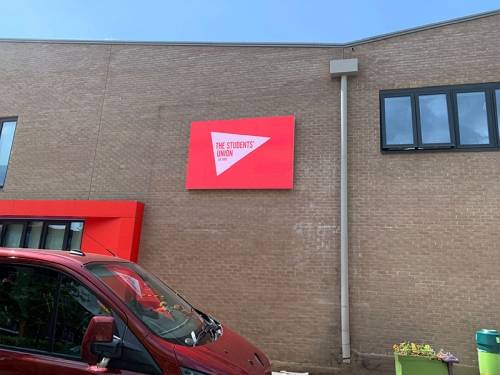

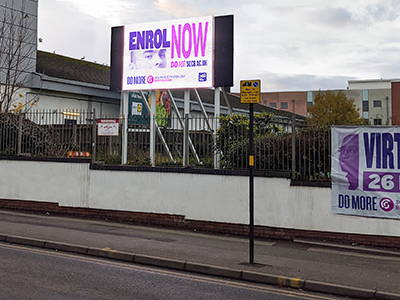

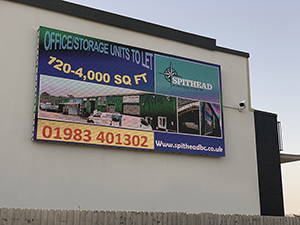

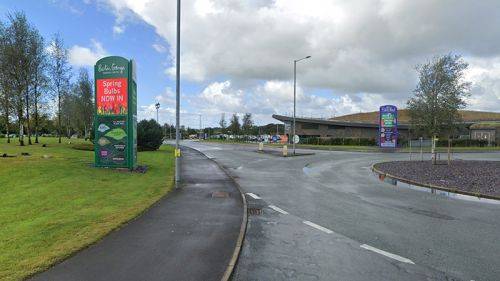

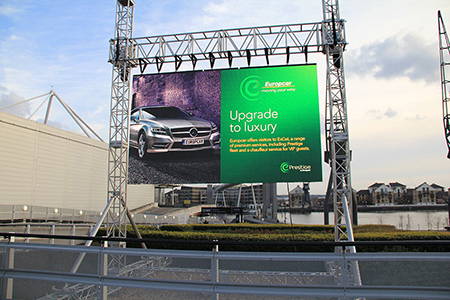

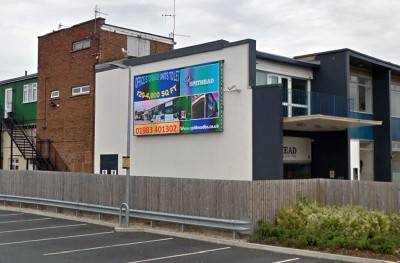

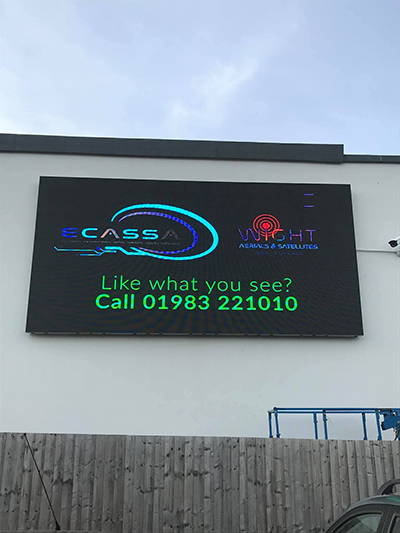

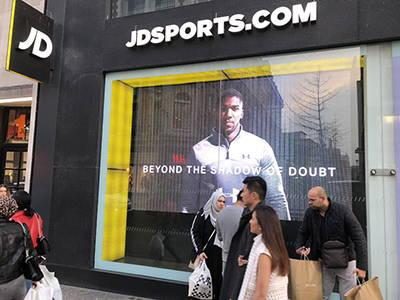

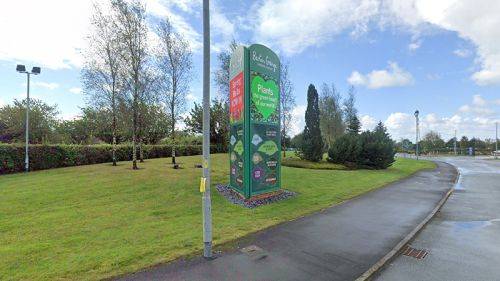

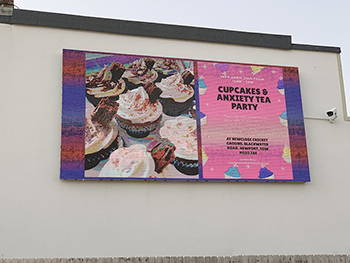

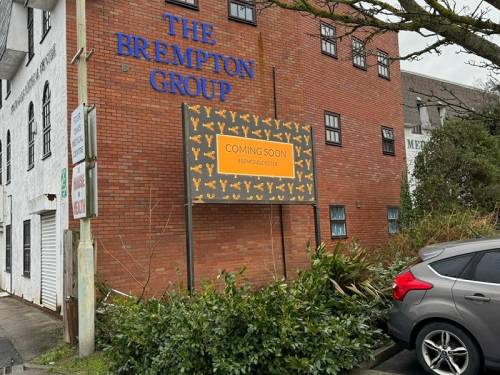

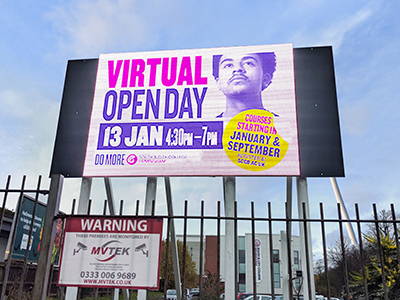

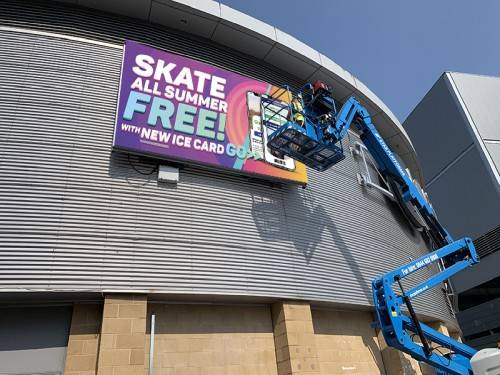

GALLERY

SPECIFICATION

  • P4
  • P6


Pixel Pitch (mm) 4.0

LED Type SMD 1921

Brightness (Calibrated) 5,500 cd/m²

Contrast Ratio 10,000:1

Module Resolution (px) 120x80

Cabinet Resolution (px) 240x240

Average Power Consumption (Per Cabinet) 160W

Maximum Power Consumption (Per Cabinet) 450W


Pixel Pitch

Pixel Pitch (mm) 4.00

Pixel Pitch (mm) 6.67


LED

Pixel Configuration 1R1G1B

Refresh Rate 3840Hz

Viewing Angle - Horizontal 140°

Viewing Angle - Vertical 120°

Processing 20 bit

Frame Rate 60 fps

Maintenance Front or Rear Access


Cabinet

Module Size (mm) 480x320

Cabinet Size (mm) 960x960x68

Net Weight (Kg) 20.5


Power

Input Voltage AC220/110 ± 10%, 47~63Hz


Environmental

IP Rating - Front IP65

IP Rating - Rear IP65

Operating Temperature -20ºC to +50ºC

Operating Humidity 10% to 95%

Lifetime 100,000 hours

Pixel Pitch (mm) 6.67

LED Type SMD 2727

Brightness (Calibrated) ≥8,000 cd/m²

Contrast Ratio 15,000:1

Module Resolution (px) 72x48

Cabinet Resolution (px) 144x144

Average Power Consumption (Per Cabinet) 193W

Maximum Power Consumption (Per Cabinet) 580W


Pixel Pitch

Pixel Pitch (mm) 4.0

Pixel Pitch (mm) 6.67


LED

Pixel Configuration 1R1G1B

Refresh Rate 3840Hz

Viewing Angle - Horizontal 140°

Viewing Angle - Vertical 120°

Processing 20 bit

Frame Rate 60 fps

Maintenance Front or Rear Access


Cabinet

Module Size (mm) 480x320

Cabinet Size (mm) 960x960x68

Net Weight (Kg) 20.5


Power

Input Voltage AC220/110 ± 10%, 47~63Hz


Environmental

IP Rating - Front IP65

IP Rating - Rear IP65

Operating Temperature -20ºC to +50ºC

Operating Humidity 10% to 95%

Lifetime 100,000 hours
