When thinking about Video Wall technology the major choice you will be faced with is whether LED or LCD is the way to go. Both have their unique advantages and strengths depending on your requirements, expectations and resources.

Between each module and cabinet there are no seams across the entire display, creating a seamless display.

Between each panel there is an ultra-narrow bezel that can be as thin as 0.8mm screen to screen.

Fill any space thanks to the smaller cabinet sizes and modular design, is not bound to 16:9 aspect ratio.

As standard come in a fixed 16:9 aspect ratio, ideal for displaying High Definition content but more limiting.

Both indoor and outdoor options available.

Can only be used for indoor applications.

Ultra high contrast ratios achieve true blacks and an unbelievable colour range.

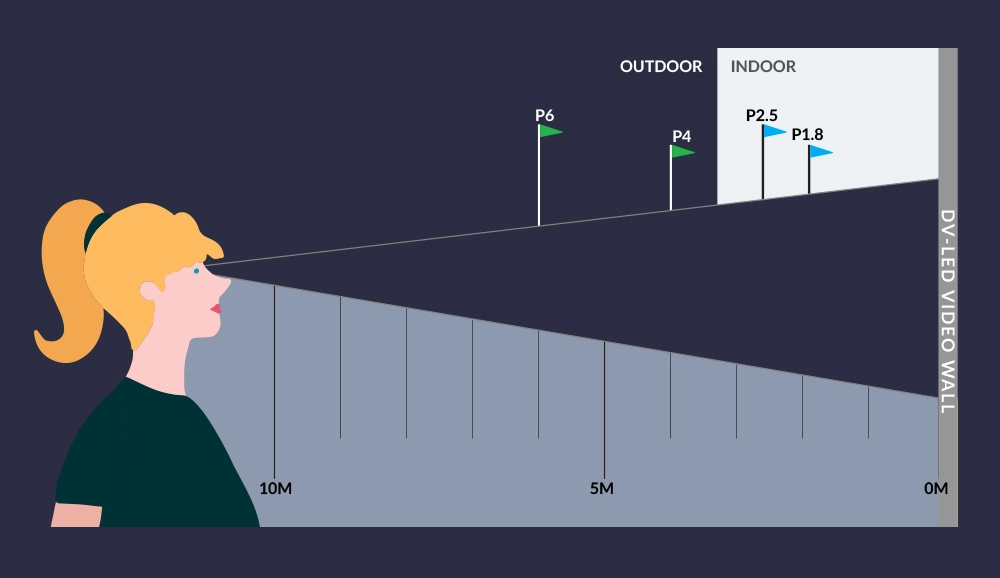

Smaller pixel pitch can potentially produce higher resolutions, depending on content and media player.

Bespoke installation required.

More user friendly hardware.

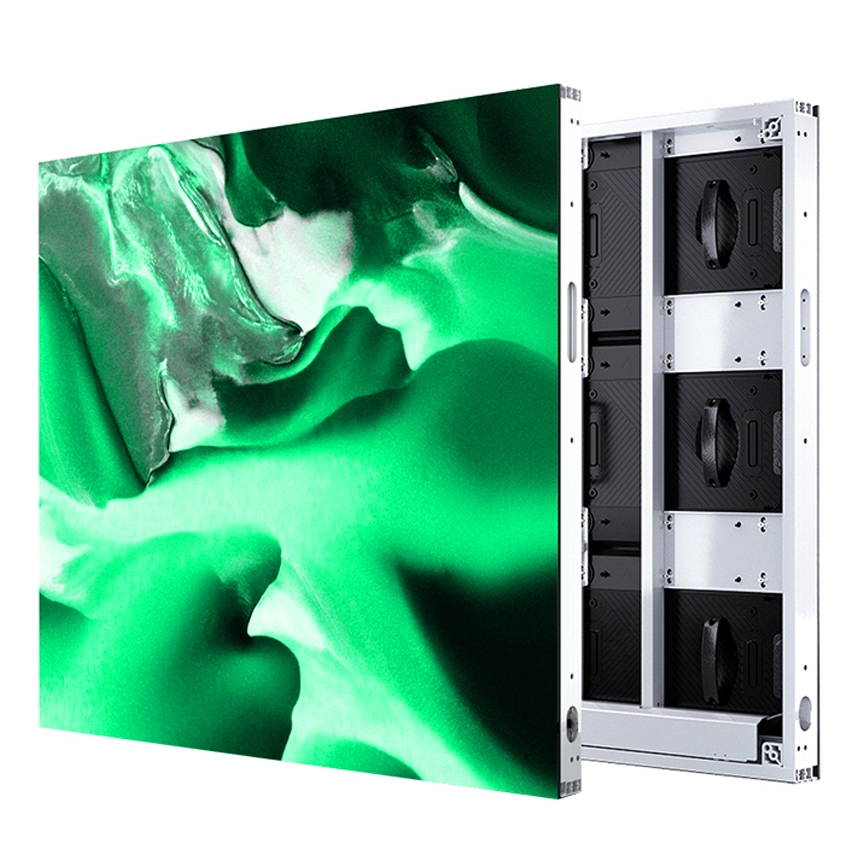

Robust, rugged enclosures.

Very fragile LCD panels can be damaged easily during installation.

Unbelievable levels of brightness can be achieved, ideal for outdoor applications that need to compete with the sun.

Designed specifically for indoor use so not available in high brightness.

Can be accessed from front or rear making maintenance flexible and simple.

Typically use pop-out wall mounts for serviceability.

100,000 hours lifetime.

70,000 hours lifetime.

Premium solution.

Affordable option.

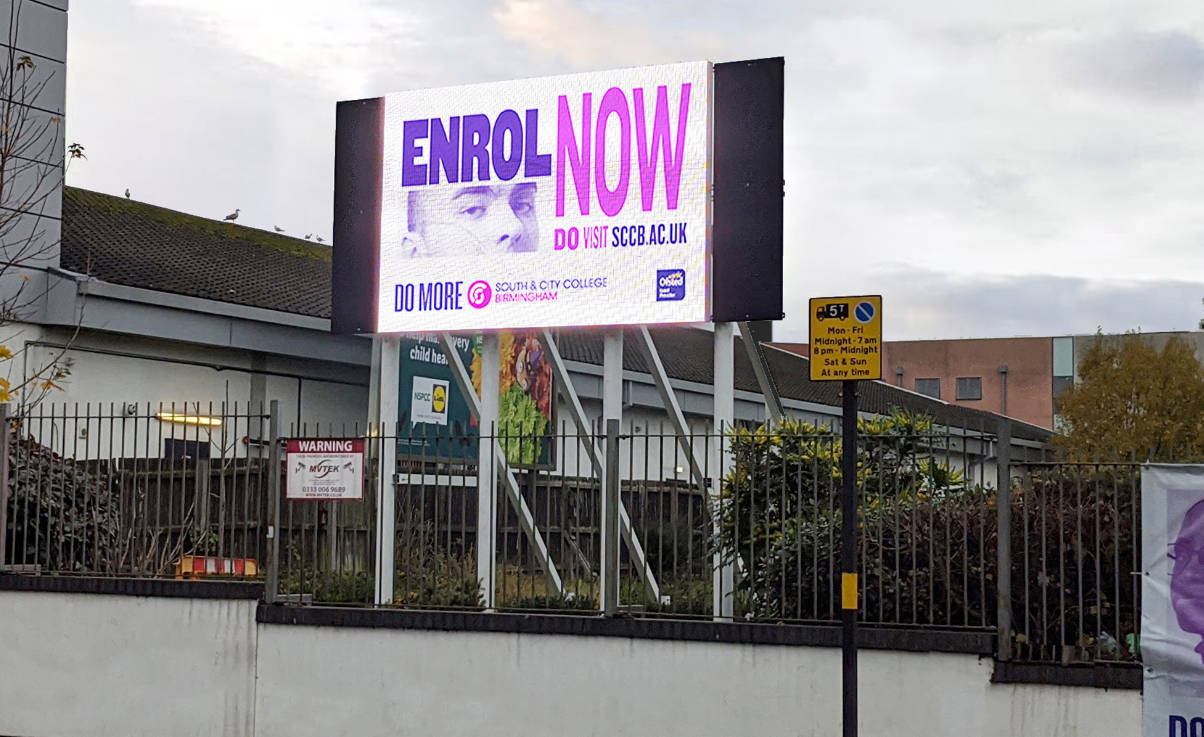

Direct View LED solutions allow you to deliver your message on a grand scale and can be a very powerful tool. LED technology allows you to create Video Walls for both indoor and outdoor applications. Iconic locations such as New York’s Times Square and London’s Piccadilly Circus are dominated by outdoor Direct View LED screens and tourists flock to see the advertising displays. LED technology is versatile thanks to protective IP-rated enclosures that shield the display from all outdoor weather conditions. Another huge advantage of LED is brightness; when compared to LCD technology indoor Direct View LEDs are also nearly twice as bright. Outdoor Direct View LED displays are more than 12 times the brightness of most standard LCD Digital Signage displays to help them compete with direct sunlight.

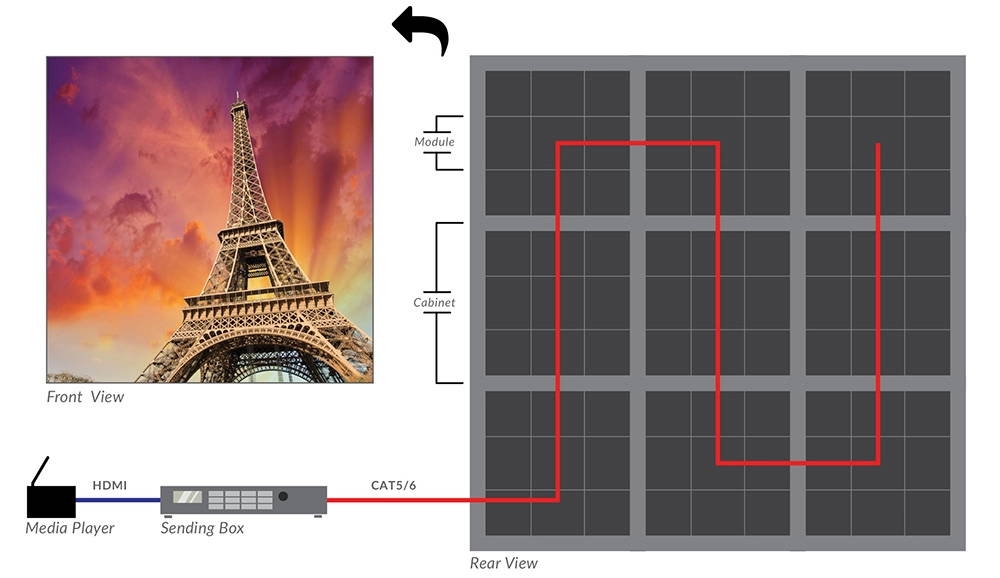

An Direct View LED solution is made up of several components. The first of which is the media player, which sends the content via HDMI to the sending box. The sending box processes this video signal and sends it to the receiving card of the first LED cabinet. Each cabinet, which is comprised of separate LED modules, is then daisy chained to one another using a CAT5 cable to carry this signal.

All Digital Signage solutions require a commercial display, a media player and a content management system; this theory is no different with a Direct View LED display. Just like with our LCD based Digital Signage solutions, we can provide an all-in-one Direct View LED solution. By sourcing all of the necessary components from one supplier you can eliminate problems that arise when supporting and maintaining a solution from separate manufacturers and software suppliers. Our software is more streamlined and user-friendly, as we are not competing with traditional Digital Signage software companies who add an abundance of generally redundant features. Using over a decade of industry experience, research and development we have developed a content management system that works in sync with our Direct View LED displays.
