4,800 Lumens Brightness
See crystal-clear, vibrant images from a distance in daylight or medium to large rooms with up to 4,800 lumens of brightness.
Acer ColorBoost3D™
Reproduce lifelike colors and brilliantly bright images with Acer ColorBoost3D™ technology.
Acer ColorSafe II
Enjoy consistent, natural colors with ColorSafe II technology, which controls the dynamic RGB levels to prevent color decay.
Acer LumiSense™
Acer LumiSense™ adjusts the image brightness and color saturation based on the content you're viewing.
Acer BlueLightShield™
Protect your eyes from unnecessary strain by utilizing Acer BlueLightShield™ technology.
Integrated Speakers
What you hear will be just as good as what you see with the powerful built-in speakers.
| Display/Image | |||
| Projection System | DLP™ | Light Source | Lamp 220 W |
| Light Source Life | 6000 hours (Standard), 10000 hours (ECO) | Native Resolution | 1024 x 768 |
| Maximum Resolution | 1920 x 1200 | Brightness | 4800 ANSI Lumens (Standard), 3600 lm (ECO) |
| Aspect Ratio | 4:3 (Native), 16:9 (Supported) | Contrast Ratio | 20,000:1 |
| Image Size | 23" (58.4 cm) ~ 300" (762 cm) | Throw Ratio | 1.94 to 2.16 (1295.4 mm@2000 mm) |
| Zoom Ratio | 1.1x | Lens | F = f/2.41~f/2.53, f = 21.85 mm~24.01 mm, Manual Zoom, Manual Focus |
| Projection Offset (Half-Height) | 130% | Projection Mode | Front, Rear, Ceiling, Rear Ceiling |
| Vertical Sync Rate | 24 ~ 120 Hz | Horizontal Sync Rate | 15 to 100 kHz |

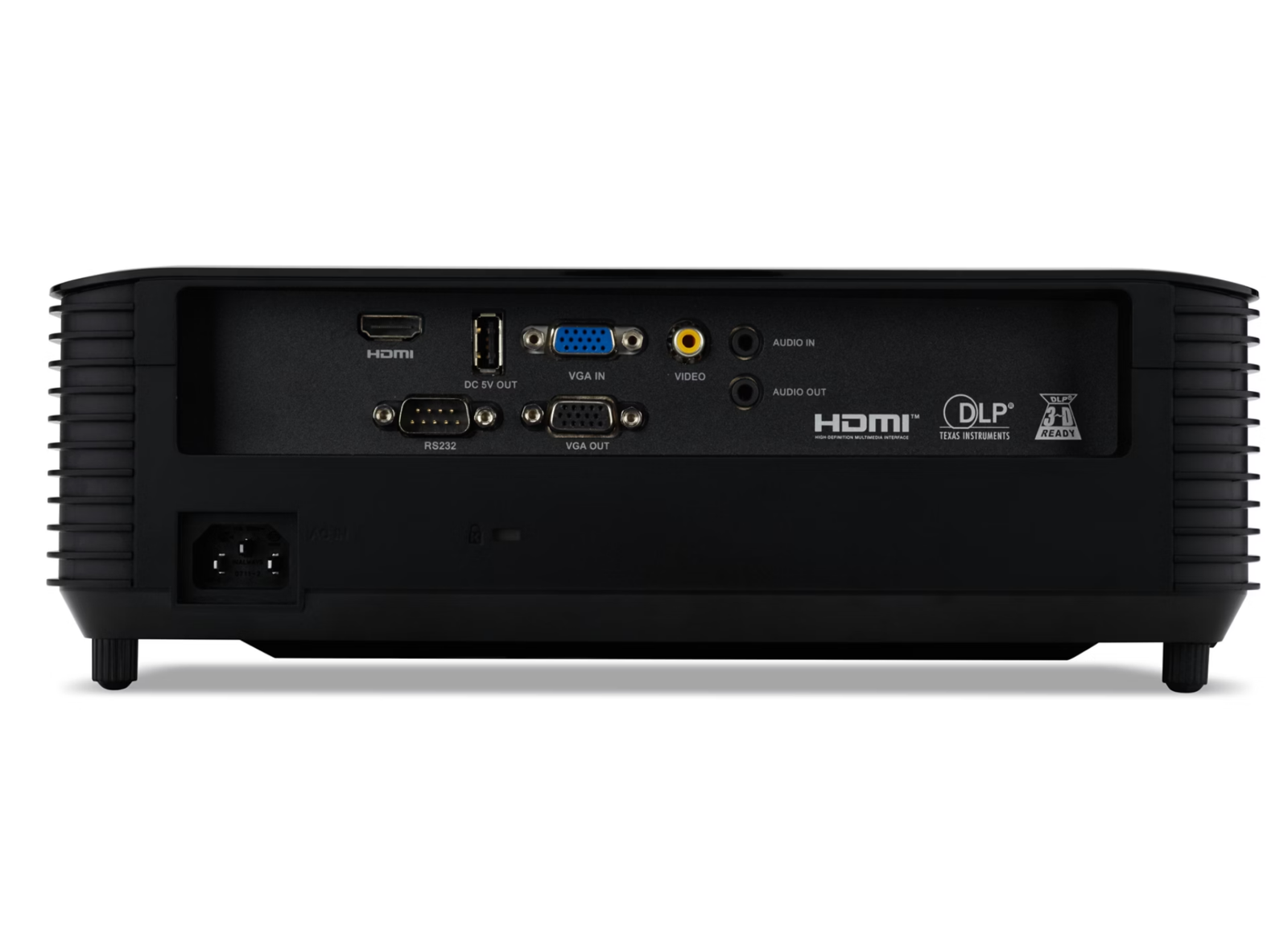

| Interfaces/Ports | |||
| VGA In | x1, D-sub | VGA Out | x1, D-sub |
| Video | x1, RCA | Audio In | x1, 3.5mm mini jack |
| Audio Out | x1, 3.5mm mini jack | S/PDIF | — |
| Speaker | x1, 3 W Speaker | ||
| Power Description | |||
| Power Consumption | 275Watts (Standard), 205 W (ECO), 0.5Watts (Standby) | ||
| Physical Characteristics | |||
| Installation | Ceiling Mountable | Dimensions (W x D x H) | 313 mm (12.32") x 240 mm (9.45") x 113.70 mm (4.48") |
| Weight (Approximate) | 2.8 kg (6.2 lb) | ||
| Miscellaneous | |||
| Optional Accessories | Carrying Case (MC.JPV11.005) | Lamp | MC.JR711.008 |
| Standard Accessories | X1228H DLP Projector | AC Power Cord | Included |
| Battery for remote control | Included | Lens Cap | Included |
| Quick Start Guide | Included | Remote Control | Included |
| Security Card | Included | VGA Cable | Included |
