Acer X1328 WXGA DLP Projector - 5000 Lumens
SKU: MR.JX611.003
£293.04 (Excl. VAT)
- Brightness (Lumens) 3000 - 5000
- Contrast Ratio 15,000:1 – 20,000:1
- Native Resolution WXGA
- Throw Ratio 1.54 - 1.72
- Light Source Lamp
- Native Aspect Ratio 16:10 Widescreen
- Description
- Specifications
- Downloads
-
Acer X1328 WXGA DLP Projector - 5000 Lumens
Discover the Acer X1328, a versatile digital projector designed to deliver high-quality visuals for cinema, presentations, and multimedia applications. With a brightness of 5000 ANSI lumens and a contrast ratio of 20,000:1, it produces vivid, clear images even in well-lit environments. Supporting 1.07 billion colors, the Acer X1328 ensures that every presentation and movie is displayed in vibrant, lifelike quality.

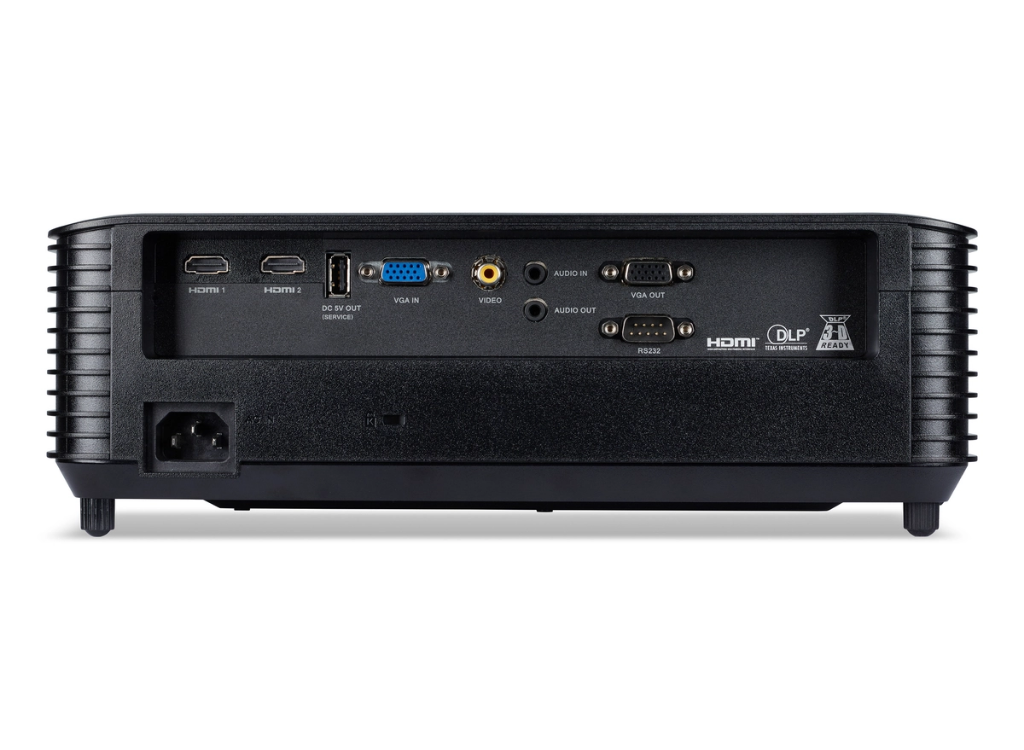

The projector is equipped with a range of connectivity options, including HDMI, VGA, and audio inputs, making it easy to connect to computers, gaming consoles, and other devices. Its portable design, combined with features like auto vertical keystone, manual zoom, and support for both 16:9 and 4:3 aspect ratios, allows for flexible setup in any setting. Whether for business presentations, classroom learning, or home entertainment, the Acer X1328 offers an immersive viewing experience with its DLP 3D Ready capability and specialized viewing modes tailored for different content types, from dynamic sports events to engaging gaming sessions. -
Category Details Brand Acer SKU 10447114 Manufacturer Part # MR.JX611.003 EAN 4711474020130 Features Acer ColorBoost3D, WXGA Resolution, Acer LumiSense, Acer BlueLightShield, Acer ColorSafe II, Automatic Vertical Keystone Correction, Eco-Mode Projector Projector Brightness (Economic Mode) 4000 ANSI lumens Projector Brightness 5000 ANSI lumens Projection Technology DLP Horizontal Scan Range 15 - 100 kHz Number of Colours 1.07 billion Native Aspect Ratio 16:10 Projection Distance 1 - 10 m Supported Aspect Ratios 4:3, 16:9 Contrast Ratio (Typical) 20000:1 Vertical Scan Range 24 - 120 Hz Projector Native Resolution WXGA (1280x800) Screen Size Compatibility 685.8 - 7620 mm (27 - 300") Uniformity 80% Keystone Correction, Vertical -40 - 40 Lens System Throw Ratio 1.54 - 1.72 Focal Length Range 21.85 - 24 mm Zoom Capability Yes Focus Manual Zoom Ratio 1.1:1 Zoom Type Manual Optical Zoom 1.1x Digital Zoom 2x Aperture Range (F-F) 2.41 - 2.53 Offset 125 Multimedia Number of Built-in Speakers 1 Built-in Speaker(s) Yes RMS Rated Power 3 W Light Source Lamp Type OSRAM Light Source Type Lamp Service Life of Light Source (Economic Mode) 10000 h Lamp Power 240 W Lamps Quantity 1 lamp Service Life of Light Source 5000 h Other Features Security Features Security Bar Special Features Acer ColorBoost3D, Acer LumiSense, Acer BlueLightShield, Acer ColorSafe II, Automatic Vertical Keystone Correction, Eco-Mode Maximum Digital Resolution 1920 x 1200 pixels RS-232 Ports 1 Ports & Interfaces Audio (L/R) In 1 HDMI Ports Quantity 2 Component Video (YPbPr/YCbCr) In 1 HDMI Connector Type Full-size Audio (L/R) Out 1 Serial Interface Type RS-232 VGA (D-Sub) Ports Quantity 2 Composite Video In 1 USB 2.0 Type-A Ports Quantity 2 HDMI Version 1.4b DVI Port No Design Cable Lock Slot Type Kensington Placement Ceiling Product Colour Black Market Positioning Business LED Indicators Light, Power, Temperature Weight & Dimensions Height 113.7 mm Width 313 mm Depth 240 mm Weight 2.8 kg Packaging Content Cables Included AC, VGA Packaging Content Lens Cap, Security Card Manual Yes Batteries Included Yes Remote Control Included Yes Logistics Data Quantity per Pack 1 pc(s) Video Analog Signal Format System NTSC, PAL, SECAM Supported Graphics Resolutions 1920 x 1200 (WUXGA) Digital Signal Format System EDTV, HDTV, SDTV Network Wi-Fi No Features Noise Level (Economic Mode) 27 dB HDCP Yes Software Windows Operating Systems Supported Yes Mac Compatibility Yes Other Operating Systems Supported ChromeOS Operational Conditions Operating Temperature (T-T) 0 - 40°C Operating Relative Humidity (H-H) 0 - 80% Power AC Input Voltage 100 - 240 V Power Consumption (Typical) 275 W Power Consumption (Standby) 0.5 W Power Source AC Display Built-in Display No -
Description Downloads Product Sheet Downloads
