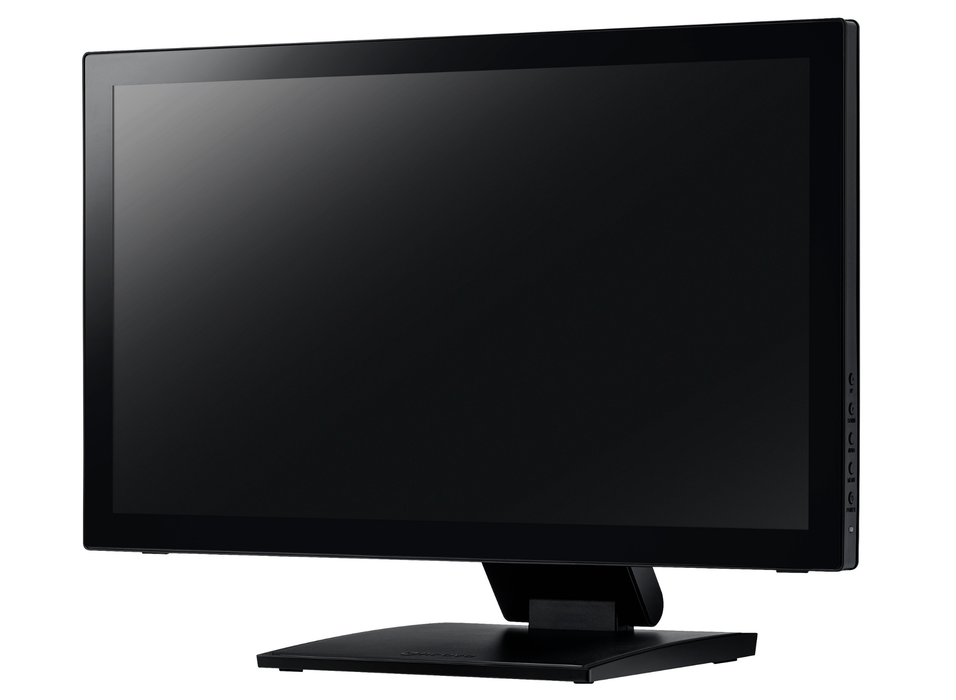

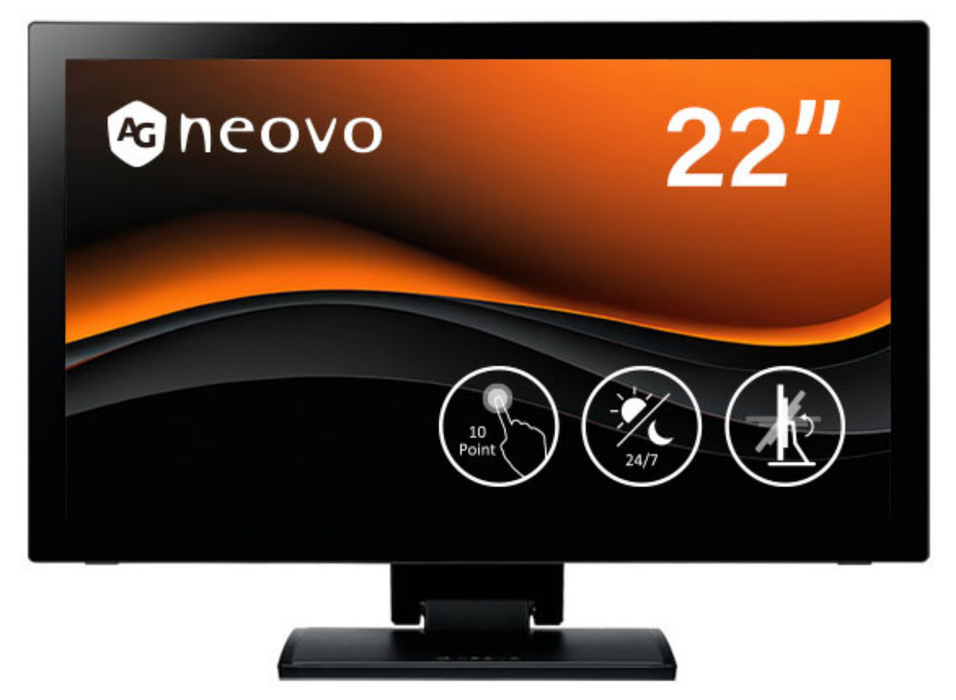

AG Neovo TM-22 22" Full HD Touch Screen Monitor
SKU: TM-22
£293.81 (Excl. VAT)
- Display Size22"
- Operating SystemAndroid
- VESA Patterns100x100
- Panel TypeTN Panel
- ResolutionFull HD (1080p)
- Response Time3ms
- Description
- Specifications
- Downloads
-
Smooth 10-Point PCAP Touch Experience
Utilizing projected capacitive (PCAP) 10 point multi-touch technology, the TM-22 22-inch touch screen monitor delivers a smooth and precise touch response. Compatibility with Windows® 7, 8 & 10 touch functions and versatile connectivity makes connecting with media sources and peripheral devices easy. The TM-22 ergonomic monitor stand with tilt flexibility ranging from –5 to 90 degrees guarantees user comfort, making it an ideal choice for public access, like information kiosks and self-check-in kiosks.
10 Point Multi-Touch Monitor

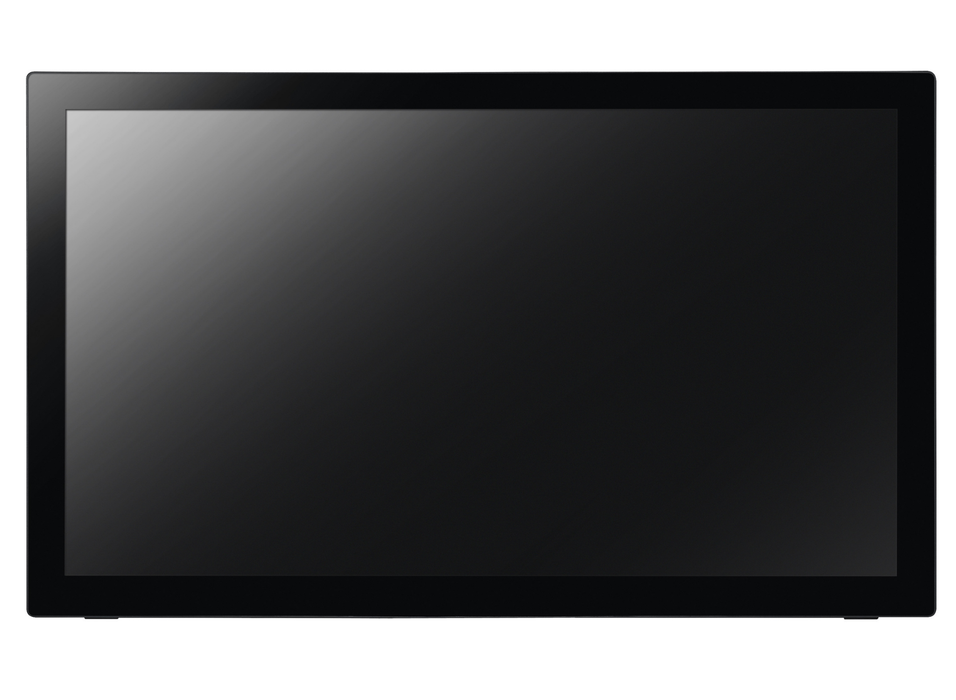

The TM-22 PCAP touch screen monitor, with 10-point touch capability, offers a smooth and responsive touch experience. Designed with a flat surface and edge-to-edge glass overlay, the TM-22 gives an invitingly modern appeal that fits the professional environment.

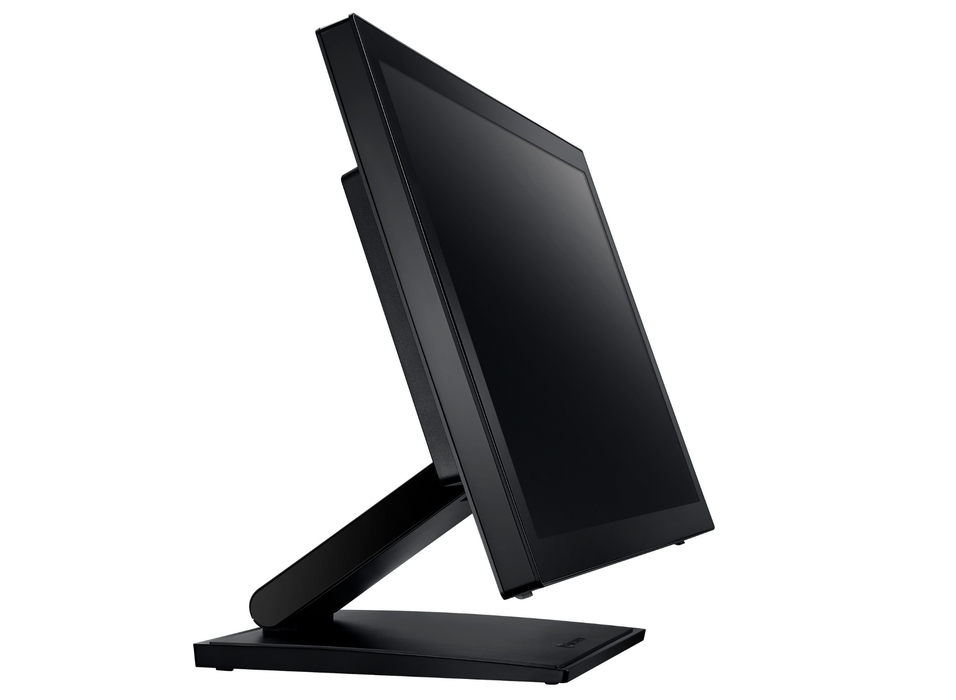

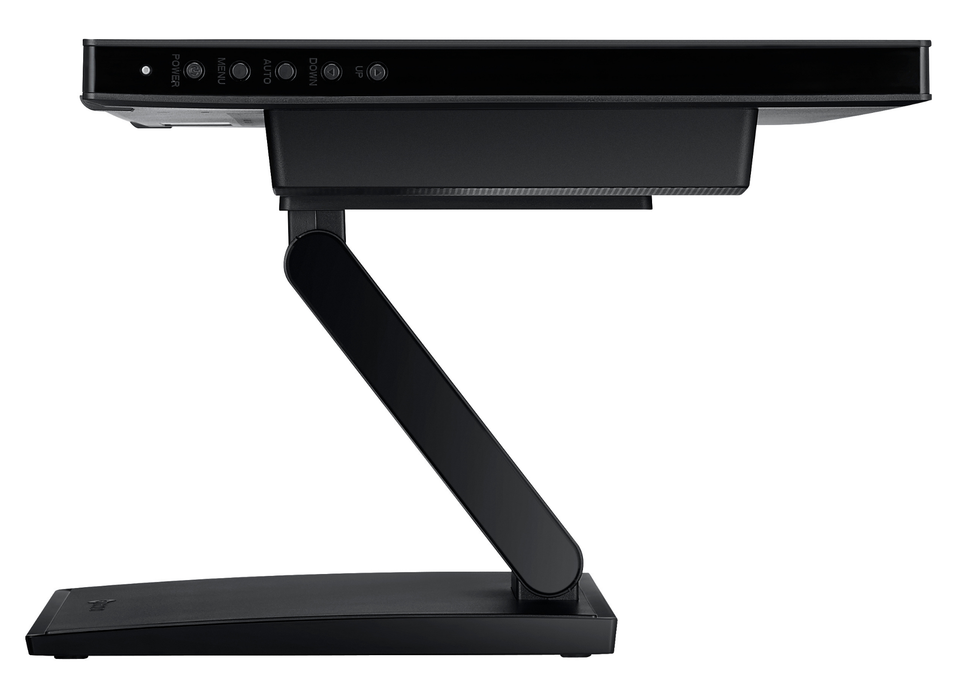

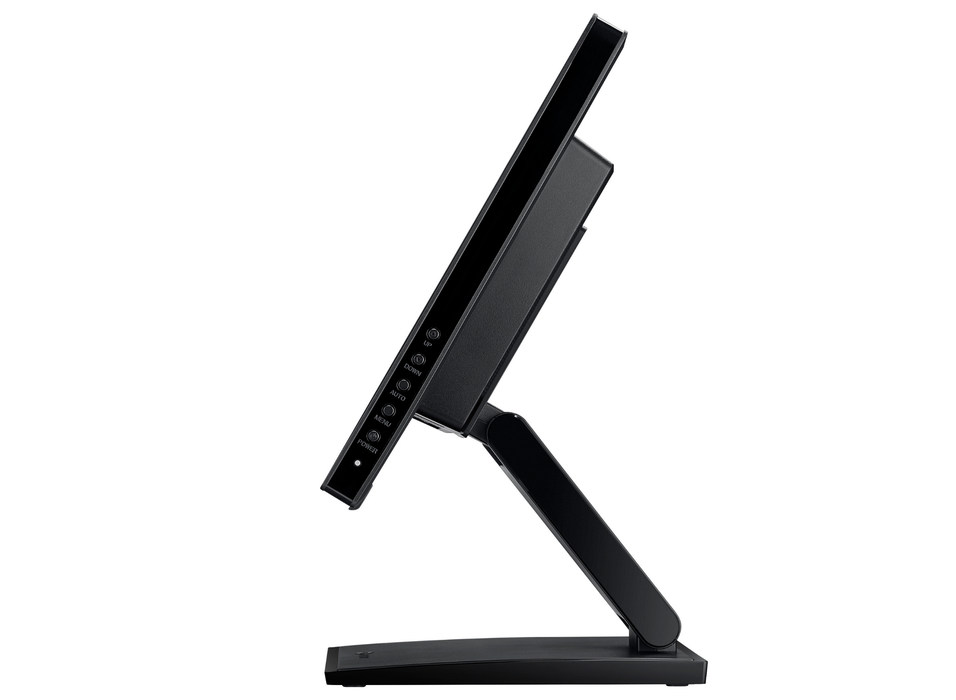

Ergonomic Monitors Maximise Users Comfort

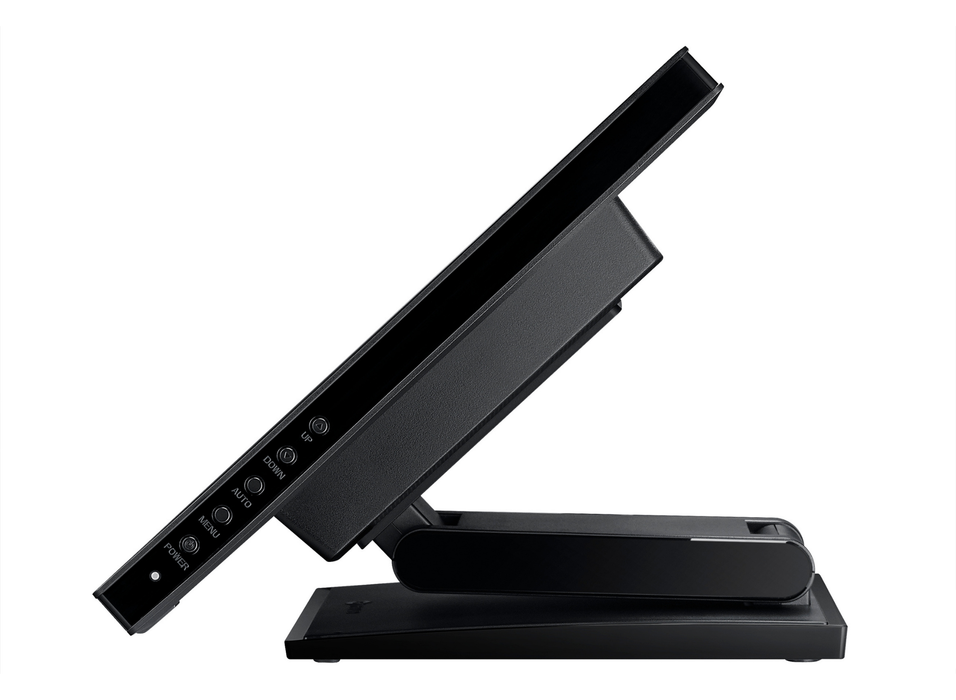

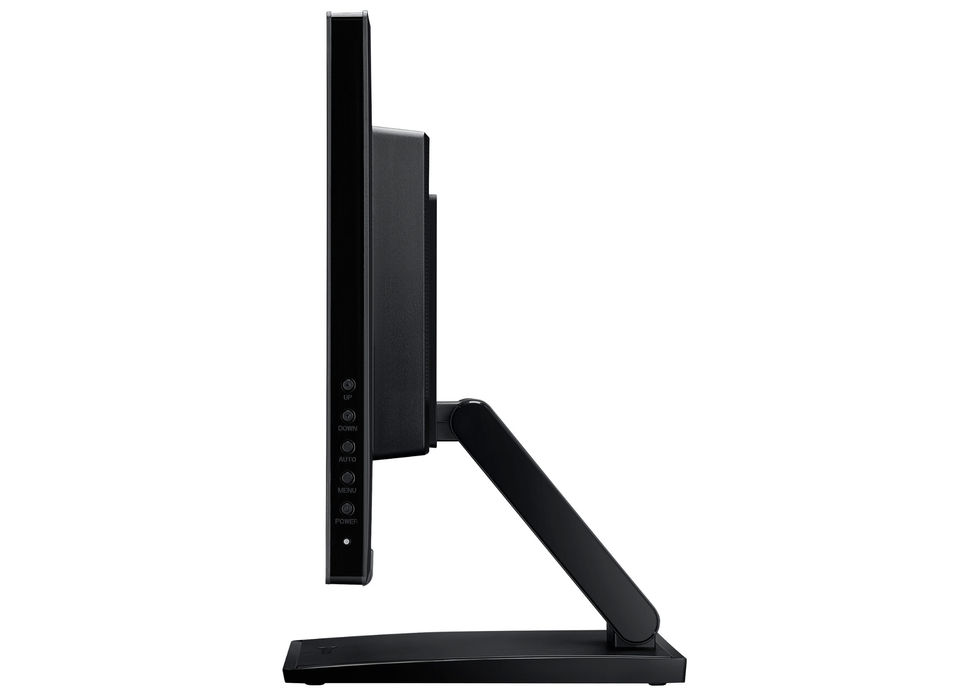

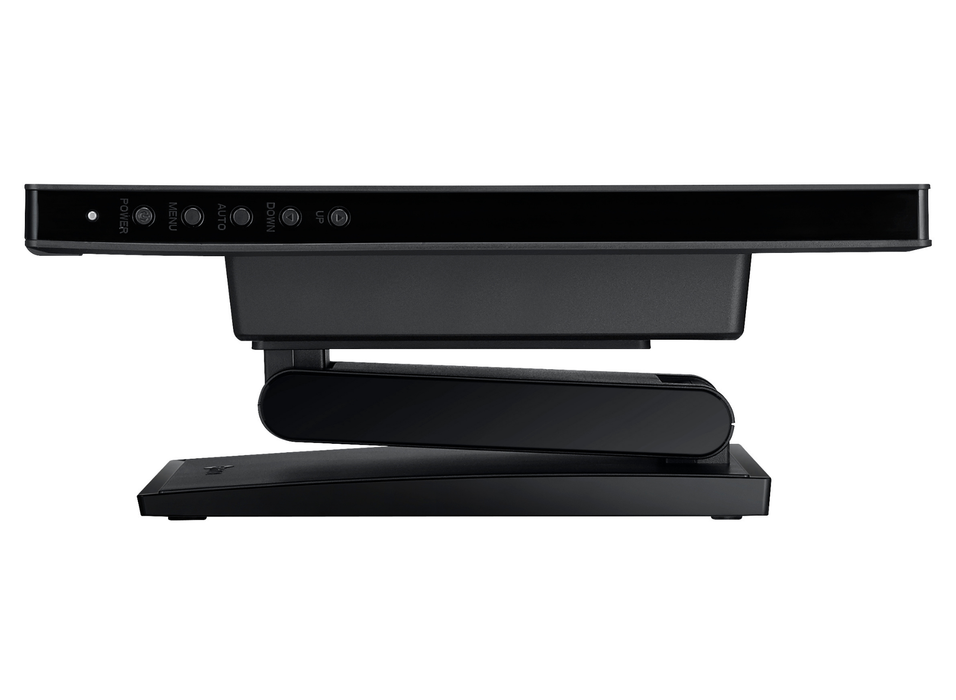

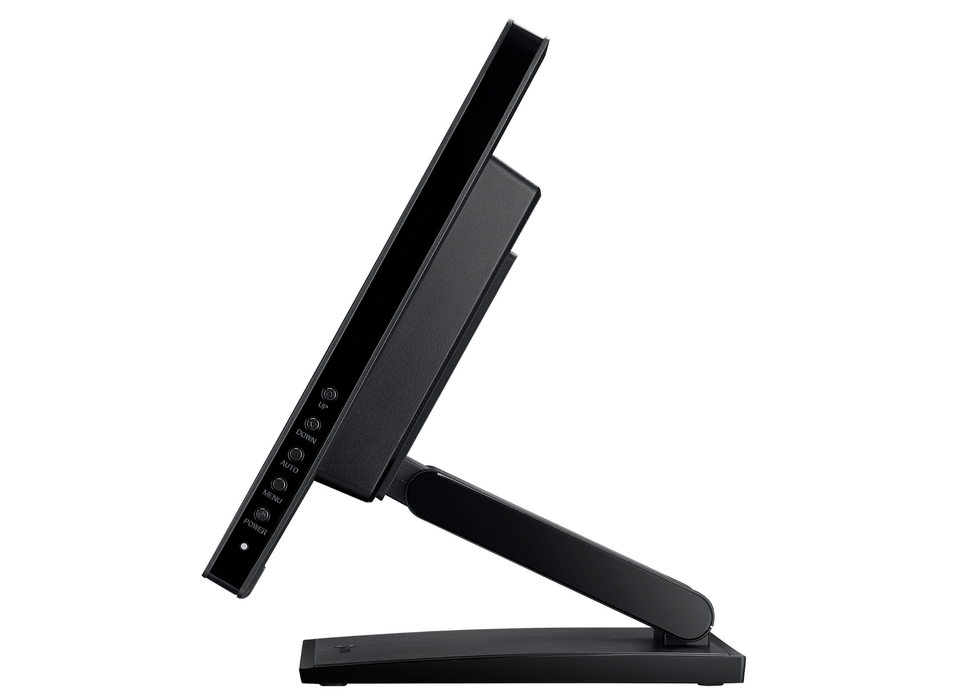

With an ergonomic monitor stand, the TM-22 touch screen provides height adjustability and a wide tilt range from –5° to 90° to optimise users’ ergonomic working position and productivity. Given a 178-degree wide viewing angle, it allows multiple users to view a single screen comfortably.
Easy System Integration

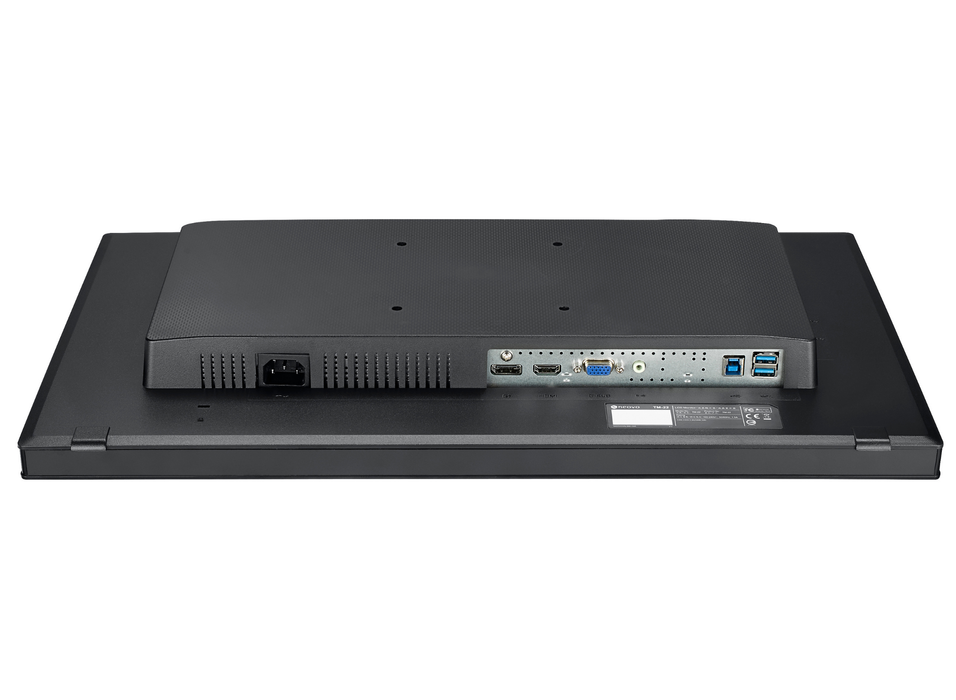

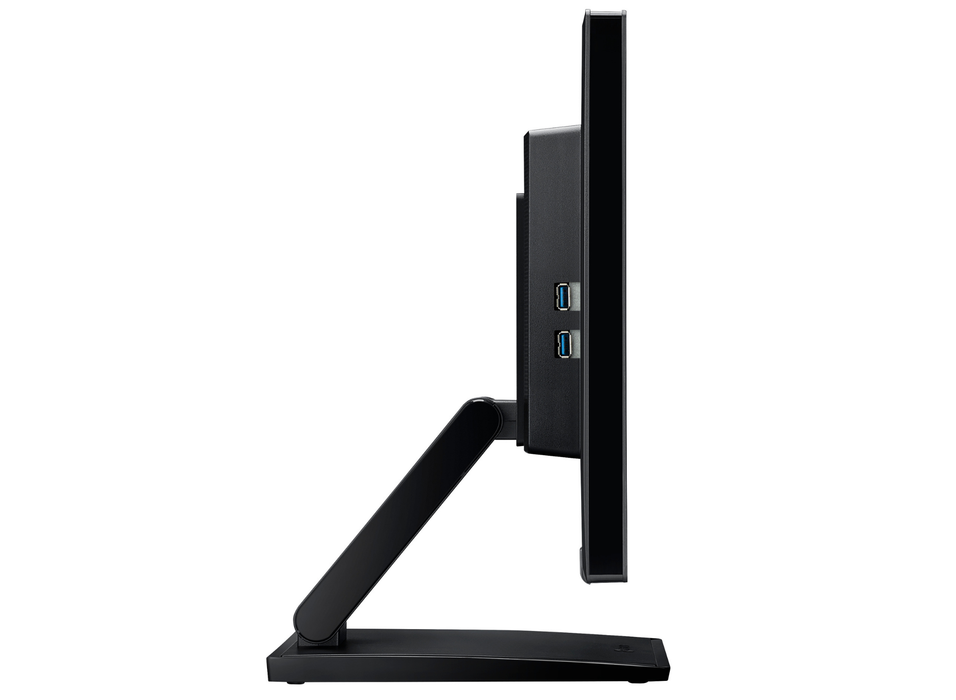

Plug-and-play multi-touch capability for systems with Windows 7/8/10, versatile connectivity (DisplayPort, HDMI, VGA) and built-in speakers enable effortless system integration. The built-in USB Port (USB 3.0) also allows a touch monitor easy connect to peripheral devices.

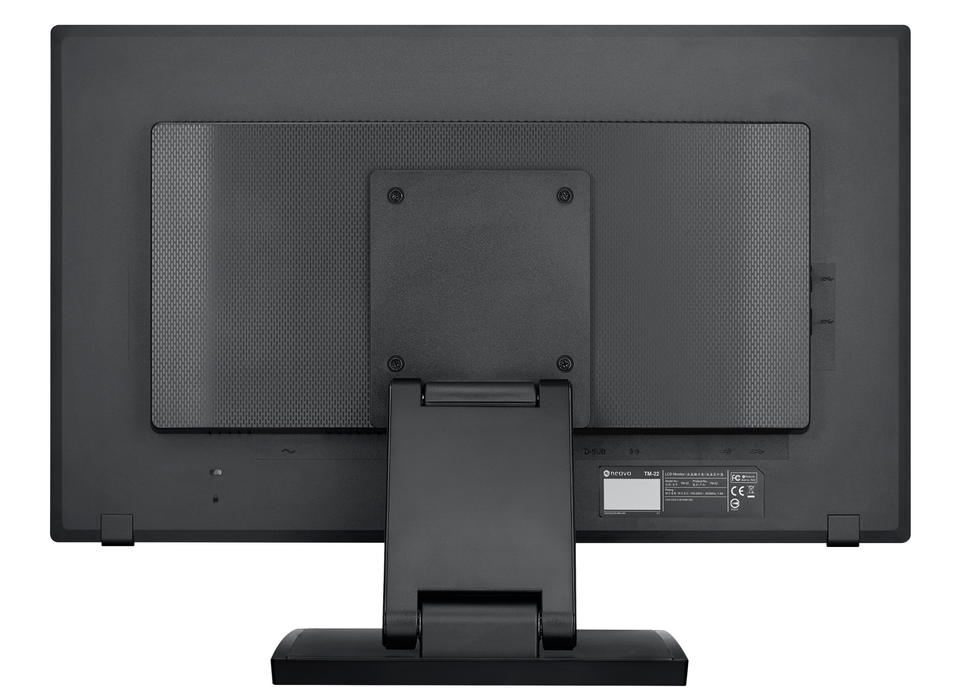

Multiple Mounting Options Support Installation Flexibility
This 22-inch touch screen monitor can be easily integrated with various mounting options, from its ergonomic monitor stand to wall mounts and other monitor mounts that feature VESA mounting patterns. -
Panel Panel Type TN Panel Size 21.5" Max. Resolution FHD 1920 × 1080 Pixel Pitch 0.248 mm Brightness 250 cd/m² Contrast Ratio 20,000,000:1 (DCR) Viewing Angle (H/V) 170°/160° Display Colour 16.7M Response Time 3 ms Surface Treatment Anti-Glare Treatment, 3H Hard Coating Frequency Frequency (H) 30 kHz–83 kHz Frequency (V) 50 Hz–76 Hz Signal Input and Connectivity DisplayPort × 1 HDMI 1.3 × 1 VGA 15-Pin D-Sub × 1 USB USB HUB (3.0 × 4) Audio Internal Speakers 2W × 2 Touch Screen Technology Projective Capacitive Positional Accuracy ± 1.0 mm Panel Interface USB (Type-B) Multi-touch Plug & Play 10-point touch for Windows® 7, 8, 10 and 11 Single Touch Support by Driver Windows XP Power On Mode 14W Standby Mode < 0.5W Off Mode < 0.3W Glass Thickness 2.4 mm (0.09") Pencil Hardness 8H IK Rating IK07 Operating Conditions Temperature 0°C–40°C (32°F–104°F) Humidity 10%–85% (non-condensing) Storage Conditions Temperature -25°C–55°C (-13°F–131°F) Humidity 5%–93% (non-condensing) Mounting and Stand VESA FPMPMI Yes (100 × 100 mm) Tilt -5° to 90° Height Adjustment 122.0–387.4 mm Kensington Security Slot Yes Dimensions Product with Base (W × H × D) 522.4 × 387.4 × 238.5 mm (20.6" × 15.3" × 9.4") Product without Base (W × H × D) 522.4 × 318.4 × 57.2 mm (20.6" × 12.5" × 2.3") Packaging (W × H × D) 586.0 × 422.0 × 186.0 mm (23.1" × 16.6" × 7.3") Weight Product without Base 3.9 kg (8.6 lb) Packaging 8.1 kg (17.9 lb) Regulation Approval Certifications & Compliance FCC, CE, LVD, WEEE, RoHS, REACH, UKCA Accessories Supplied Accessories Audio Cable, CD, HDMI Cable, Power Cord, USB Cable, VGA Cable Optional Wall Mounts (Landscape Only) PMK-01, WMK-01, WMK-03 -
Description Downloads Datasheet Download User Manual Download Technical Drawing Download
