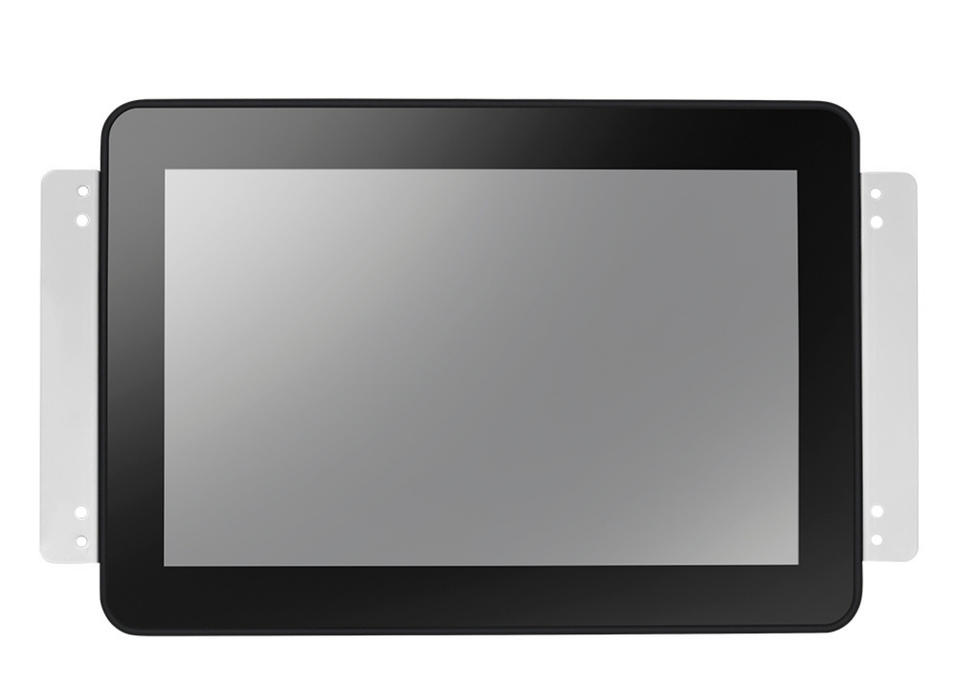

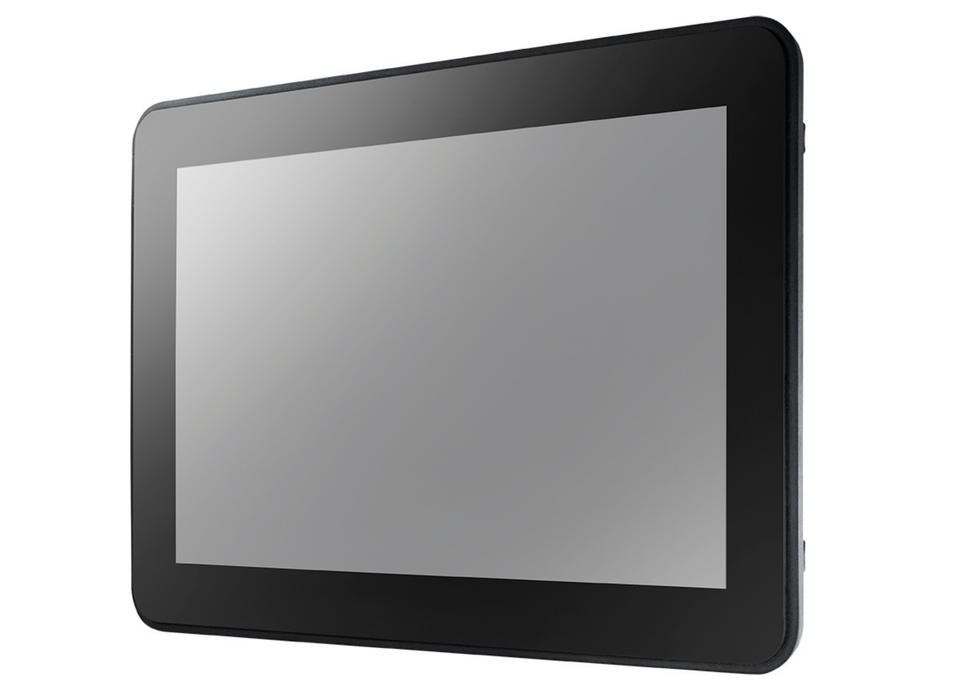

AG Neovo TX-10 10" 10pt WXGA Touch Screen Monitor
SKU: TX-10
£355.14 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Reliable Touch Control for Kiosks and Embedded Applications

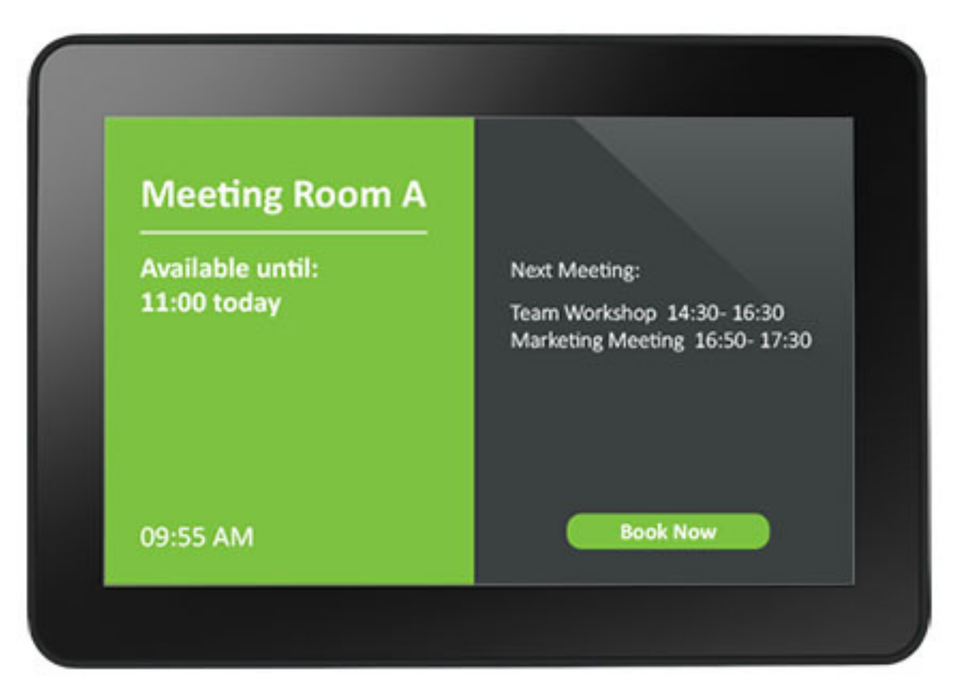

The TX-10 10-inch touch screen monitor brings the experience of a tablet into the form factor of a monitor. Its foam seal design supports seamless integration into kiosks and its front-side IP65 rating protects the screen from dust and water. External mounting brackets are provided for installation in various applications — conference room schedule display, self-service kiosks, in-store interactive signage or control panels. Flexibility in either landscape or portrait installation, the TX-10 touch screen is the perfect fit.
Functional and Reliable for Round-the-Clock Use
Using projected capacitive (PCAP) touch technology, the TX-10 touch screen has 10 point multi-touch capability, gives the user a higher precision, and brings the same touch experience as using a tablet or smartphone. And this functionality is backed by a high-impact resistant screen glass and a high reliability level for around-the-clock operations.
Water and Dust Resistant Design

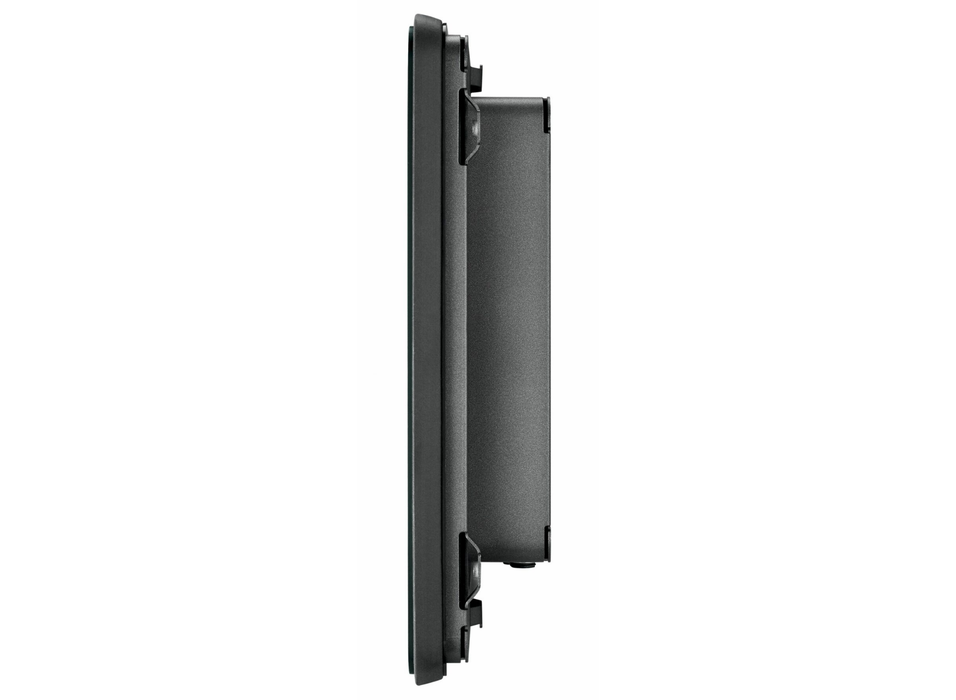

The front-side IP65 rating protects the touch screen from water and dust. The outer edge of the display is plastic resin bezels and a foam seal finish, ensuring a seamless, airtight fit and protection from dust invasion. Perfect for high-use applications like kiosks or control panels.
Cable Management System

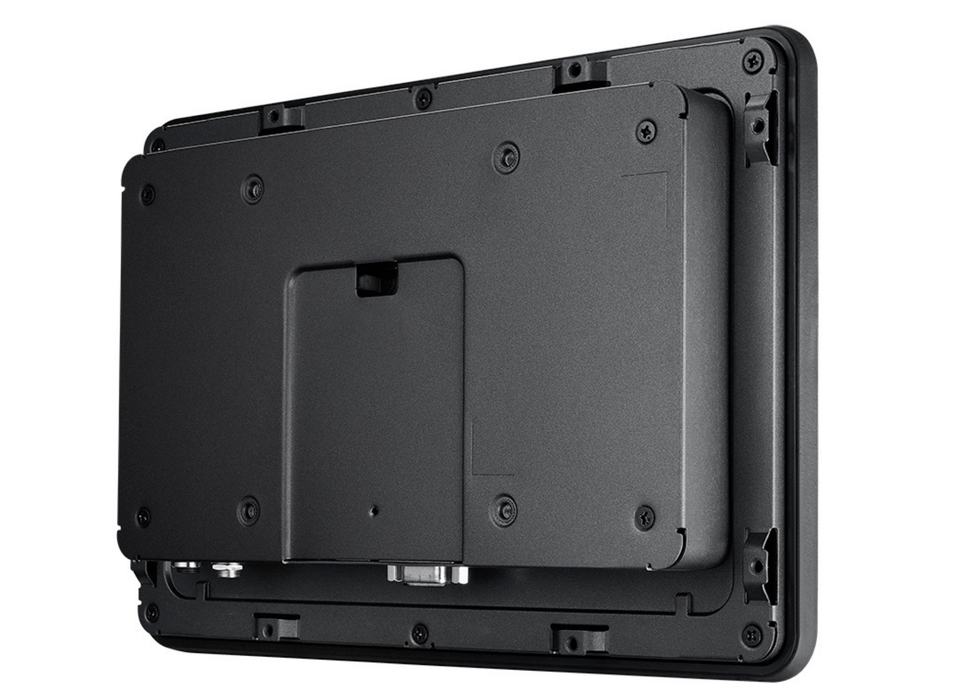

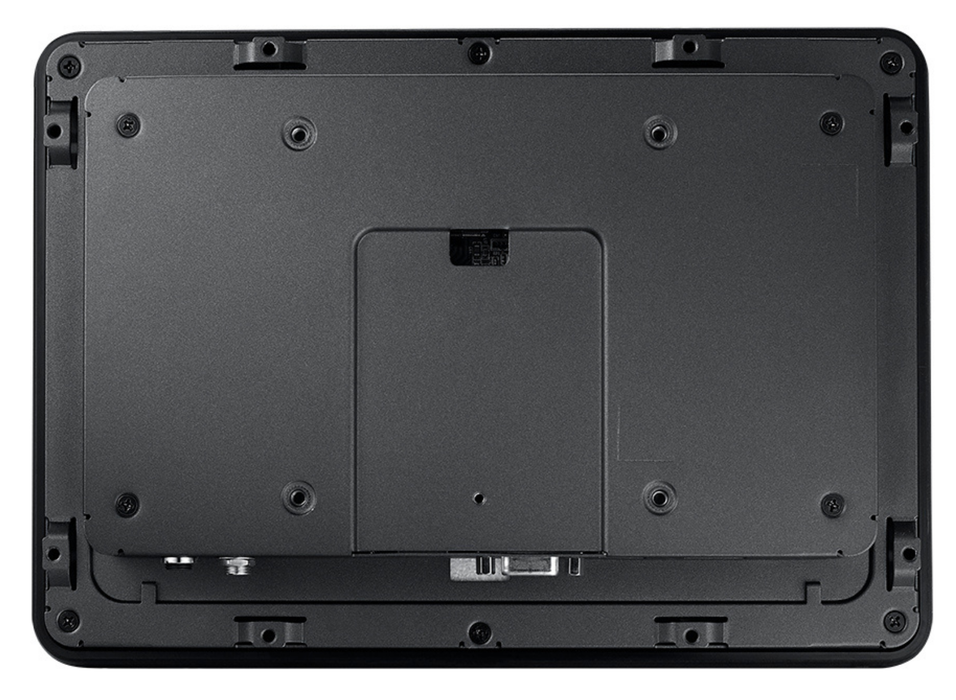

Cleanliness and orderliness are key in commercial and industrial settings. A lockable power adapter and cable organizer at the back end of the touch screen keep cables neat and in order, preventing loose, messy, or disconnected cords.
Easy System Integration

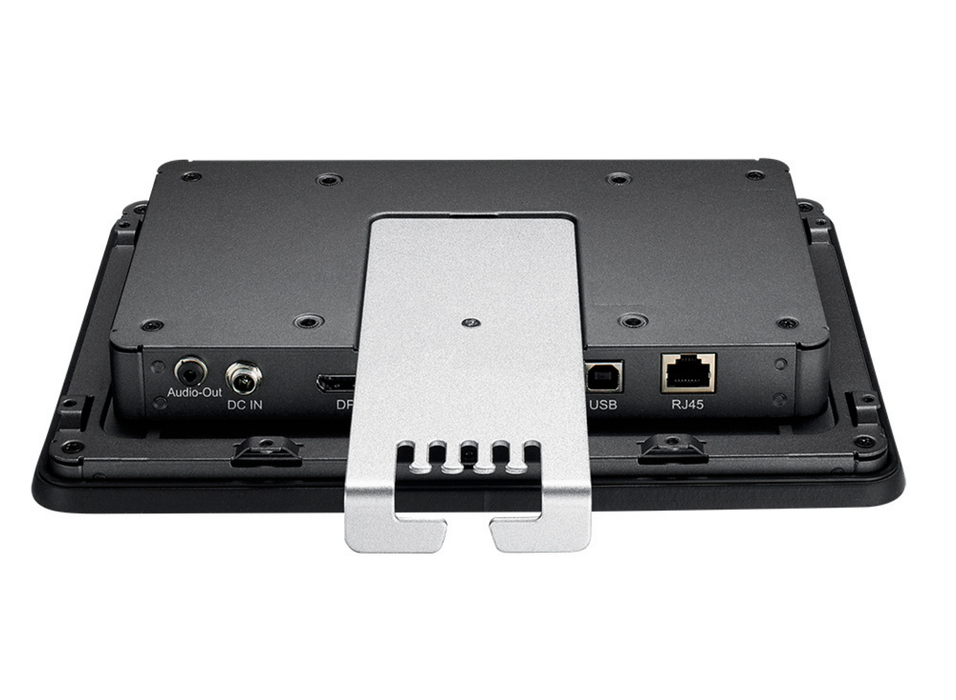

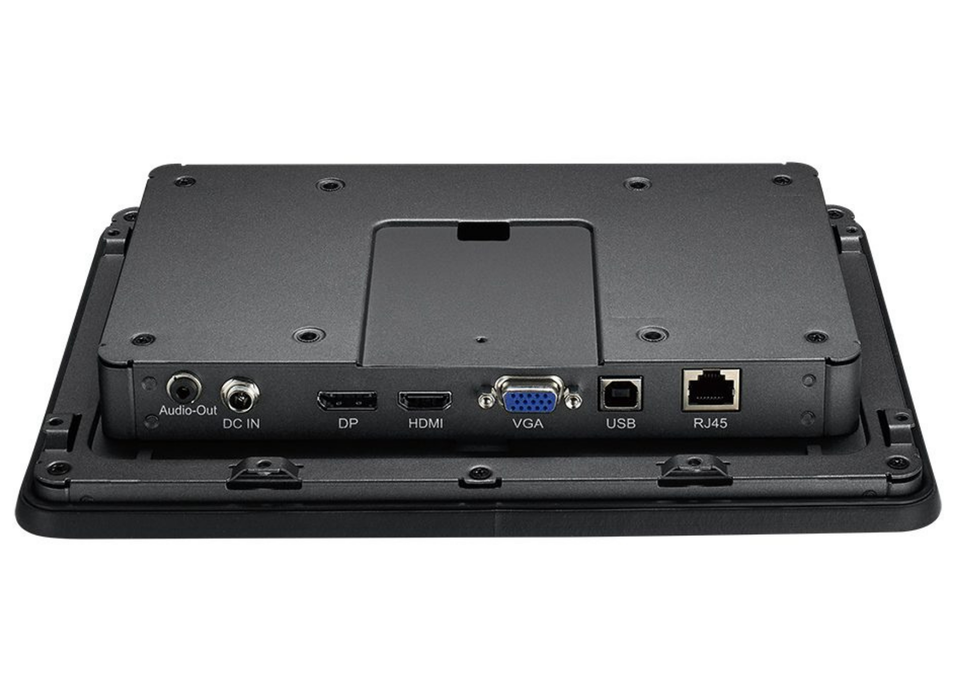

Plug-and-play multi-touch capability for Windows 7/8/10 and versatile connectivity (DisplayPort, HDMI, VGA) enable effortless system integration and facilitate users to connect to various devices.

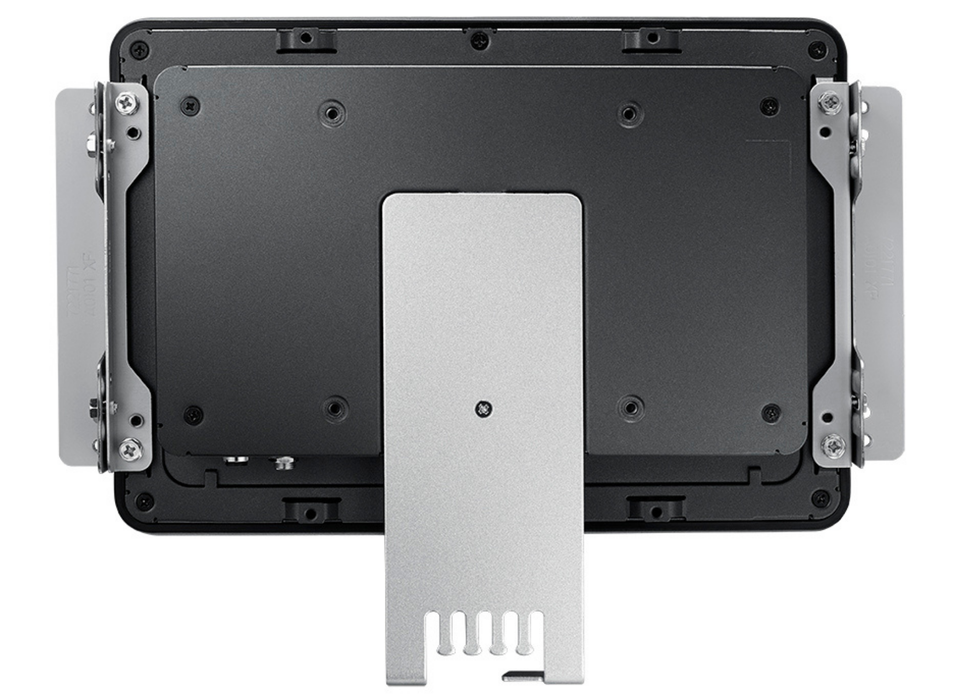

Mount with Flexibility

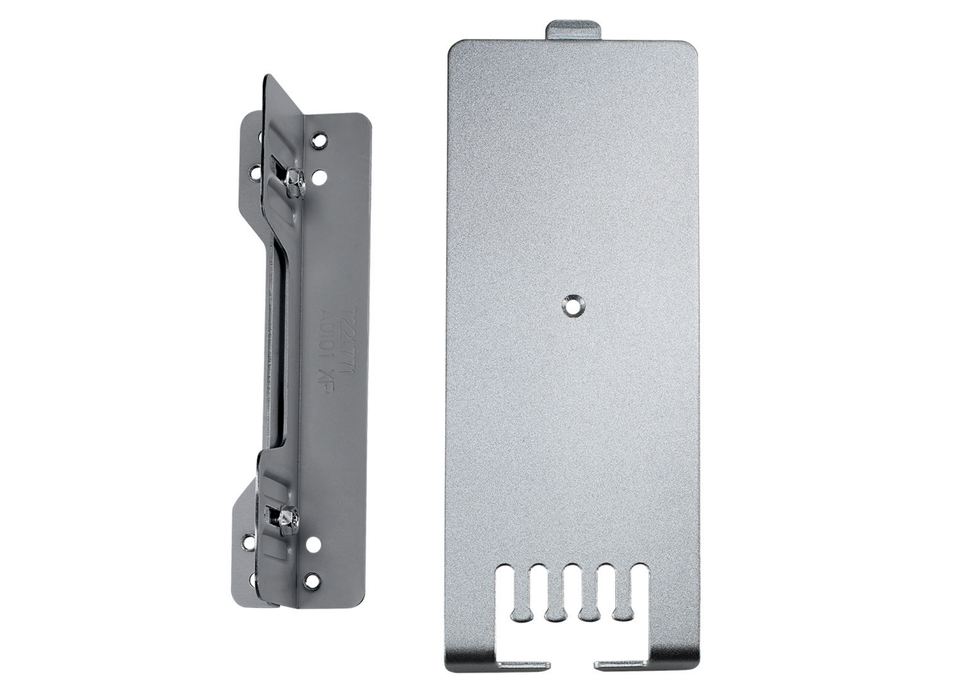

AG Neovo equipped this 10-inch touch screen monitor with external open frame brackets. This allows users to mount the screen in their unique environment and purpose—in either landscape or portrait orientation. -

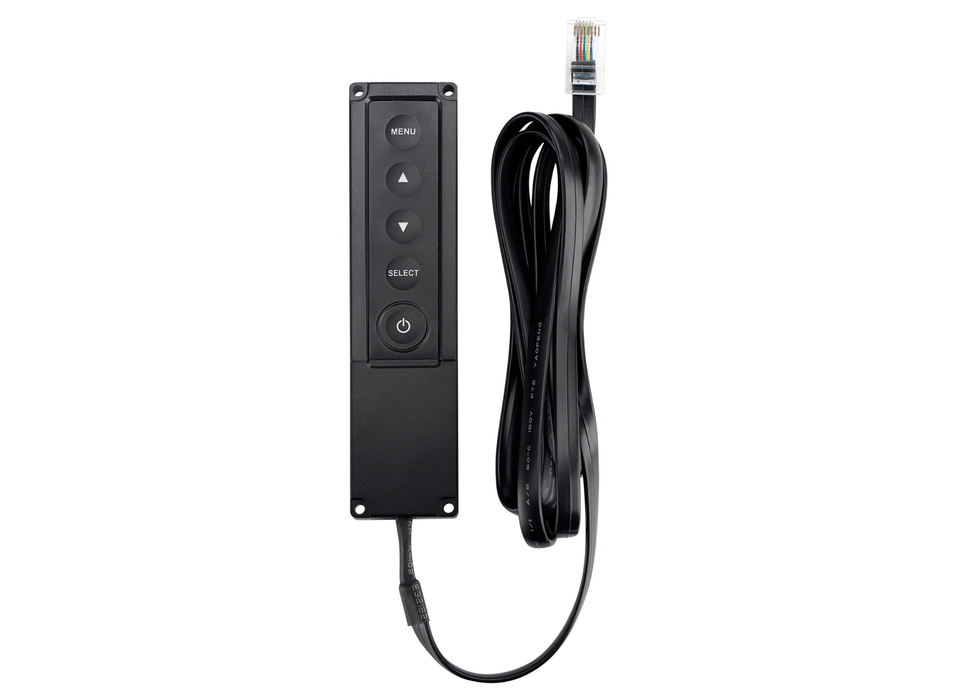

Section Panel Panel Type IPS Panel Size 10.1" Max. Resolution 1280 × 800 Pixel Pitch 0.169 mm Brightness 500 cd/m² Contrast Ratio 1300:1 Viewing Angle (H/V) 170°/170° Display Colour 16.2M Colour Gamut NTSC 45% Response Time 5 ms Section Frequency Frequency (H) 31 kHz–50 kHz Frequency (V) 56 Hz–60 Hz Section Signal Input DisplayPort × 1 HDMI 1.3a × 1 VGA 15-Pin D-Sub × 1 Section External Control RJ45 × 1 Section Touch Screen Technology Projective Capacitive Positional Accuracy ±2.5 mm Panel Interface USB (Type-B) Multi-touch Plug & Play 10-point touch for Windows® 7/8/10/11, Linux/Android 2.6.36 or later, Mac OS 10.11–10.14 Single Touch Support by Driver 1-point touch for Windows XP/Embedded/7/8/10/11, Linux/Android 2.6.35 and older Section Power Power Supply External Power Requirements DC 12V, 1.0A On Mode 8W (On) Standby Mode < 0.8W Off Mode < 0.3W Section Glass Surface Treatment Clear Glass Thickness 3.3 mm (0.13") IK Rating IK07 MOHS Hardness 5 Section Durability and Protection IP Rating Front-Sided IP65 Section Operating Conditions Temperature 0°C–50°C (32°F–122°F) Humidity 20%–80% (non-condensing) Section Storage Conditions Temperature -20°C–60°C (-4°F–140°F) Humidity 10%–90% (non-condensing) Section Mounting VESA FPMPMI Yes (100 × 100 mm) Section Dimensions Product w/o Base (W × H × D) 260.7 × 183.4 × 39.4 mm (10.3" × 7.2" × 1.6") Packaging (W × H × D) 370.0 × 325.0 × 160.0 mm (14.6" × 12.8" × 6.3") Section Weight Product w/o Base 1.4 kg (3.1 lb) Packaging 2.4 kg (5.3 lb) Section Regulation Approval Certifications & Compliance CE, LVD, BSMI, RoHS, REACH, WEEE, UKCA Section Accessories Supplied Accessories DisplayPort Cable, Power Adaptor, Power Cord, Quick Start Guide, Side Bracket Package, USB Cable, VGA Cable, Wired OSD Controller Optional Wall Mount PMK-01, WMK-01 (Landscape only) -
Description Downloads Datasheet Download User Manual Download Technical Drawing Download
