AG Neovo TX-2202A 22" Full HD 10pt Touch Screen Monitor
SKU: TX-2202A
£604.28 (Excl. VAT)
- Display Size21.5"
- Operating SystemNone
- VESA PatternsN/A
- Panel TypeVA Panel
- ResolutionFull HD (1080p)
- Response Time5ms
- Description
- Specifications
- Downloads
-
Responsive 10-Point PCAP Touch Technology
The TX-2202A touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by contamination, offering 10-point multi-touch capability, giving an accurate and responsive touch experience, even responsiveness to latex gloves. Featuring DisplayPort, HDMI, VGA input connectivity, and dual speakers, the TX-2202A touch monitor is built for flexible use such as self-check-in, self-ordering, and information kiosk. The screen is complemented by the IP65 and IK07 rating, metal casing, and an edge-to-edge tempered glass design, enhancing durability for continuous operation in public and high-traffic spaces.
10-point PCAP Touch Screen
The TX-2202A 22” 10-point touch screen monitor adopts PCAP touch technology with a 10-point multi-touch capability that is unaffected by contamination, giving a fast, accurate, and responsive touch experience. These seamless touch senses are identical to those used in smartphones and tablets, even responsive to latex gloves.
Seamless Integration
Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choices of the operating system you use.
Front IP65 Dust and Water Protection
This 22” 10-point touch screen monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.
DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
For 24/7 operations in public settings, AG Neovo uses metal housing and tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.
ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING

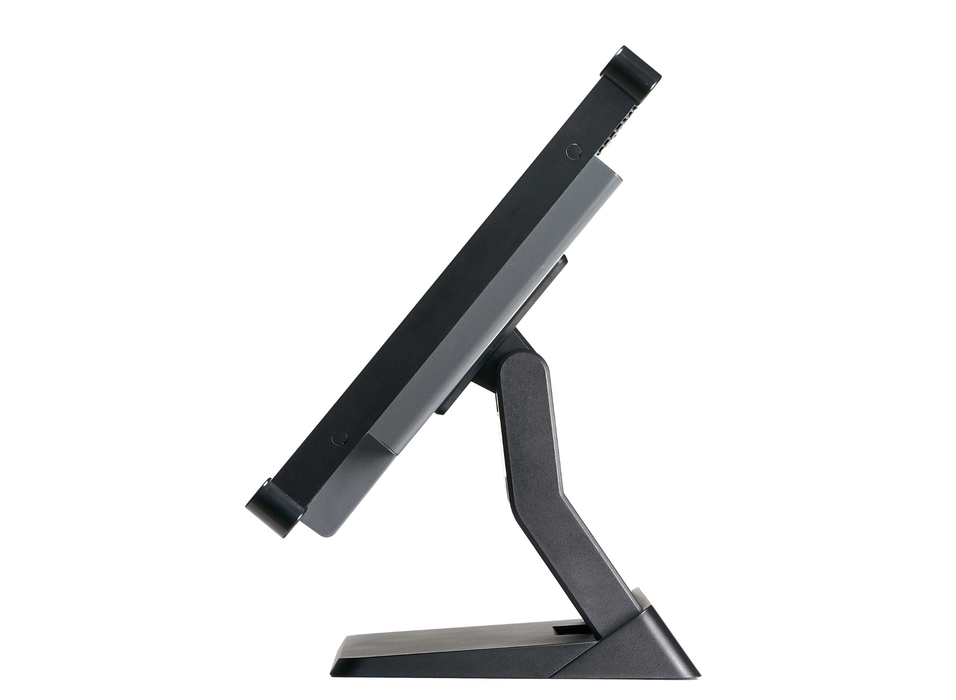

Thanks to VESA compatibility, the TX-2202A 22” 10-point touch screen monitor offers flexible mounting options, from desk mount to wall mount or attached to a monitor arm. The included ergonomic stand allows a huge -2 to 180 degrees of tilt adjustment, creating extra ergonomics when using. The display is 178-degrees wide viewing angles to provide consistent colour performance for better viewing.
Versatile Connectivity

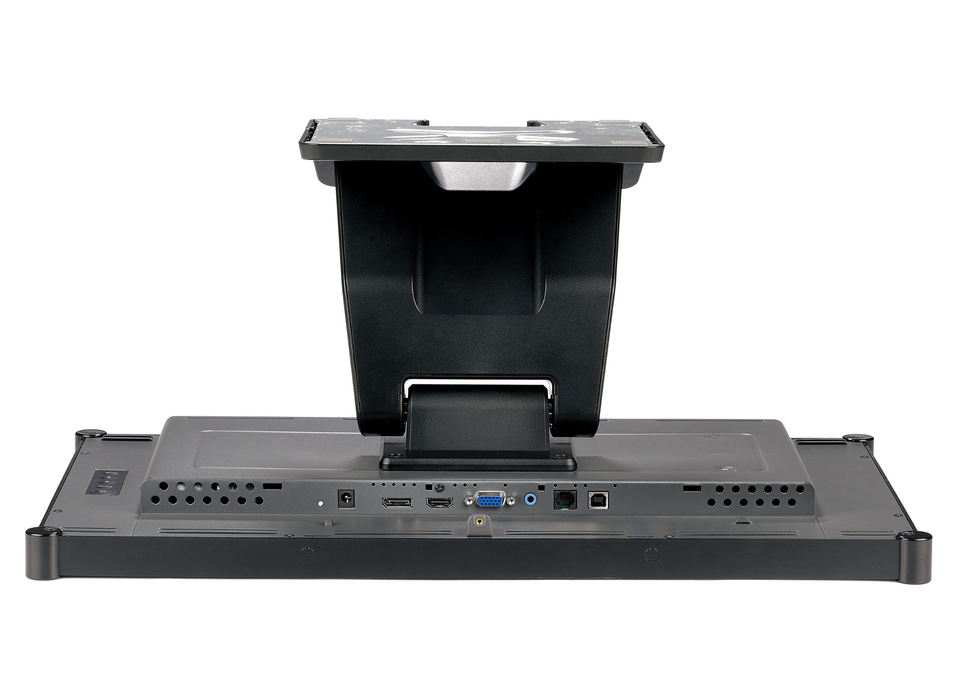

The TX-2202A provides maximum versatility and facilitates users to connect to their own devices, such as a high-performance PC or a media player, using the DisplayPort, HDMI or VGA inputs. -
Panel Panel Type VA Panel Size 21.5" Max. Resolution FHD 1920 × 1080 Pixel Pitch 0.248 mm Brightness 250 cd/m² Contrast Ratio 1000:1 Viewing Angle (H/V) 178°/178° Display Colour 16.7M Colour Gamut NTSC 72% Response Time 5 ms Frequency Frequency (H) 30 kHz–84 kHz Frequency (V) 50 Hz–76 Hz Signal Input and External Control DisplayPort × 1 HDMI 1.4 × 1 VGA 15-Pin D-Sub × 1 RJ11 External Control Yes Audio Audio In Stereo Audio Jack (3.5 mm) Internal Speakers Yes Touch Screen Technology Projective Capacitive Positional Accuracy ± 2.5 mm Panel Interface USB (Type-B) Multi-touch Plug & Play 10-point touch for Windows® 7/8/10/11, Linux/Android 2.6.32 or later, and Mac OS 10.11–10.14 Single Touch Support by Driver 1-point touch for Windows XP/Embedded/7/8/10/11, Linux/Android 2.6.31 and older Power Power Supply External Power Requirements DC 12V, 4A On Mode 15W Standby Mode <0.7W Off Mode <0.3W Glass Surface Treatment Clear Glass Thickness 2.05 mm (0.08") IK Rating IK07 MOHS Hardness 5 Durability and Protection IP Rating Front-Sided IP65 Operating Conditions Operating Temperature 0°C–40°C (32°F–104°F) Operating Humidity 20%–80% (non-condensing) Storage Conditions Storage Temperature -20°C–60°C (-4°F–140°F) Storage Humidity 10%–90% (non-condensing) Mounting and Stand VESA FPMPMI Supported Stand Tilt -5° to 90° Dimensions Product with Base (W × H × D) 528.6 × 346.7 × 214.2 mm (20.8" × 13.7" × 8.4") Product without Base (W × H × D) 528.6 × 324.3 × 48.5 mm (20.8" × 12.8" × 1.9") Packaging (W × H × D) 610.0 × 460.0 × 320.0 mm (24.0" × 18.1" × 12.6") Weight Product with Base 6.7 kg (14.8 lb) Product without Base 4.8 kg (10.6 lb) Packaging Weight 9.8 kg (21.6 lb) Regulation Approval Certifications & Compliance CE, LVD, WEEE, RoHS, REACH, UKCA Power Adaptor Certifications CE, UKCA, BSMI, CB, CCC, EAC, WEEE, cUL, KCC, RCM, PSE, NOM, CSA, VCCI, PSB Accessories Supplied Accessories Audio Cable, HDMI Cable, Power Adaptor, Power Cord, Quick Start Guide, USB Cable, VGA Cable Optional Wall Mounts PMK-01, WMK-01, WMK-03 -
Description Downloads Datasheet Download User Manual Download Technical Drawing Download
