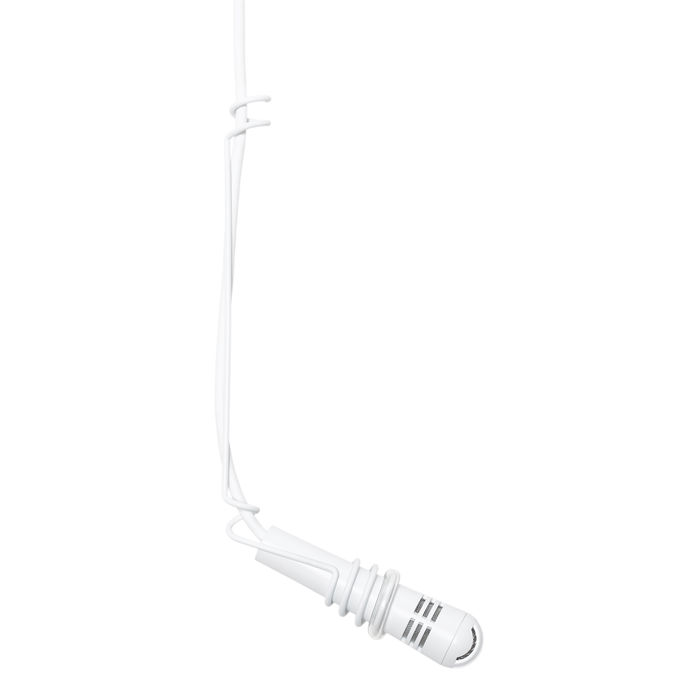

The CHM99, part of the 99ers Series, is a hanging microphone module with cardioid polar pattern, used to record music or speech in houses of worship, conference rooms or on theater stages. The CHM99 is available in black or white.
A 10m (33ft) special cable that is treated specially to reduce twisting to a minimum and a spring steel hanging clamp for precise microphone alignment keeps the microphone securely in its position. The attached phantom power adapter connects to any standard mixer input with 9V to 52V power supply.
Compact Solution
For plug and play
Wide pickup angle
For unobtrusive pickup in difficult places
Twist-free cable
To fix and secure the designated mic position
Spring steel hanging clamp included
For quick and hassle-free installation
Available in black and white
Blends perfectly into its environment
| Audio Frequency Bandwidth | 70 – 18,000 Hz | Equivalent Noise Level | 21 dB-A |
| Sensitivity | 18 mV/Pa | Signal to Noise Ratio | 73 dB-A |
| Electrical Impedance | 600 Ohms | Recommended Load Impedance | 2000 Ohms |
| Polar Pattern | Cardioid | Height | 55 mm |
| Diameter | 13.5 mm | Net Weight | 20 g |
| Finish | Matte black or white | Audio Output Type | Balanced XLR |
| Output Gender | Male | Contacts | 3-pin |
| Powering Voltage | 9 – 52 V | Current | 3 mA |
| Applications | Conferencing, Presentation | Device Type | Gooseneck Microphone |
| Included Accessories | CHM99 Microphone with Spring Steel Hanging Clamp, Windscreen | ||
| Description | Downloads |
|---|---|
| AKG CHM99 Hanging Cardioid Condenser Microphone | 2965H00160 Quick Start Guide | Download |
| AKG CHM99 Hanging Cardioid Condenser Microphone | 2965H00160 User Manual | Download |
