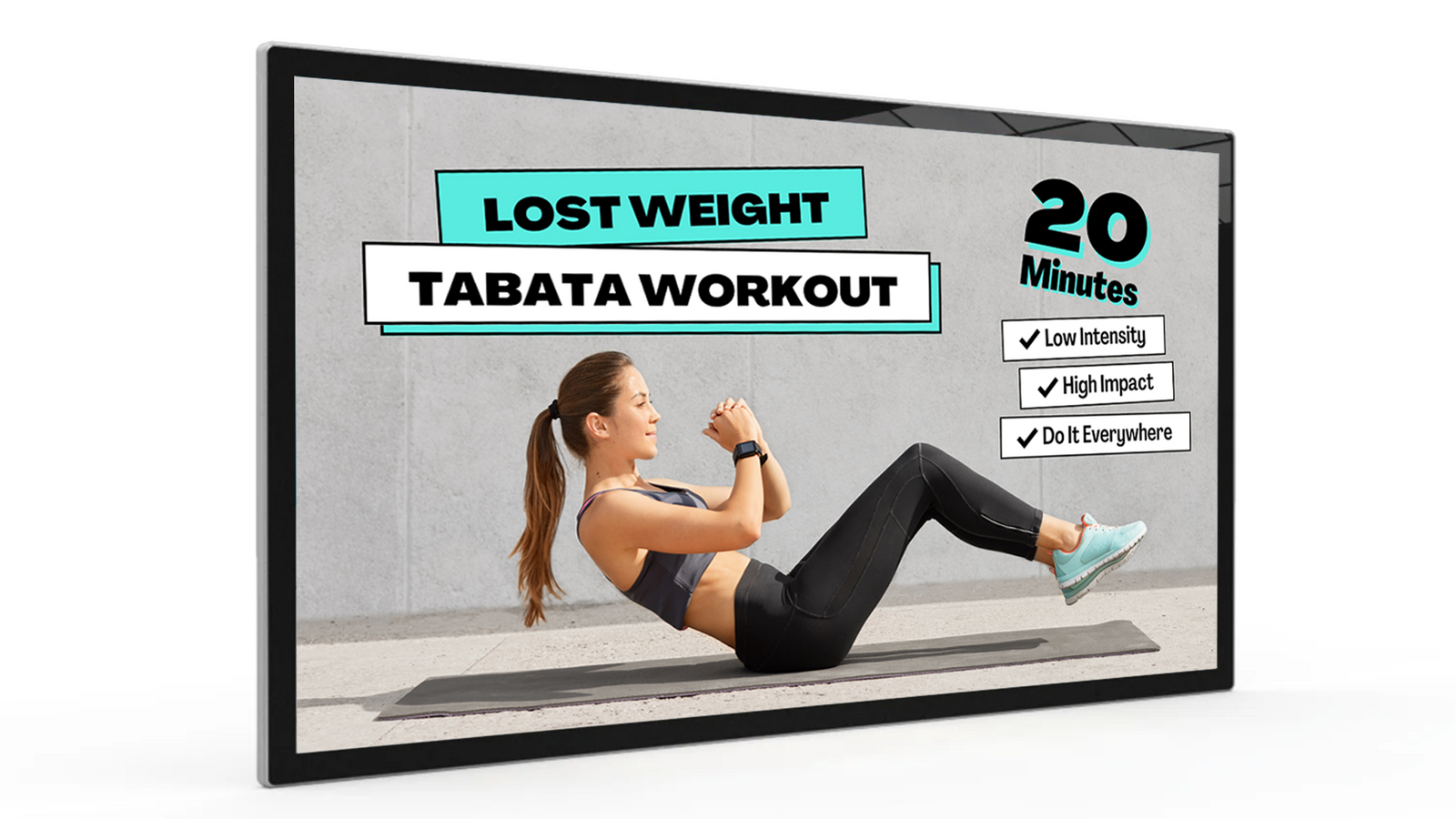

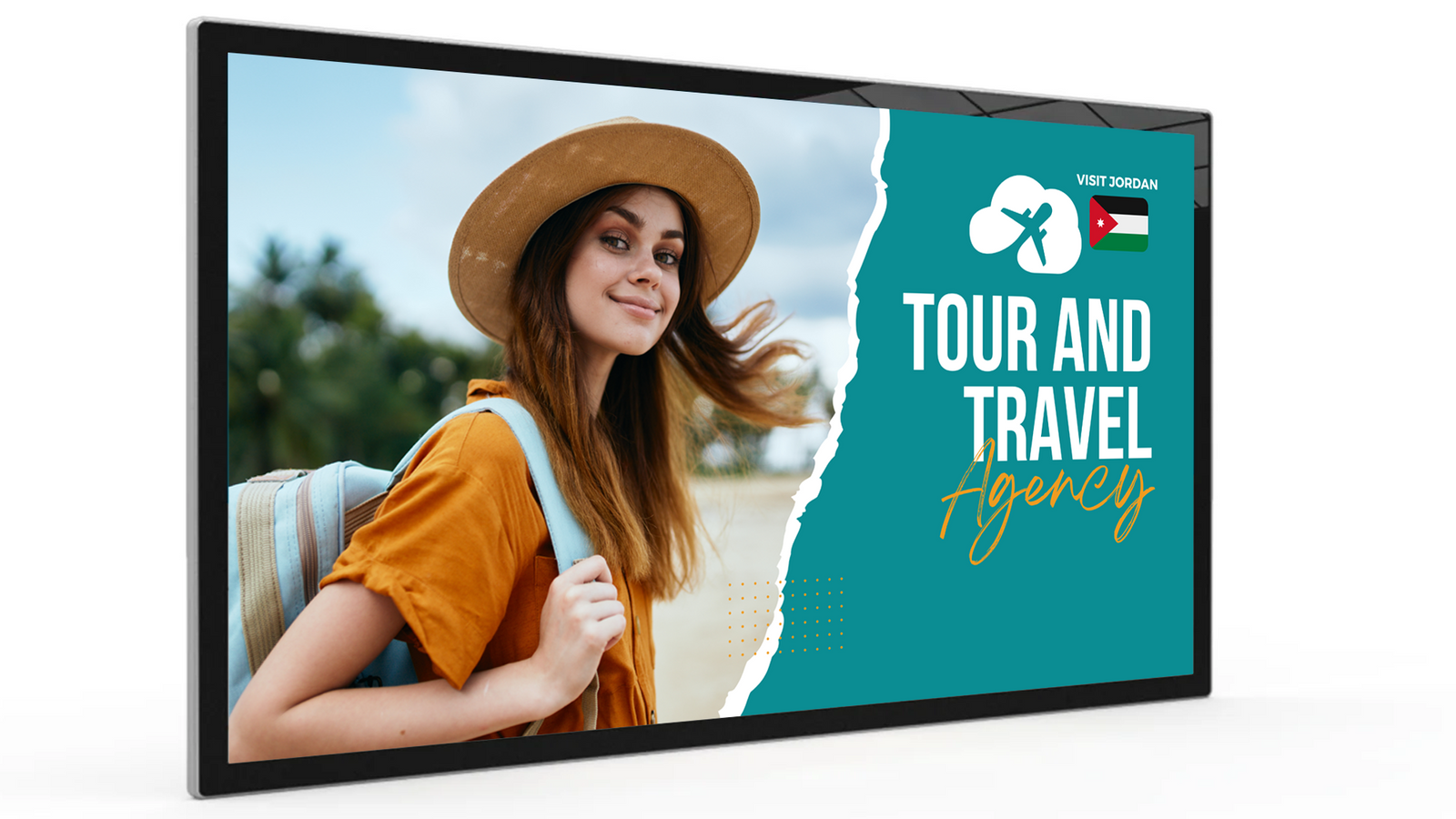

Android Advertising Screen | Built-in Media Player
SKU: SM22ADL
£420.76 (Excl. VAT)
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Warranty
-

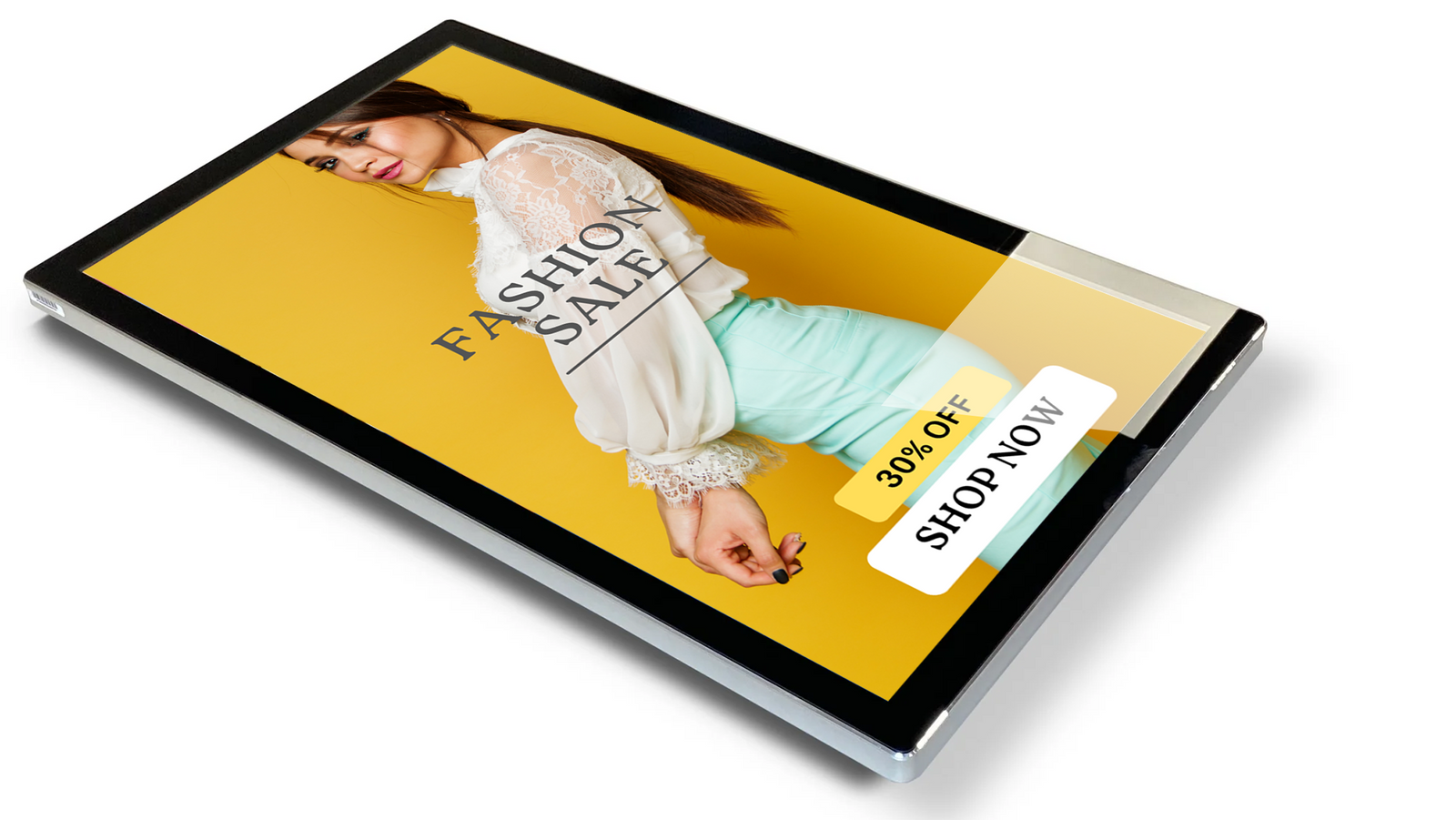

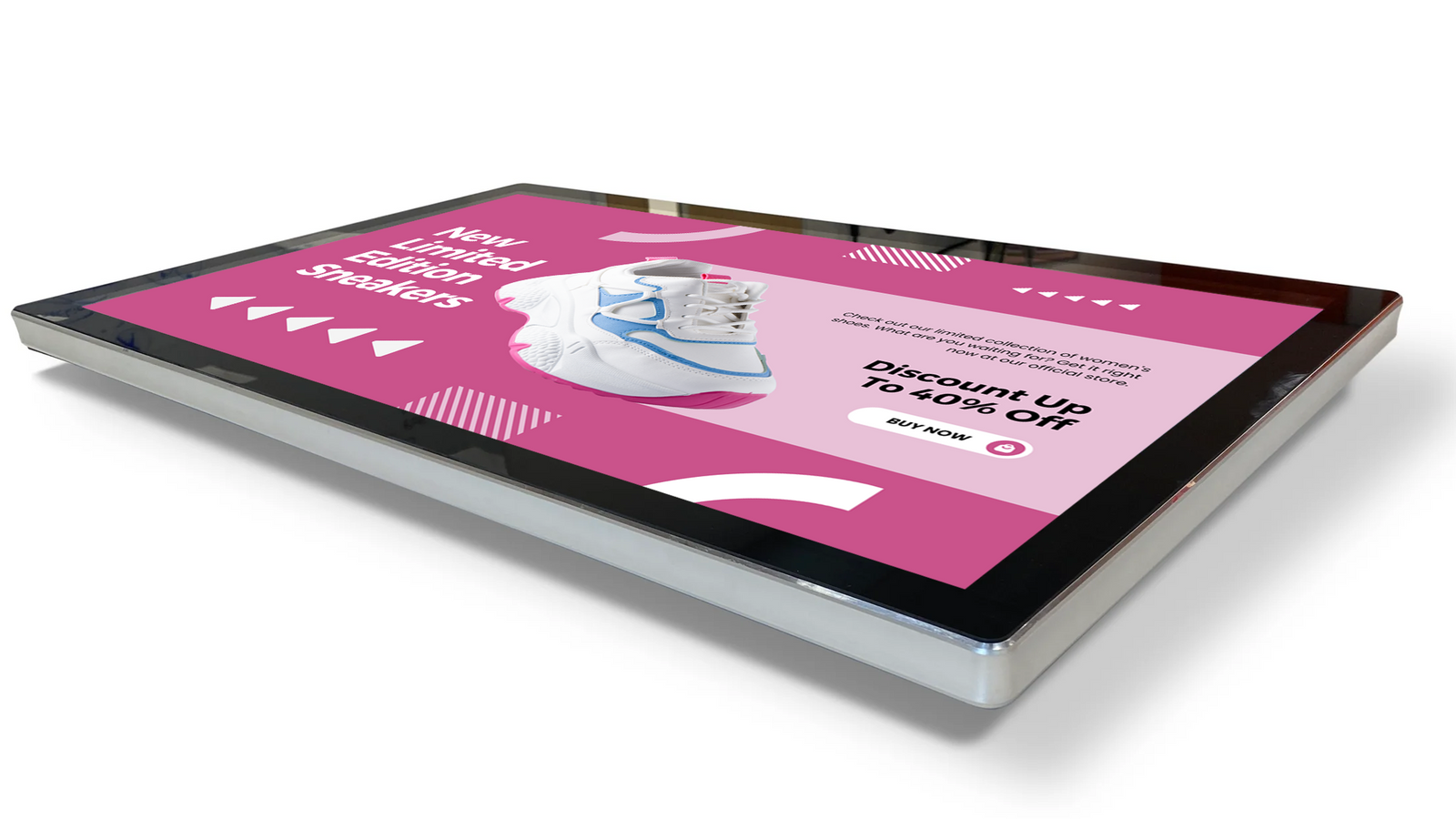

Stunning displays that combine tablet-like aesthetics with a robust mild steel enclosure and tempered glass face
The Finest in Premium Quality Digital Signage
Protective Sleek Enclosure
These deluxe displays are the ultimate solution for displaying your content in public spaces. As well as protecting the internal components, the robust aluminium surround and tempered edge-to-edge glass also deliver captivating tablet-like aesthetics for a truly high-end feel.
450cd/m² IPS Panel
Commercial grade IPS technology ensures incredible image quality and colour depth with no fall-off in colour accuracy, as well as achieving ultimate lifelike colour from an ultra-wide viewing angle in landscape or portrait orientation.
24/7 Commercial Grade
Designed for continuous use in public spaces, these displays utilise commercial grade LCD panels, LED backlights and internal components. This means they can run 24/7 for over 70,000 hours. To avoid tampering, they also have no external buttons or controls.
Lightweight Design
By using less and lighter materials, component weight is kept to a minimum. This compact design makes both installation and maintenance much more convenient.

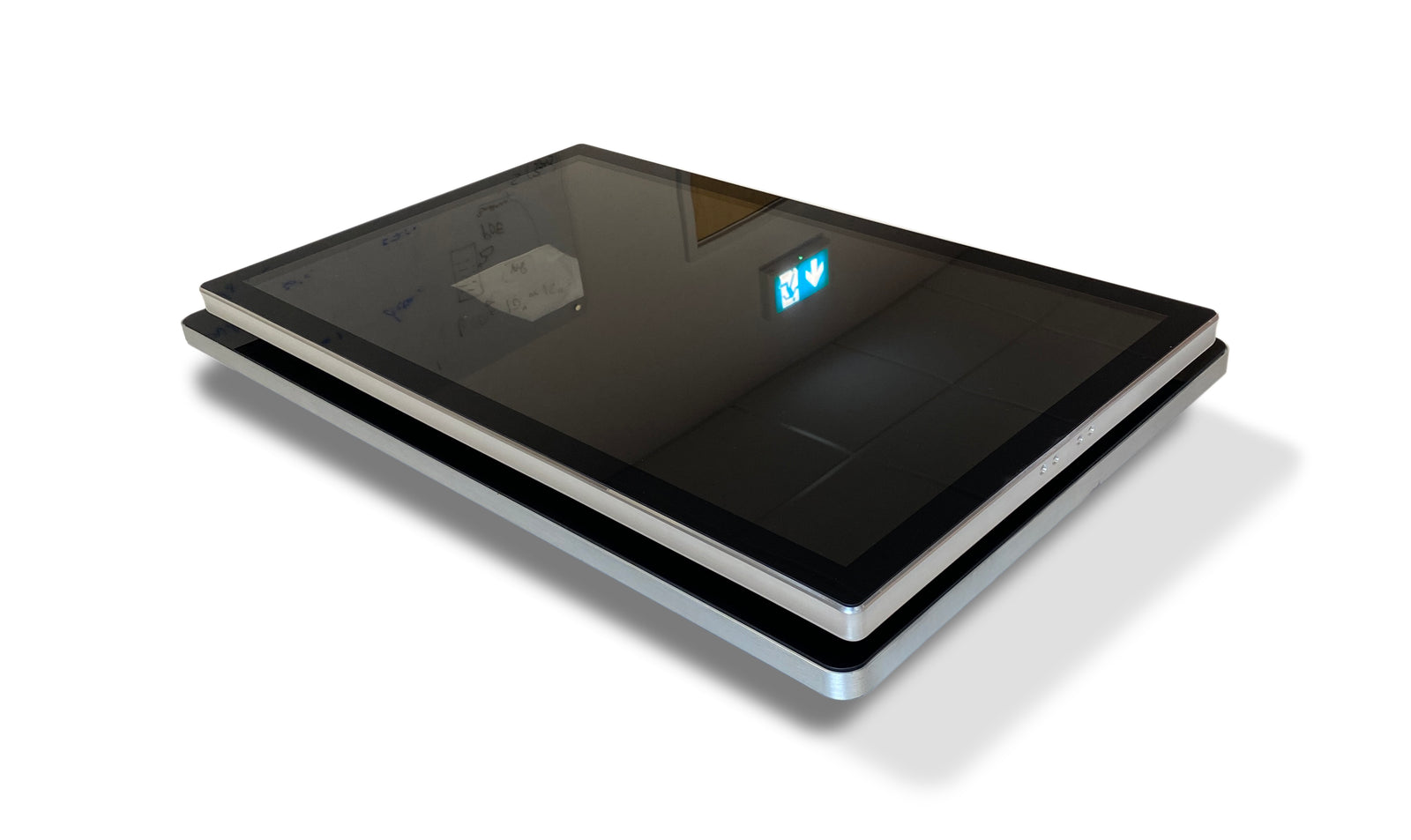

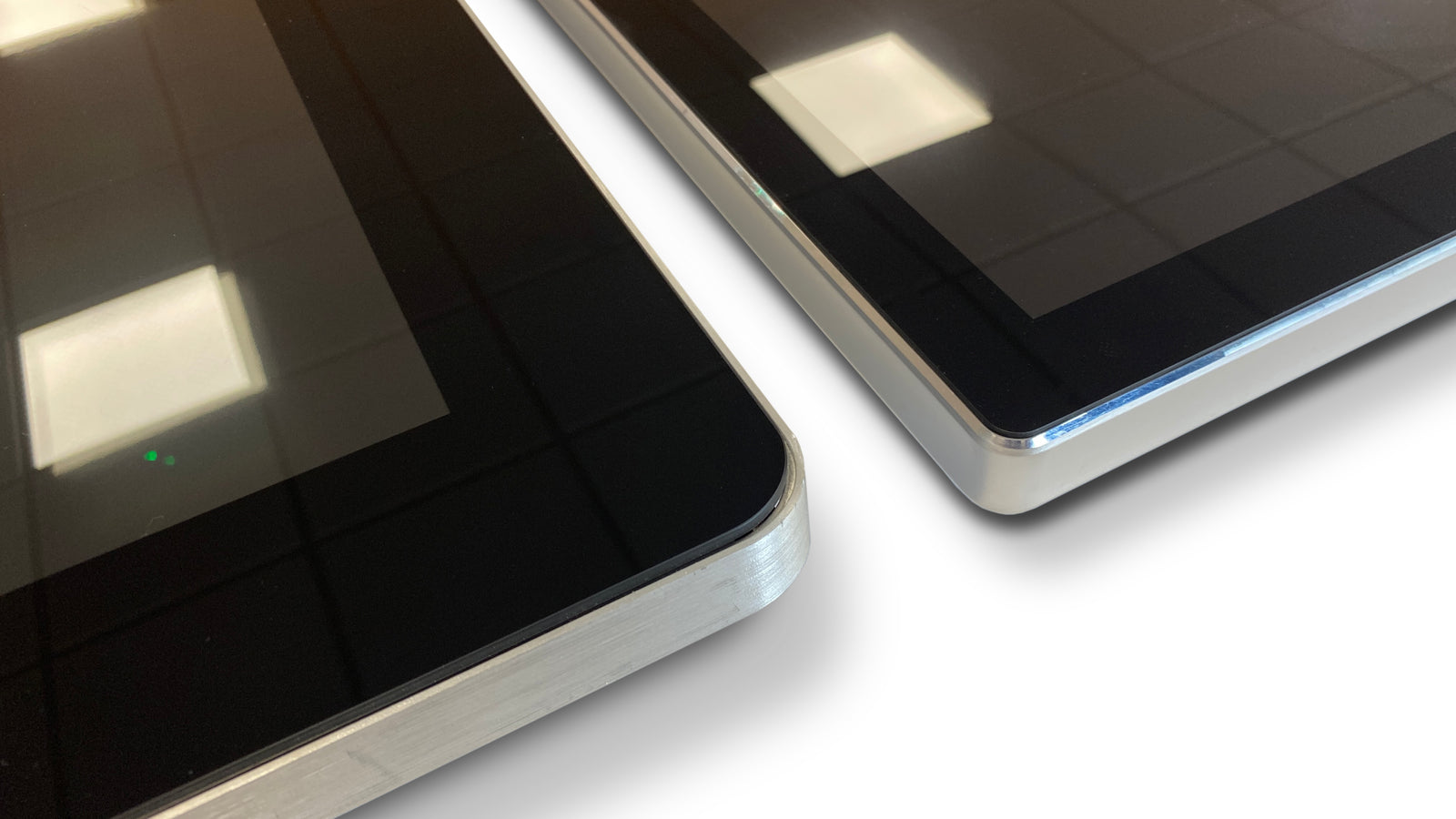

Slender Frame

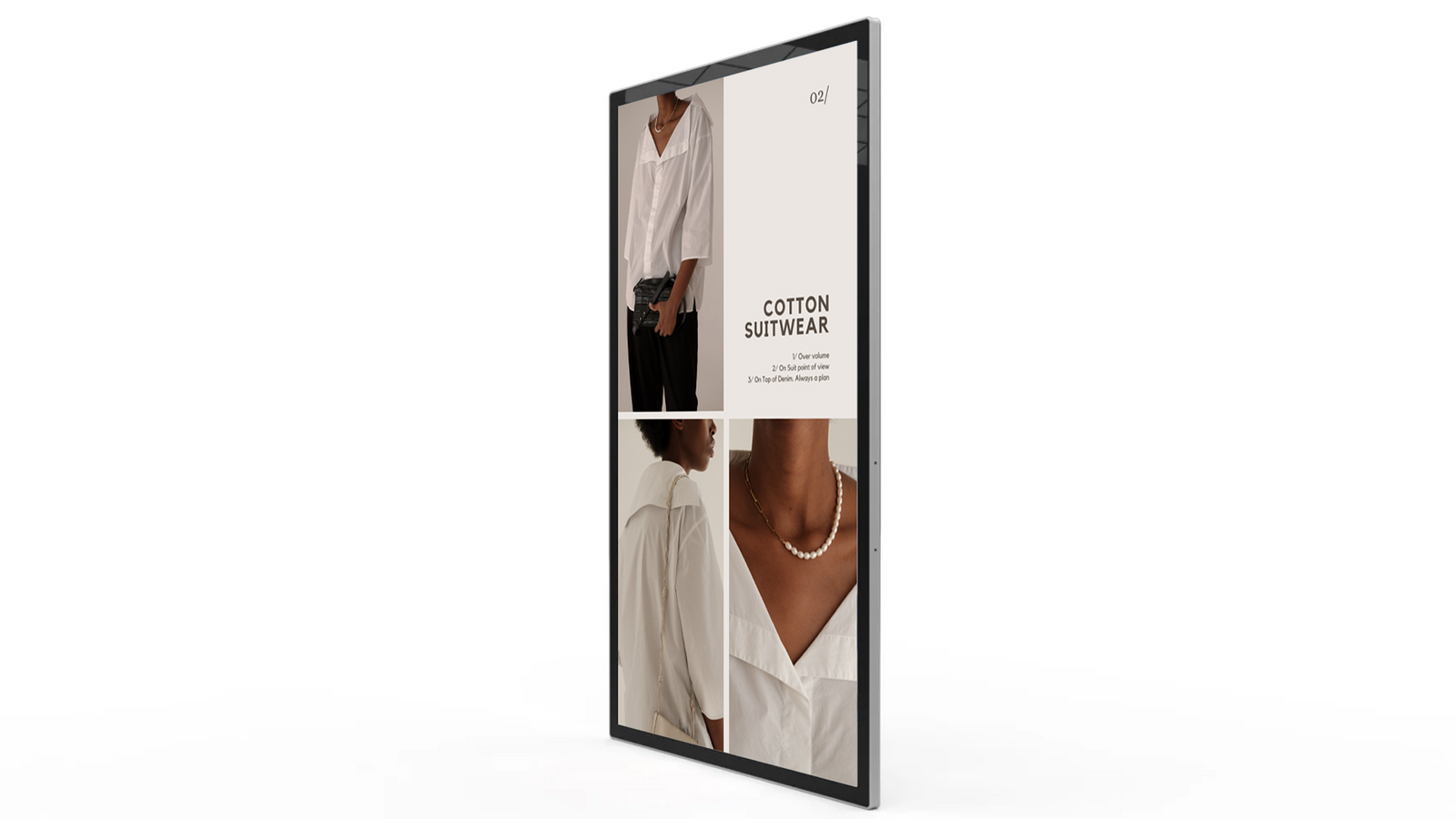

Featuring a slim frame with rounded corners, these displays achieve giant tablet styling while also minimising frame size to keep focus squarely on your content.

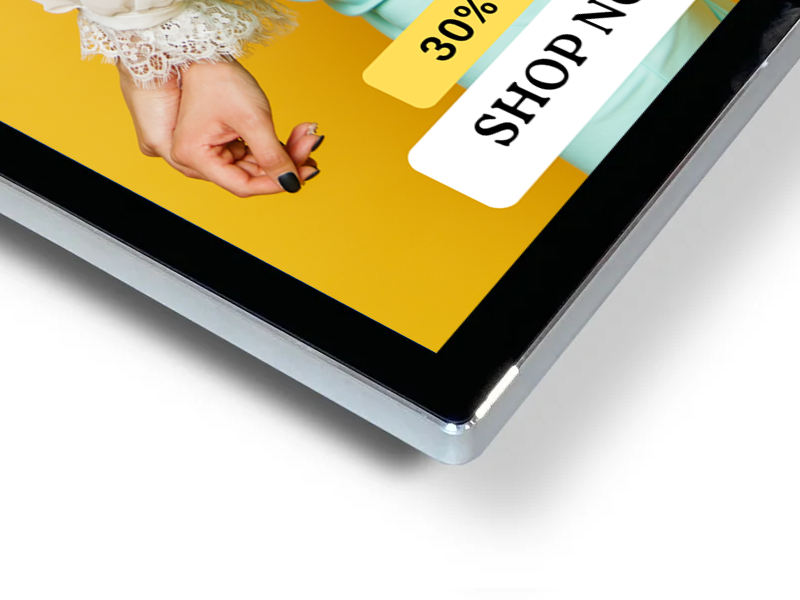

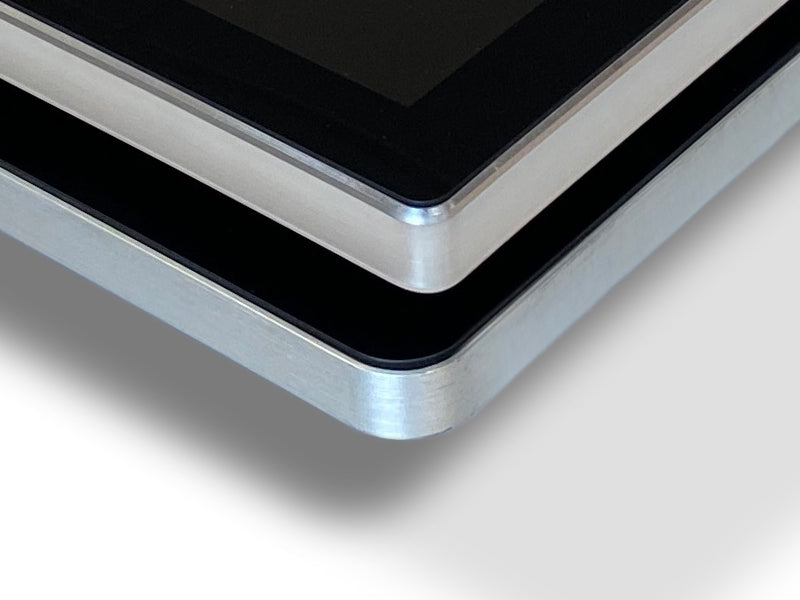

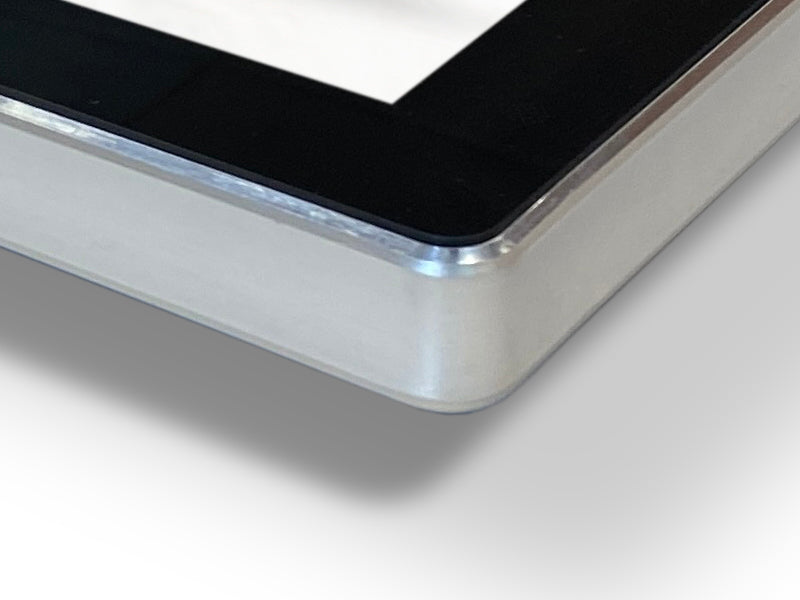

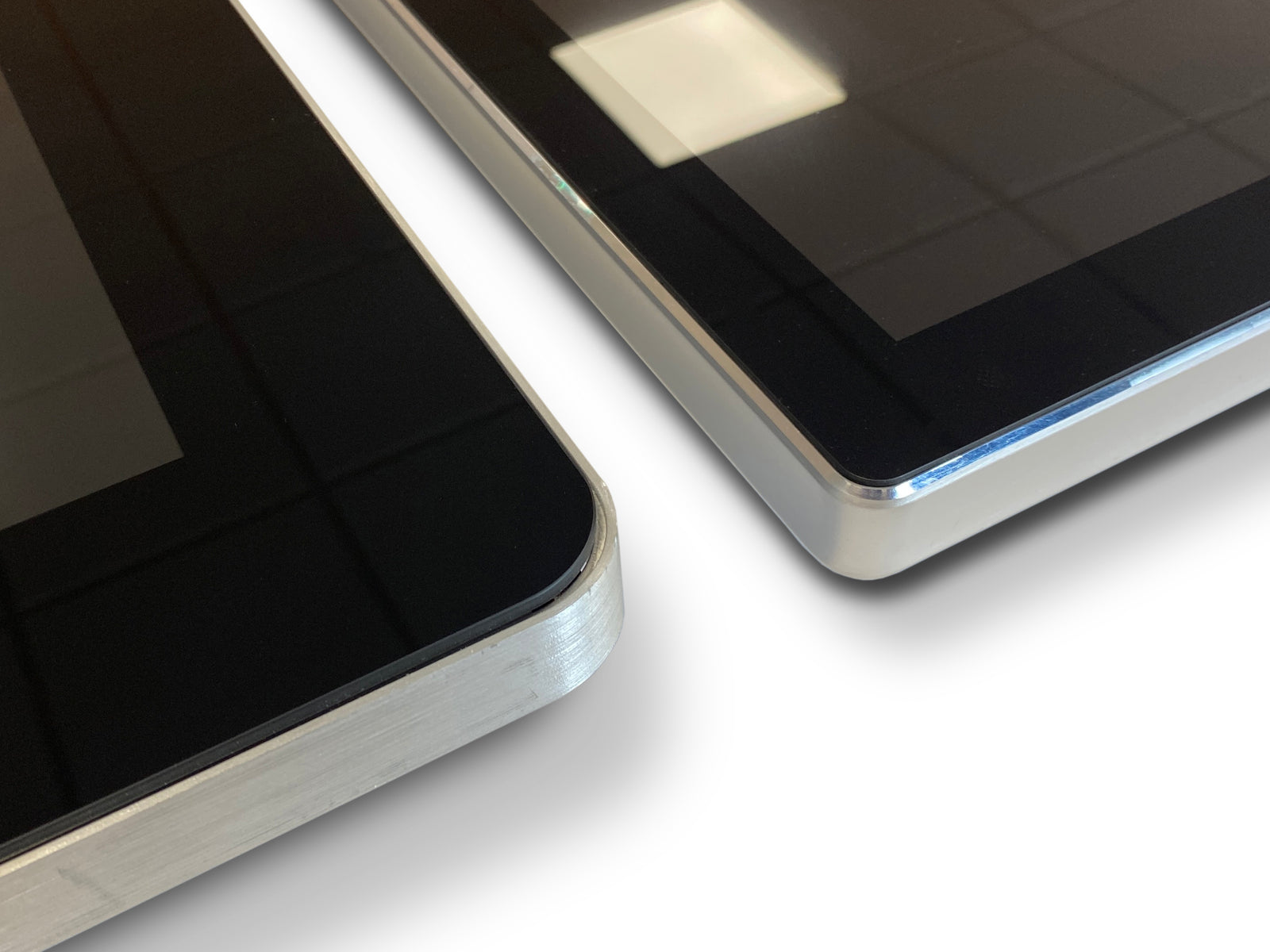

Aluminium Surround
Thanks to their stunning surround, which is made of diamond-cut 6-series aluminium alloy and has a premium brushed finish, as well as their unique concave indent profile*, these displays are truly distinguishable. Sculpting the surround from a single piece, rather than in segments, achieves a cleaner finish.
Toughened Safety Glass
Improves tactility for smoother touch gestures, especially useful when there is more than one user touching the screen. The anti-glare nano coating also diffuses external light so that images and videos are much clearer.
Free Flush-Fit Wall Mount

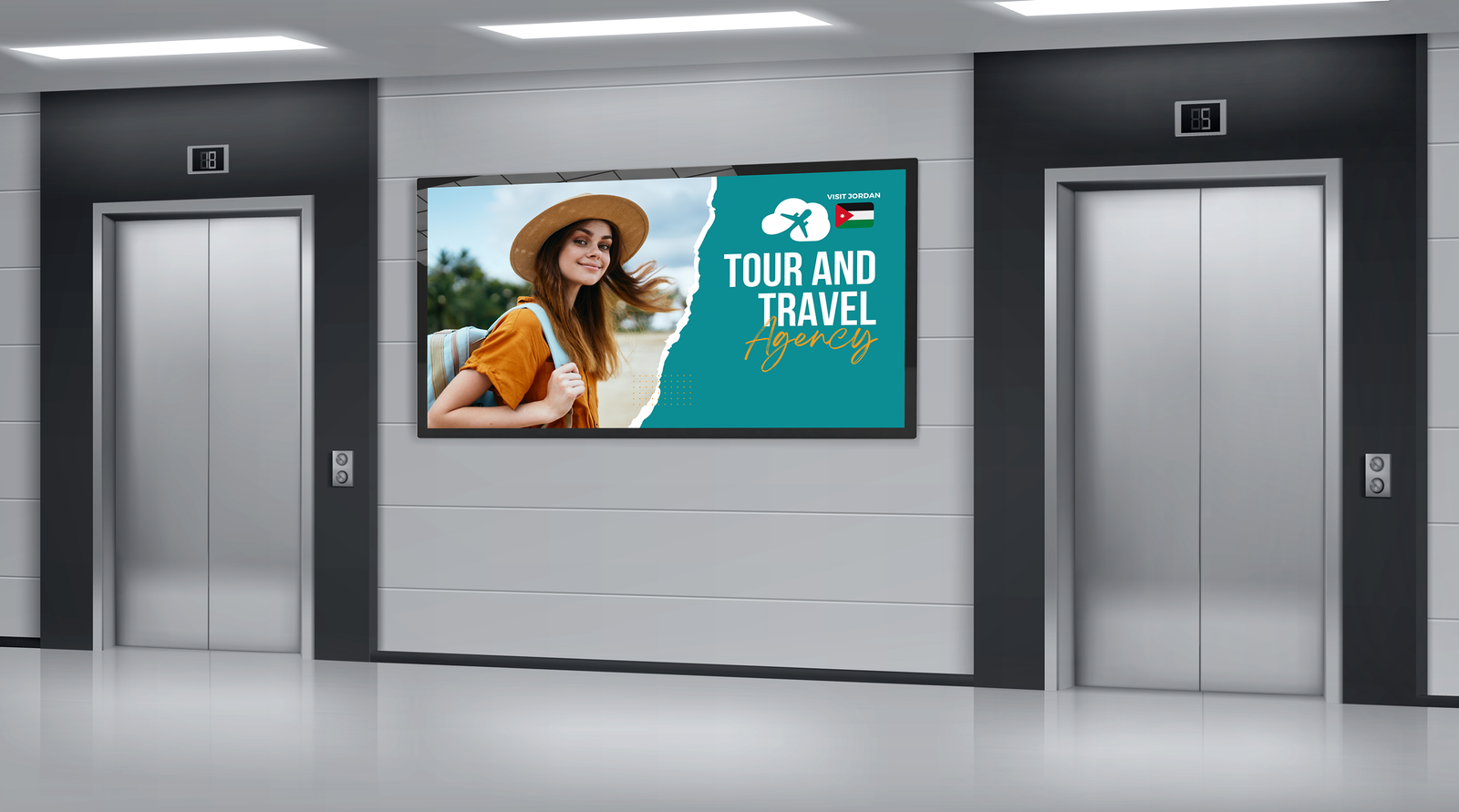

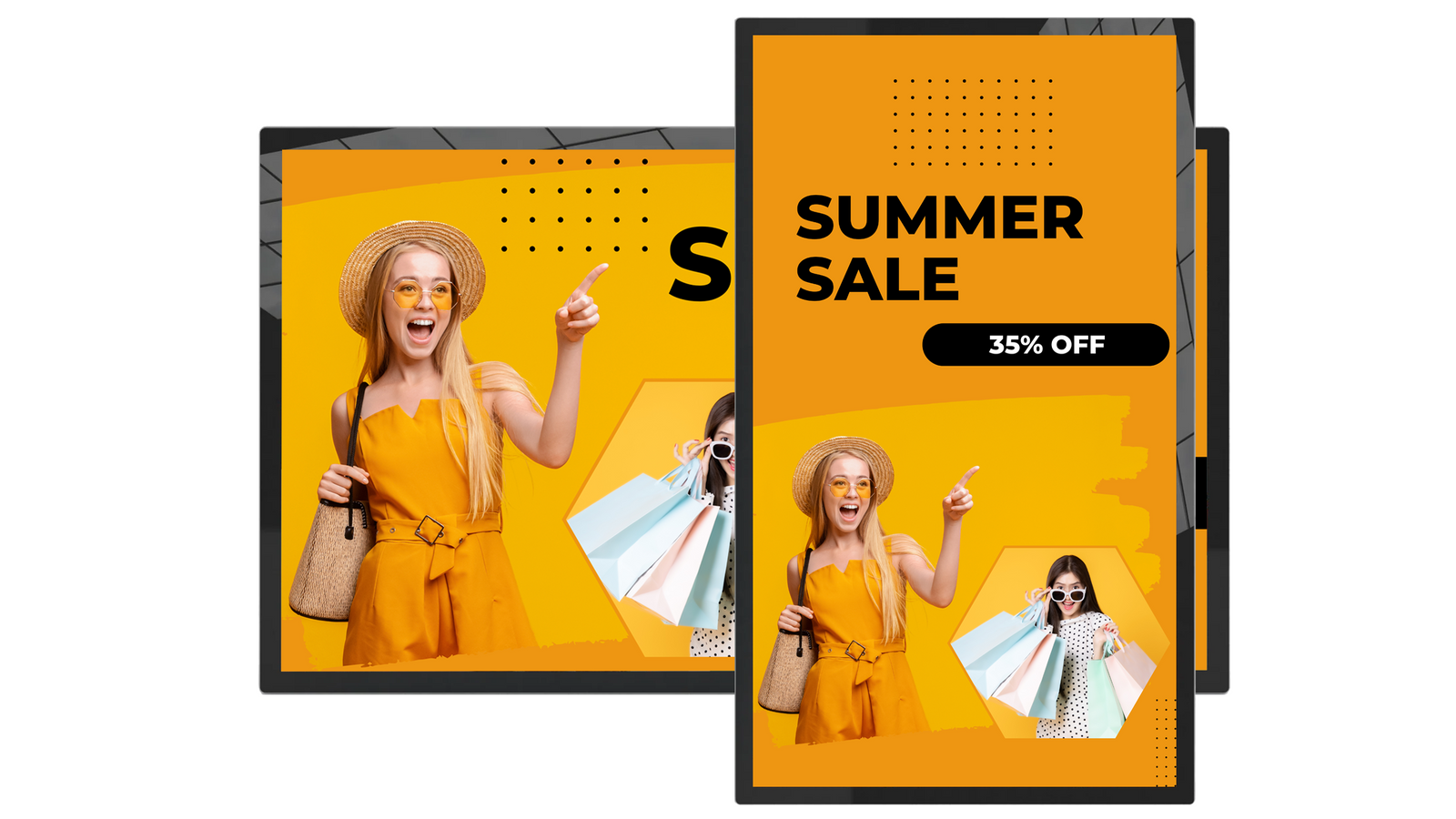

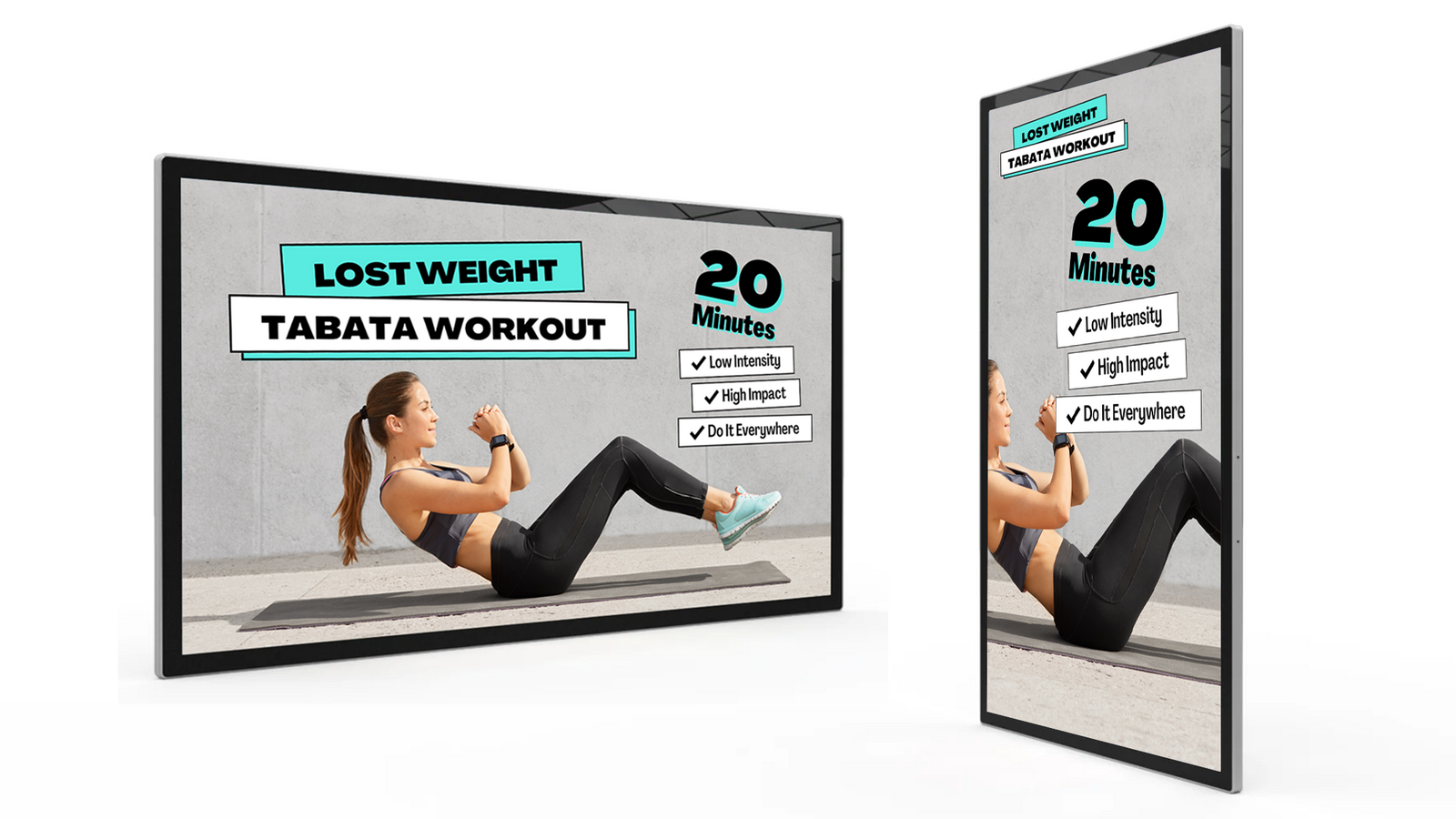

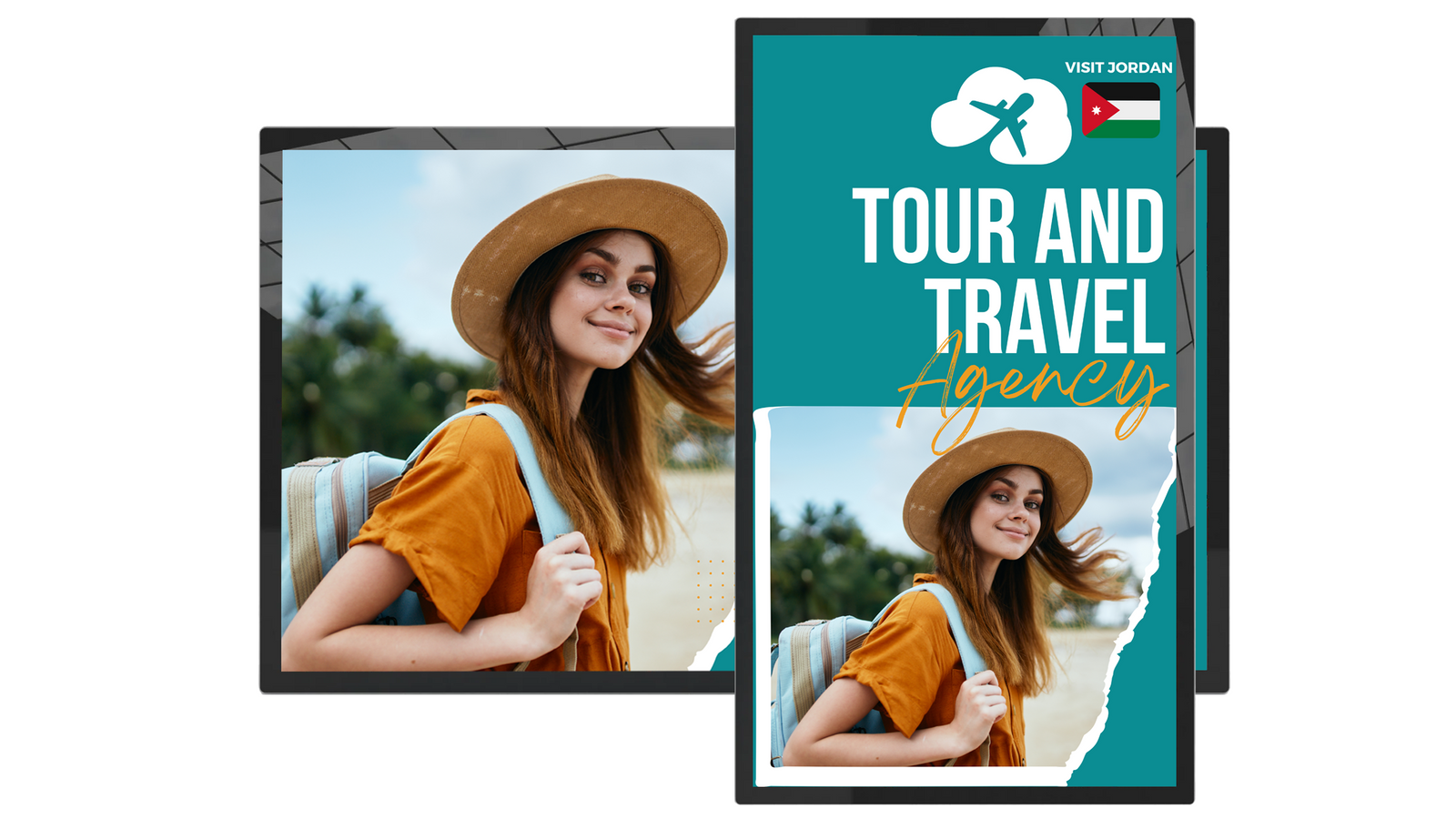

A super slim wall mount is included at no extra cost, enabling you to install your screen in either landscape or portrait orientation with a secure and aesthetically-pleasing flush fit to the wall.

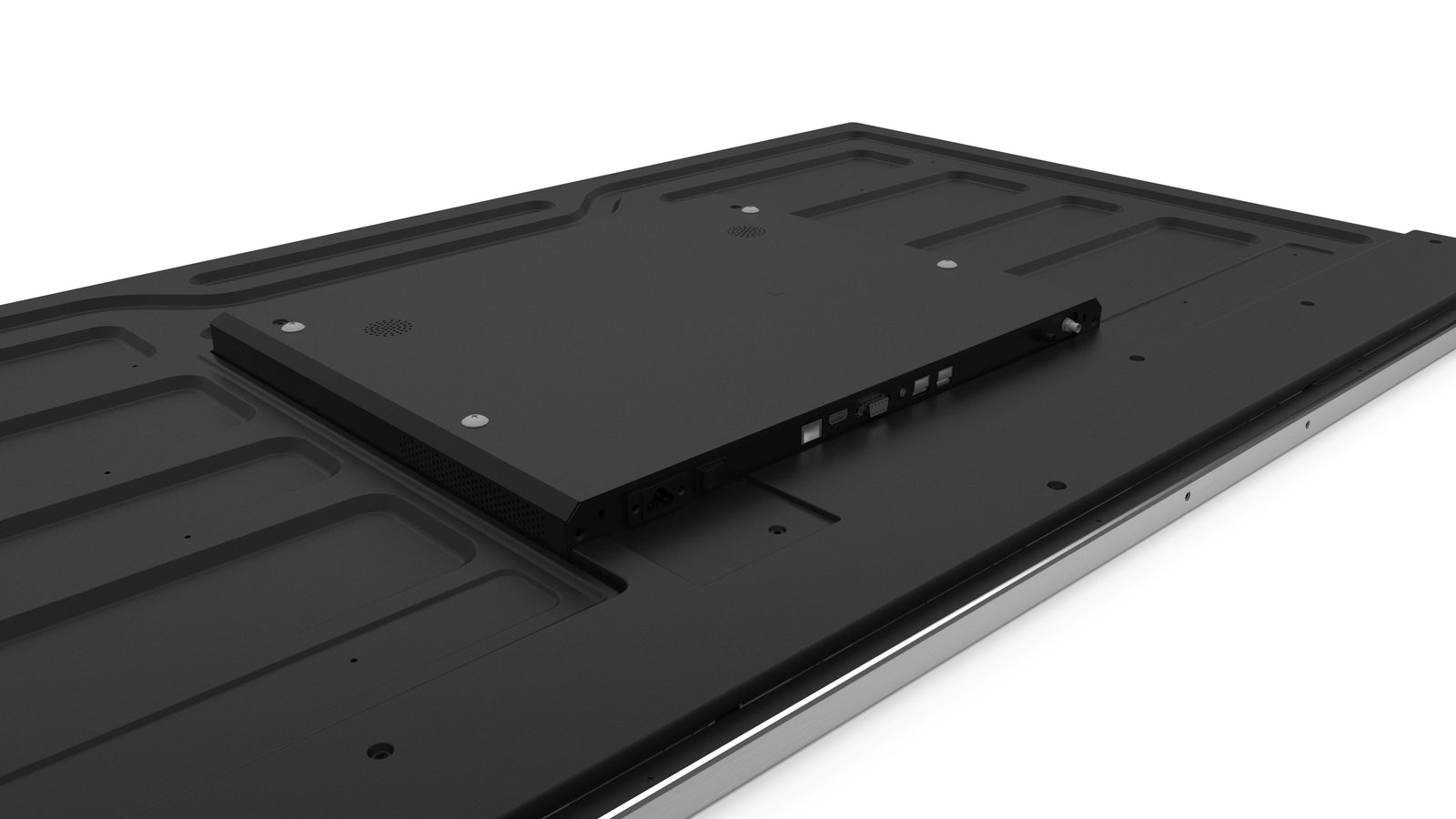

Multiple AV Inputs
By connecting to an external device via HDMI or VGA, such as a third-party PC or media player, these versatile displays can be effortlessly transformed into a commercial monitor with striking aesthetics.
Integrated Android Media Player
The built-in Android media player allows you to easily update on-screen content via USB plug and play. Alternatively, upgrade your screen to be networked without needing any additional hardware to update via the internet. Third-party software can also be installed if required. -
Feature 22" 32" 43" 50" 55" Display Resolution 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 Display Area (mm) 475x266.4 697.4x391.9 941.2x529.4 1072.8x603 1209.6x680.4 Brightness (cd/m²) 350 450 450 450 450 Aspect Ratio 16:9 16:9 16:9 16:9 16:9 Colour 16.7M 16.7M 16.7M 16.7M 16.7M Viewing Angle 178° 178° 178° 178° 178° Contrast Ratio 5000:1 5000:1 5000:1 5000:1 5000:1 Unit Size (mm) 529.6x321x42.3 757.8x452.3x49.3 997.6x585.8x50.6 1135.2x665.4x63.2 1275x745.8x54.8 Package Size (mm) 680x430x130 870x563x165 1095x688x170 1279.2x818x199 1400x874.5x194 VESA Holes 400x200 400x200 400x200 400x400 / 400x200 400x200 Net Weight (kg) 6.1 11.15 16.75 28.05 30.2 Gross Weight (kg) 8.1 13.85 20.35 37 39 Avg. Power (W) 19 42 85 89 93 Speaker Type 2W, 4Ω (x2) 2×2W 4Ω 2×2W 4Ω 2×2W 4Ω 2×2W 4Ω Video Inputs HDMI, VGA HDMI, VGA HDMI, VGA HDMI, VGA HDMI, VGA Audio Input 3.5mm Audio Socket 3.5mm Audio Socket 3.5mm Audio Socket 3.5mm Audio Socket 3.5mm Audio Socket Operating Temp 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C Storage Temp -30°C to 60°C -30°C to 60°C -30°C to 60°C -30°C to 60°C -30°C to 60°C Operating Humidity 10% to 80% 10% to 80% 10% to 80% 10% to 80% 10% to 80% Storage Humidity 5% to 95% 5% to 95% 5% to 95% 5% to 95% 5% to 95% Media Formats Video, Audio, Image Video, Audio, Image Video, Audio, Image Video, Audio, Image Video, Audio, Image Media Resolution 1920x1080 / 1080x1920 1920x1080 / 1080x1920 1920x1080 / 1080x1920 1920x1080 / 1080x1920 1920x1080 / 1080x1920 CPU Quad-Core ARM Cortex A17, 1.6GHz Quad-Core ARM Cortex A17, 1.6GHz Quad-Core ARM Cortex A17, 1.6GHz Quad-Core ARM Cortex A17, 1.6GHz Quad-Core ARM Cortex A17, 1.6GHz GPU Quad-Core ARM Mali-T764 Quad-Core ARM Mali-T764 Quad-Core ARM Mali-T764 Quad-Core ARM Mali-T764 Quad-Core ARM Mali-T764 RAM DDR3 2GB DDR3 2GB DDR3 2GB DDR3 2GB DDR3 2GB Internal Storage 8GB eMMC 8GB eMMC 8GB eMMC 8GB eMMC 8GB eMMC USB Ports 1x USB (OTG/HOST), 1x USB (HOST) 1x USB (OTG/HOST), 1x USB (HOST) 1x USB (OTG/HOST), 1x USB (HOST) 1x USB (OTG/HOST), 1x USB (HOST) 1x USB (OTG/HOST), 1x USB (HOST) LAN 100M/1000M (Network Version Only) 100M/1000M (Network Version Only) 100M/1000M (Network Version Only) 100M/1000M (Network Version Only) 100M/1000M (Network Version Only) Wi-Fi 802.11b/g/n/ac (Network Version Only) 802.11b/g/n/ac (Network Version Only) 802.11b/g/n/ac (Network Version Only) 802.11b/g/n/ac (Network Version Only) 802.11b/g/n/ac (Network Version Only) Bluetooth Bluetooth 4.0 Bluetooth 4.0 Bluetooth 4.0 Bluetooth 4.0 Bluetooth 4.0 OS Android 7.1 Android 7.1 Android 7.1 Android 7.1 Android 7.1 Graphic Engine OpenGL ES, OpenCL, Direct3D 11.1 OpenGL ES, OpenCL, Direct3D 11.1 OpenGL ES, OpenCL, Direct3D 11.1 OpenGL ES, OpenCL, Direct3D 11.1 OpenGL ES, OpenCL, Direct3D 11.1 Included Accessories Wall Mount, Software, Remote, etc. Wall Mount, Software, Remote, etc. Wall Mount, Software, Remote, etc. Wall Mount, Software, Remote, etc. Wall Mount, Software, Remote, etc. Optional Accessories Touch, Network, Stands, Mounts Touch, Network, Stands, Mounts Touch, Network, Stands, Mounts Touch, Network, Stands, Mounts Touch, Network, Stands, Mounts -
Warranty
3-year warranty.
All standard product ranges come with a 3 year warranty starting from date of invoice. This excludes Electronic Shelf Label (ESL) products which come with a 2 year warranty. This also excludes all bespoke hardware which is manufactured under OEM.
Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.
Covers hardware failure but excludes accidental damage or user error.
All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.
Free lifetime telephone and email technical support.
