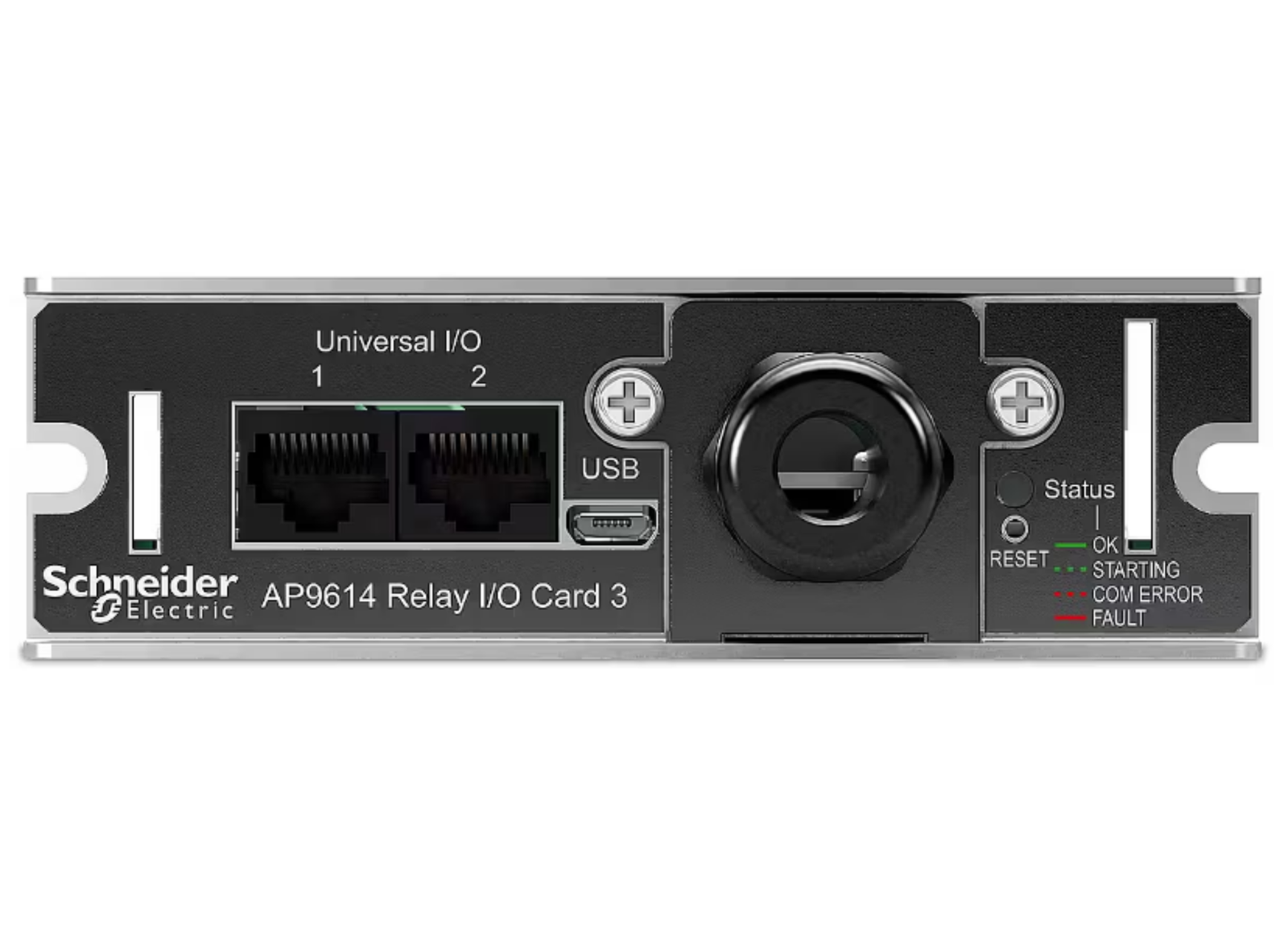

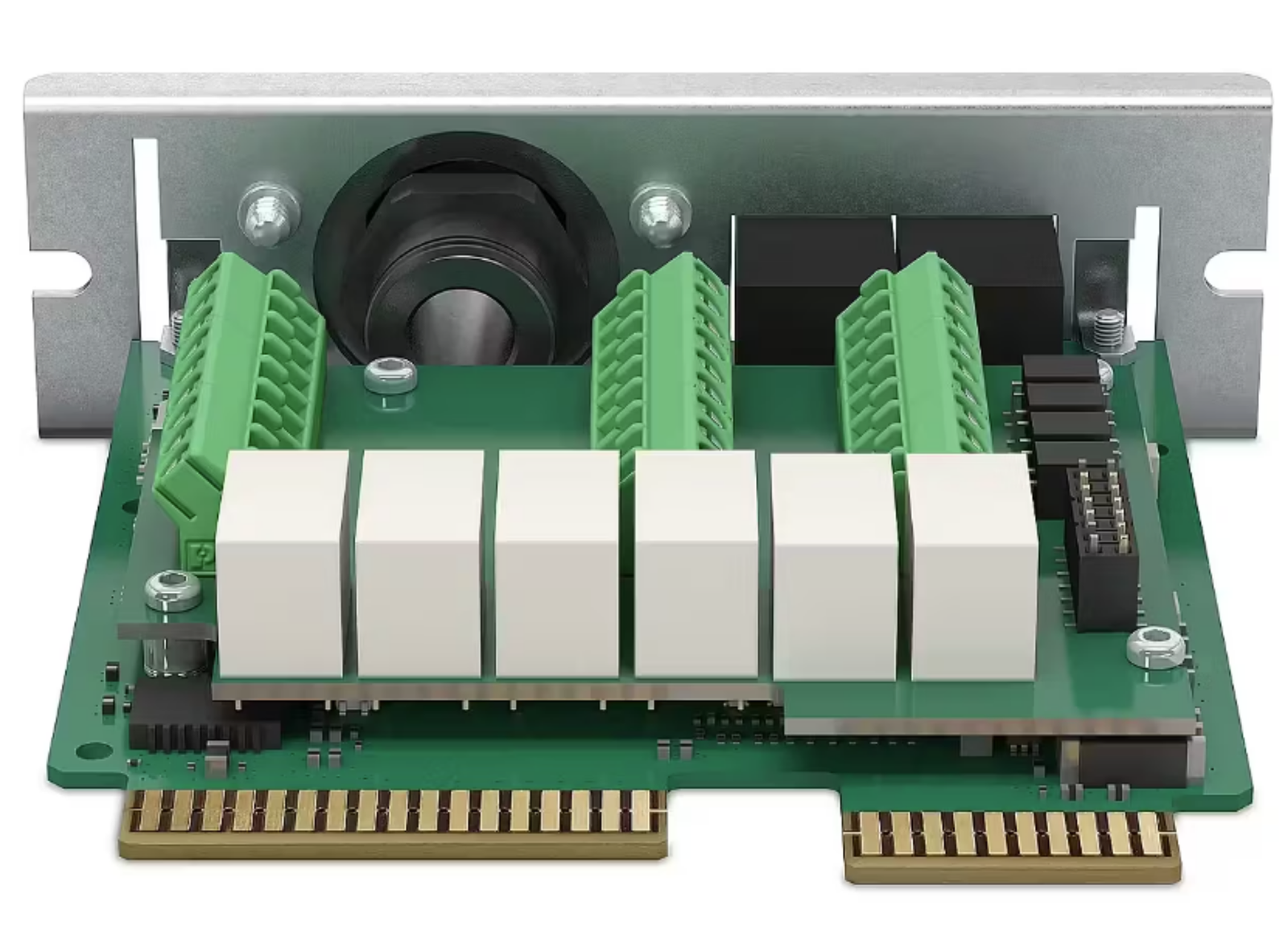

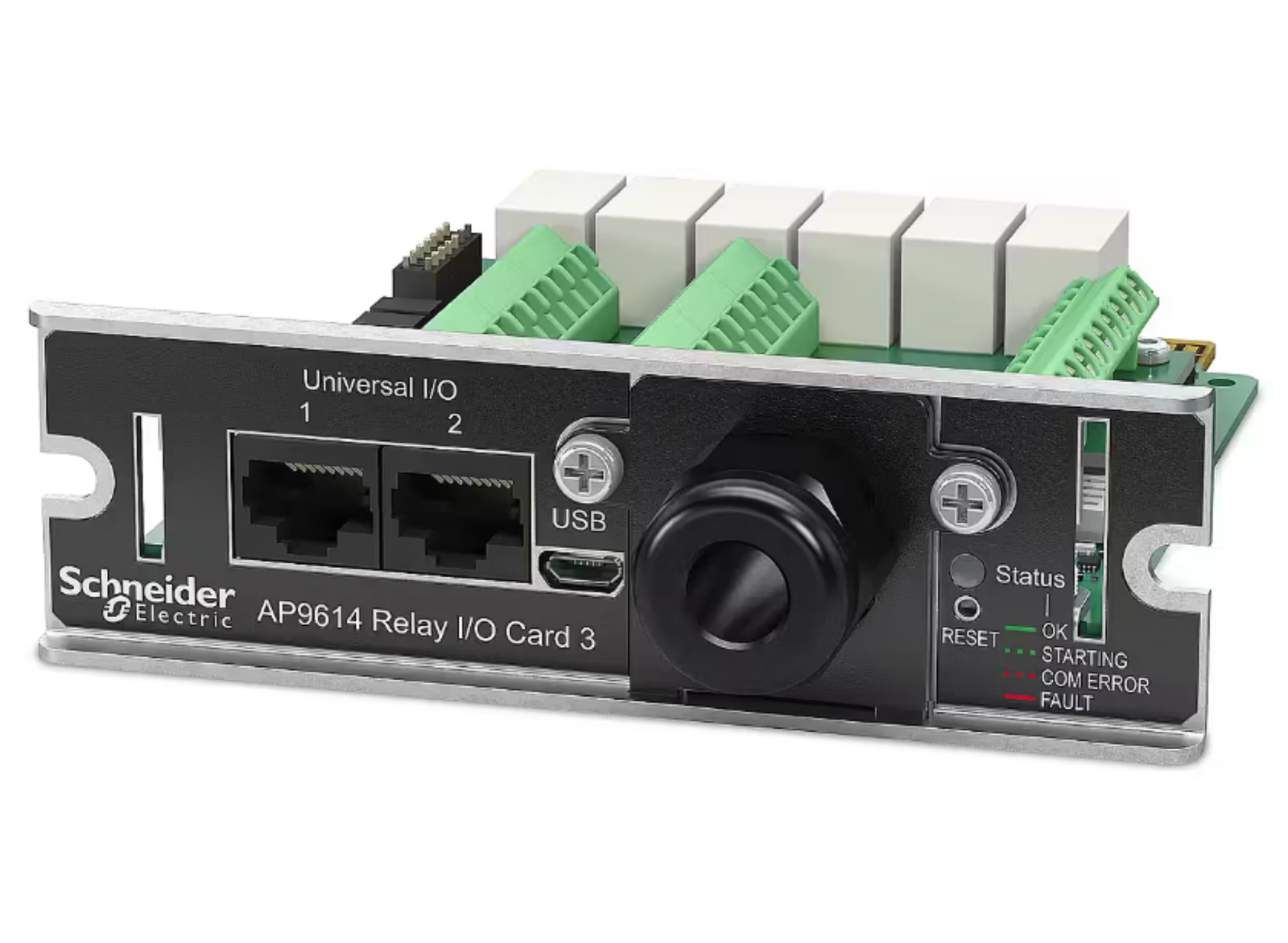

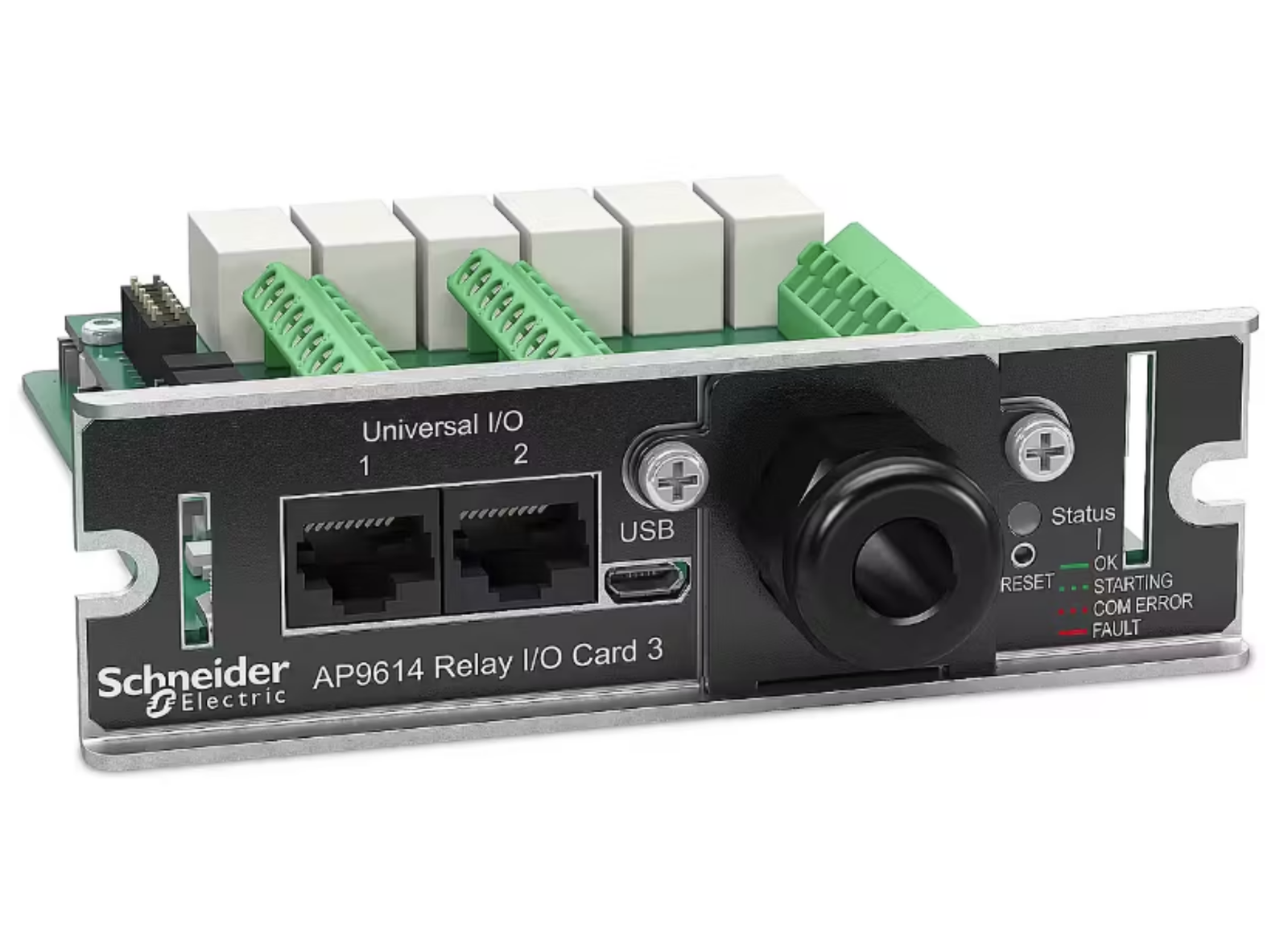

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included micro-USB cable to the Card and a PC to use the dynamic Web UI. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
| Lead time | Usually in Stock | Range of product | Management Options and Cables |
| Provided equipment | User manual, USB cable | Product or component type | Dry contact |
| Number of rack unit | 0U | Cable length | 0.159 m |
| Rated voltage | 24 V | Rated current | 0…200 mA |
| Power supply type | Self powered via SmartSlot | Height | 3.8 cm |
| Width | 12.1 cm | Depth | 12.8 cm |
| Net weight | 0.20 kg | Mounting mode | Not rack-mountable |
| Standards | EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, FCC part 15 class A, FCC CFR 47 part 15, EN 61000-6-3 (2007), BS EN 61000-6-3, EN 55032, BS EN 55032, VCCI class A, CISPR 32, EN/IEC 61000-3-2, AS/NZS CISPR 32, EN 61000-6-1 (2007), EN 55035, BS EN 55024, IEC 62040-2, BS EN 62040-2, EN 61326-2, BS EN 61326-2, BS EN 61000-4-2, BS EN 61000-4-3, BS EN 61000-4-4, EN 61000-4-5, BS EN 61000-4-5, BS EN 61000-4-6, EN 61000-4-8, BS EN 61000-4-8, EN 61000-4-11, BS EN 61000-4-11, BS EN 55035, EN 62040-2, ICES-003 class A, EN 61000-6-3, BS EN 61000-3-2, BS EN 61000-3-3, AS/NZS EN 61000-3-2:2023, AS/NZS EN 61000-3-3:2023 | Ambient air temperature for operation | 0…40 °C |
| Operating altitude | 0...10000 ft, 0...50000 ft | Ambient air temperature for storage | -15…65 °C |
| Storage altitude | 0…15240 m | Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 | Package 1 Height | 5.1 cm |
| Package 1 Width | 16.5 cm | Package 1 Length | 23.8 cm |
| Package 1 Weight | 440 g | Warranty | 24 months |
| Description | Downloads |
|---|---|
| Datasheet | Download |
