This product is part of the Back-UPS range. The BK650EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 35 minutes. It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.03 kg The BK650EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.
| Category | Description |
|---|---|
| Main | |
| Run time for load | 400 W |
| Min-max power | 40-400 W |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 400 W |
| Rated power in VA | 650 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 60320 C14 |
| Output Connection Type | 3 IEC 60320 C13, 1 IEC 60320 C13 surge, 2 IEC Jumpers surge |
| Number of cables | 2 |
| Battery type | Lead-acid battery |
| Provided equipment | CD with software, Documentation CD, 2 x detachable IEC C13 to IEC C14 power cords, USB cable |
| Batteries & Runtime | |

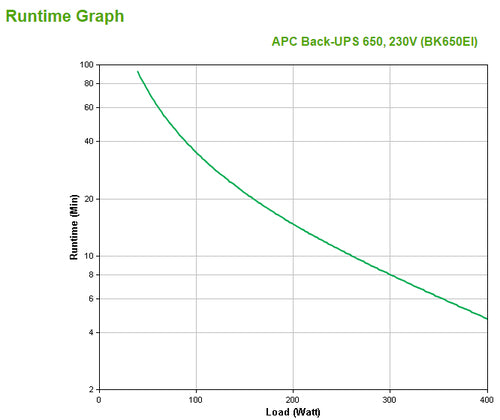

| Run Time | 3min 35s |
| Battery recharge time | 8 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 12 V |
| Battery capacity | 9.0 Ah |
| Battery charger power | 12 W rated |
| Battery power in VAH | 111 VAh capacity, 111 VAh runtime |
| Battery life | 4-6 year(s) |
| Replacement battery | RBC17 |
| Physical | |
| Colour | Beige |
| Height | 16.5 cm |
| Width | 9.1 cm |
| Depth | 28.4 cm |
| Net weight | 6.03 kg |
| Mounting location | Front |
| Mounting mode | Not rack-mountable, Two post mountable |
| USB compatible | Yes |
| Input | |
| Network frequency | 47-63 Hz |
| Input voltage limits | 160-286 V adjustable, 180-266 V |
| Maximum input current | 7 A |
| Switching current capacity | 7 A |
| Output | |
| Maximum configurable power in W | 400 W |
| Output frequency | 47-63 Hz sync to mains, 50/60 Hz +/- 1 Hz unsynchronised |
| UPS type | Standby |
| Wave type | Stepped approximation to a sinewave |
| Maximum configurable power in VA | 650 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| Environmental | |
| Ambient air temperature for operation | 0-40 °C |
| Relative humidity | 5-95 % |
| Operating altitude | 0-10000 ft |
| Ambient air temperature for storage | -15-45 °C |
| Storage Relative Humidity | 5-95 % |
| Storage altitude | 0.00-15240.00 m |
| Acoustic level | 45 dBA |
| Communications & Management | |
| Control panel | LED status display with on line, on battery, replace battery, and overload indicators |
| Alarm | Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rate | 310 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 49.4 cm |
| Package 1 Width | 18.5 cm |
| Package 1 Length | 41.5 cm |
| Package 1 Weight | 7.31 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 132.5 cm |
| Package 2 Width | 100 cm |
| Package 2 Length | 120 cm |
| Package 2 Weight | 510.86 kg |
| SCC14 | 10731304219788 |
| Contractual warranty | |
| Warranty | 2 years repair or replace |
