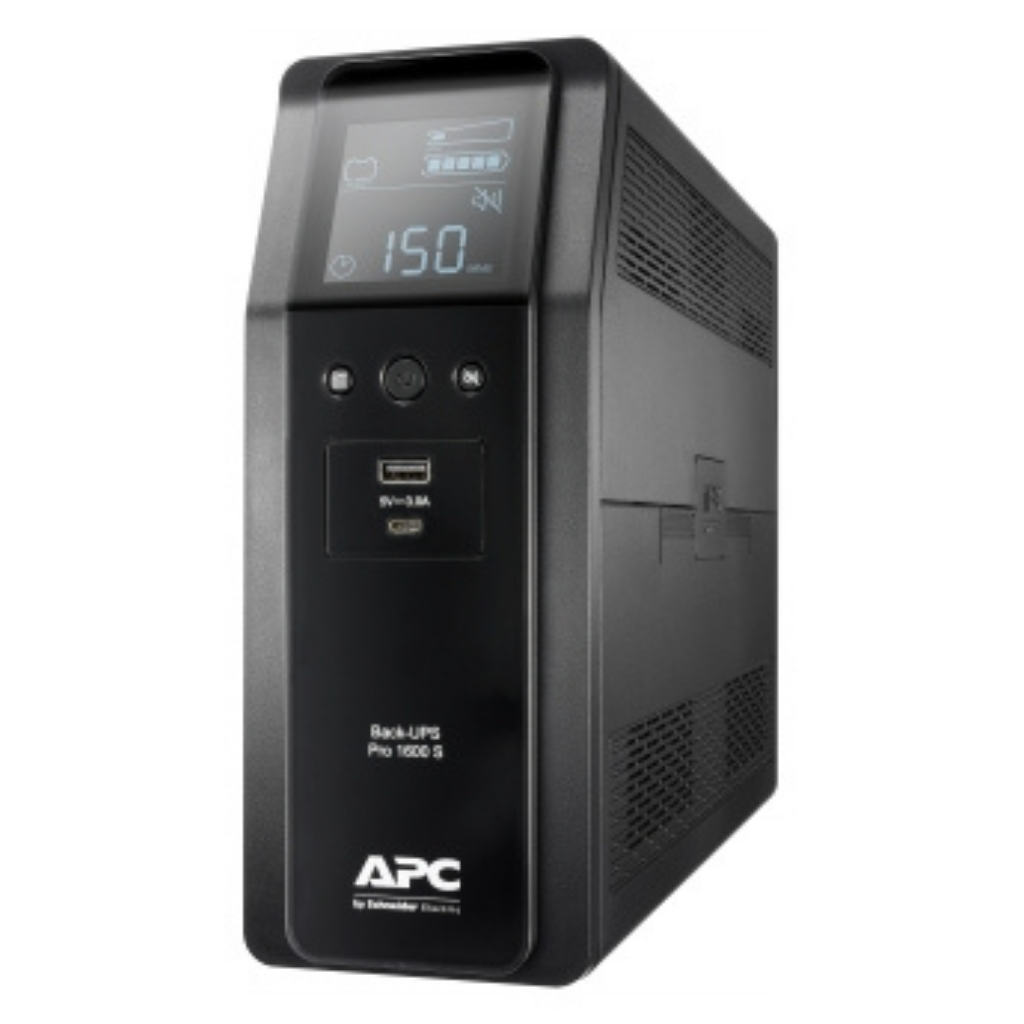

This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 1600VA tower UPS has 8 total outlets, 6 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 509 Joules. It has 2 USB ports (Type A + C) for smart charging of personal devices. Its runtime at 100 Watts is 1 hour 18 minutes. Its dimensions are 26 x 10 x 36.8 cm and 12.1 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Category | Description |
|---|---|
| Main | |
| Run time for load | 960 W |
| Min-max: | 96-960 W |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 960 W |
| Rated power in VA | 1600 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 60320 C13 |
| Output Connection Type | 6 IEC 60320 C13, 2 IEC 60320 C13 surge |
| Battery type | Lead-acid battery |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 16 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 24 V |
| Battery capacity | 9.4 Ah |
| Battery charger power | 16 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC163 |
| Extended runtime | 0 |
| General | |
| Provided equipment | User manual, USB cable |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black |
| Height | 26 cm |
| Width | 10 cm |
| Depth | 36.8 cm |
| Net weight | 12.1 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable, Two post mountable |
| USB compatible | No |
| Input | |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Input voltage limits | 176...294 V |
| Maximum input current | 10 A |
| Switching current capacity | 10 A |
| Output | |
| Maximum configurable power in W | 960 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Maximum configurable power in VA | 1600 VA |
| Conformance | |
| Product certifications | A-Tick, C-Tick, CE, EAC, RCM, TISI |
| Marking | GS Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 45 dBA |
| Heat dissipation | 19.5 Btu/h |
| Communications & Management | |
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rate | 509 J |
| Noise suppression | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 35.9 cm |
| Package 1 Width | 48.2 cm |
| Package 1 Length | 22.3 cm |
| Package 1 Weight | 13.75 kg |
| SCC14 | 10731304346927 |
| Logistical information | |
| Country of origin | PH |
| Contractual warranty | |
| Warranty | 2 years repair or replace, 3 years repair or replace for European Union countries |
| Description | Downloads |
|---|---|
| BR1600SI:Datasheet | Download |
| BR1600SI:User Guide | Download |
