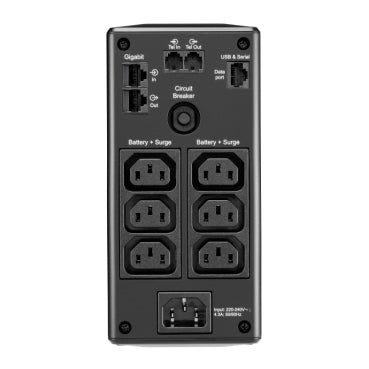

This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 650VA tower UPS has 6 total outlets, 3 of which are battery back up and surge protection, and 3 that are surge protection only. It has a surge energy rating of 557 Joules. Its runtime at 100 Watts is 25 minutes. Its dimensions are 19 x 9.1 x 31 cm and 6.4 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Main | |
|---|---|
| Run time for load | 2min 44s |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 390 W |
| Rated power in VA | 650 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 60320 C13 |
| Output Connection Type | 6 IEC 60320 C13 |
| Battery type | Lead-acid battery |
| Batteries & Runtime | |
| Battery recharge time | 12 h |
| Battery voltage | 12 V |
| Battery capacity | 7.0 Ah |
| Battery charger power | 6 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC110 |
| Extended runtime | 0 |
| General | |
| Provided equipment | User manual, USB cable |
| Number of power module... | 0 |
| Redundant | No |
| Physical | |
| Height | 19 cm |
| Width | 9.1 cm |
| Depth | 31 cm |
| Net weight | 6.4 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Input | |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Input voltage limits | 176...294 V |
| Maximum input current | 10 A |
| Switching current capacity | 10 A |
| Output | |
| Maximum configurable... | 390 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Maximum configurable... | 650 VA |
| Transfer time | 10 ms typical : 12 ms maximum |
| Conformance | |
| Product certifications | A-Tick, C-Tick, CE, EAC, RCM, TISI |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Environmental | |
| Operating altitude | 0...10000 ft |
| Storage altitude | 0.00…15240.00 m |
| Communications & Management | |
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Noise suppression | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.5 cm |
| Package 1 Width | 14.3 cm |
| Package 1 Length | 44 cm |
| Package 1 Weight | 7.4 kg |
| SCC14 | 10731304346934 |
| Contractual Warranty | |
| Warranty | 2 years repair or replace, 3 years repair or replace for European Union countries |
| Description | Downloads |
|---|---|
| BR650MI:Datasheet | Download |
| BR650MI:User Guide | Download |
